Portable Sample Bending Cutting Polishing And Abrasion Micrograph Measurement System

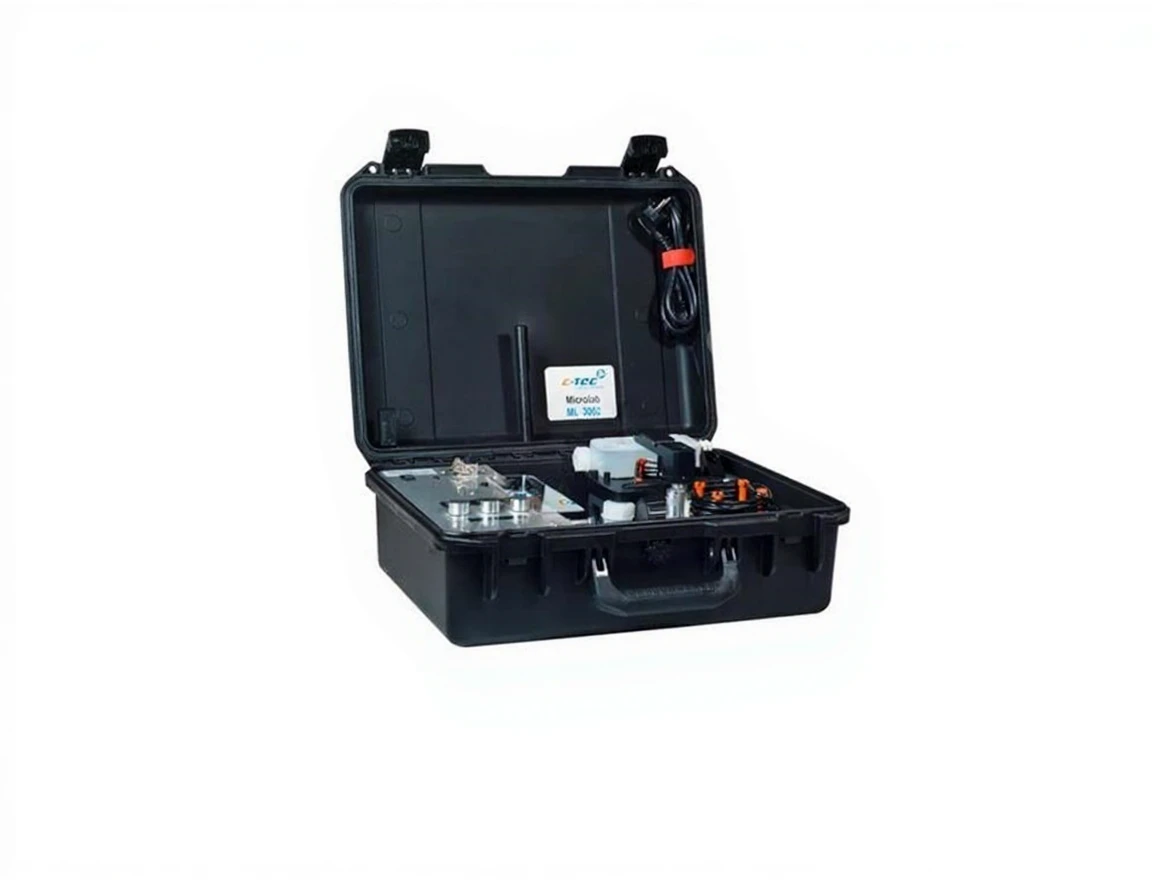

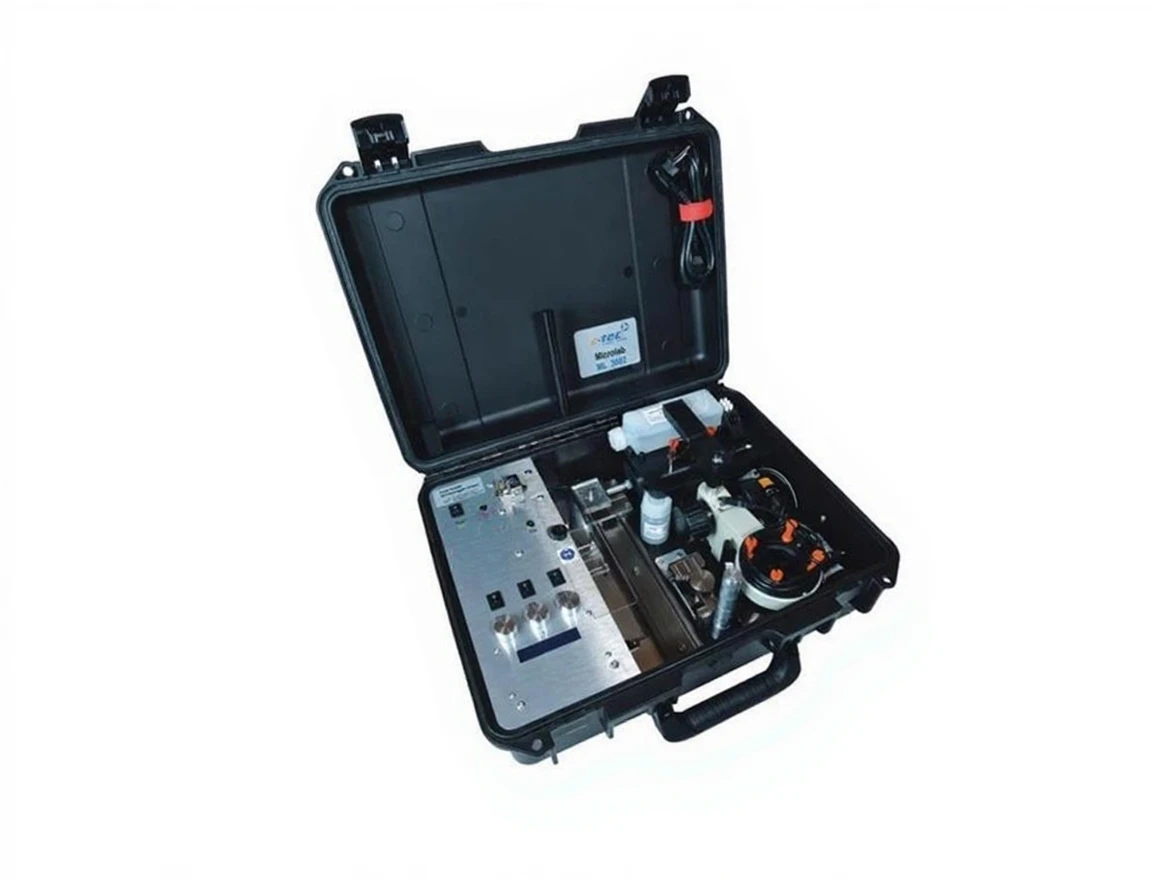

Microlab ML 3002 facilitates the reliable processing of micro samples anywhere without an electrical connection. The device can operate for about eight hours with a fully charged battery. A sample holder is included for samples up to 4 mm2.

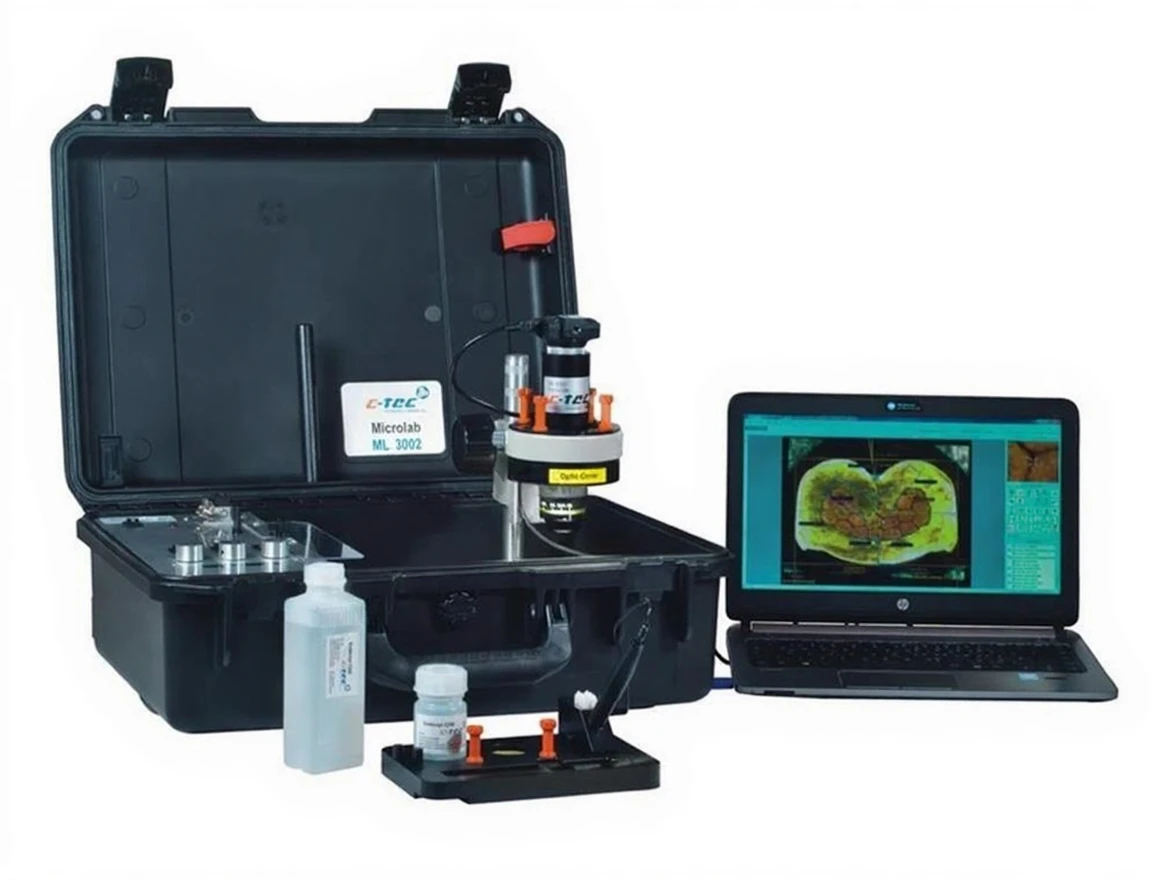

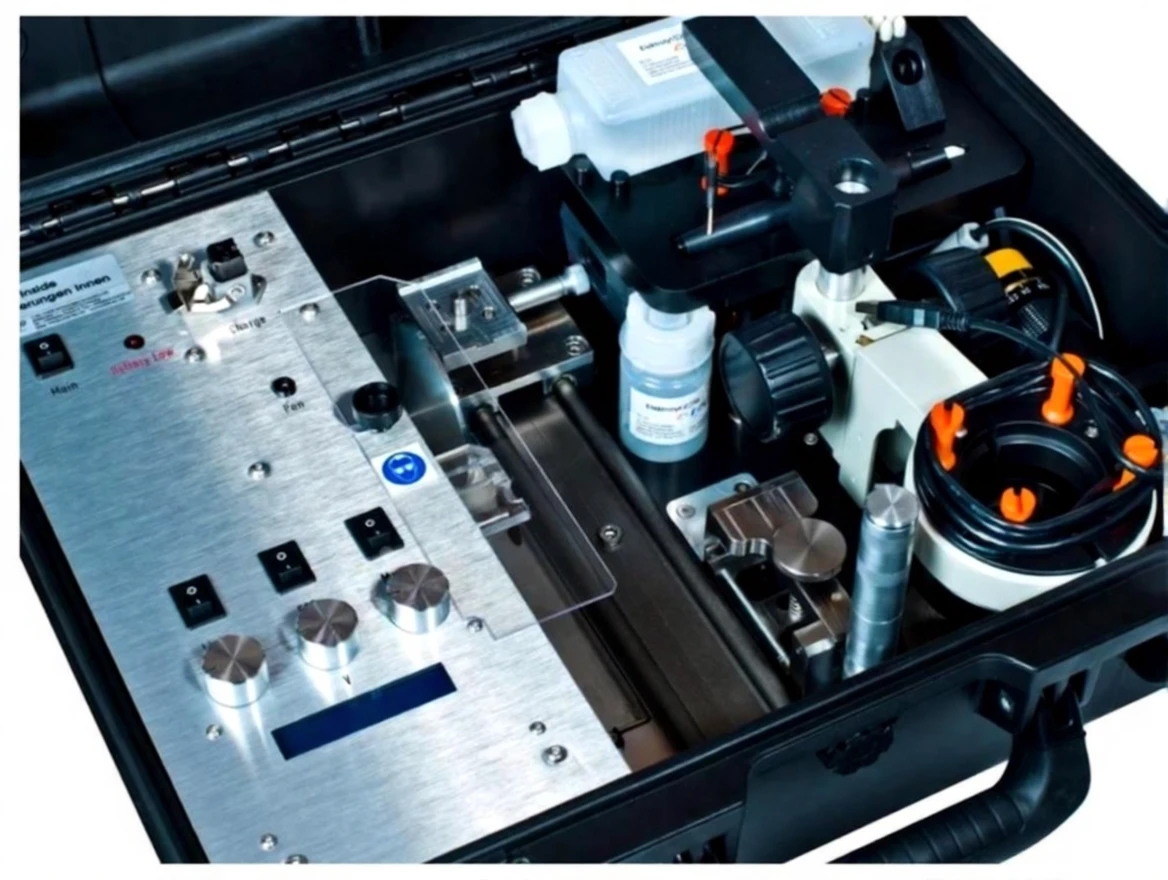

After compressing the sample, the holder is placed on a guide rail, and the sample passes through by manually directing it to the cutting and grinding station. The holder will then be removed from the rail and placed under the microscope. The electronic fine polishing unit EFP can now begin the polishing process. The polishing pen with electrolyte liquid will be applied to the cut surface of the test piece fixed to the sample holder. The “cleaning” process can be monitored on the screen. When the individual wires of the BENDING can be clearly seen, the analysis and measurement of the bending section can be initiated.

For more information about our image processing software X-Scan, please refer to the relevant data sheet.

Laptop or PC is not included in the standard delivery and must be requested separately.

Performance Features
– Fully equipped laboratory in a handy case

– Ready to work in about 90 seconds

– Standard sample holder for sections up to 4mm2

– Short processing time between 3-5 minutes

– Operates on battery, no power connection required

– Special cutting disk suitable for stainless steel

– Referencing with pre-calibrated indicators

– Finish grinding with grain 1200
