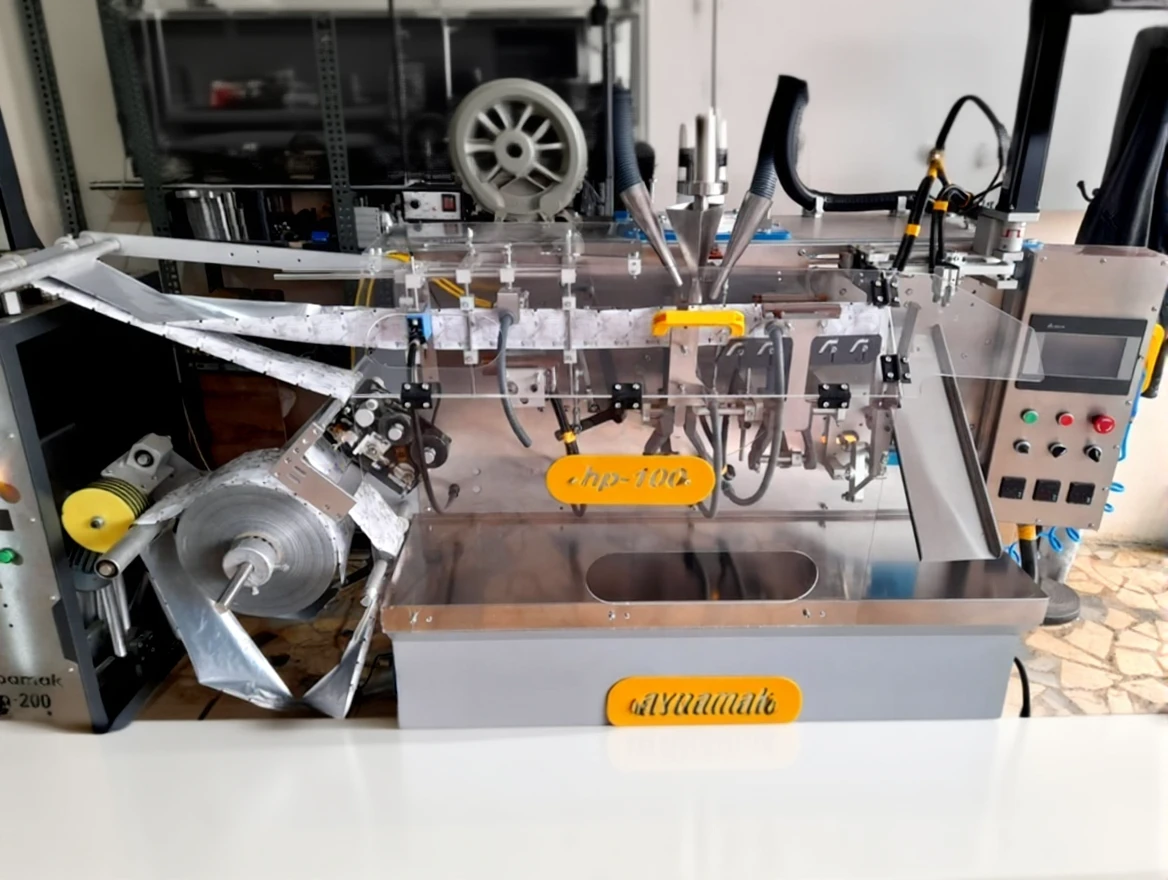

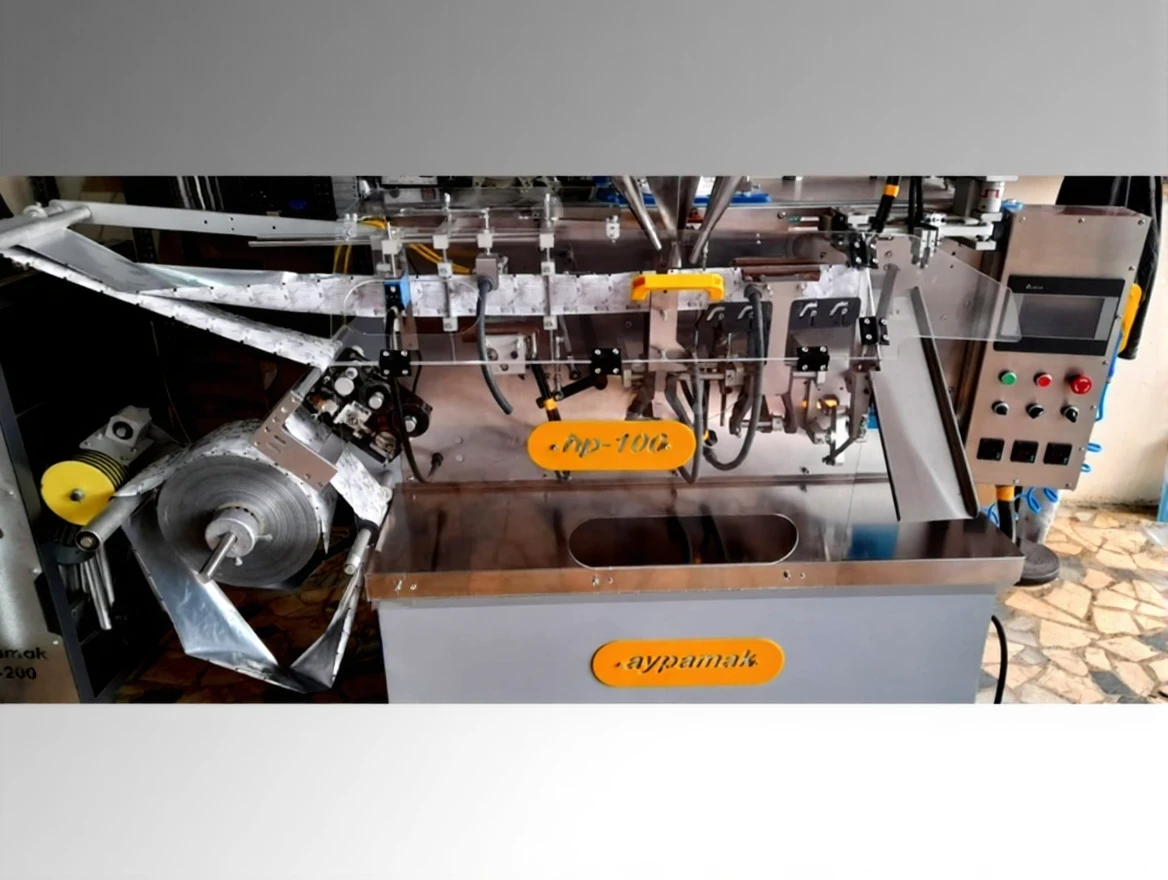

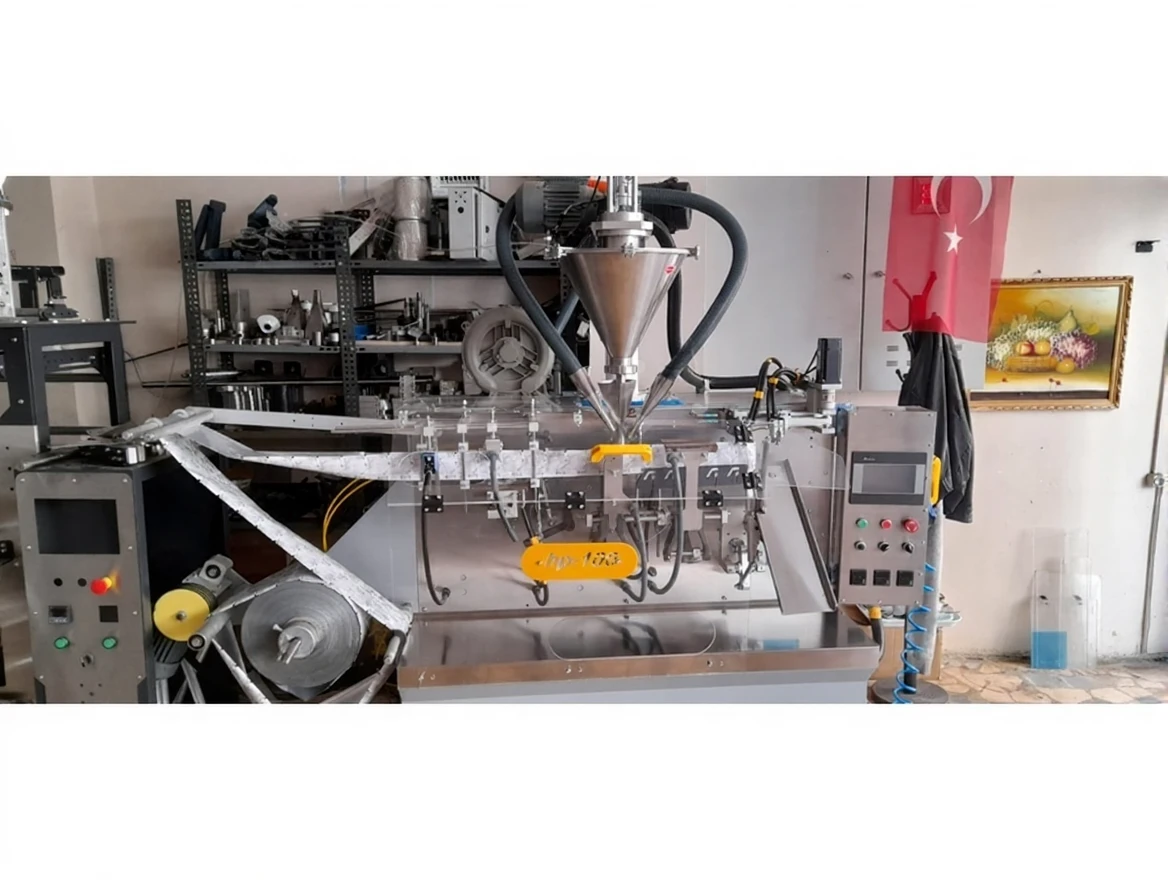

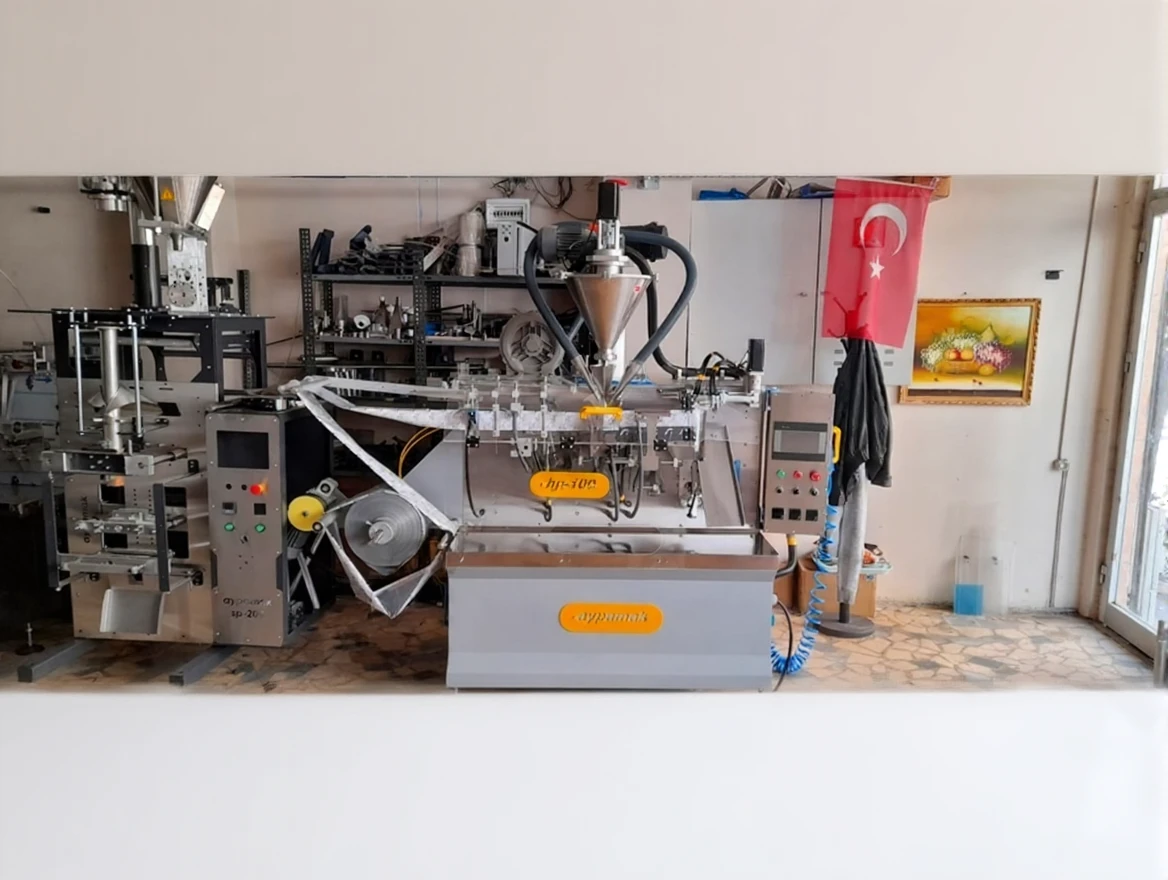

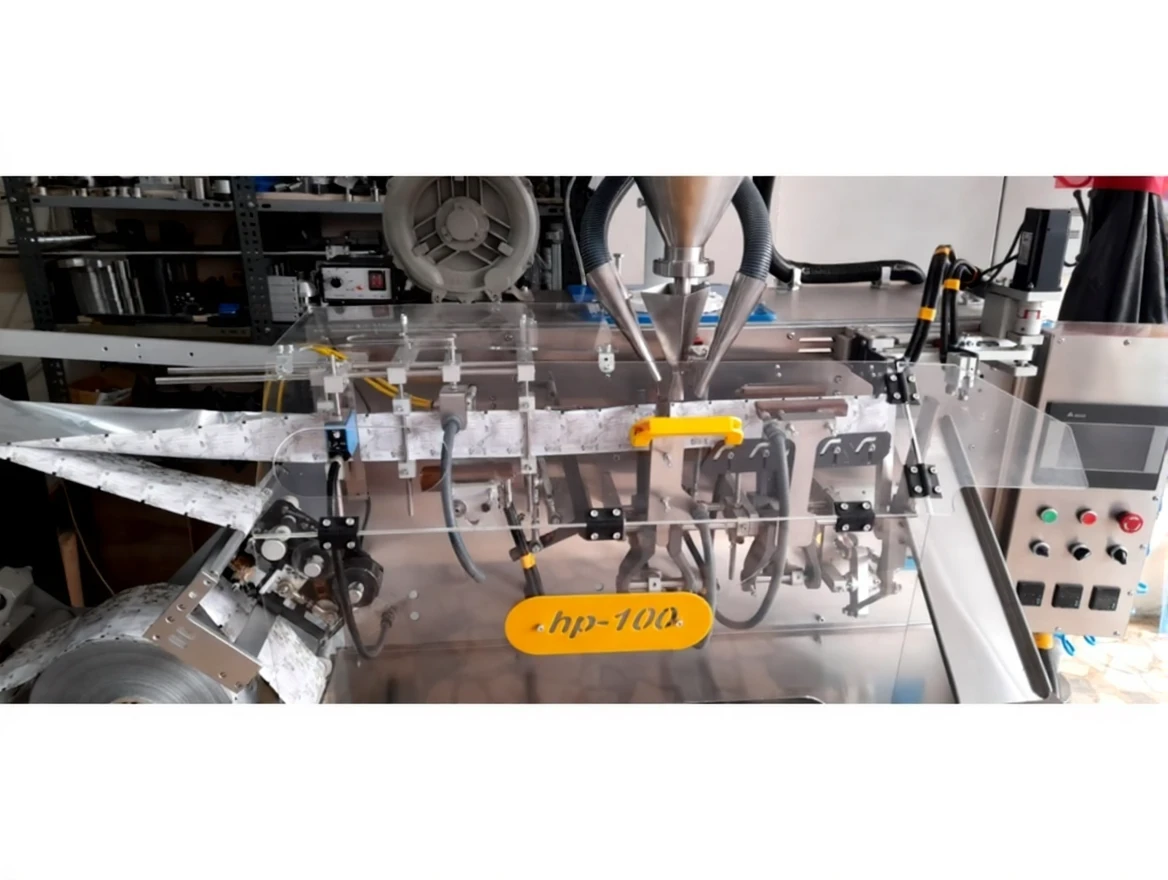

Powder Filling Packaging Machine Aypamak HP-100

• Spice Packaging, Powder Drink Packaging, Coffee Packaging, Baking Powder Packaging, Vanilla Packaging, Nescafe Packaging, Protein Packaging, Medicine Filling Packaging, Pudding Packaging, Cocoa Packaging, Baking Soda Packaging, Salt and Sugar Packaging, Herbal Tea Packaging, Cosmetic Packaging

  Machine Technical Specifications:

• Synchronizes with packaging speed and different package widths, the film opening and filling funnel mixer is automatic.
• The body and other parts of the machine are protected against corrosion by stainless steel cladding.
• There is a cutting or tearing opening apparatus that allows easy opening of the package for post-sale product use.
• Suitable for production in different package sizes. The flowability and filling amount of the product change the packaging speed depending on the package width. It packages fluid powder products between 1-60 grams. For 10 grams, it fills an average of 60 to 85 packages per minute.
• In accordance with occupational safety and energy efficiency, a transformer providing 48v electricity is used in the adhesive that seals the edges of the package.
• German-made, fast, reliable, durable, long-lasting, easily adjustable photoelectric spot sensors are used.
• Uses self-sharpening, double-sided package cutting blades with a minimum lifespan of 2 years.
• Special mechanical motion cams made of hardened steel for long life against wear.
• 7″ Touch Screen that allows flexible operation in a parametric program structure for different packages, products, and weights.
• 200 Hz Communication Speed in PLC.
• 0.75 kw Schneider Main Motor Driver, Schneider switchgear, and German Phonix Relay.
• Thanks to the Servo Motor Pulling System, there is no waste as the package reaches its length with the first package. Additionally, there is software that minimizes printing and material errors in the packaging.
• The minimum package width is 53mm. A maximum package width of 125mm can be obtained. For narrower packages, the blade can apply pre-package pulling. The minimum package height is 50mm while the maximum is 150mm. (The open foil size is 300mm)
• Thanks to the holding and cutting system, you get wrinkle-free, sturdy, smooth, and square finished packages.
• Feeding elevator, Date Coding System, and Powder intake can be used. (optional)
• Filling servo motor control minimizes weight errors. Different filling speeds can be applied for different products.
• 100% domestic production. 2-year warranty. Training Service Installation is free. It has a user-friendly parametric program and guarantees free software provision for a lifetime.
• The manufacturing, assembly, electrical, programming, software, and automation of mechanical parts are entirely done within our company, allowing for quick resolution of service and malfunctions.
• 24/7 free support in manufacturing, filling, and packaging processes.
