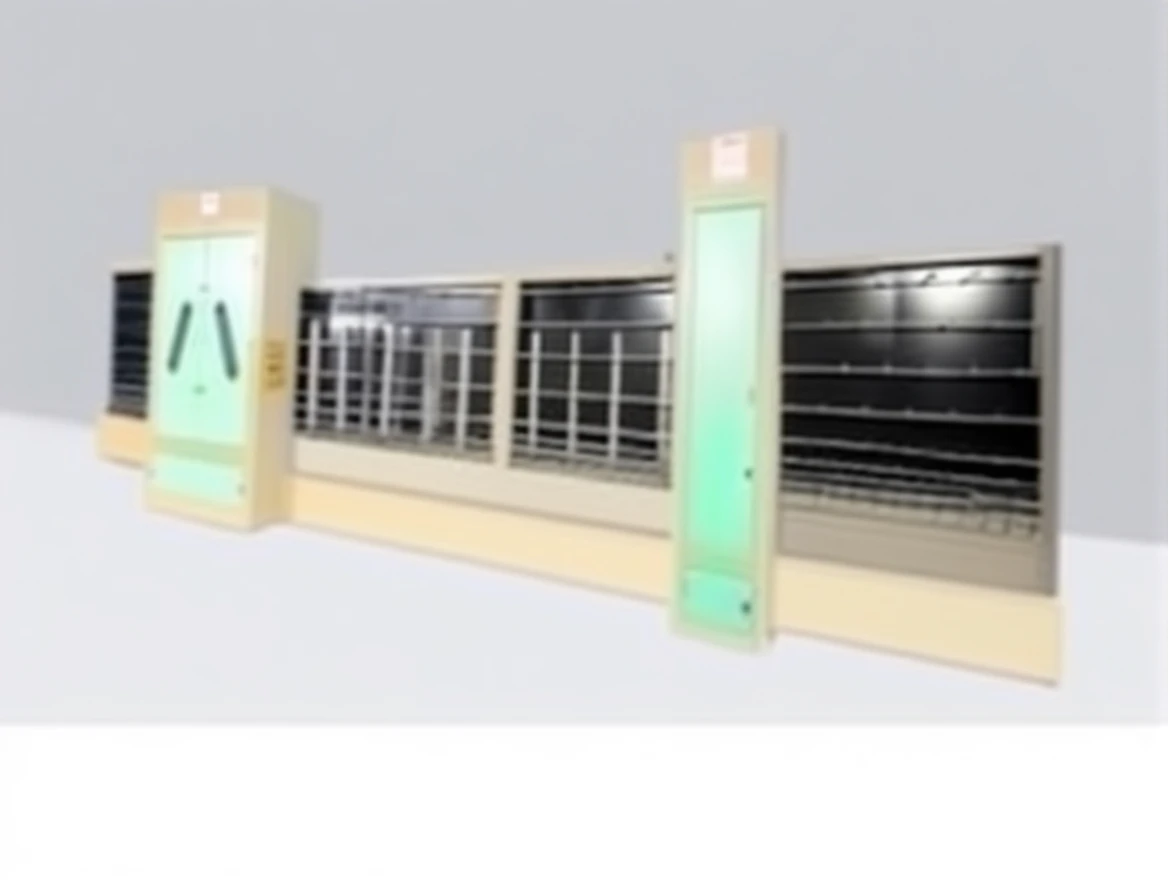

Presley Hat Glass Washing Machine (2000×2700 Mm)

Brand Özmen Makina
Model Type

Ö-CYM-1

Description

 Presli Hat Glass Washing Machine

ZMEN MACHINE -CYM-1



PRESS HAT GLASS WASHING MACHINE(SIX-HEAD)
1-Stainless steel and sound-insulated washing chamber
2-Washing chamber balanced at high speed
3-4 or 6 brushes
4-Speed-controlled glass conveyance
5-High-precision brushes capable of washing coated glass
6-Homogeneous brush contact at different glass thicknesses
7-Fan-assisted drying unit with temperature control and sound-insulated cabin
8-Heated, stainless steel water tank
9-Level control system in the water tank with a float
10-Left to right working direction
11-Manufactured in two versions: press line cylinder and panel
12-SIMENS is used in electrical accessories.

TECHNICAL SPECIFICATIONS
1-Processable Size: 170X350 mm max. 2000X2700 mm
2-Voltage: 400V 3 NPE AC
3-Frequency: 50 Hz
4-Total Power: 30 Kw
5-Length: 13000 mm
6-Width:1000 mm
7-Height: 3200 mm
8-Weight: 1900 kg
