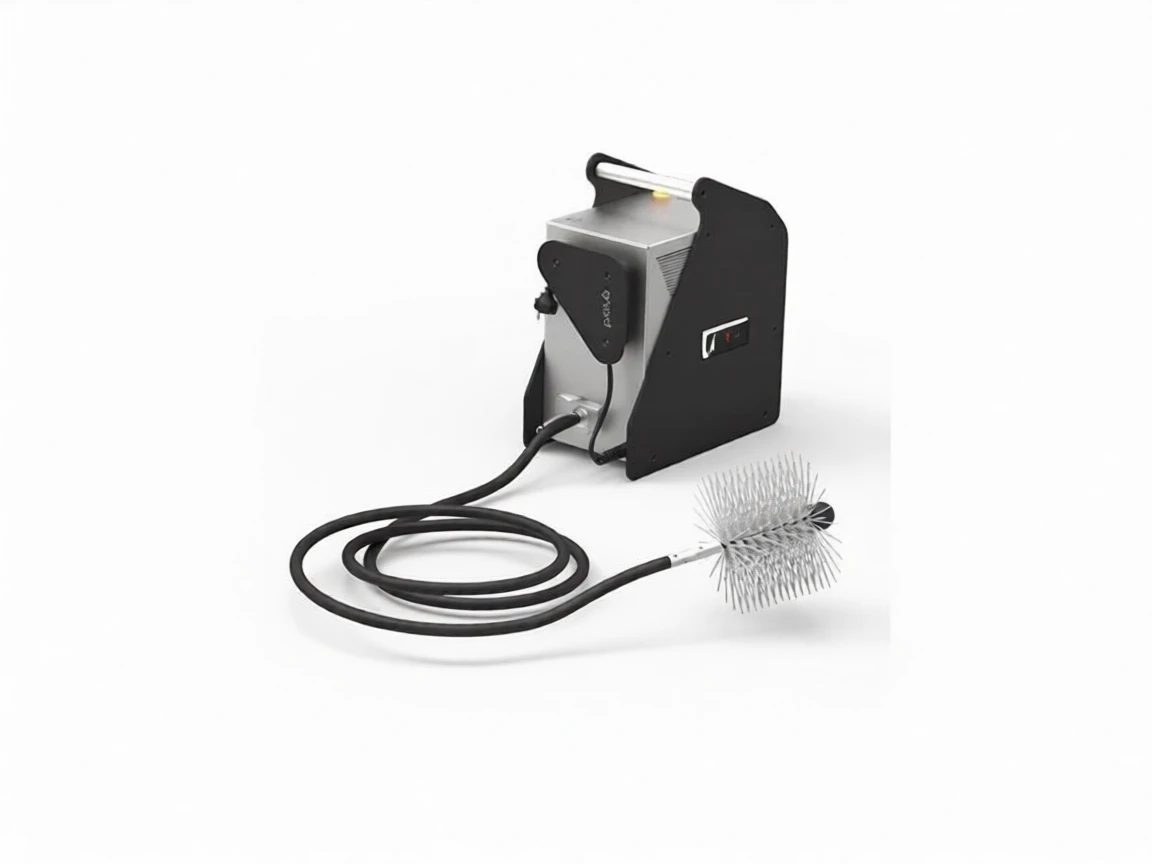

Protub Chimney, Boiler and Exchanger Cleaning Machine

Brand Teinnova
Model Type

ICS Protub

Description

Teinnova ICS Protub | Chimney, Boiler and Exchanger Cleaning Machine (Waterflow Option)

Versatile Cleaning: The Only Solution for Chimneys, Pipes, and Heat Exchangers

ICS Protub is a versatile device that ensures the professional cleaning of soot, lime, and particles accumulated in chimneys, fire-tube and water-tube boilers, exchangers, and industrial pipelines.
Its compact design, adjustable speed, and optional wrist-type remote control support allow you to safely perform challenging cleaning tasks with a single operator.

Technical Specifications

Operating Voltage: 220 V / 50Hz

Motor Power: 0.37 kW / 0.5 HP

Motor Speed: 0 – 3000 r.p.m.

Motor Working Speed: 0 – 500 r.p.m.

Direction of Rotation: Right / Left

Control System: Electric

Dimensions (WxDxH):  436 x 221 x 457 mm

Weight: Approximately 17 kg

Material: Stainless steel and HDPE body

Shaft Length: 10 m and 15 m (10 m for Ø6 mm shaft / 15 m for Ø 10 mm shaft)

Waterflow Technology (Optional)

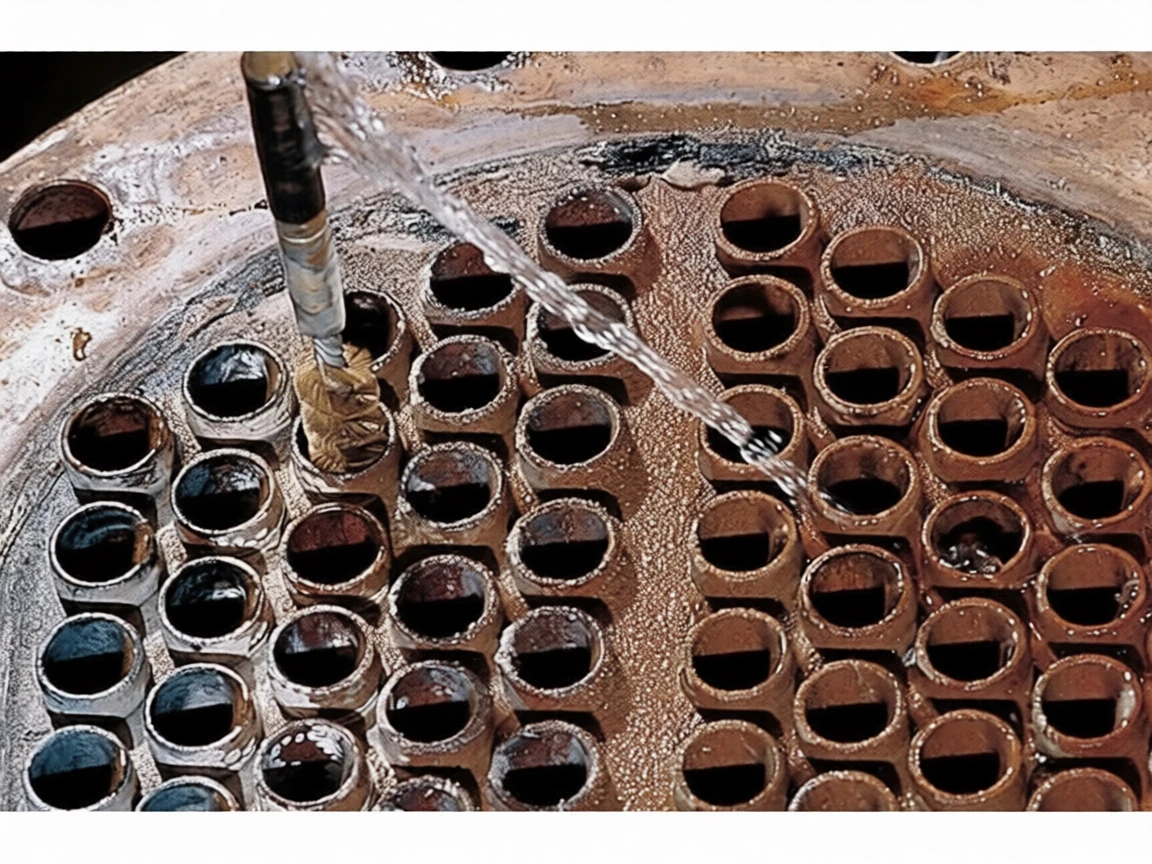

The optional Waterflow water injection technology provides water-assisted cleaning during brushing.
This achieves particularly effective results against blockages, scaling, and drying inside exchangers.

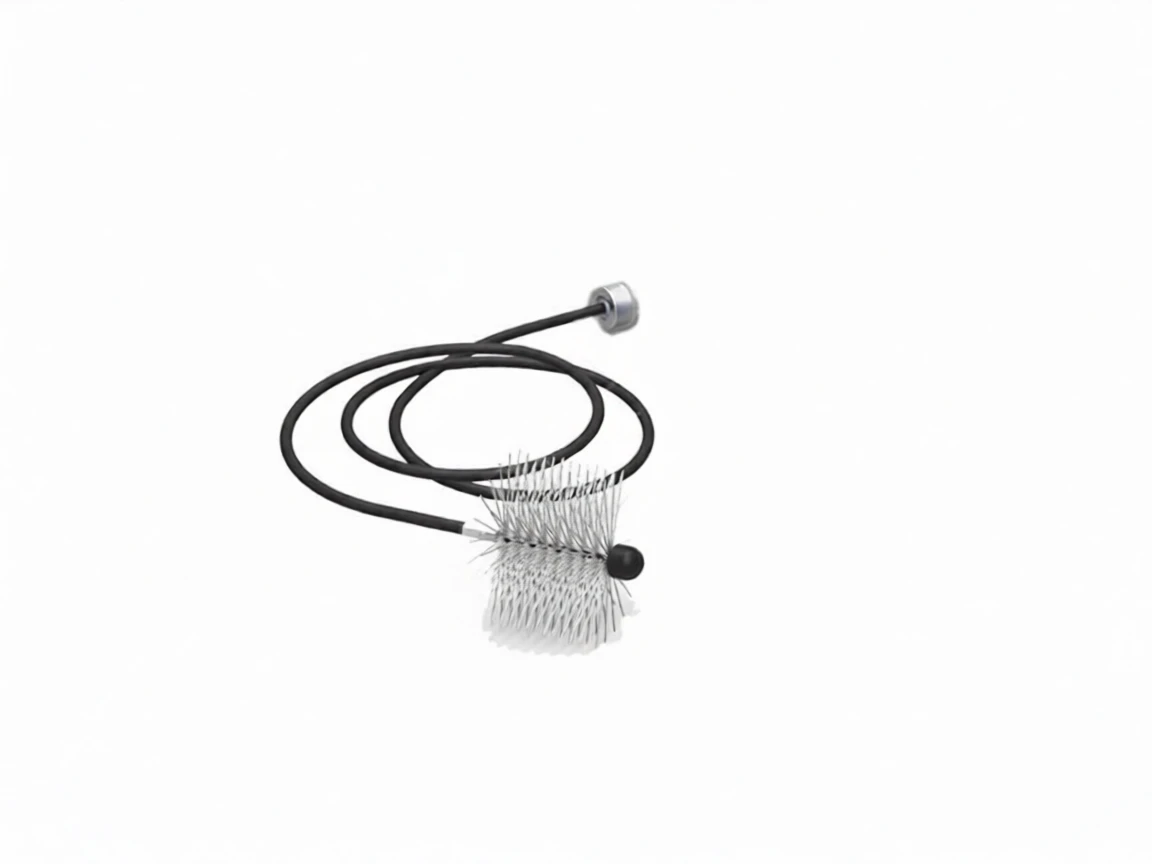

Brush Systems

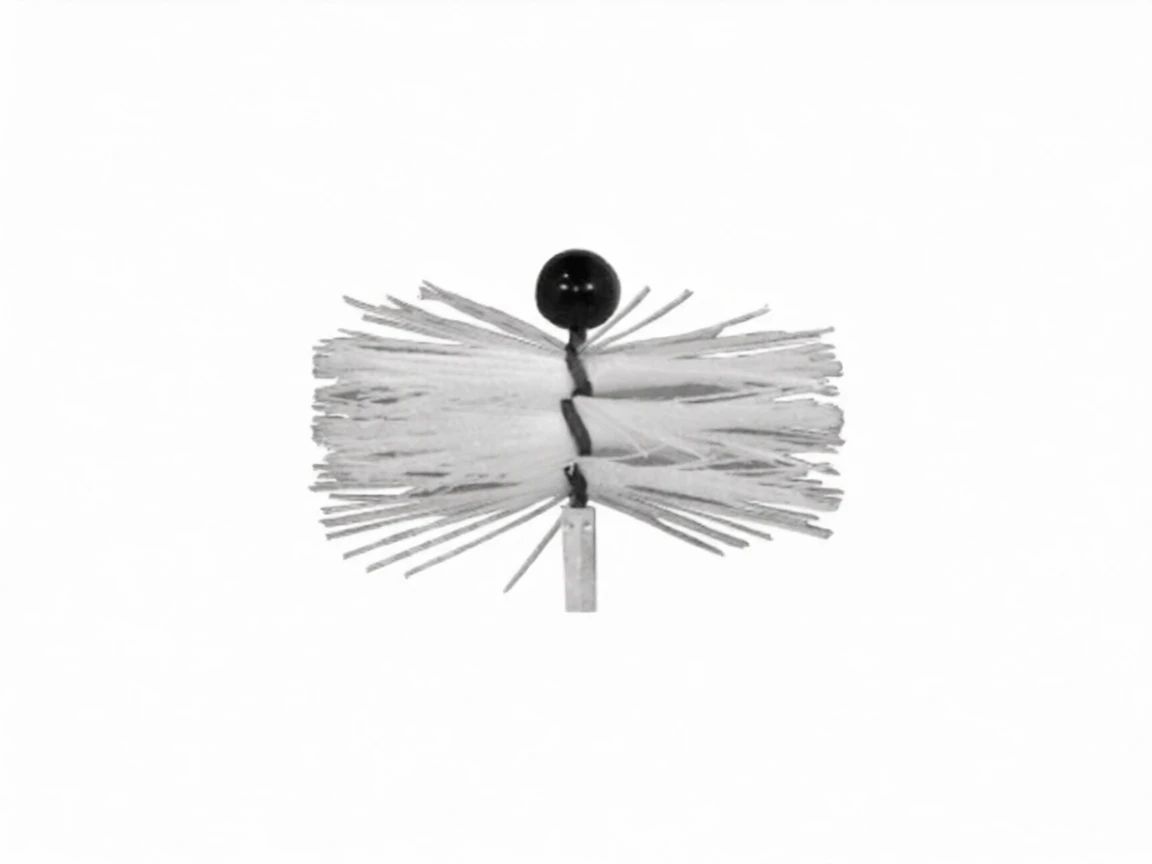

Durable nylon or steel brushes for adaptable cleaning of different surfaces

Different brush diameter options specifically for chimneys, pipes, and exchangers

Areas of Application

Solid fuel or gas chimney systems

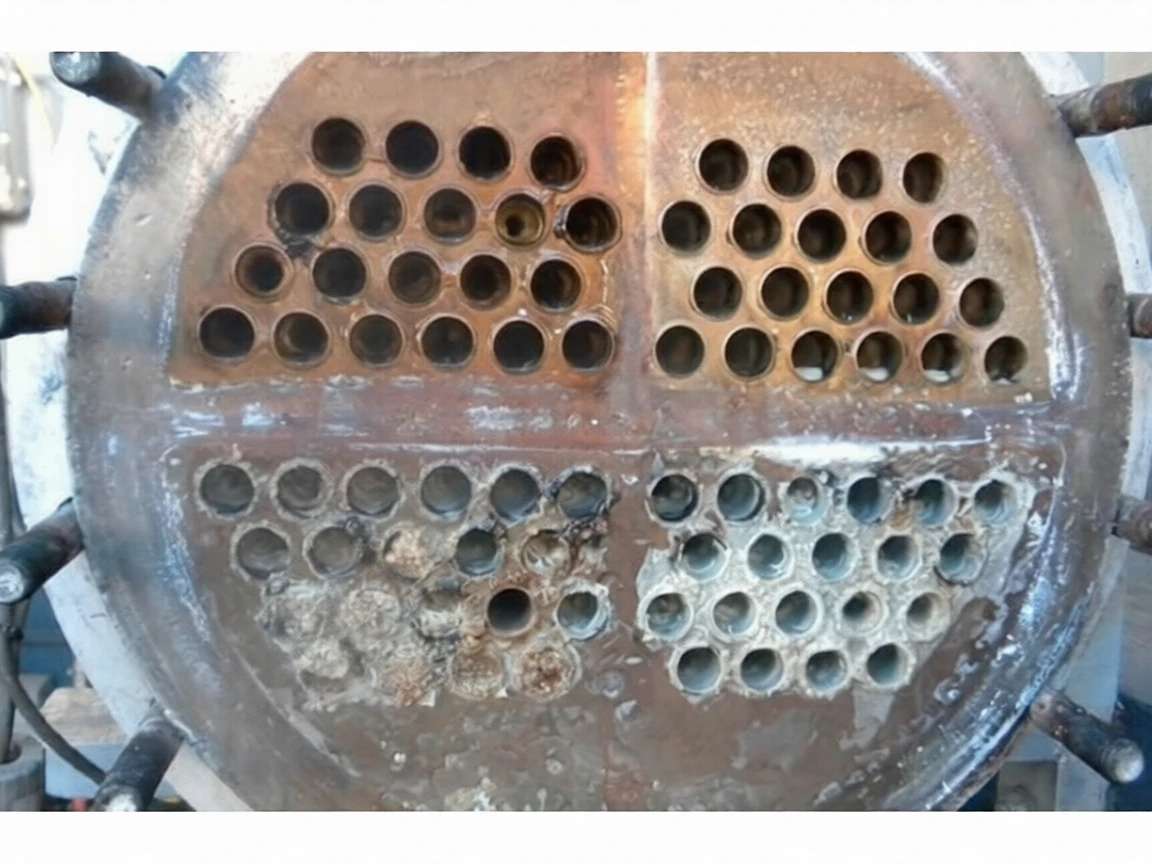

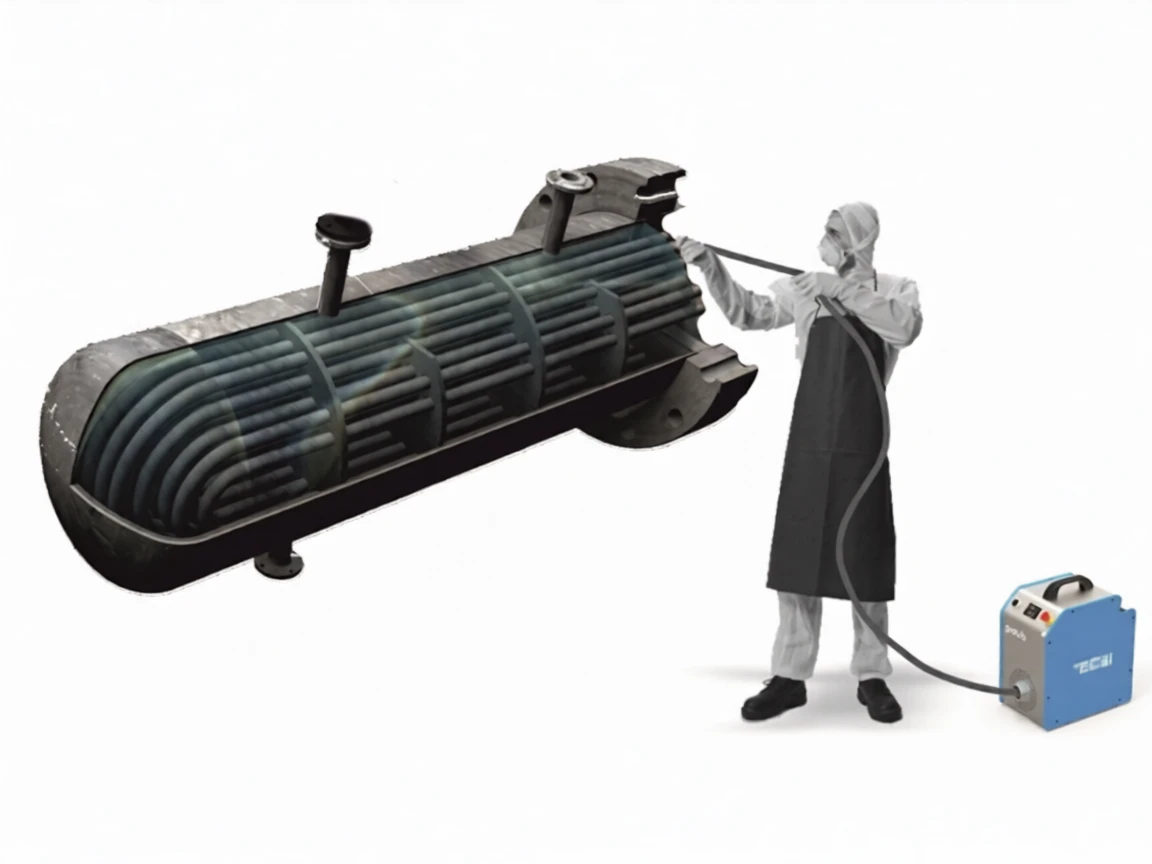

Heat exchangers and tube bundles

Pyrotubular / Aquatubular boilers

Boiler rooms in industrial facilities, hotels, and public buildings

Efficiency and Safety

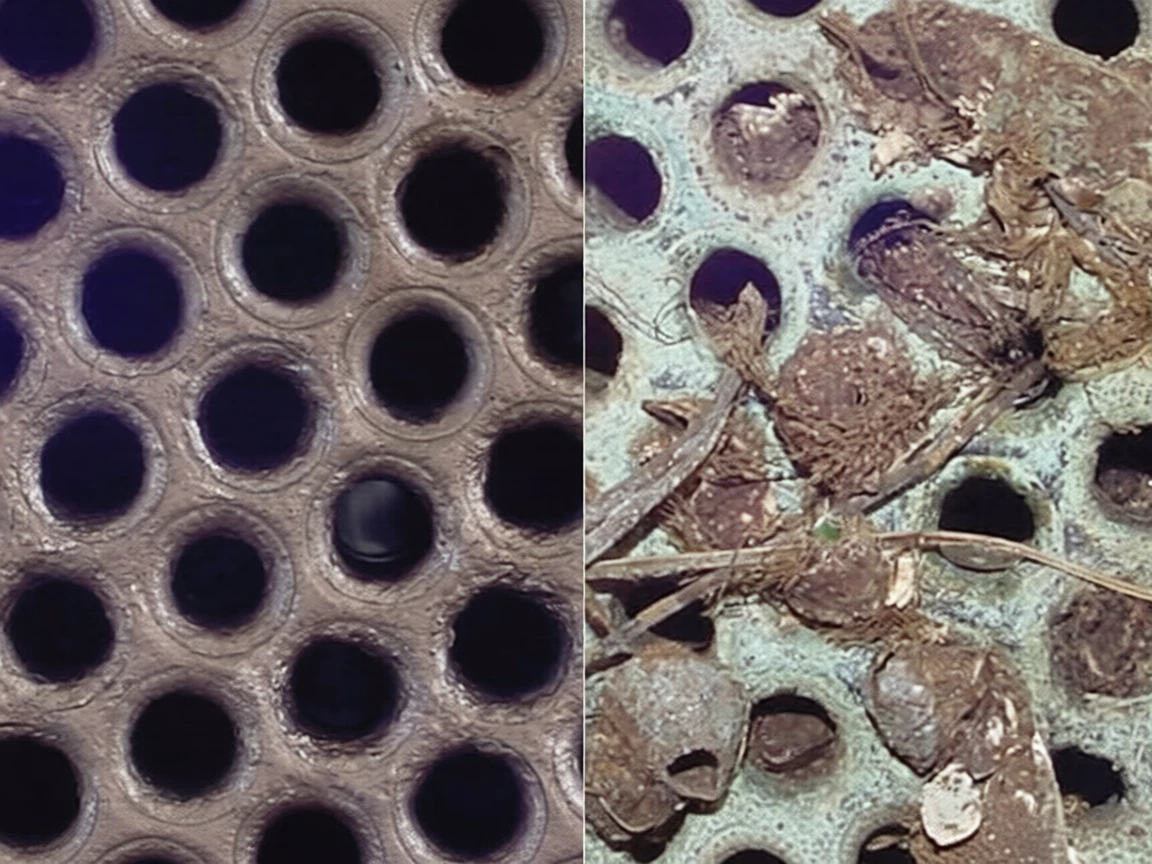

Lime and particles that accumulate over time in heat exchangers reduce system efficiency and lead to failures.
ICS Protub professionally solves this problem with abrasive brushing power and optional water injection. It also reduces the risk of carbon monoxide and the possibility of fire.
