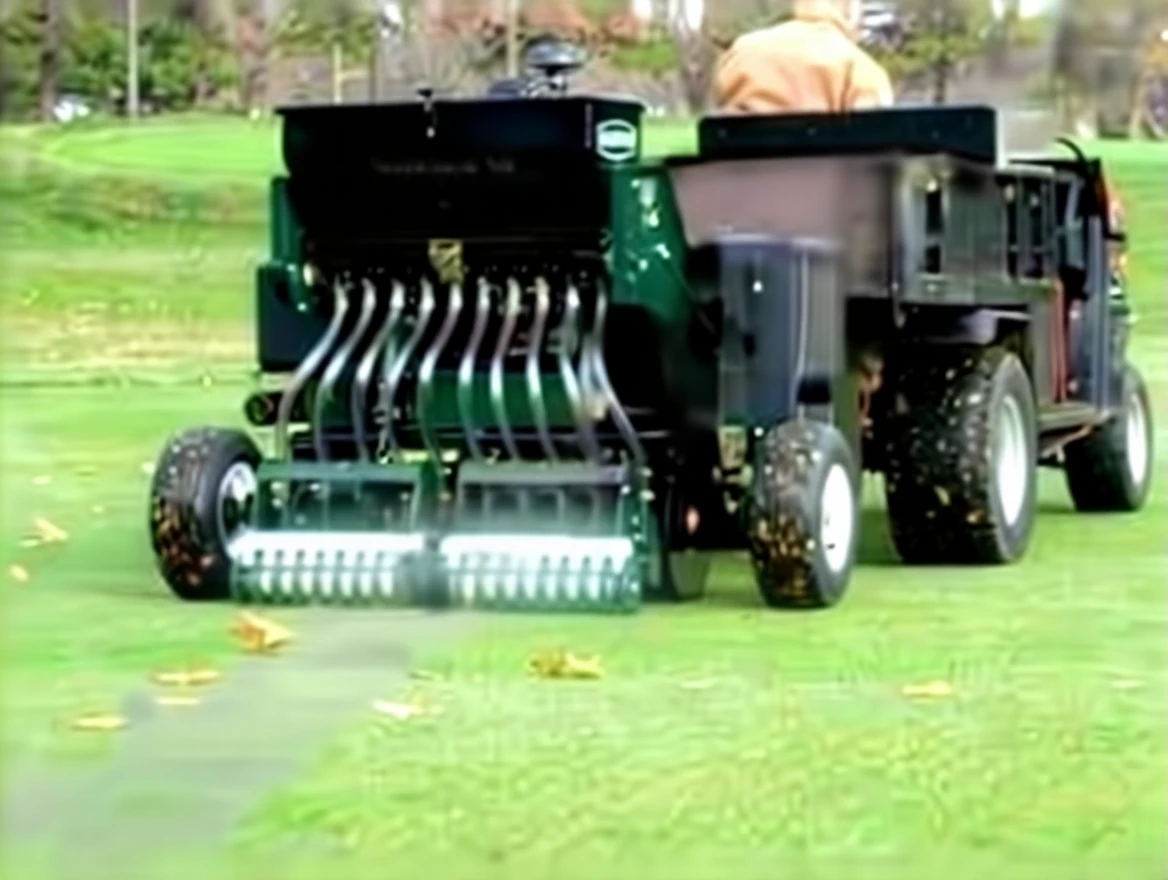

Pull Type 25 Hp 101 Cm Overseed Grass Seeder Machine

Brand Turfco
Model Type

TriWave45

Description

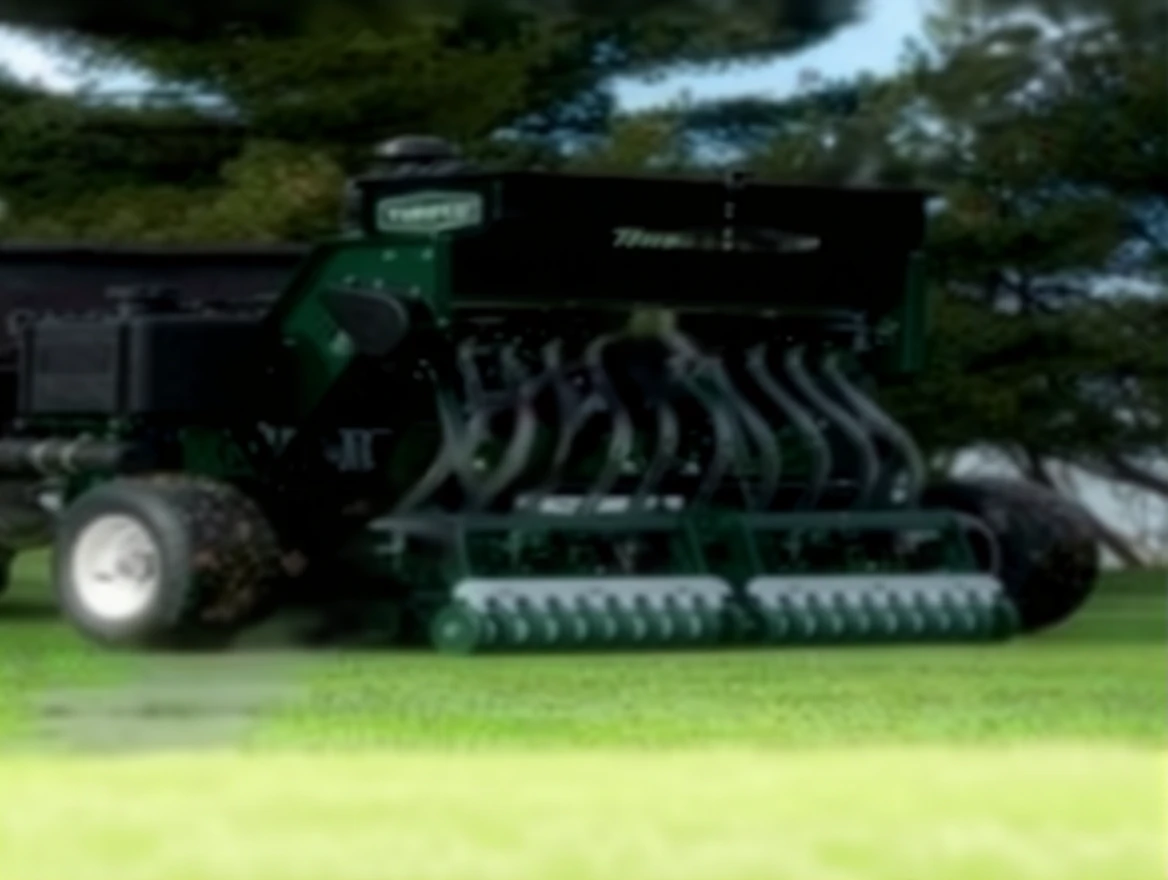

Turfco TriWave45

Removable Type 25 Hp 101 Cm Sown Seeding Machine Overseed

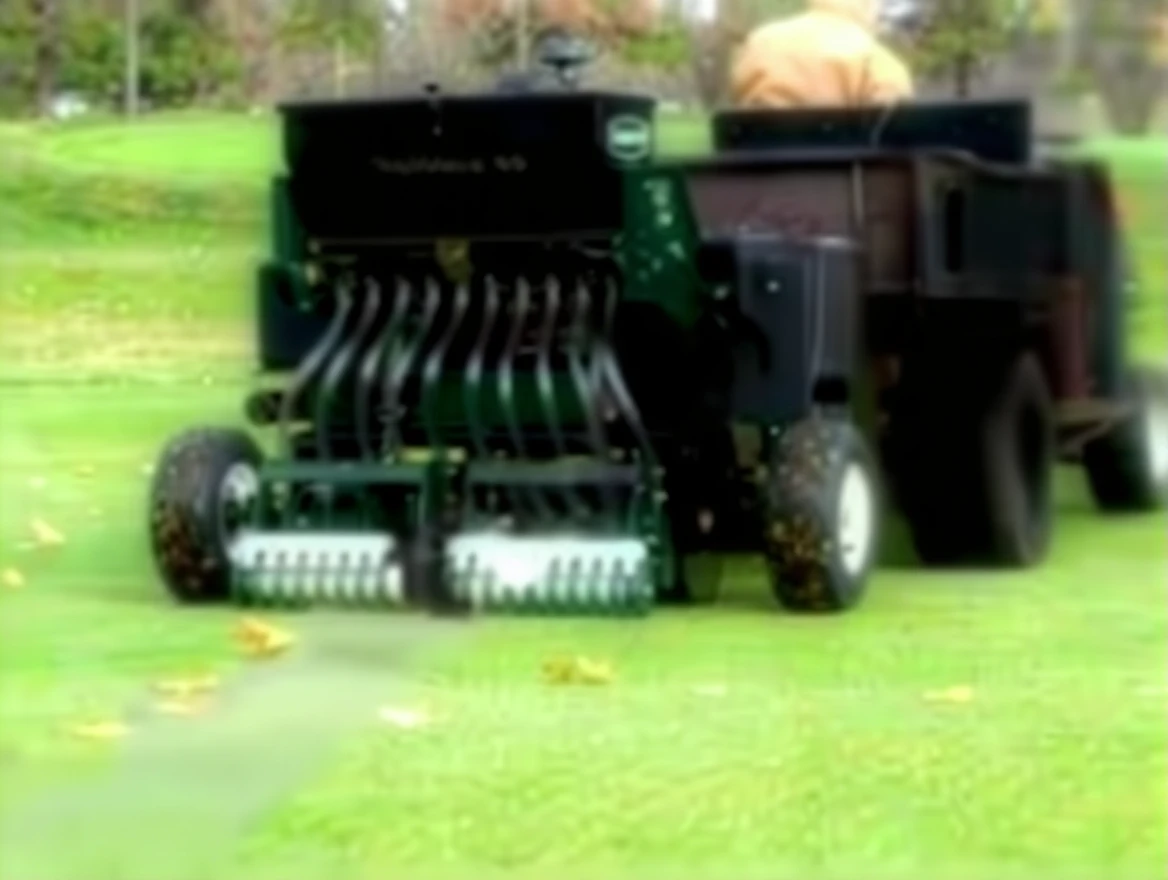

The TriWave 45 is an excellent sowing overseed machine for golf courses, soccer fields, and turf areas, used with tractors or turf trucks.

With its 2 independent head system, it provides uniform seed planting at a fixed depth even on uneven surfaces.

WaveBlade™ technology ensures the smoothest and most suitable seed bed, providing minimal turf damage and the best seed-soil contact. With its patented system, seeds are placed directly into the bed, preventing seed loss and ensuring maximum germination.

While sowing seeds, the TriWave 40 is also an excellent renovation machine for fields with surface compaction and mud in rainy weather, excessive hardness in the summer, leading to poor game and viewing quality.

Traditional seeding machines create V-shaped slits, causing seeds to come on top and have uneven contact with the soil. The TriWave 45, with WaveBlade™ technology, opens square slits, obtaining the most suitable seed bed, leading to minimal turf damage and the best seed-soil contact. Unnecessary seed waste is prevented, allowing more area to be planted with less seed.

Technical Specifications
Traction Requirement Connects to any standard tractor or turf vehicle with a 5/8″ pin
Motor Briggs & Stratton Vanguard 25 HP gasoline engine
Operating System Starts and stops sowing with electric control V-belt
Sowing Width 101 cm
Sowing Depth Adjustable between 0 – 3.49 cm

Sowing Pattern

20 slots with 3.8 cm spacing in one pass

Seed Hopper Capacity 70 liters – 30 kg
Efficiency 4,900 m2 area can be sown in 1 hour
Slot Heads 2 independent head movements
Blade Assembly 2 WaveBlade™ blade sets, total of 20 blades
Seed Outlet Automatically controlled, adjustable opening

Weight

460 kg (empty hopper)
Dimensions 1.68 m width x 1.42 m height x 2.05 m length

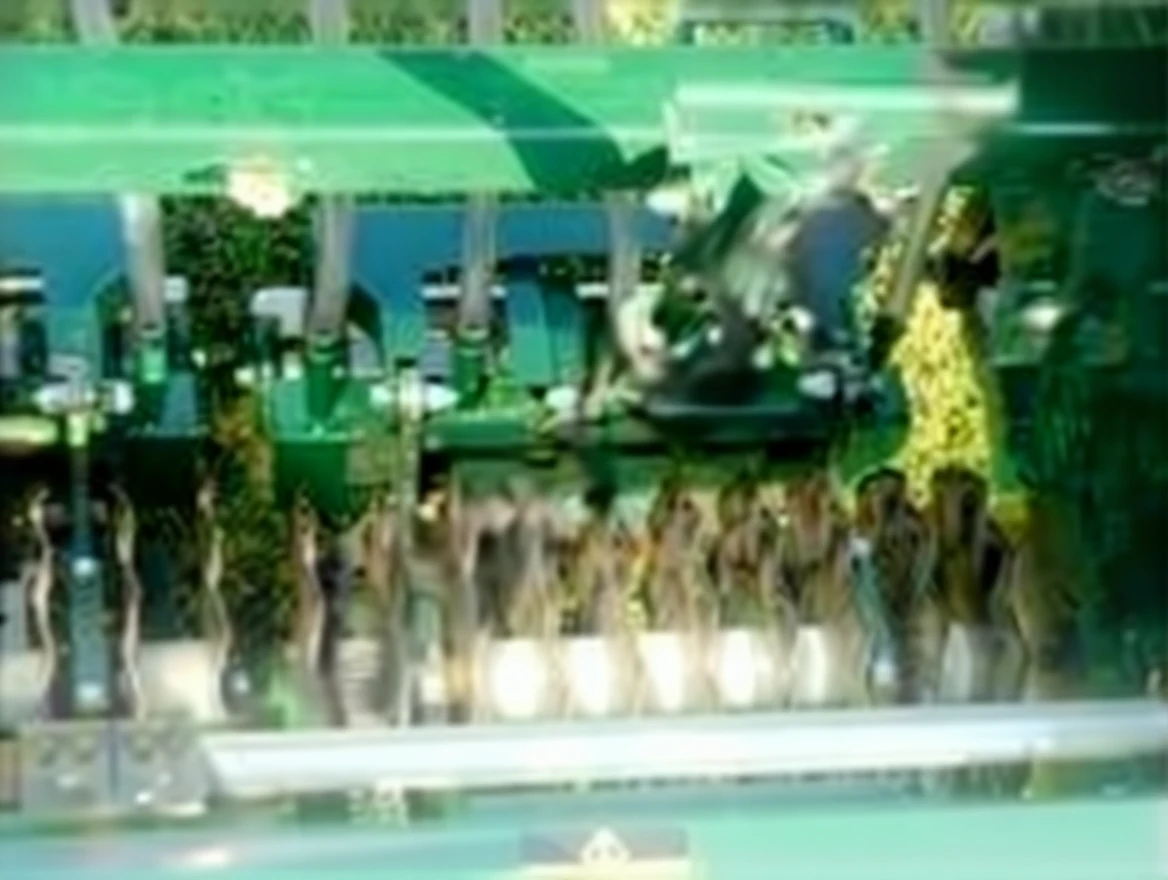

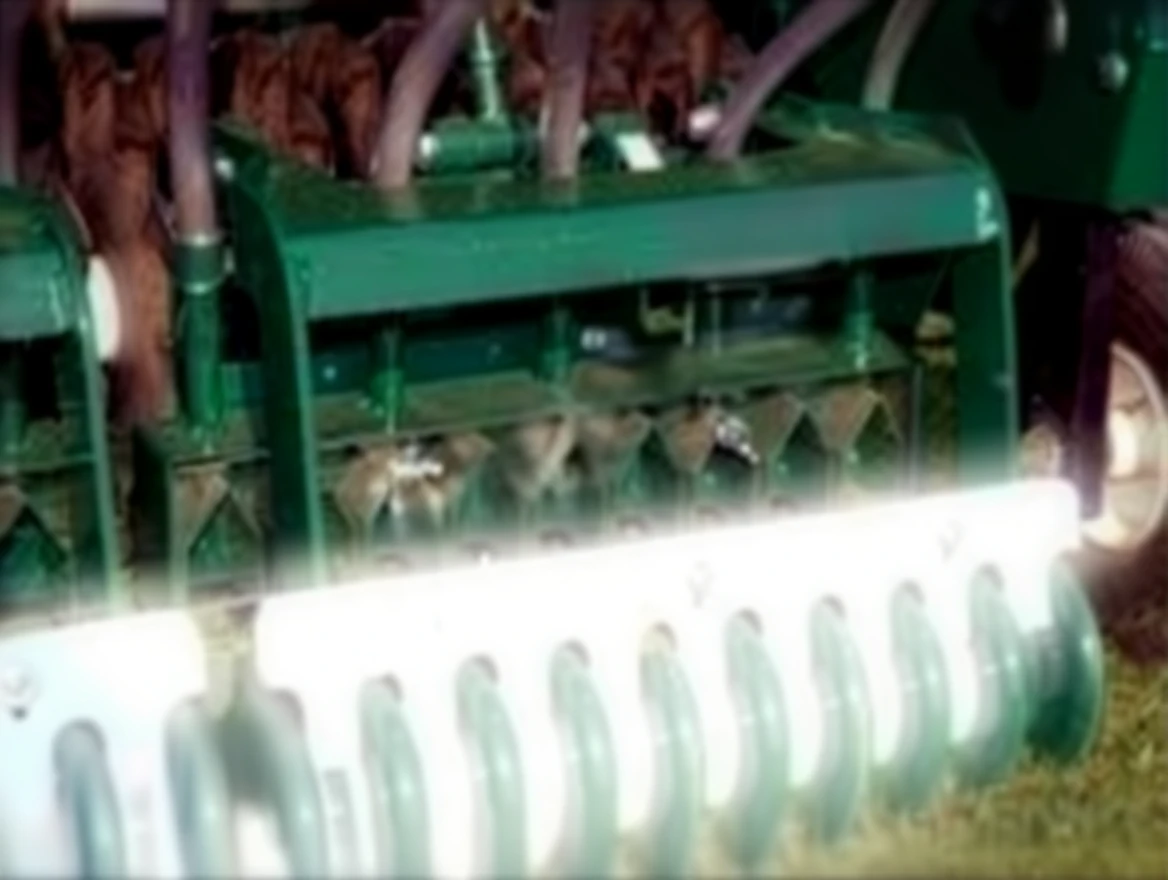

WaveBlade™ blade technology ensures the smoothest and most suitable seed bed, providing the best seed-soil contact.

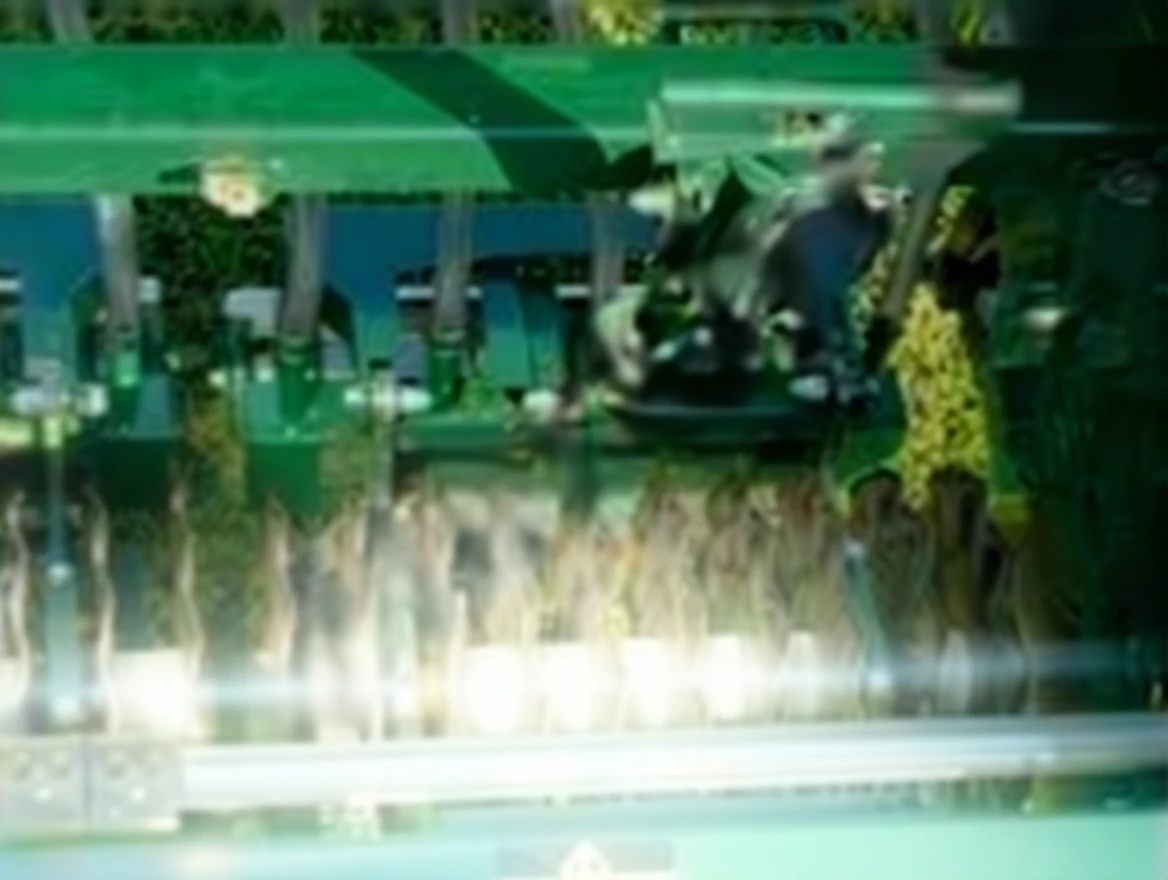

With the patented seed transfer system, seed losses are minimized.

With the patented 2-head independent system, uniform depth seed planting is ensured on uneven surfaces, and sprinklers and other objects on the turf surface are not damaged.

Straight or diagonal slitting and overseeding applications can be done without damaging the turf.
Due to the close slit intervals (3.8 cm), the field can be used immediately after application, allowing games and training to continue.

Straight or diagonal slitting and overseeding applications can be done without damaging the turf.

Due to the close slit intervals (3.8 cm), the field can be used immediately after application, allowing games and training to continue.
