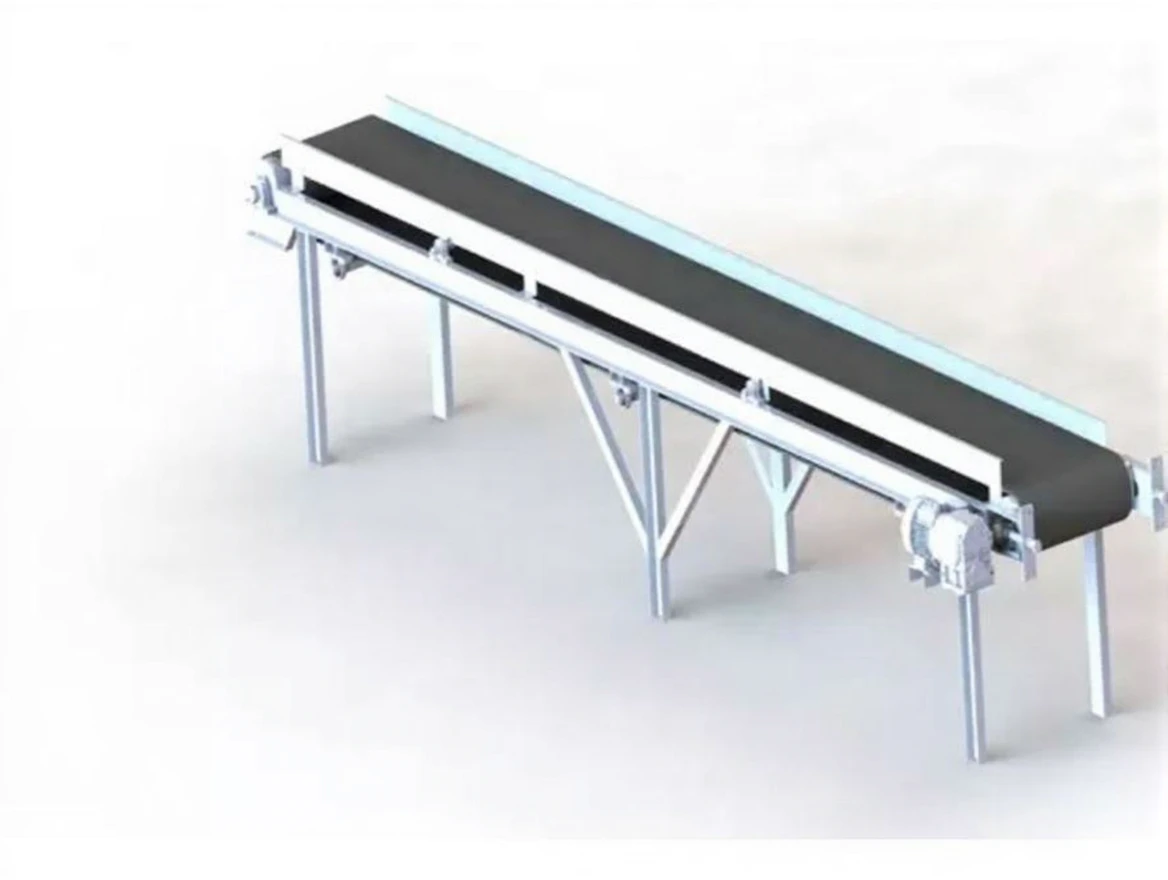

PVC Belted Conveyor

PVC Belt Conveyors

FEATURES

Conveyor Profile: 45×45-23×75-23×127 Aluminium Profile 6063
Stainless Steel

Electrostatic Powder Coated

Foot Profile: 45×45 Aluminium Sigma Profile 6063

Stainless Steel
Electrostatic Powder Coated

Conveyor Rollers: Ø45-Ø76-Ø114 Aluminium Drum

Conveyor Height: Optional

Belt: Optional- Green, Blue, White, Black

Side Barrier: Optional

Speed Adjustment Panel: Optional

Start – Stop Button: Optional

GENERAL TECHNICAL INFORMATION ABOUT PVC BELT

Chinese name: PVC conveyor

Material: Polyvinyl chloride

Operating temperature: -10 ° – +80 °

Connector method: International gear connection

Product Features

PVC conveyor belt has good flexibility and is not easily deformed. It is made of high-strength, high-quality cotton, nylon, and polyester core. It is made of pure natural rubber and non-polluting compound agents to obtain white or light colors, and does not affect the food hygiene odor covering. The product formula design of PVC conveyor belts is moderate in color, light and durable in accordance with health indicators. PVC conveyor belts are suitable for transporting food in the food industry or food sector, packed in large food or food boxes up to 400 large particles, canned, canned, in large quantities; per hour.

Overview of PVC

PVC is actually a vinyl polymer material that is a non-crystalline material. PVC materials are generally added with stabilizers, lubricants, auxiliary processing materials, colorants, impact modifiers, and other additives in actual use. It has flame retardancy, high strength, good weather resistance, and excellent geometric stability. PVC is highly resistant to oxidizing agents, reducing agents, and strong acids. However, it can corrode with concentrated oxidizing acids such as concentrated sulfuric acid, concentrated nitric acid, and is not suitable for contact with aromatic hydrocarbons or chlorinated hydrocarbons.

Flame retardant performance

Cylinder friction: Drum surface temperature does not exceed 325 °C

Blowtorch combustion: The flame time of the full thickness test piece burner is not more than 3.0S, and the average coverage of the cover layer is not more than 5.0S.

Propane burning: Lossless length greater than 250 mm

Surface resistance value: Average values of top and bottom not more than 3.0 × 10′

Application Area

It is widely used in food, tobacco, logistics, packaging, and other sectors. It is suitable for underground transportation of coal mines and material transportation in metallurgy and chemical industries.
