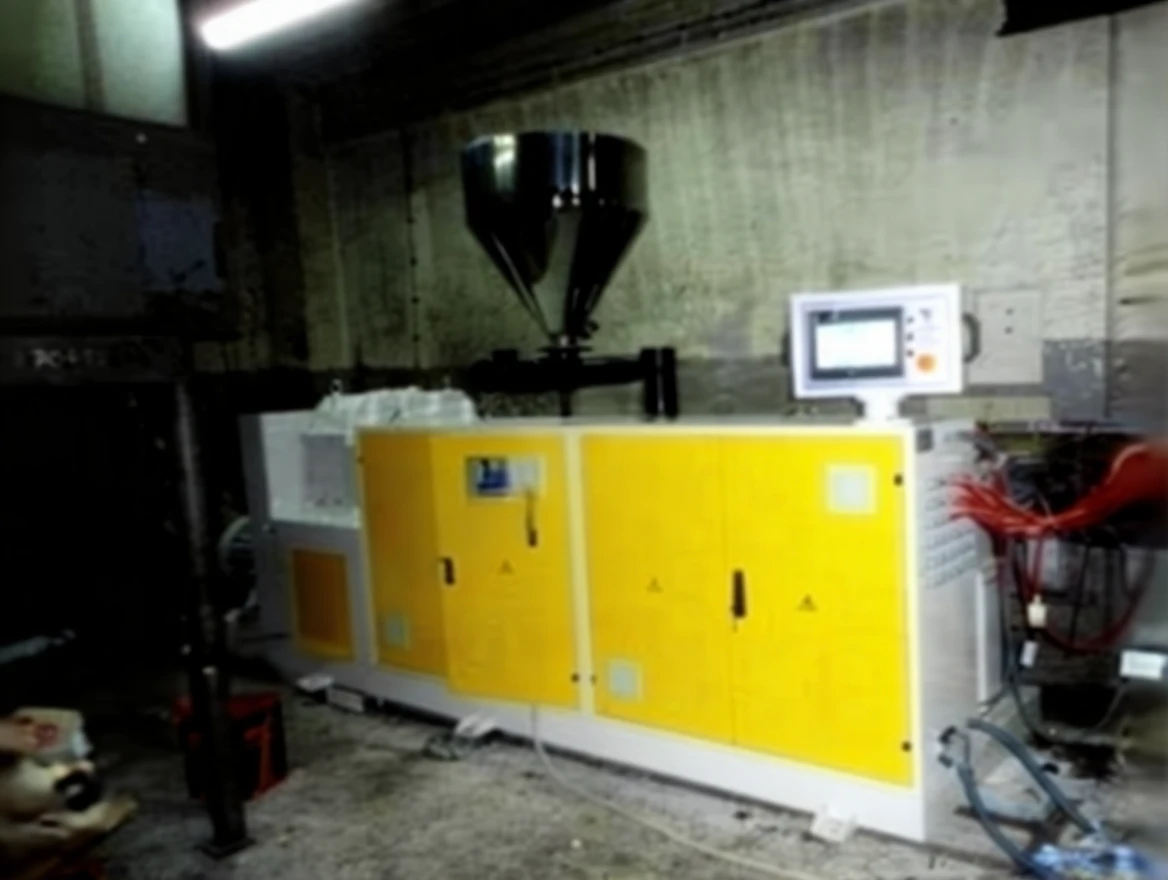

PVC Profile Production Extruder Machine
| Brand | Karakuş Makina |
|---|---|
| Model Type |
KC 67 / 22 D |
Parallel Double Screw Profile Extruder
When purchasing a plastic PVC profile machine, the choice should first be made according to the weight and capacity of the PVC profile product. If we evaluate the PVC profile machine capacity, we can evaluate it as 50/110, 65/132, 80/156. In the 50/110 conical double auger profile production machine, small weight PVC profile products such as PVC laths, gaskets, cable ducts, paneling, moldings, etc. can be produced, while in the 65/132 conical double auger PVC production line, products with higher weights are produced. PVC window profiles are produced, but PVC window profiles give better performance in the 80/156 double screw extruder machine, resulting in more efficient production.
COINS DOUBLE SCREW EXTRUDER FEATURES
- Screw sleeve design suitable for every product and every raw material
- Screws and barrels in sizes Ø 50 – Ø 110 according to customer needs and product
- 20D – 25D – 26D LD ratios vary depending on the product to be produced,
- Economical ceramic resistors,
- Pareler double screw transmission resistant to the highest back pressure,
- Automatic reducer lubrication system,
- Screw degassing zone,
- Low energy consuming AC motor and AC driver,
- Panel control unit with PLC and Manual options,
- Optional dosing system for powder raw materials,
- 120 kg – 500 kg capacity options
| technical specifications | UNIT | KC 90/20D | KC 67/22D | KC 50/20D |
| Screw Diameter | mmm | 90 | 67 | 50 |
| Screw Speed (L x D) | 20 | 22 | 20 | |
| Main Engine Power | kw | 45 (AC) | 30 (AC) | 12 (AC) |
| Maximun back pressure | KN | 280 | 250 | 70 |
| Reducer Speed | I | Jan.27 | Jan.20 | Jan.18 |
| Max. Auger Era | rpm | 45 | 45 | 40 |
| Number of Resistance | 7 | 6 | 4 | |
| Resistance Power | kw | 24 | 20 | 12 |
| Cooling System | Weather | Weather | Weather | |
| Number of Regions | 4 | 4 | 2 | |
| Head Resistance Power | kw | 25 | 20 | 10 |
| Dosing Engine Power | kw | 1.5 | 1.1 | 0.75 |
| Vacuum Pump Motor power | kw | 2.2 | 1.1 | 0.5 |
| Established Power | kw | 100 | 70 | 40 |
| Max. Pipe Capacity | kg/h | 250 | 130 | 70 |
| Max. Profile Capacity | kg/h | 150 | 120 | 50 |
| Working Axis | Mm. | 1020 | 1020 | 1020 |
