Rail Connection Static and Semi-Static Dynamic Bending Tester
| Brand | İbertest |
|---|---|
| Model Type |
MFPIB Serisi |

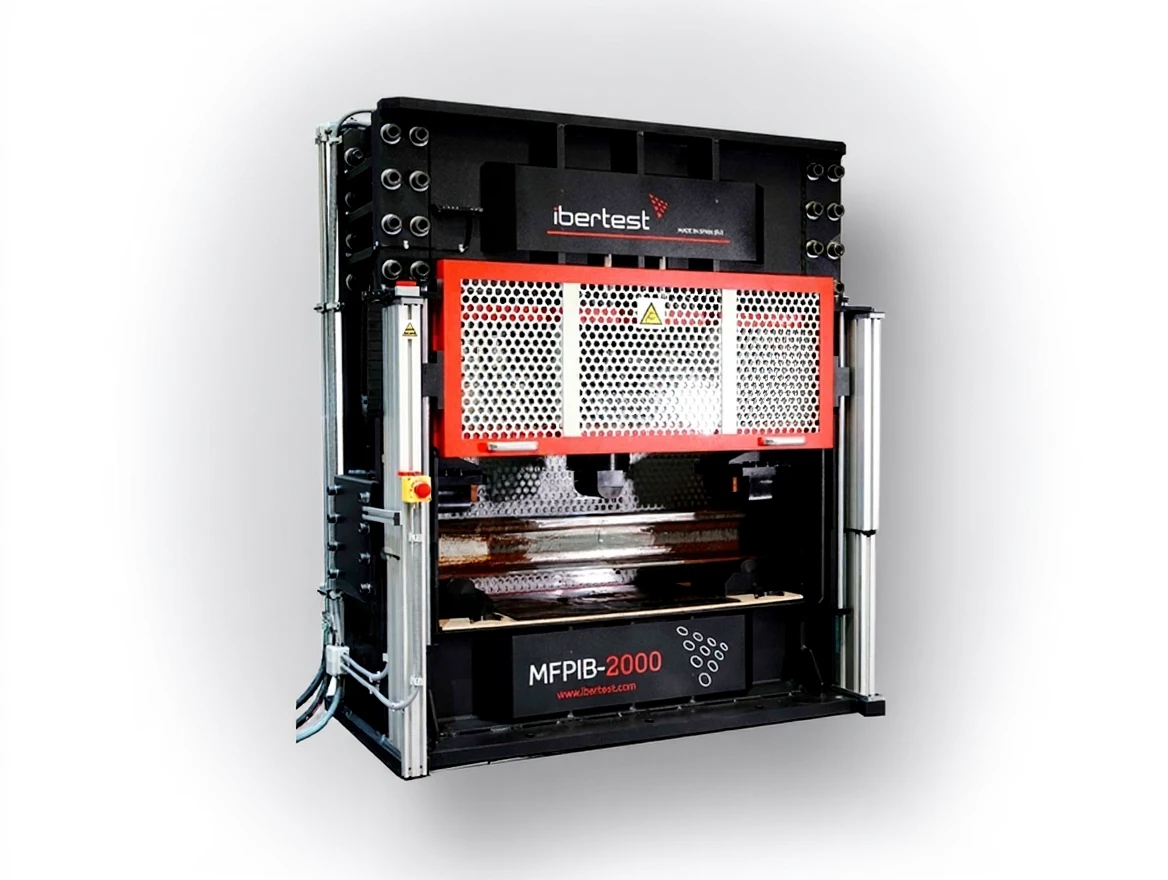

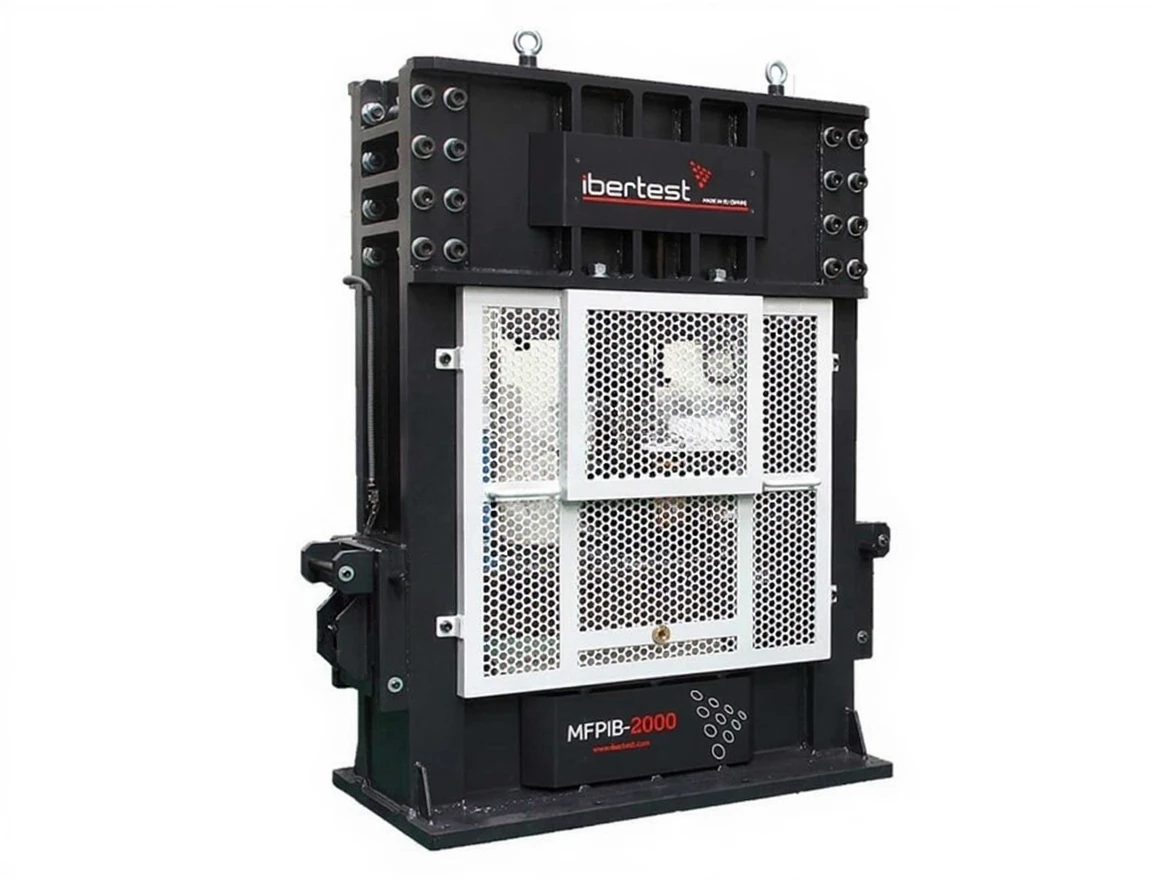

İbertest MFPIB Series Rail Connection Static and Semi-Static Dynamic Tester

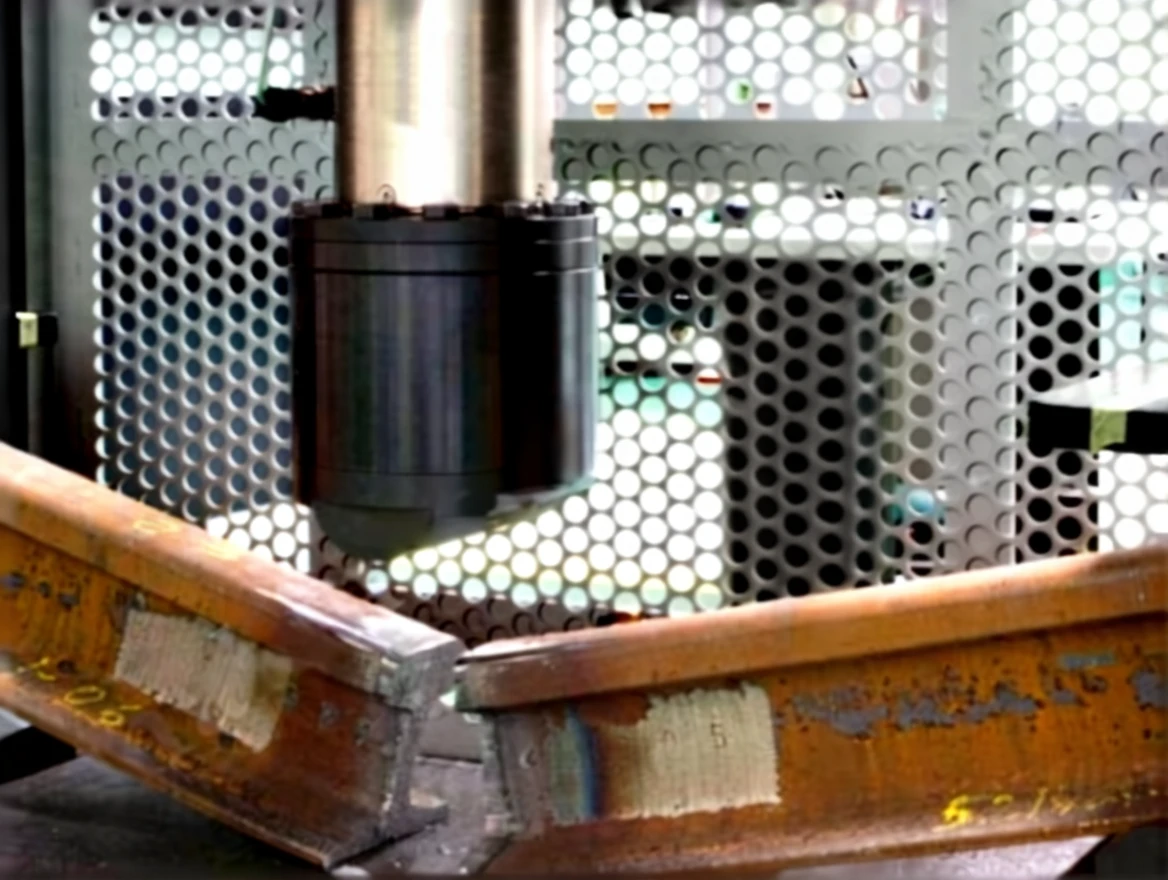

MFPIB series testing machines allow automatic static and quasi-static bending tests to be carried out on welded rail joints in accordance with major international standards.
|
MODEL |
MFPIB-200 |
MFPIB-2500 |
MFPIB-3000 |
|---|---|---|---|
|
Maximum traction-compression force |
± 2000 kN |
± 2500 kN |
± 3000 kN |
|
Force measurement |
High stiffness strain gauge force transducer for static tests |
||
|
Calibrated measuring range |
2% to 100% of the nominal capacity of the load cell |
||
|
Class |
0.5 according to EN-ISO 7500 standard |
||
|
Resolution in force |
5-digit floating point |
||
|
Vertical distance on the 3-point bending device 1 |
0 – 1000mm |
0 – 1000mm |
0 – 1000mm |
|
Measurement of the piston position. |
0 – 240mm |
0 – 240mm |
0 – 240mm |
|
Position transducer |
Digital displacement sensor |
||
|
piston stroke |
200mm |
200mm |
200mm |
|
power supply |
3 ph 380 V N T, 50/60 Hz |
||
|
Test frame dimensions 4 (Width x Bottom x Height) |
1645 (2070 with open doors) x 800 x 1930 mm |
1645 (2070 with open doors) x 800 x 1930 mm |
1845 (2270 with open doors) x 1000 x 2130 mm |
|
Approx. weightless testing devices |
2580 kg |
2790 kg |
3250 kg |
