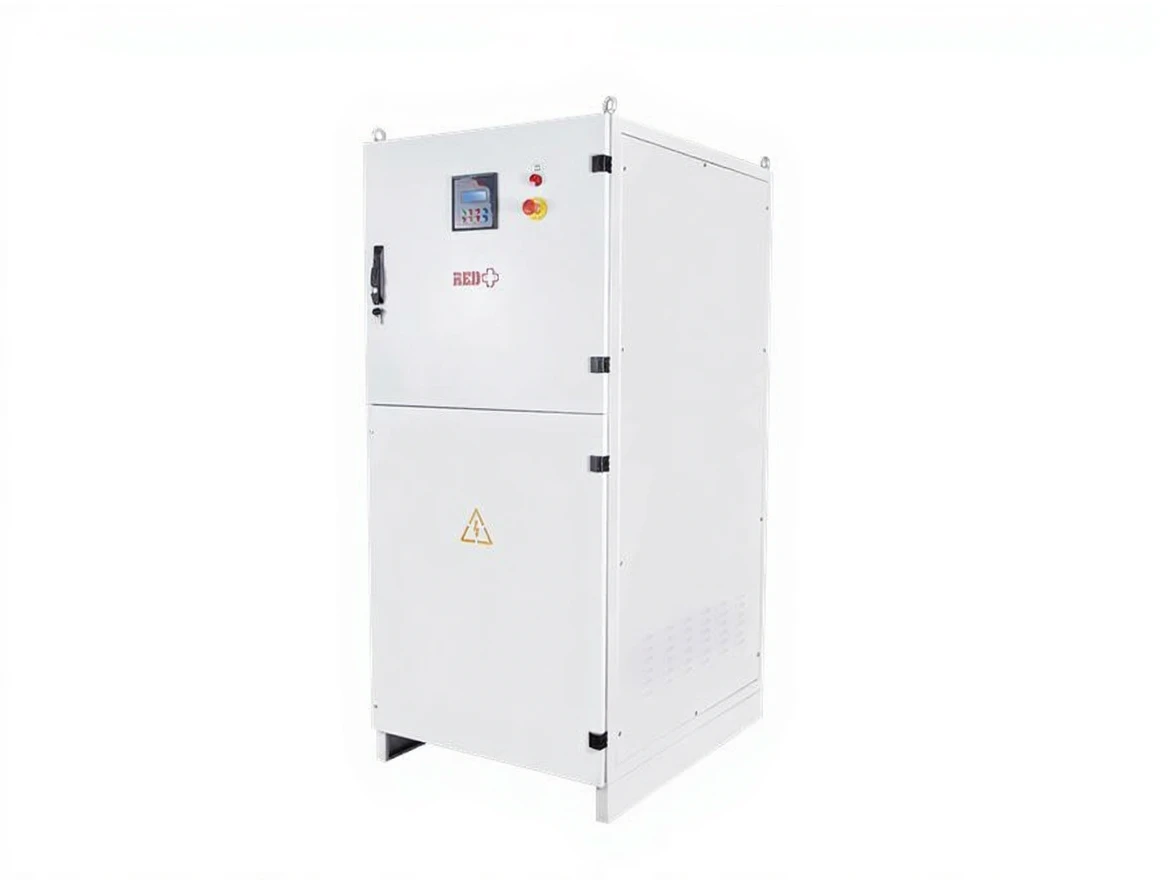

Rectifier with Thyristor Controlled Transformer Covering

Thyristor Controlled Transformer Coating Rectifiers (TCTKR) are high-efficiency power sources commonly used in electroplating and electrolysis processes. These rectifiers are widely used in industrial applications such as plating, surface treatment, and chemical electrolysis. By controlling the thyristors (SCR – Silicon Controlled Rectifier), the output voltage and current can be precisely adjusted, providing higher efficiency and flexibility.

Key Features of Thyristor Controlled Transformer Coating Rectifiers

1. Thyristor Control:

   • In these rectifiers, the output voltage and current are controlled through semiconductor devices called thyristors. Thyristors play a key role in regulating rectified AC power. This allows the output voltage and current to be adjusted precisely.
   • Thyristors provide features such as soft start and dynamic control, enabling more efficient operation in charging and coating processes.

2. Transformer Usage:

   • These rectifiers use transformers for power conversion. The transformer reduces the alternating current (AC) voltage to appropriate levels and converts it to direct current (DC).
   • Transformers can provide different voltage and current levels according to the requirements of the load, increasing the efficiency of the plating process.

3. Coating and Surface Treatment Applications:

   • Electroplating is a process in which surfaces are protected or decoratively treated with metal plating. Thyristor-controlled rectifiers ensure this process is done in the desired quality and homogeneity.
   • Surface treatment can be used in many metal plating applications such as silver plating, gold plating, chrome plating.

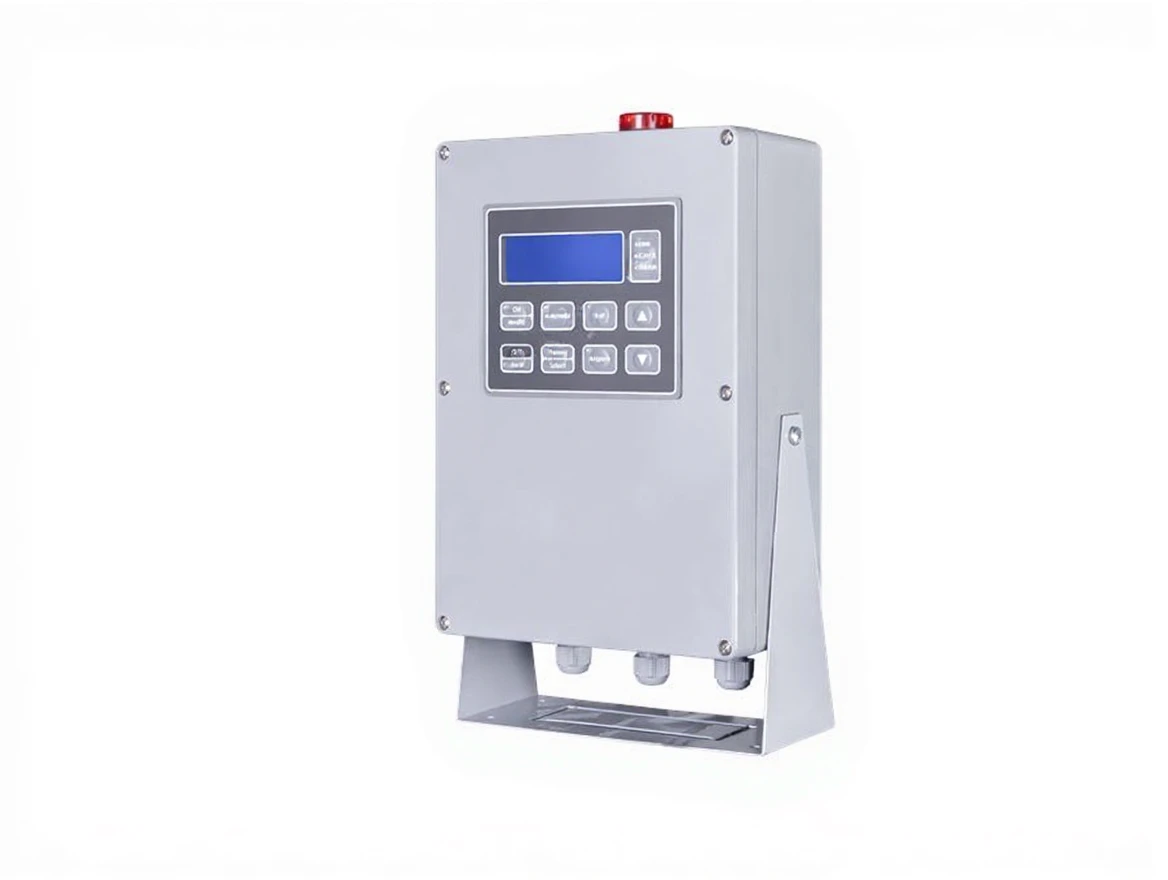

4. Digital Control and Programmable Features:

   • Thyristor-controlled rectifiers may have digital control systems. This allows the automatic adjustment of output parameters (voltage, current, power factor, etc.).
   • Additionally, some systems can be programmed with user-friendly interfaces, making it easy to apply optimized parameters for different coating processes.

5. High Efficiency and Stability:

   • Thyristor-controlled systems are designed to provide low losses and high efficiency. Particularly in large coating systems, high efficiency and reliability are important.
   • These systems provide stable performance even under variable load conditions.

6. Overload and Short Circuit Protection:

   • Rectifiers have features that provide protection against overload, short circuit, and other potential faults. These features ensure the safe operation of the system.
   • Additionally, load balancing ensures equal distribution, allowing each coating cell to operate smoothly.

7. High Power and Current Capacities:

   • Thyristor-controlled rectifiers are suitable for applications requiring high current and high power. Coating processes often have high current and voltage requirements, so these rectifiers have large energy capacities.

8. Frequency Control and Desired Current Regulation:

   • More precise coating processes can be achieved with direct control of the output current and frequency management. The control mechanism is crucial as the correct current density is a significant factor affecting the quality of the coating process.
9. Cooling Systems:

   1. Water Cooling System: These rectifiers use water cooling to effectively dissipate the heat generated when operating under high power and current. Water cooling is much more efficient than air cooling, allowing these rectifiers to perform well. Cooling is usually done through a cooling water circuit. The cooling water circulates through the hot parts of the rectifier, preventing overheating.

   2. Air Cooling System: Air-cooled rectifiers prevent overheating by using fan systems. Cooling is typically done through fans placed inside the device. Air cooling is a simpler and more economical solution than water cooling, but proper calculation of the cooling capacity is essential for systems with high power requirements.

   3. Oil Cooling System: is used to enhance cooling performance in high power and current applications. Oil can absorb high temperatures more effectively and rapidly dissipate heat. Therefore, it is the preferred method in rectifiers operating with high currents. In oil cooling systems, the cooling oil circulates among the components of the rectifier to remove excess heat. This provides high efficiency, especially in systems with advanced cooling requirements. Oil cooling systems generally offer lower heating, longer component life, and improved thermal management.

Areas of Use of Thyristor Controlled Transformer Coating Rectifiers:

• Electroplating (Galvanizing): Protecting metal surfaces or making decorative metal coatings. This process is widely used in the automotive, electronics, decoration, and construction industries.
• Electronic Industry: Coating and protection processes for microelectronic devices in particular.
• Chemical Electrolysis: Providing the correct voltage and current for the plating and processing of cells used in battery production.
• Surface Roughness Adjustment: Processes for smoothing and refining metal surfaces.

Advantages:

• High Precision: Thyristor-controlled rectifiers enhance process quality by ensuring precise control of voltage and current.
• Flexibility: Easily programmable and changeable for different coating applications.
• Low Energy Consumption: Low energy losses due to high efficiency result in energy savings in the long run.
• Safety: Equipped with high safety features for ensuring the system’s safe operation.

Ultimately, Thyristor Controlled Transformer Coating Rectifiers are excellent solutions for providing high efficiency, flexibility, and precise control in industrial applications. They ensure smooth and high-quality results in processes such as electroplating and surface treatment. The high power and current capacities of these systems allow them to deliver reliable and efficient performance even under challenging industrial conditions.
