Reverse Clamp Bread Packaging Machine

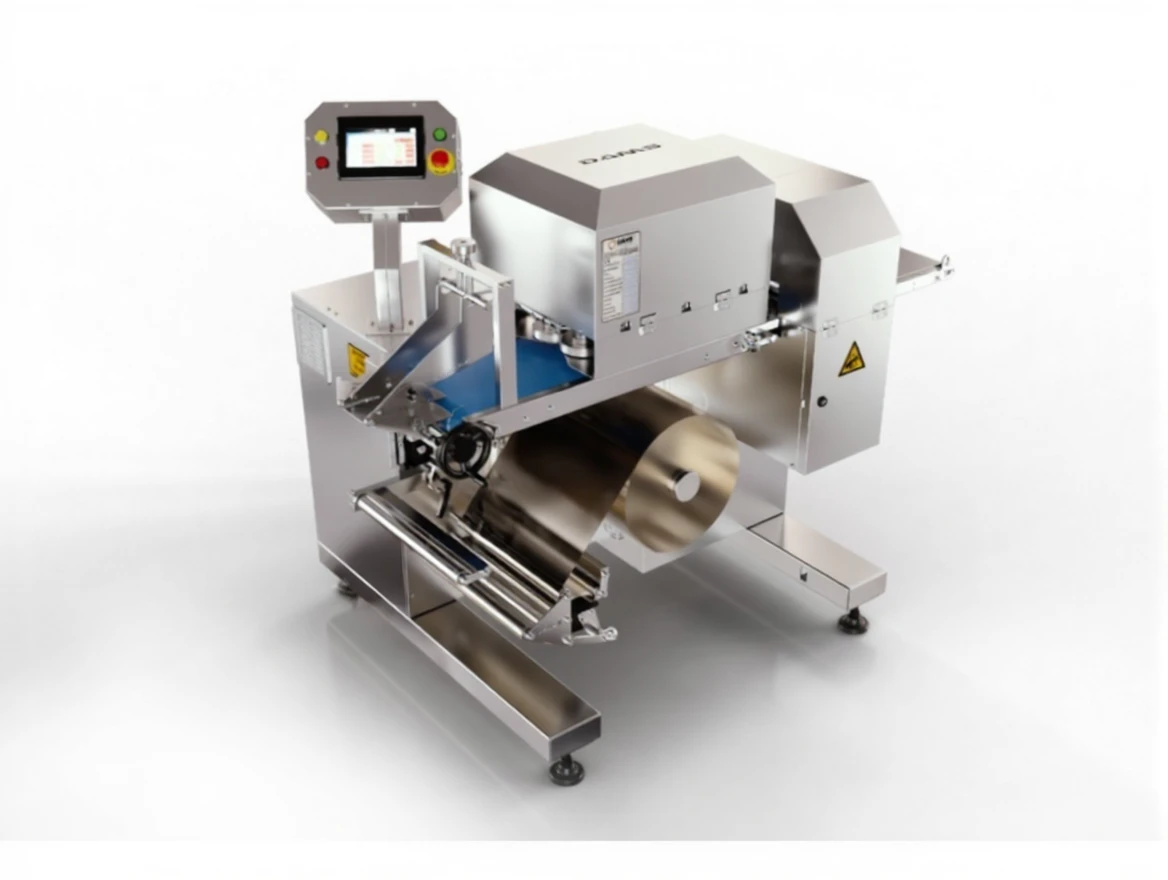

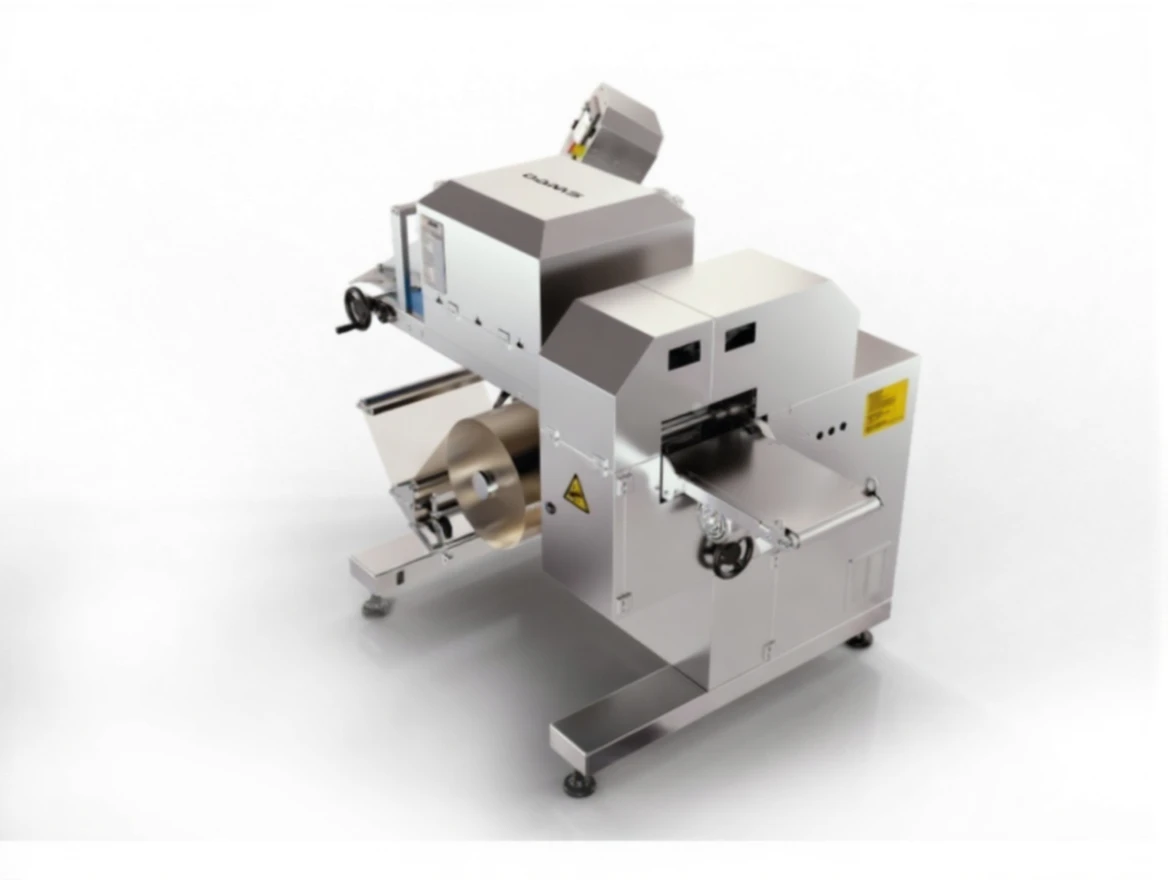

DAMS DTMP-50 Reverse Clamp Bread Packaging Machine

DAMS DTMP-50 is a packaging machine that stands out with its high efficiency and user-friendly features. It enables the fast and reliable packaging of various products.

General Features

• PLC-Touch Screen: The machine can be easily controlled via a PLC-controlled touch screen.

• High-Speed Packaging: Offers fast and efficient operation with a packaging capacity of 120 packages per minute.

• Adjustable Package Sizes: Wide adjustment options for packages of different sizes.

• Easy Cleaning and Maintenance: The belts and working parts can be easily disassembled, assembled, and replaced.

• Automatic Settings: All belt speeds can be adjusted to the desired level.

• Fault Notification: Electrical and electronic faults that may occur are indicated on the PLC screen with images and text. In case of a fault, any intervention can be made remotely via PLC program (Optional).

• Material Quality: All surfaces and covers in contact with the product are made of 304 quality chrome-nickel metal.

Technical Specifications

• Maximum Power: 3 kW

• Voltage: 380 V

• Maximum Current: 10 A

• Control: PLC-Touch Screen

• Compressor Air Requirement: 5-6 Bar

Machine Features

• Maximum Capacity: 120 pcs/min.

• Machine Width: 1070 mm

• Machine Length: 1730 mm

• Machine Height: 1400 mm

• Machine Weight: 900 kg

• Package Width: 20-140 mm

• Package Length: 100-250 mm

• Package Height: 20-60 mm

• Maximum Roll Width: 500 mm

• Maximum Stretch Film Roll Diameter: 350 mm

• Roll Inner Diameter: 3"

DAMS DTMP-50 is a high-performance and reliable packaging machine suitable for use in various sectors. It is ideal for industrial applications and increases efficiency by optimizing packaging processes.
