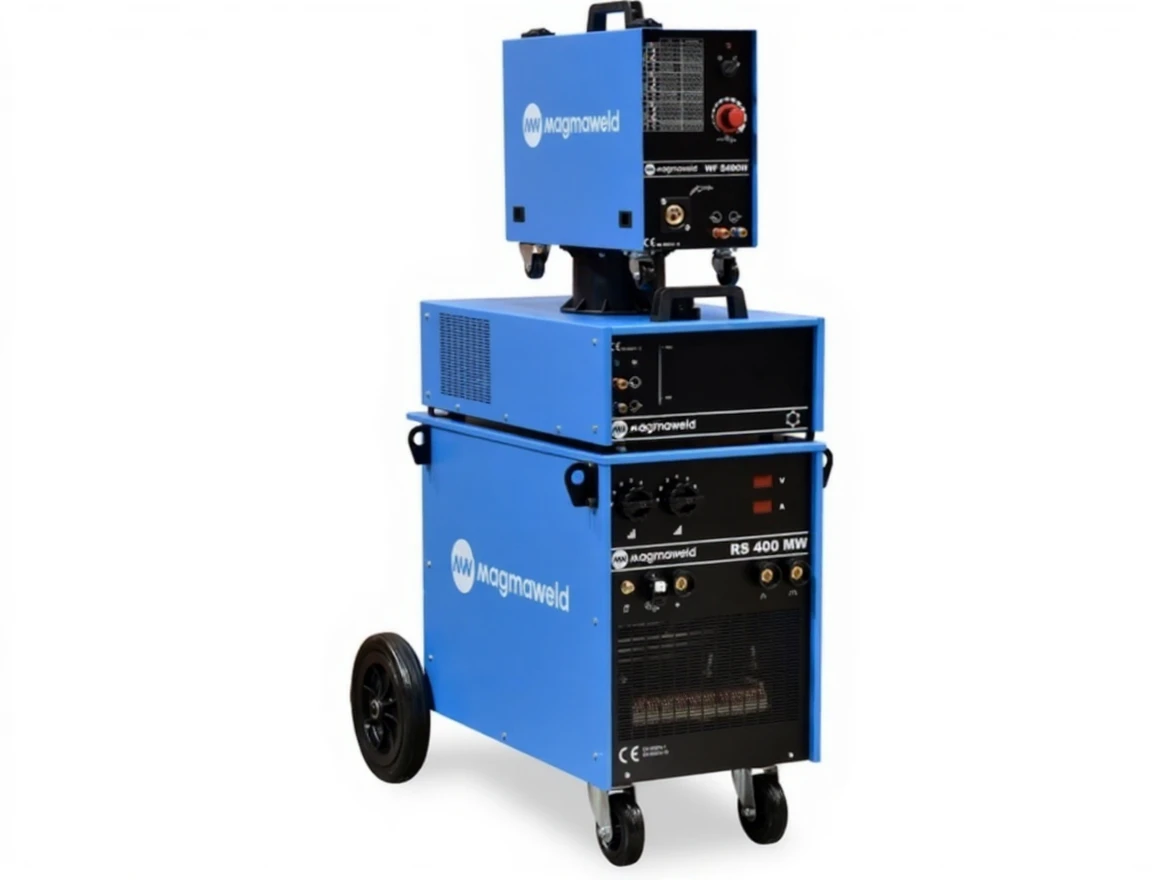

Magmaweld RS-400 MW

Gas Shielded Welding Machine Water Cooled

Power Supply
Mains Voltage (3 Phase)	V	400
Mains Supply Pull	kVA	19.4 (%50)
Input Current (Effective)	A	19.9 (%50)
Welding Current Setting Range	A	45 – 400
Rated Welding Current	A	400 (%50)
Open Circuit Voltage	V	20-48
Voltage Setting Steps		4 x 7
Dimensions (w x d x h)	mm	1020 x 590 x 1515
Weight (Net)	Kg	155
Protection Class		IP21
Wire Feeding System
Welding Wire Diameter	mm	[ PHONE HIDDEN ]
Standard Wire Feeding Drum Diameter	mm	[ PHONE HIDDEN ]
Wire Feeding Drum Size	mm	4×37
Wire Feeding Speed	m/min	1 – 24
Torch Trigger Control		2 / 4
Drum Capacity	kg	20
Dimensions (w x d x h)	mm	560 x 225 x 450
Weight (Net)	Kg	25
Water Cooling Unit
Cooling Power	kW	2.11
Dimensions (w x d x h)	mm	760 x 440 x 260
Weight (Net)	Kg	33.50
