Rzm-Yv500
| Brand | Rızalar Makina |
|---|---|
| Model Type |
RZM-YV500 |
Description
RZM-YV500

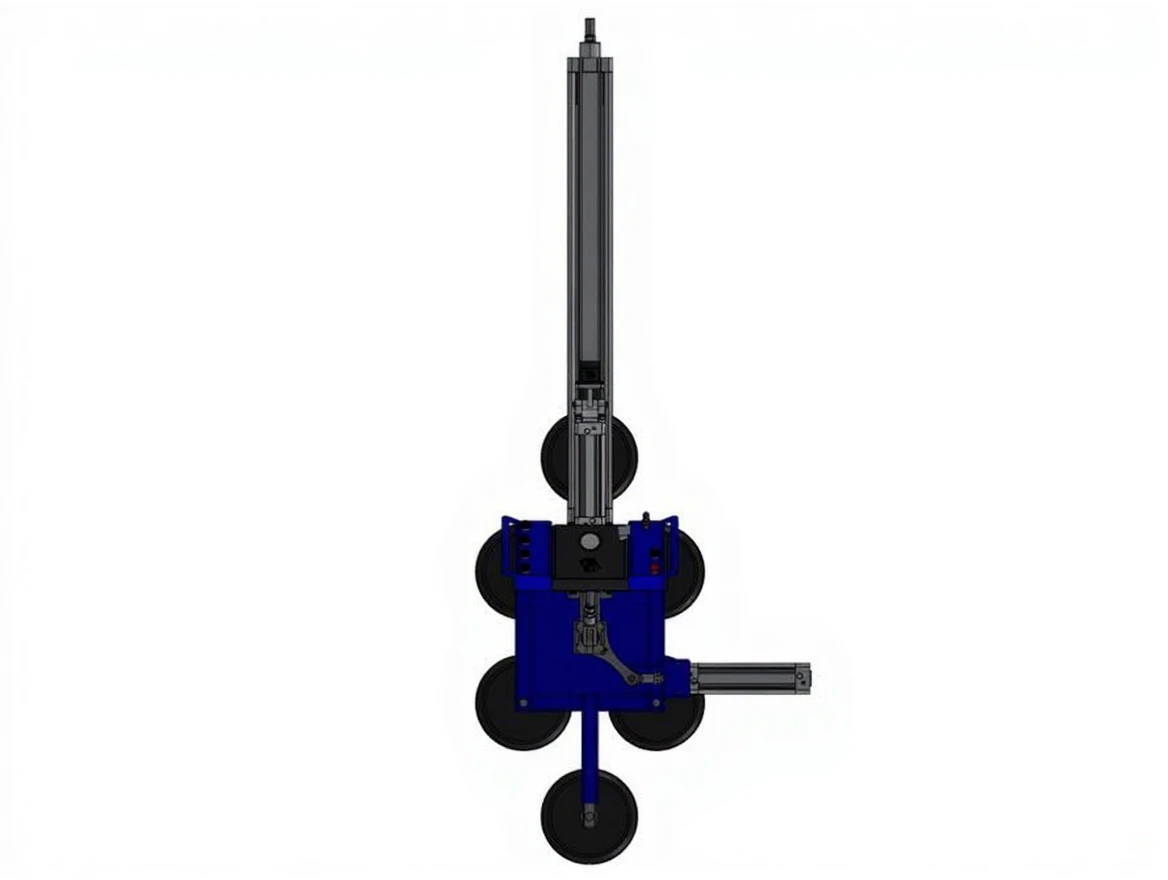

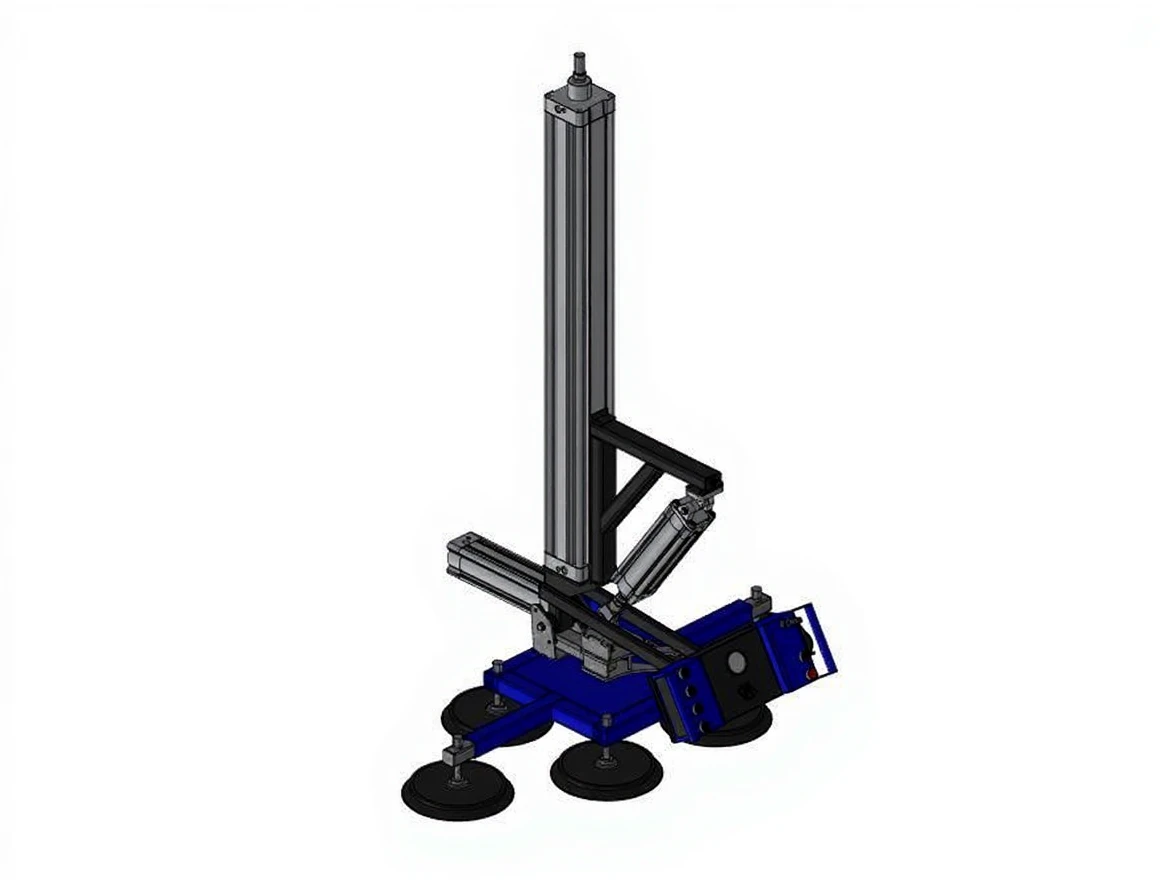

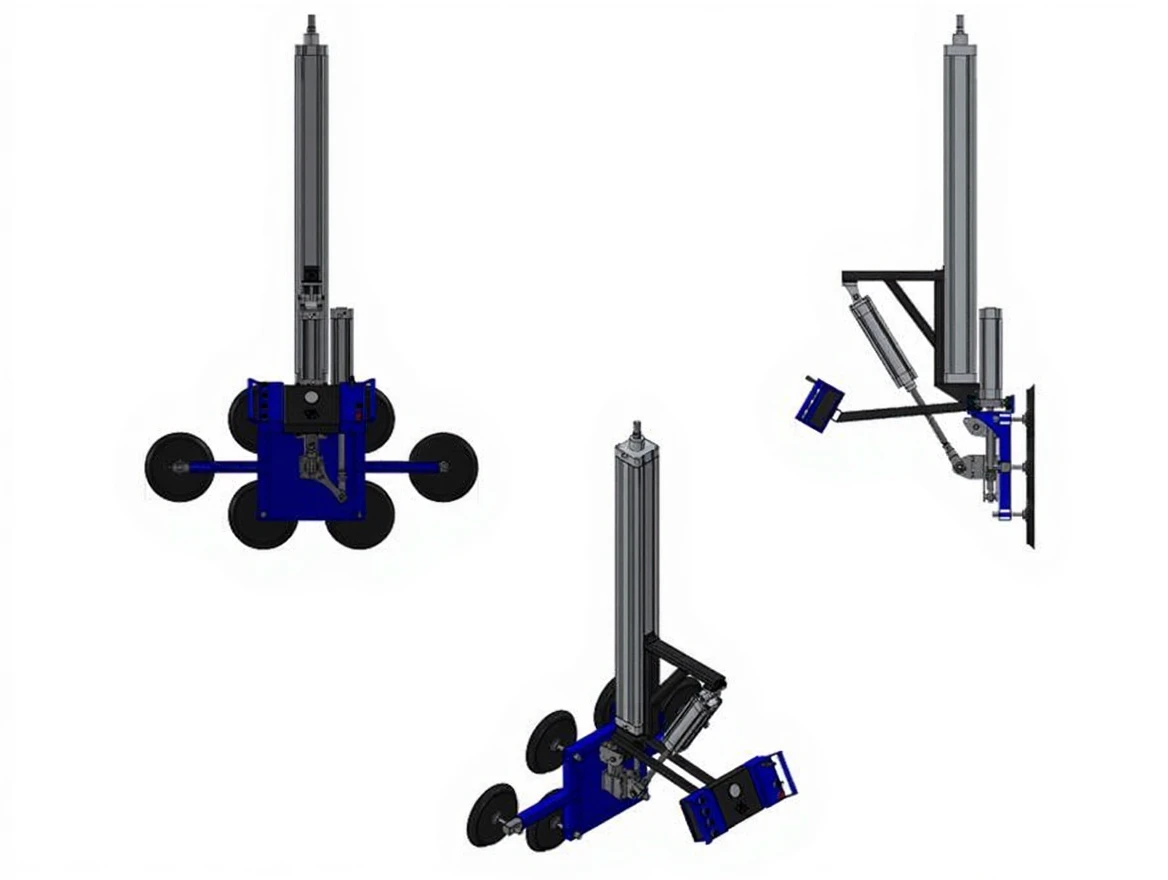

Auxiliary Vacuum Lifter
Capacity: 500 kg
Operating Pressure: 8 bar filtered and conditioned air
Weight: 94 kg
Technical Specifications
• The oval control arm includes functions for glass pick-up, release, safety lock, quick discharge, up/down movement, 90° tilt & lift, and 90° rotation.
• Equipped with a vacuum gauge as standard.
• Vacuum is generated by a pneumatic ejector venturi system.
• Tilting / lifting, up / down and rotation speeds are adjustable.
Glass Size Range
1380 × 700 mm – 2500 × 1600 mm
