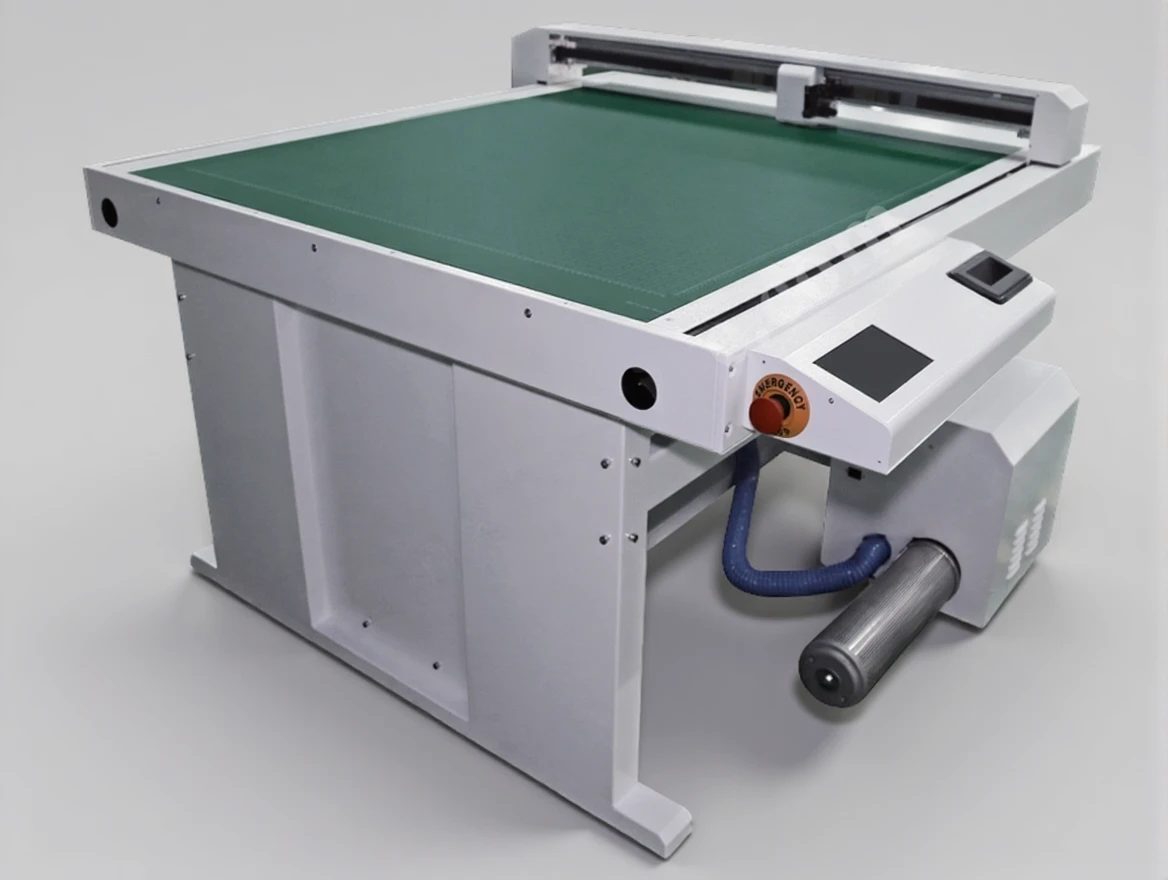

Saga FC Model Flatbed Cardboard, Box, Label Cutting Plotter Cutting Machine

Brand Saga
Model Type

FC

Category:
Description

SAGA  Digital Cutting Machines is one of the leading machine manufacturers in the world. The machines it produces are sold in large quantities under major brands in Europe today.

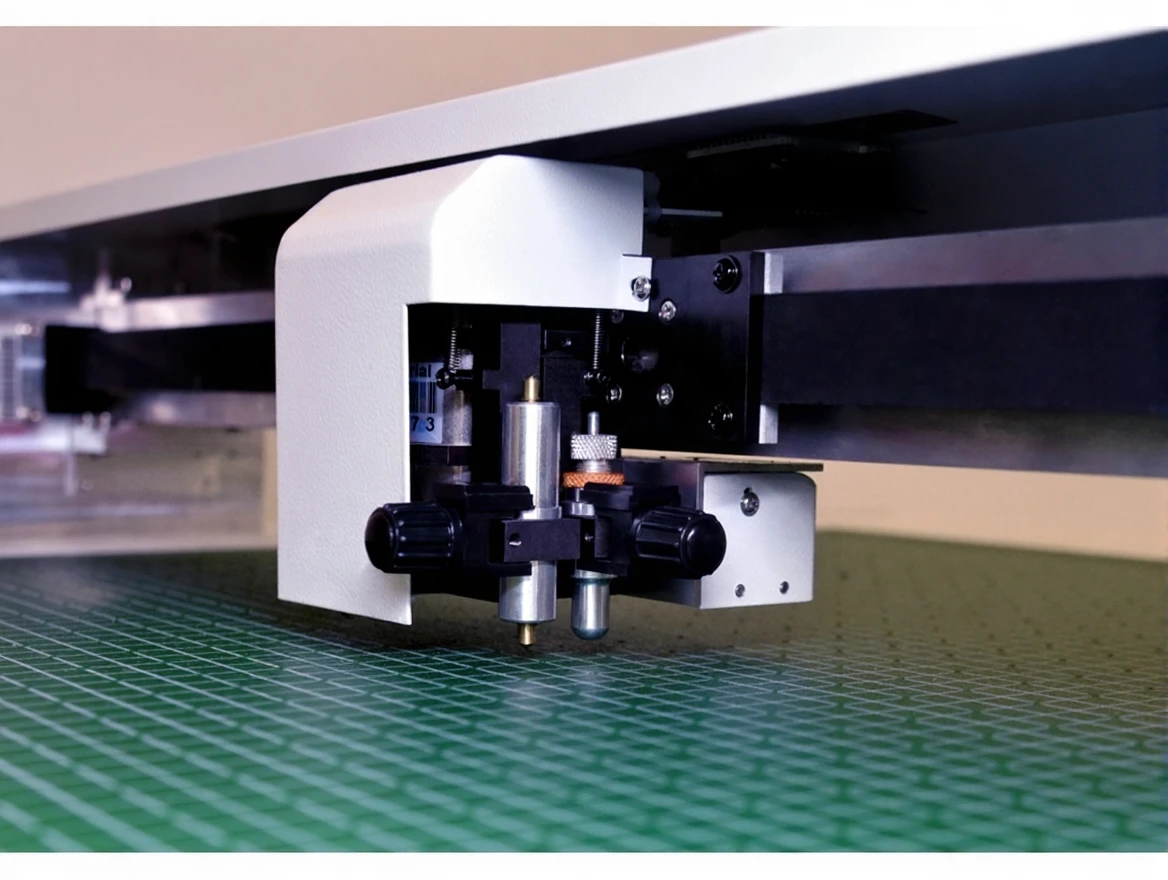

FC Series cutters perform high-quality cutting of cardboard, magnet, plastic, etc. materials up to 600 gr/m2 thickness in the mid-range, both economically and efficiently. It is possible to perform full cut, kiss cut, and half cut on the machine. There is a fast cross reading with a camera and the ability to work directly from graphic programs with Ai and CDR plug-ins. You can place 4 same or different printed sheets on the machine’s large table and have them cut automatically in sequence. While the machine is cutting one sheet, you can take the cut other sheet from the table, and the work continues without interruption. Even without the machine’s automatic feeding, your work efficiency does not decrease thanks to this feature. If desired, you can also check out Saga’s or Sinajet’s automatic feeding machines. The machine’s table is vacuum and the vacuum compressor comes with the machine. If you are not going to cut thick materials, the SAGA FC Series cutting plotter is the best solution.

For cutting thick materials, we recommend our fully automatic Sinajet models.

FC 690920 FC 9901220
Max Working Area 700 x 990 mm 1000 x 1290 mm
Max Cross Cutting Area 690 x 920 mm 990 x 1220 mm
Max Cutting Speed 700 mm/s 700 mm/s
Max Paper Weight 600 gr/m2 600 gr/m2
Max Cutting Force 1000 gr 1000 gr
Max Creasing Force 1500 gr 1500 gr
Cross Reading With camera, 5-10 sec With camera, 5-10 sec

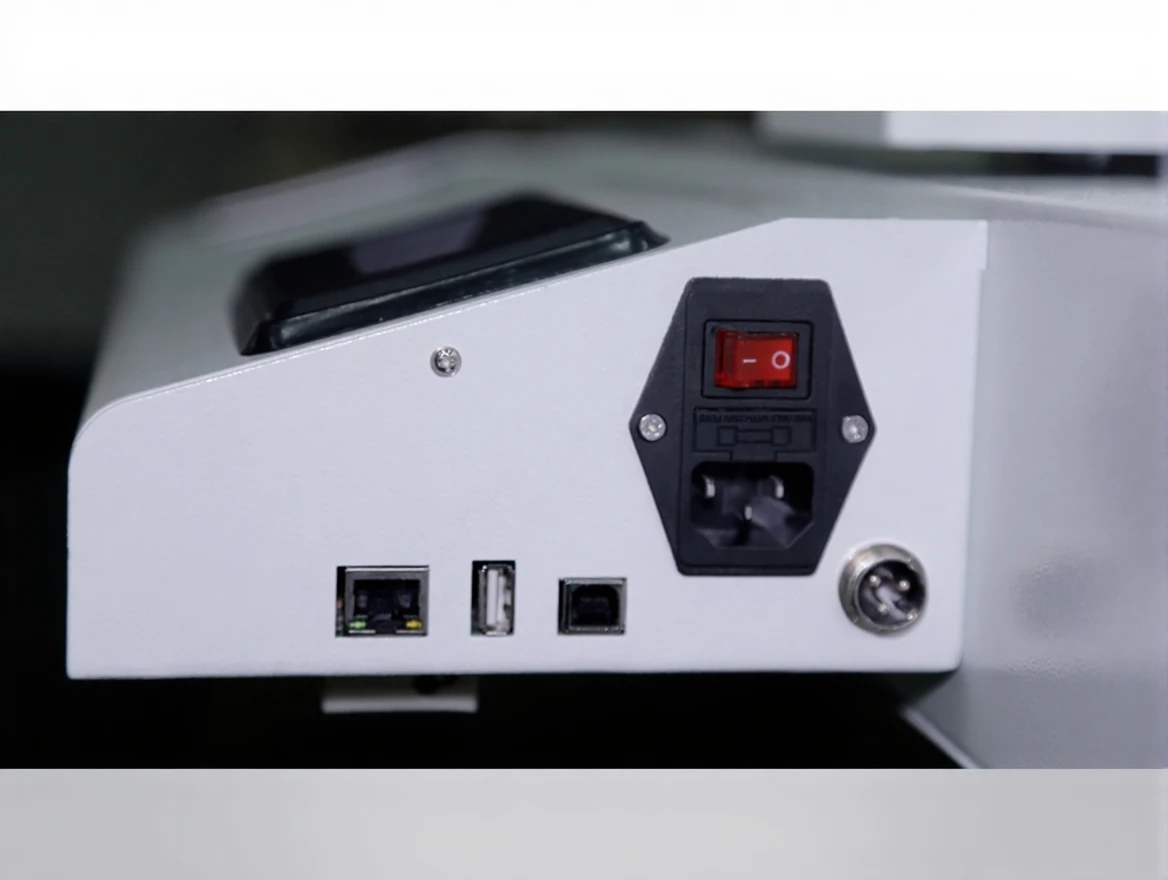

Connection  USB, LAN USB, LAN

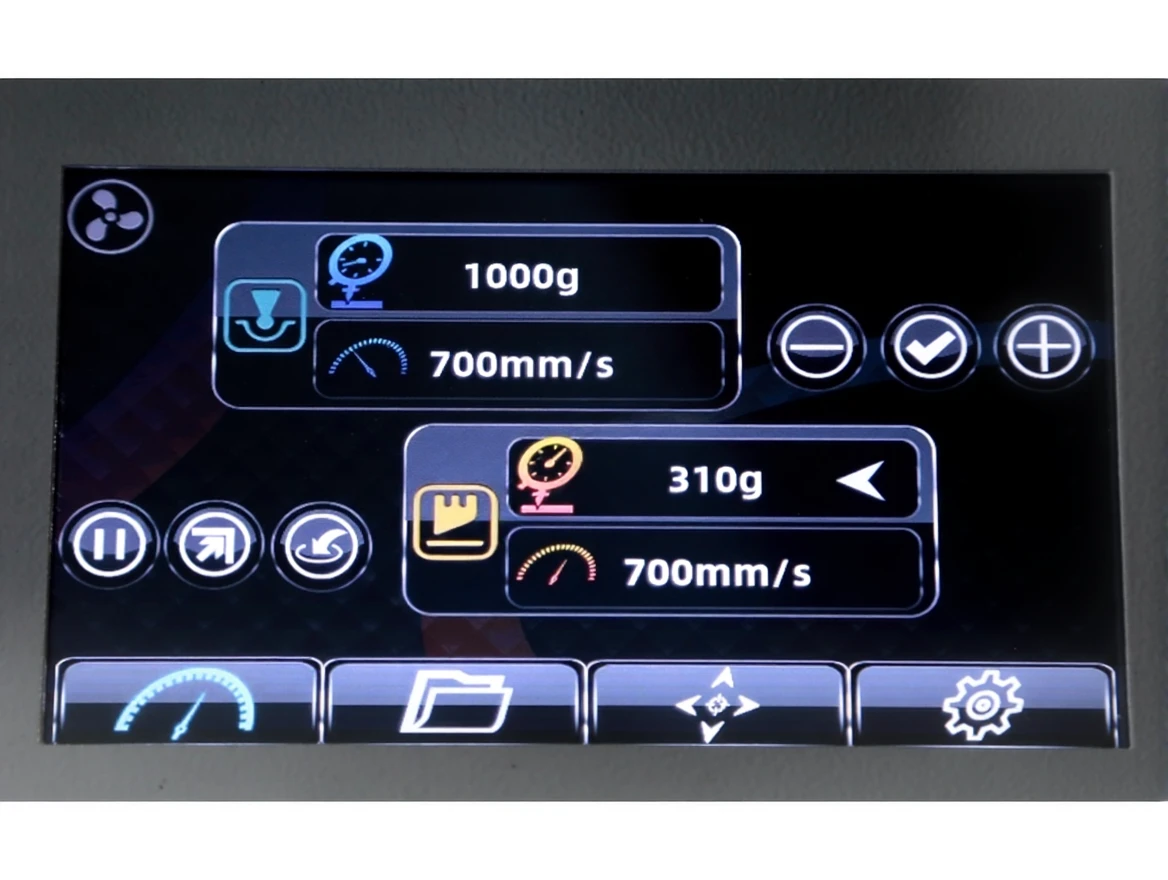

Screen  7 inch 7 inch
Software Dragoncut (USB) Dragoncut (USB)
Software Ai, CDR, (SD Card) Ai, CDR, (SD Card)
Weight 151 kg 275 kg
Dimensions 1286 x 1228 x 1000 mm 1887 x 1528 x 1000 cm
Vacuum compressor and stand  included included
