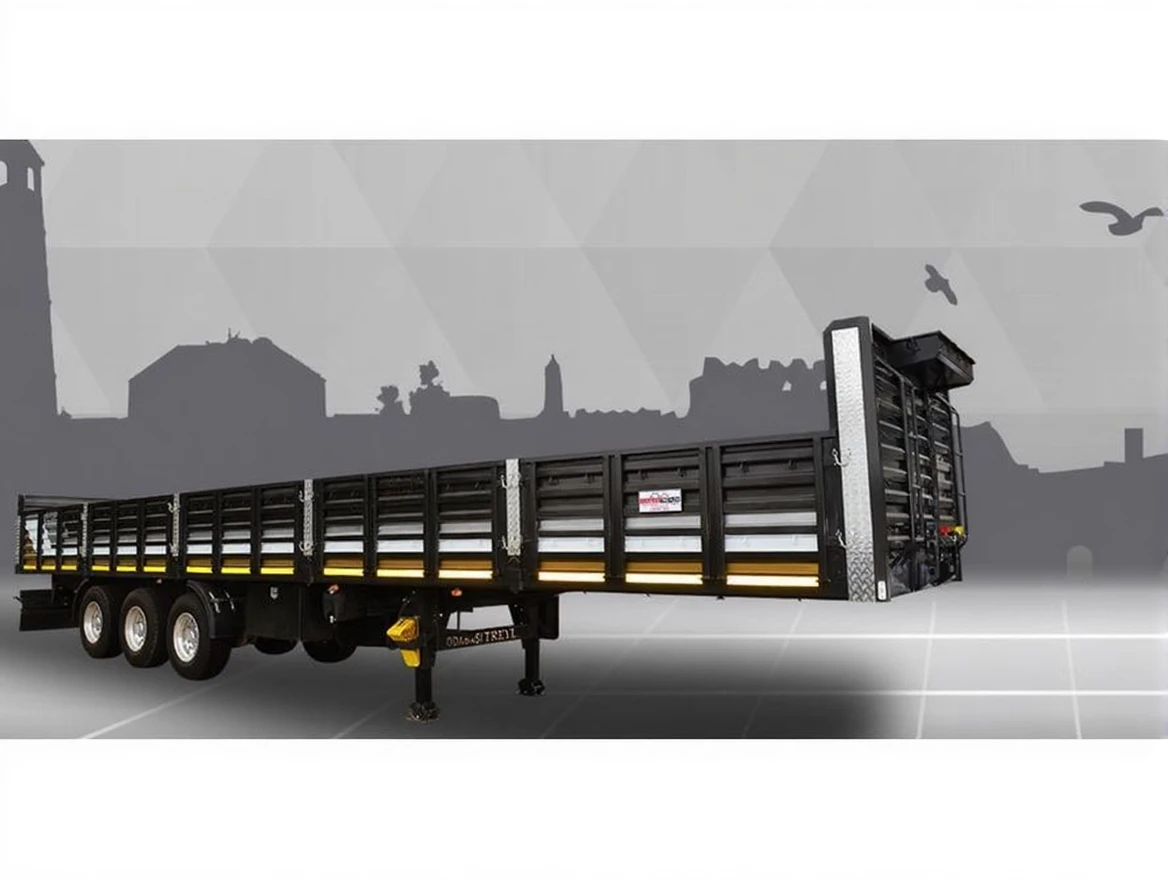

Salt Box Trailer
Unlike other platform manufacturers, Odabaşı Open Box Platform, which does not use standard canvassed chassis, can easily carry even the most challenging point loads with its 200 mm goose neck and cross-connection structure.
Thanks to the high-strength steel used in its chassis, Kässbohrer Open Box has twice the load resistance compared to standard chassis, making it the lightest open box platform product on the market with a empty weight of 6 tons or less. It pays off the vehicle cost in a short period of time as it provides fuel and route saving from the moment of use.
-
Standard Accessories
-
Segmented plastic mudguards covering the rear axle group tires
-
2 sheet metal toolboxes
-
Plastic water tank
-
1 pipe type spare tire carrier
-
Aluminum bicycle collision area
-
Fire extinguisher cabinet
-
Chock and chock location
-
-
Optional Accessories
-
European axle group and all kinds of equipment
-
Imported sheet metal (Domex)
-
Floor fully covered with MDF or sheet metal
-
Optional 18 mm thick MDF on side doors
-
Aluminum rim
-
Dual spare tire carrier
-
Additional axle lift
-
Retractable bumper
-
Additions on request to the cover
-
Salt Trailer Technical Specifications
|
Platform Length |
9000 mm |
|
Goose Neck Length |
3850 mm |
|
Total Width |
2550 mm (2750mm (3000mm) |
|
Trailer Length |
12930 mm |
|
5th Wheel Height |
1300mm |
|
Loading Platform Height |
910 mm loaded |
|
Chassis |
Chassis made of high tensile ST 52-3 steel with an (I) section |
|
Floor |
60mm hard wood + wheel tops drop pattern sheet metal |
|
Brake |
Double circuit electro-pneumatic brake system including EBS 2S / 2M anti-lock system complying with 71/320/EEC regulation |
|
Axles |
3X12 ton capacity air suspension and camshaft axles |
|
Axle Type |
3 fixed axles |
|
Ramp Type |
Hydraulic or pneumatic integral + mechanical sliding |
|
Tires |
12+1 pieces 245/70/17,5 |
|
King Pin |
3.5” Kingpin + 2” Kingpin |
