Sausage Smoking Machine
| Brand | YKF |
|---|---|
| Model Type |
AF2 |

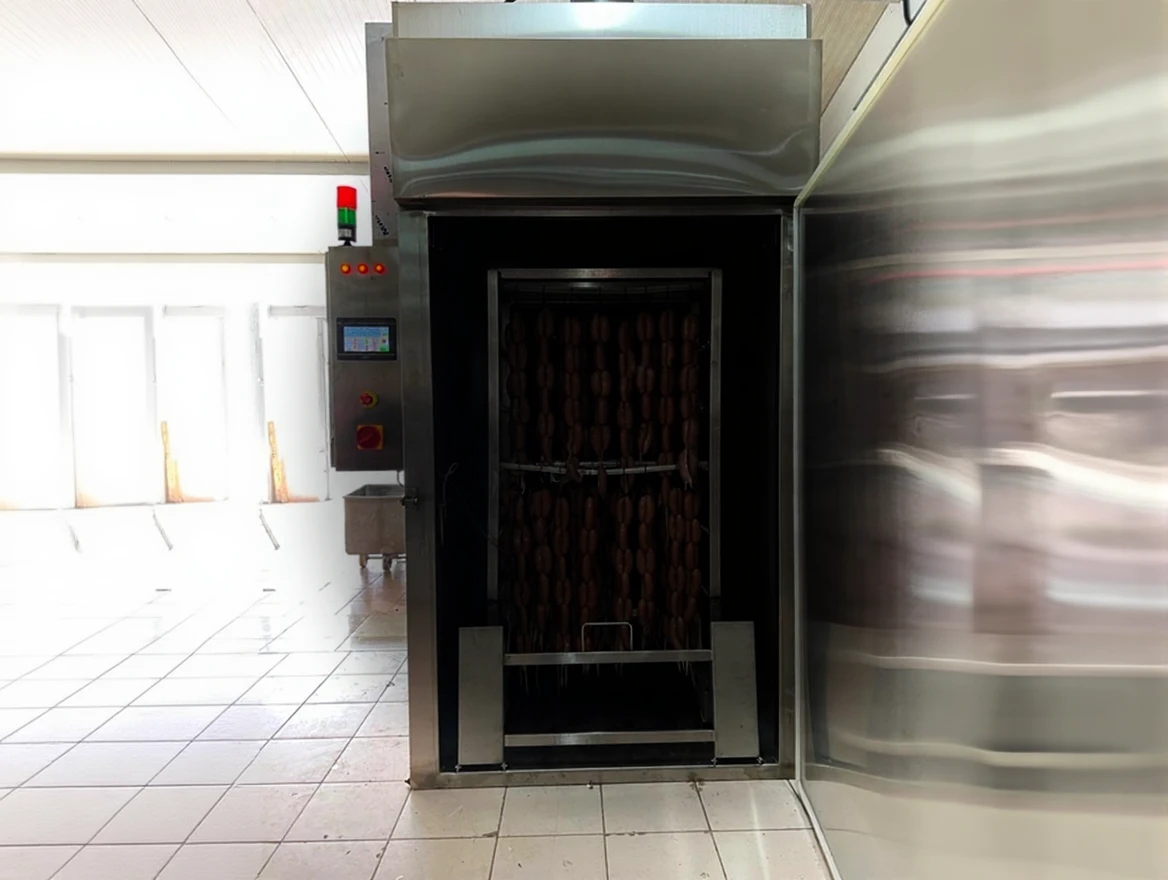

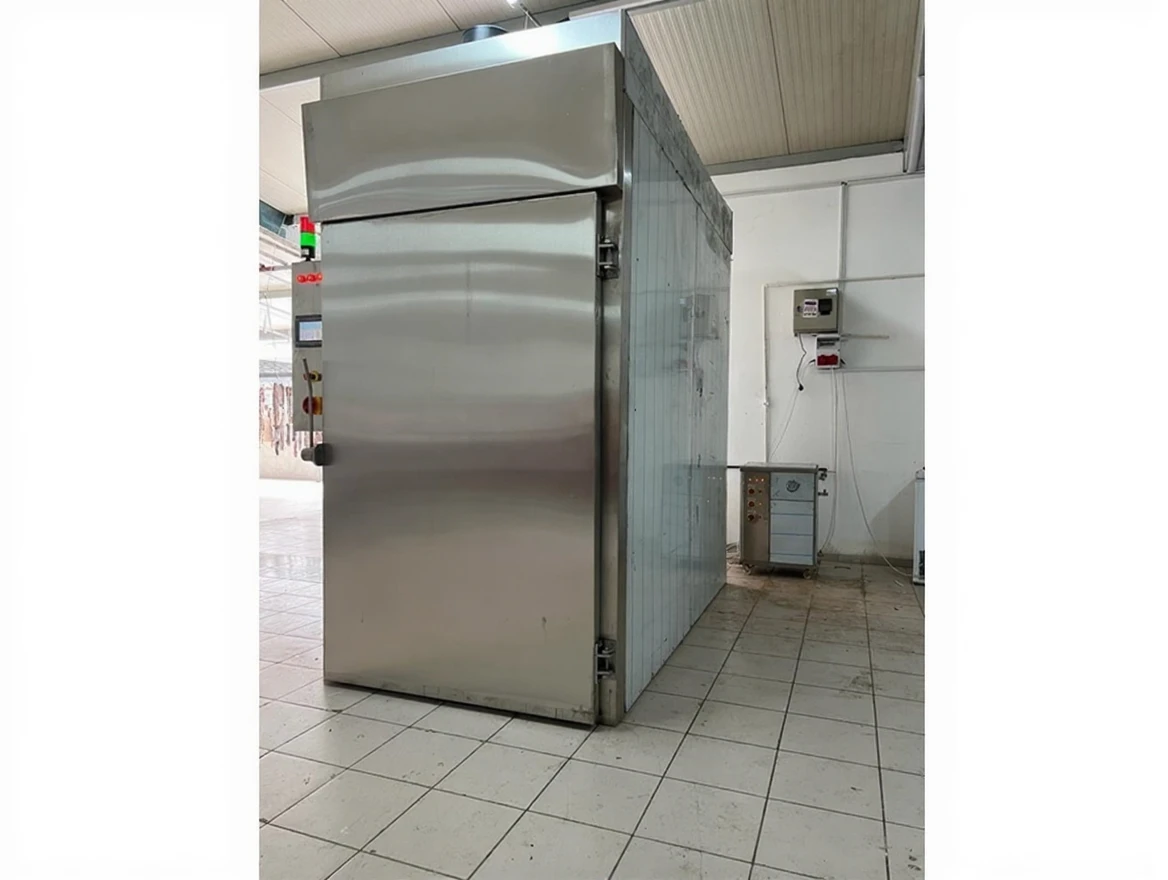

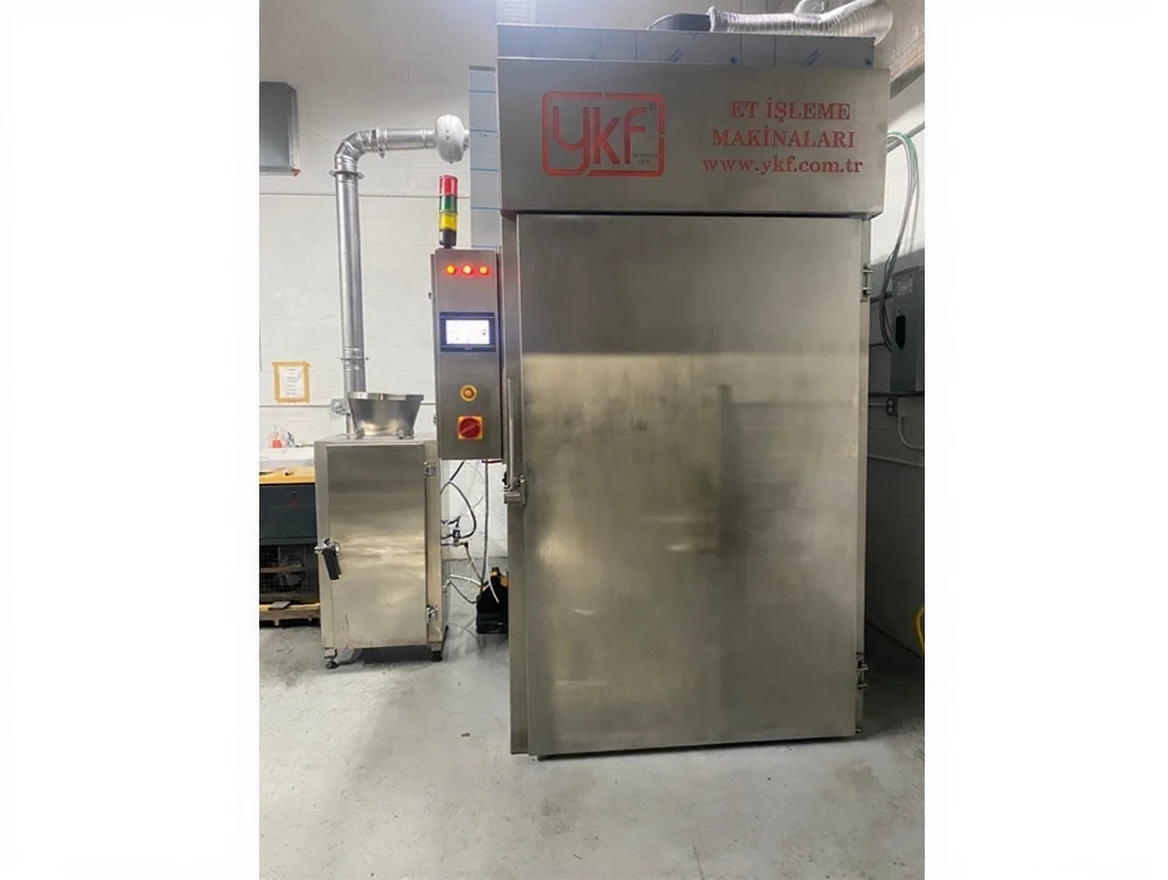

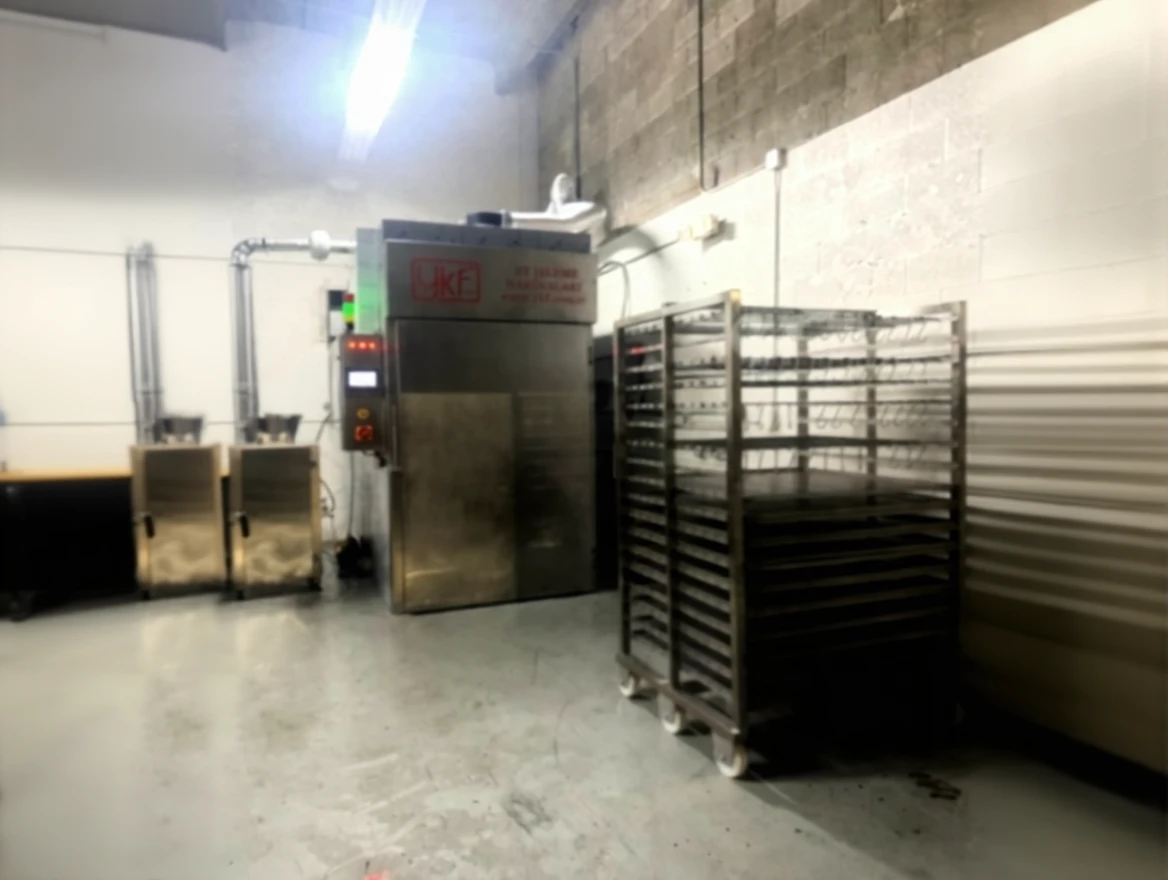

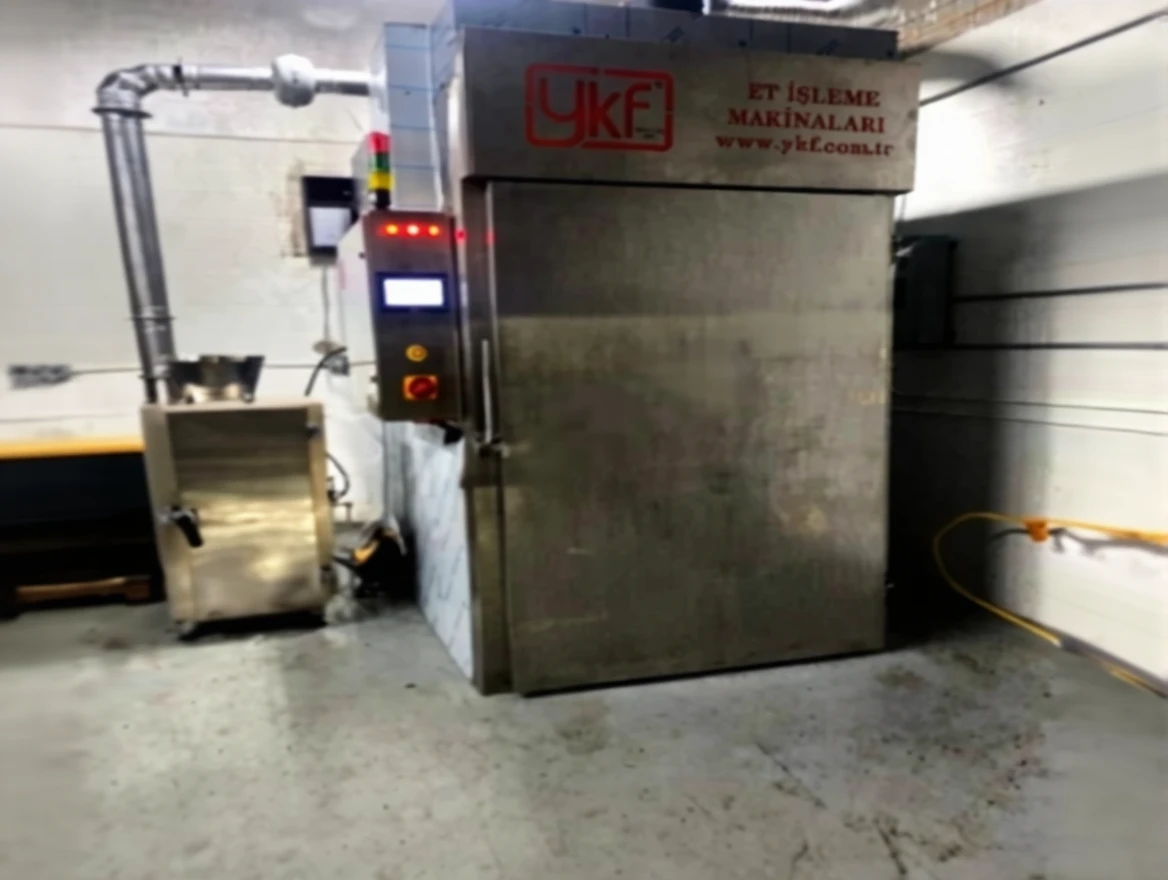

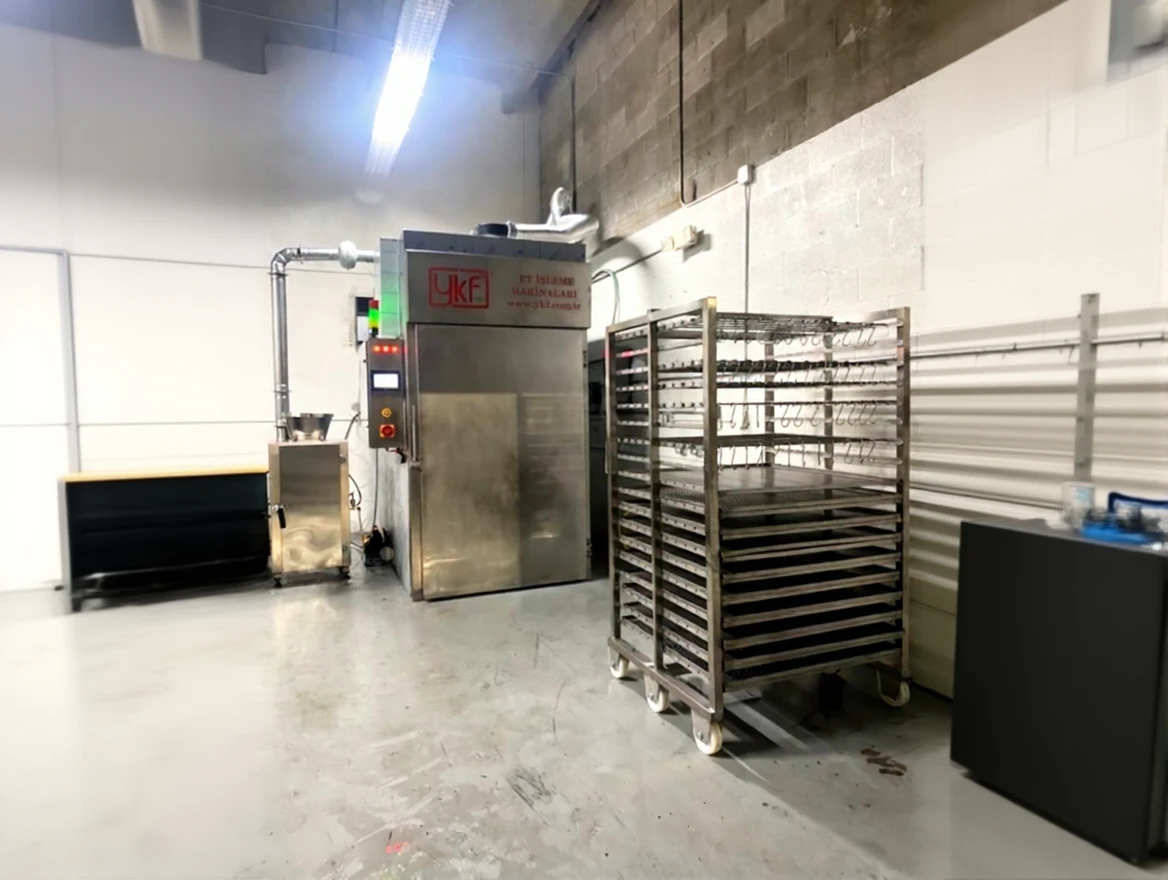

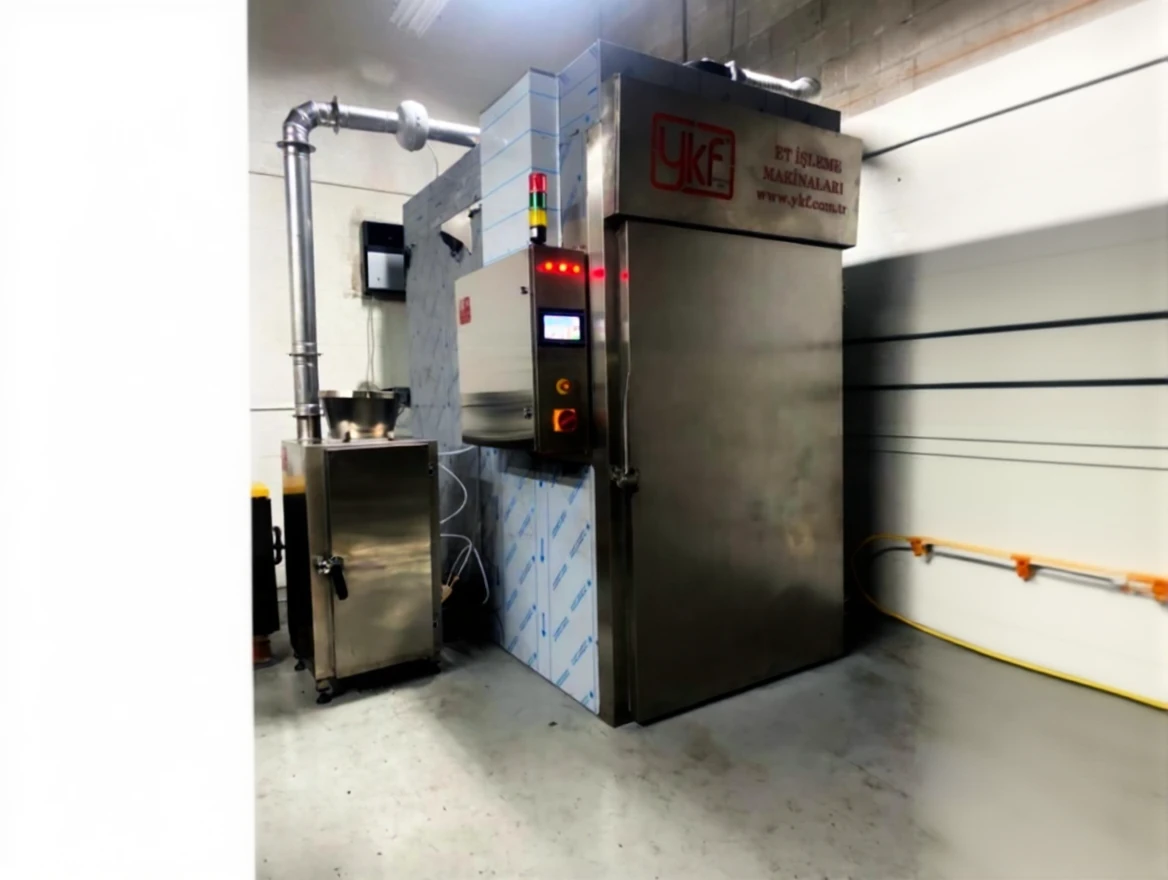

YKF AF2
2 Tray Sausage Oven Smoking Oven
Usage Areas
*Made entirely of 304 quality stainless steel
*Has drying feature
*Used for steaming with steam
*Optional smoking apparatus available
*Optional cooling unit can be applied
*Product has temperature indicator
*Cabinet has temperature indicator
*Humidity sensor included
*Touchscreen with 120 programs
*Clean air and exhaust system
*Has alarm features

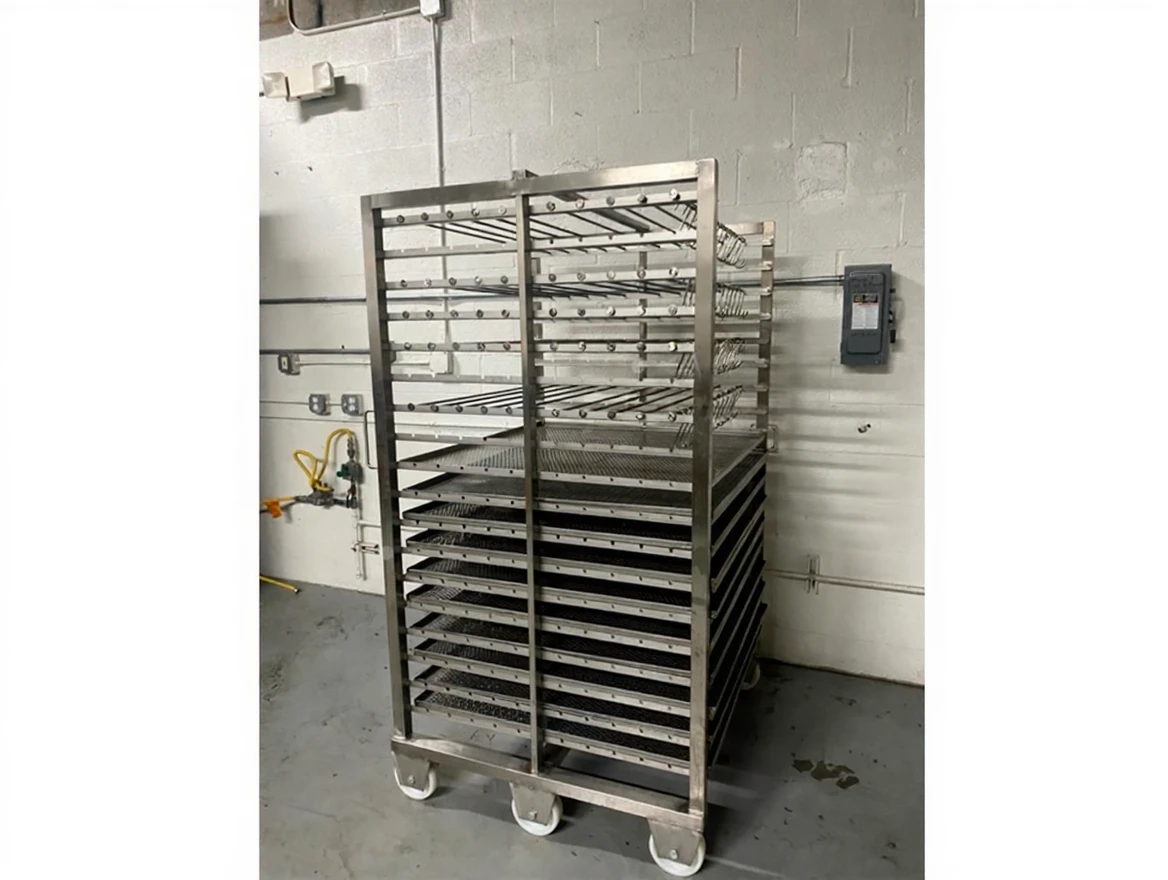

*2 tray design
*Steam coil
*With resistance
*Used for cooking and drying sausage, salami, sausage, ham, and for smoking and curing dry meat, fish, and white meat products
*Easy to use and clean
YKF AF2 Technical Specifications
|
Product Capacity |
400 kg/h |
|
|
Electricity (V) |
380 |
|
|
Resistance |
30 Kw |
|
|
Inverter Speed Control |
5 Kw |
|
|
Touchscreen |
7 Inch |
|
|
Steam Coil |
50000 cal |
|
|
Circulation Fan |
3 Kw |
X 2 |
|
Exhaust Fan |
0.5 Kw |
|
|
Steam Inlet |
4/1 |
|
|
Steam Pressure |
2/6 atü |
|
|
Steam Valve |
4/1 |
|
|
Air Pressure |
4/8 bar |
|
|
Main Body |
50×50 |
2mm |
|
Body Thickness |
1.5 mm |
|
|
Insulation (Rock wool) |
80 mm |
|
|
Width |
1500 mm |
|
|
Length |
2650 mm |
|
|
Height |
2800 mm |
|
|
Weight |
1100 kg |
|
