SC Carousel Horizontal Foam Cutting Machine
| Brand | Sable Makine |
|---|---|
| Model Type |
SC |
Description
Sable Machine

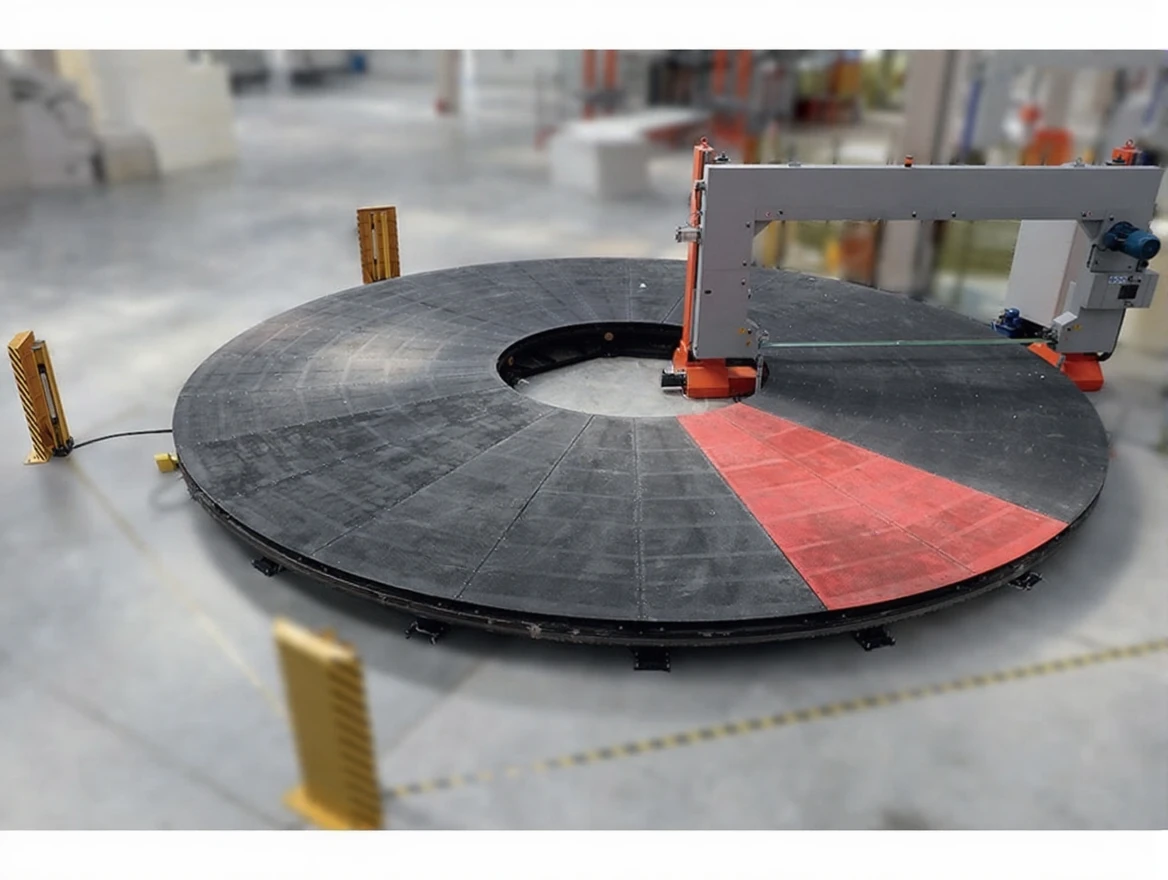

SC Carousel Horizontal Foam Cutting Machine
This machine is designed for cutting more than one foam that placed on the circular plate in accordance with the entered thickness value. The operation is fully automatic also it can be intervened manually. During the foam cutting operation not to be moved to impair the quality of the foam, the machine plate is covered with emery stone and high capacity of the vacuum engine is ensured to keep the foam block fixed on the plate.
- BECKHOFF products are used in the automation group in all our machines.
- In case of malfunction, when the internet is connected to the machine, a fast remote connection can be provided and fault detection can be made.
- Foam cutting quality is always kept high. Cutting knives are sharpened with the grinding unit.
- Precise measurements are obtained in cutting with the specially coated blade guard that we manufacture.
- With the multiple page recipe cutting can be made.
- During cutting, the body automatically adjusts its angle and ensures accurate measurements in the cutting process.
- Safety equipment is designed according to category 4 and senior security measures are presented.

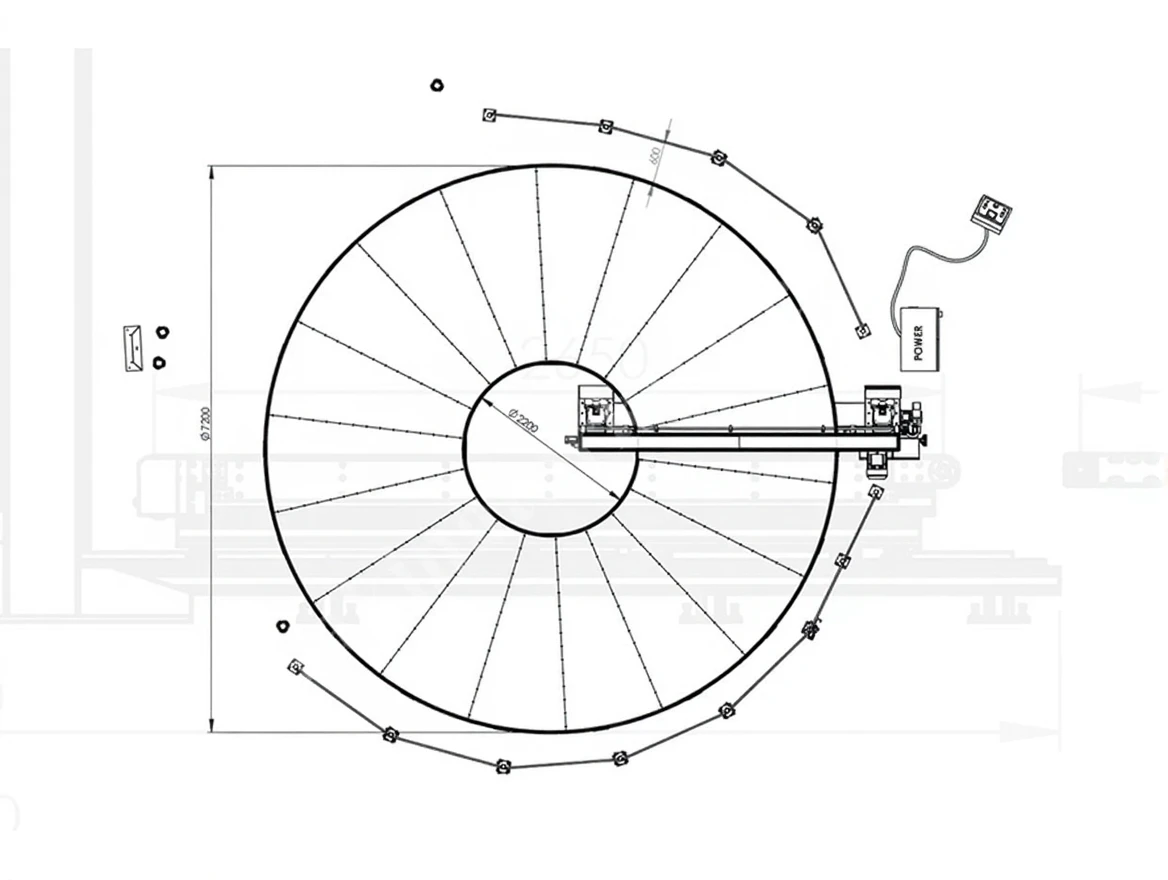

- Cutting plate diameter is produced in two different models, including 9000 mm and 7200 mm.
- Cutting times are shortened thanks to continuous cutting and single block cutting modes.

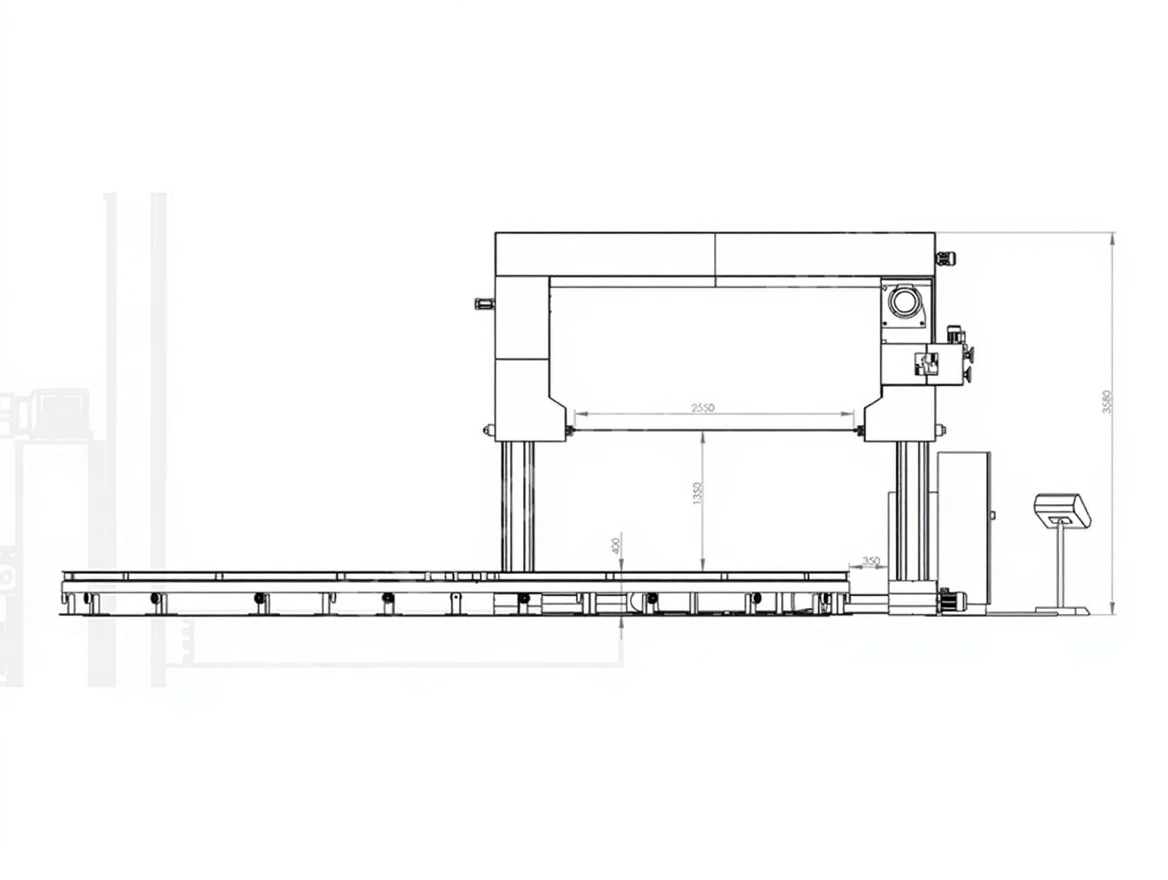

SC Carousel Horizontal Foam Cutting Machine Technical Specifications
|
Cutting Height
Cutting Height
|
1300 mm |
|
Cutting Width
Cutting Width
|
2500 mm |
|
Foam Block Length
Foam Block Length
|
2720 mm |
|
Cutting Speed Max
Maximum Cutting Speed
|
80 m/min |
|
Cutting Angle
Cutting Angle
|
0 , +6 ° |
|
Air Pressure
Air Pressure
|
6 bar |
|
Power
Power
|
15 kW |
All of our machines have CE certification.
