SCE Horizontal Contour Cutting Machine



– Blades can rotate 360 degrees and cuts can be made with the 3×0.6 mm toothed knife on a rotating pulley feature
– The machine loads the block cutting area automatically
– The cut foam block can be discharged by means of conveyor automatically.
– Cutting quality is ensured with the top pressure feature.
– Top pressure and table is working in synchronous.
– Table with the feature of Rotary Table 0 – 90 degrees of rotation provides the possibility of making a double cut..
– Vibration is minimized thanks to supporting knife feature.
– With the SableNEST drawing program, quick and easy cutting programs can be made
– Safety equipment is designed according to category 4 and senior security measures are presented.
– With voice and light warning system, to start programs, operations and ending transactions are stated clearly

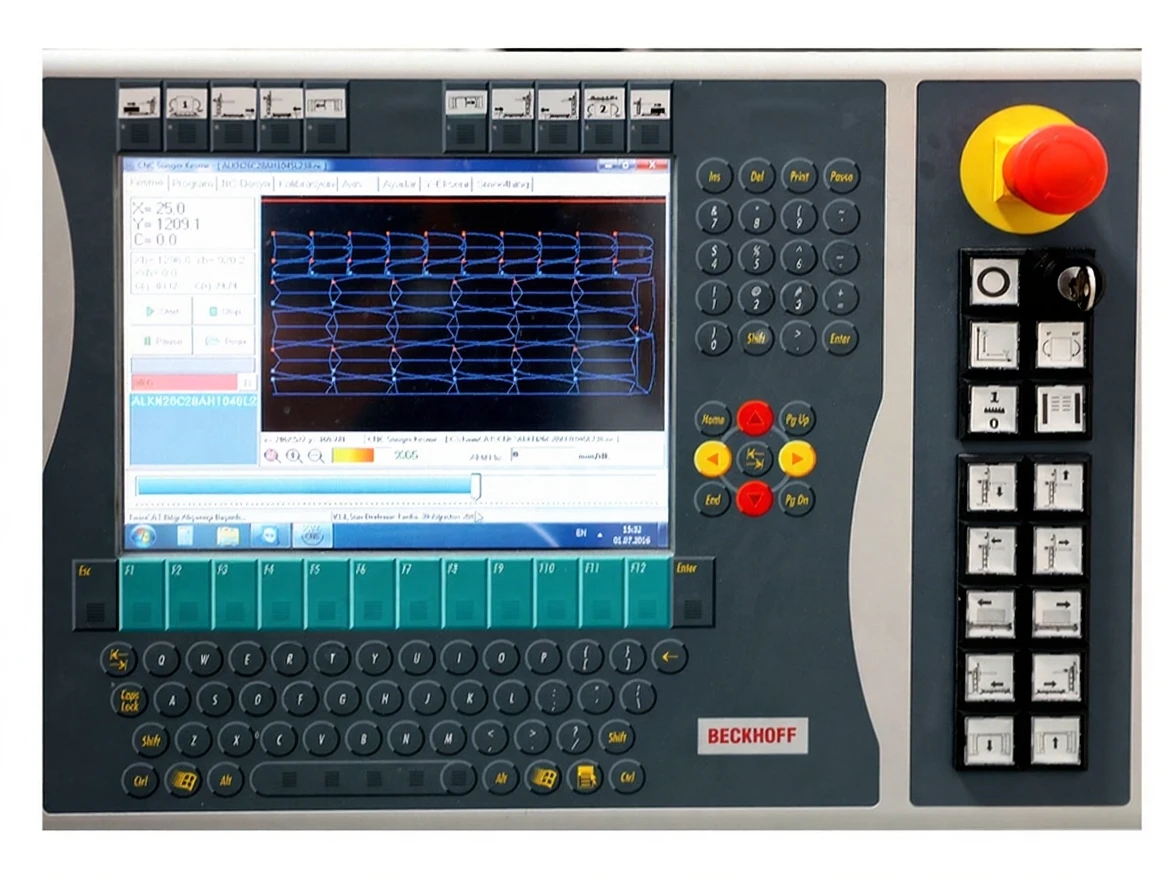

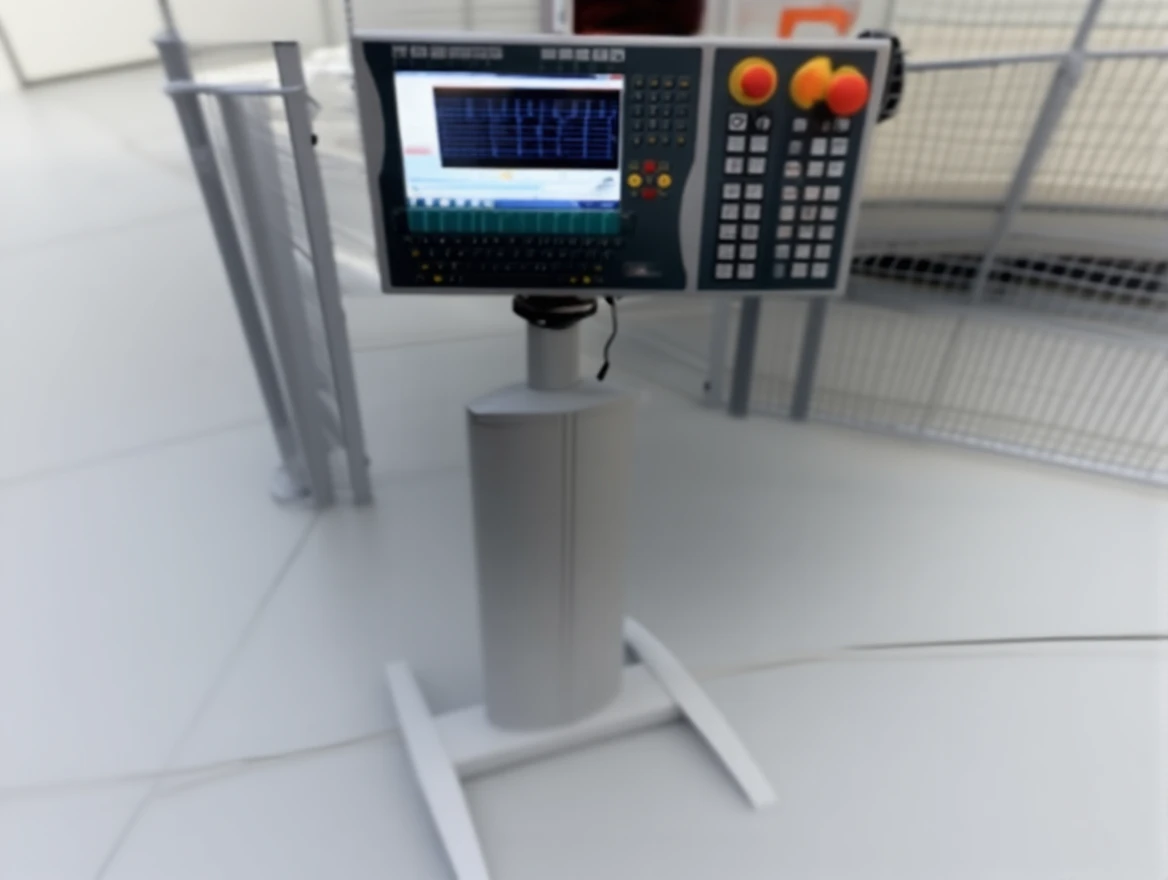

– The foam cutting rotation is shown on the screen of the operator panel.
– Cutting speed can be adjusted with the speed bar on the operator panel.
– This machine can cut PUR (polyurethane foams) like HR, CMH, and VISCO



Cutting Height	1500 mm.
Cutting Width	2500 mm.
Block Length Max.	2700 mm.
Cutting Speed Max.	40 m./min
Air Pressure	6 bar
Power	15 kW.
Option	Loading and unloading conveyor SableNest software Turn table with conveyor belt
