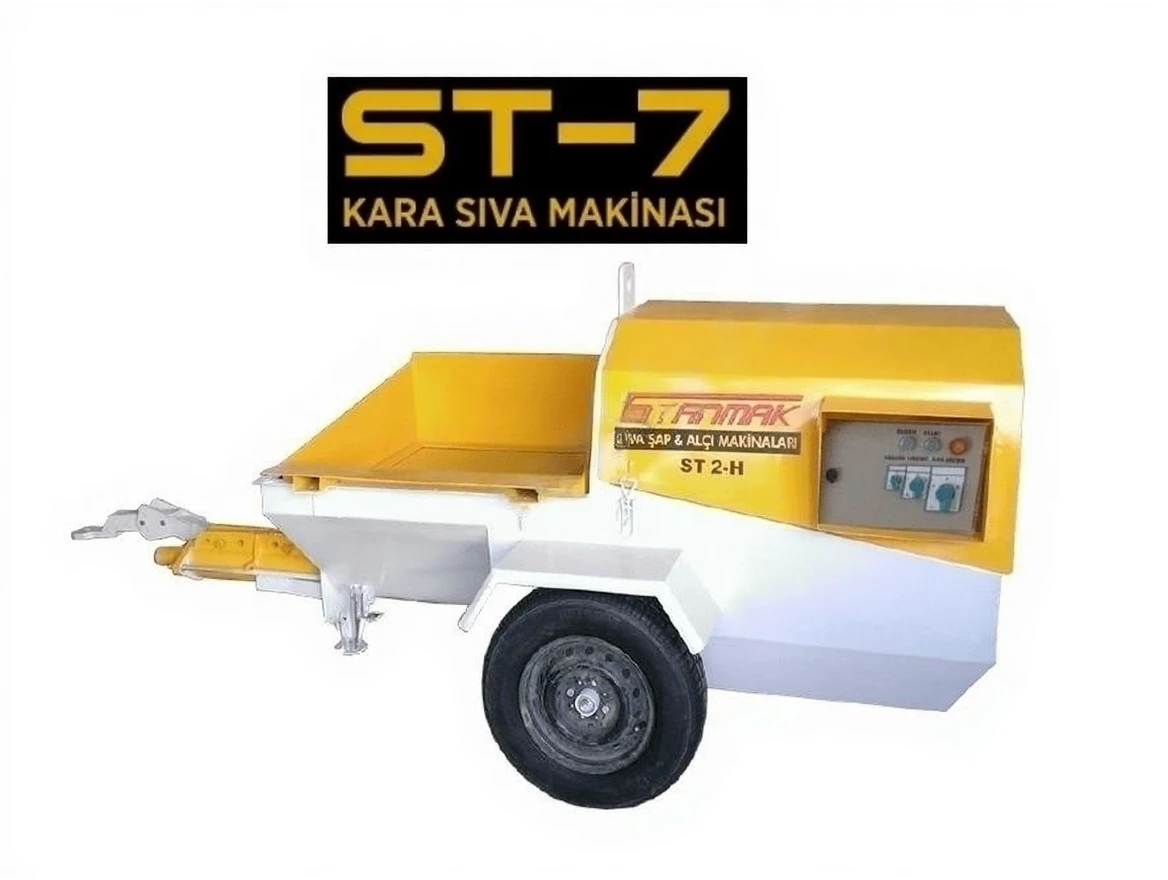

Screw Type Plaster Machine

Screw Type Plaster Machine

Stanmak ST-7

TECHNICAL SPECIFICATIONS (Screw Machine)

● Material Used: Sand, Cement, Lime
● Pumping Capacity: 75 – 1/min
● Pumping Pressure: 40 bar
● Pumping Distance: 60 – 80m
● Pumping Height: 40m
● Operation: 400 V, 50 Hz
● Pump Motor: 7.5 kW
● Mixer Motor: 3.0 kW
● Compressor Capacity: 2.2 kW, 350 1/min
● Vibrator Screen: 8mm
● Remote Control: Manual
● Material Output: 2"
● Control Panel: 24 V
● Pumping Hose: 30 m

SAFETY FEATURES

When the discharge hose is clogged, the Smart Shutdown System activates (This system prevents any injury or fatal accident risk)

The operator control panel operates at 24 Volts. (The operator is not exposed to electric current)
