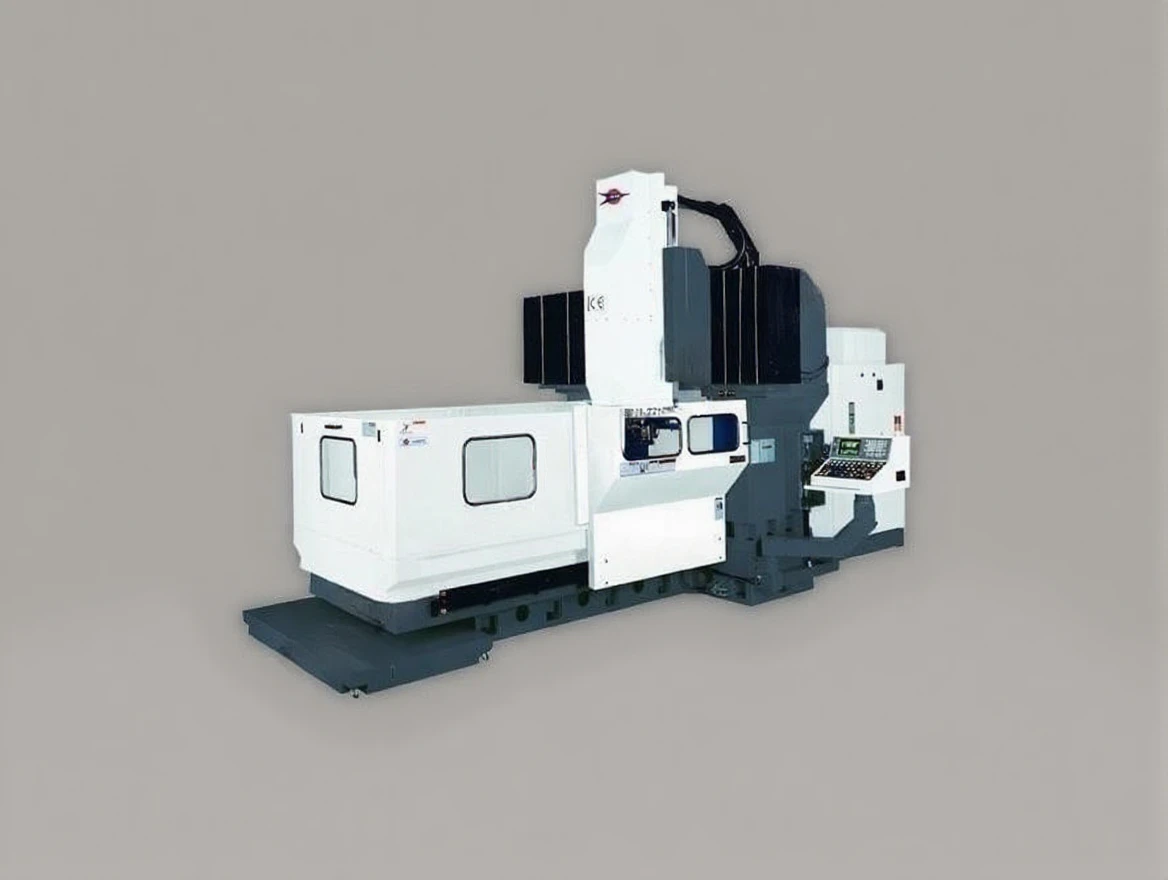

SDM 3220 CNC Bridge Type Machining Center

3220

Work Area

mm

3000X1700

Max Load Capacity

ton

10

X-Axis Travel

mm

3200

Y-Axis Travel

mm

[ PHONE HIDDEN ])

Z-Axis Travel

mm

750 (900,1200)

Distance Between Columns

mm

2000

Spindle Nose to Table

mm

220-970

Spindle Taper

BT50

Spindle Speed

rpm

6000

Motor Fanuc

kw

25/20

Cutting Feedrate

mm

1-5000

Rapid Traverse X/Y/Z

m

12/12/10

Minimum Movement

mm

0.001

Tool Capacity

24

Max Tool Diameter

mm

Ø110/Ø220 (Ø350, if no adjacent tool)

Max Tool Weight

kg

18

Tool-to-Tool Change Time

s

8 (Arm type)

Cooling Tank Capacity

lt

400

Hydraulic Tank Capacity

lt

80

Lubrication Tank Capacity

lt

6

Positioning Accuracy

mm

ISO 230-2: A0.015MM

Repeatability Accuracy

mm

ISO 230-2: R0.01MM

Roundness Accuracy

mm

0.02MM/300MM, diameter

Machine Net Weight

ton

29

Power Requirement

kva

45

Equipped with Fanuc Control Unit and Standard Accessories.
