Semi-Automatic 400 Ml Spray Paint Filling Machine

Brand Girmaksan Makine
Model Type

SPDM-YO-Pnömatic

Description

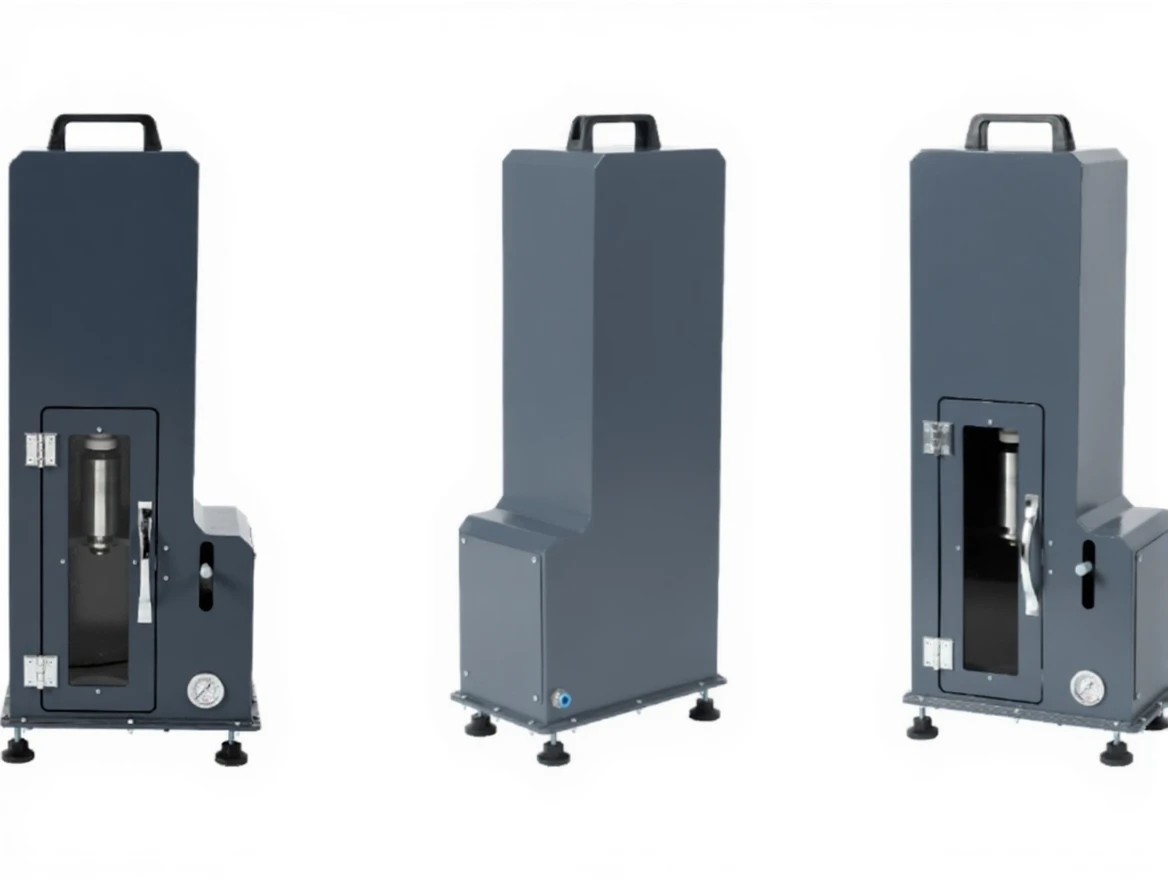

Girmaksan SPDM-YO-Pnomatic Semi-Automatic 400 ml Spray Paint Filling Machine

  • The semi-automatic spray paint filling machine is used to fill empty gas spray containers with paint, primer, varnish, and other chemicals in desired colors and tones.

  • The spray paint filling machine is designed for single filling.

  • The machine is compatible with all standard empty gas sprays (400 ml).

  • The required air pressure for the filling process is 6-8 bar.

  • The air pressure necessary for the operation of the machine is provided by a 50 lt. air compressor.

  • There is a 0-10 bar panel type manometer on the machine that shows the system operating pressure.

  • There is a 10 mm pneumatic hose inlet for air entry at the back of the machine.

  • Before filling the empty gas spray, the height adjustment will be done manually by hand.

  • The machine has 1 filling chamber.

  • There is 1 teflon that enters (pushes) into the chamber on the machine.

  • The up-down movement of the pneumatic piston can be manually adjusted with a 5/3 position valve, and the pneumatic piston can be stopped at the desired point.

  • The filling time for the empty gas spray is 0-5 seconds.

  • After the filling process is completed, the return time is 2-3 seconds.

  • The machine can fill 4-5 sprays per minute. (The filling process varies according to the user’s speed of filling the paint into the chamber and placing it in the machine).

  • The machine is painted with 7024 electrostatic powder paint.

  • Girmaksan reserves the right to change the design of the machine.

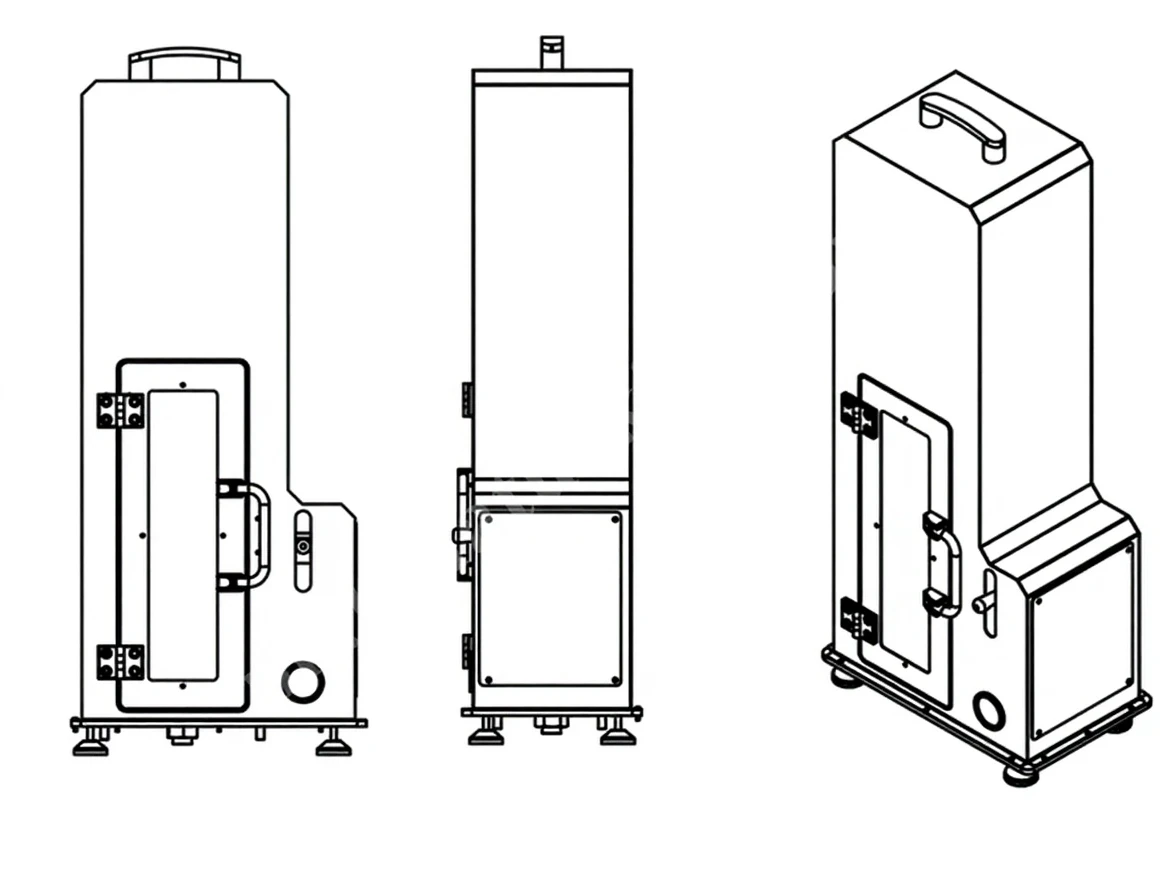

  • The dimensions of the unpackaged machine are 200*300*800 mm.

  • The dimensions of the packaged machine are 260*360*860 mm.

  • The weight of the machine without packaging is 22 kg.

  • The weight of the packaged machine is 27.5 kg.

TECHNICAL DETAILS

MODEL NO

SPDM-YO-PNOMATIC
