Semi-Automatic Angle Band Saw

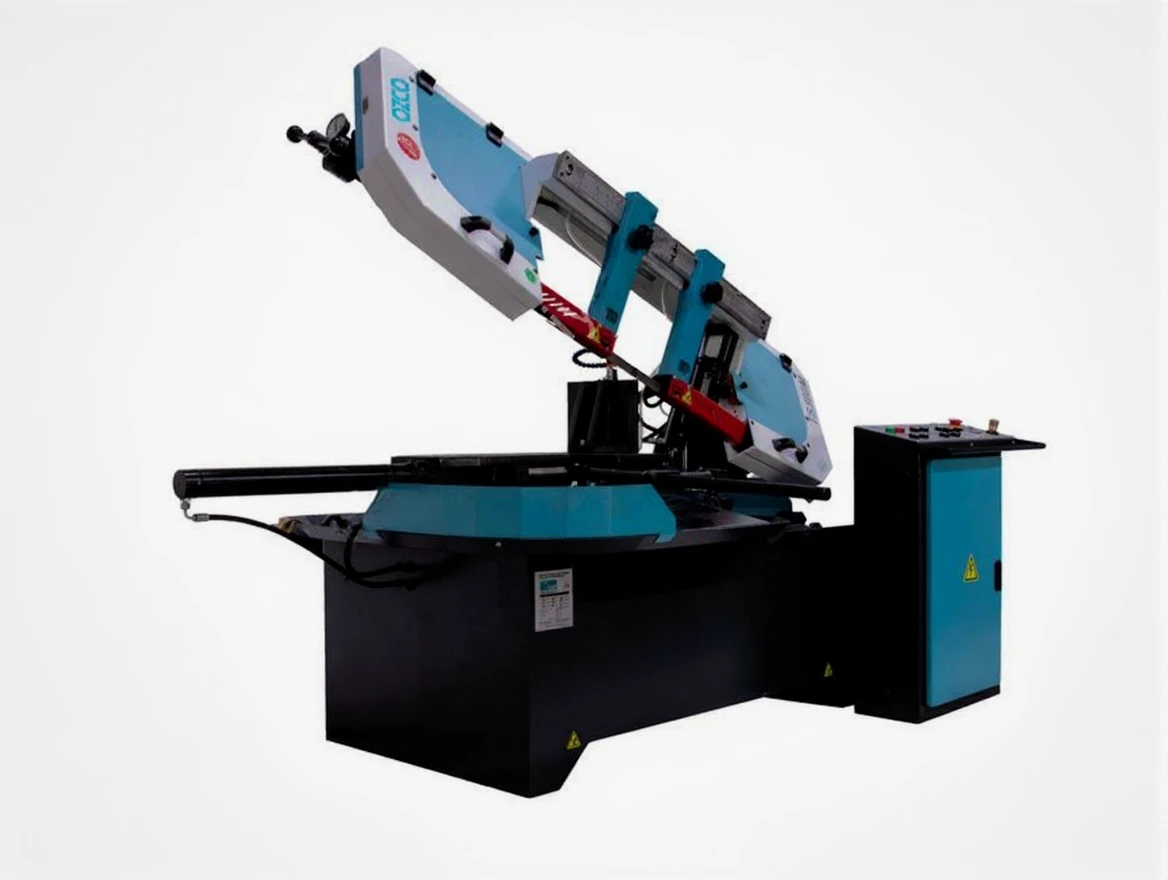

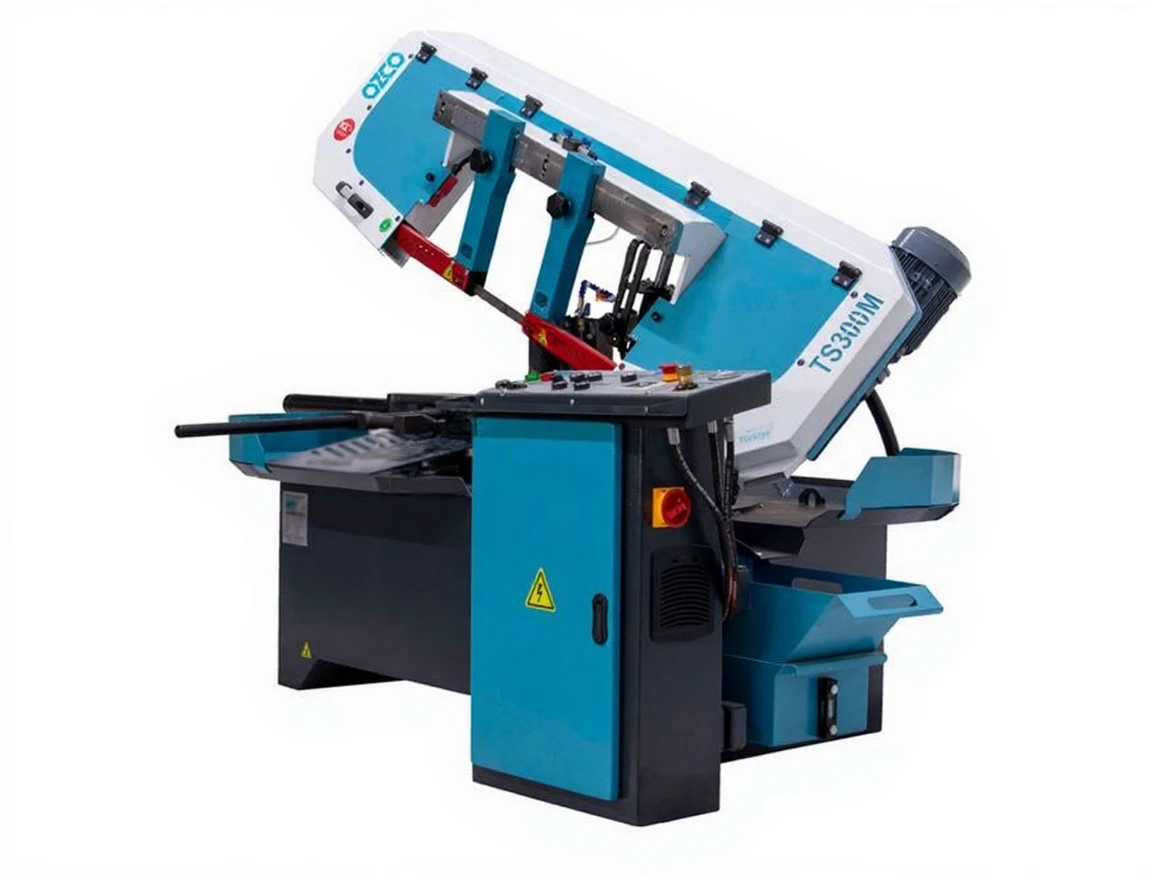

OZCO TS300M SEMI-AUTOMATIC ANGLE BAND SAW

OZCO TS300M SEMI-AUTOMATIC ANGLE BAND SAW Description:

Infinite steps in the range of 20-100 m/min with inverter speed adjustment/Vario system, Digital speed indicator, Hydraulic/Automatic material clamping, Hydraulic/Automatic head movement, Manual material feeding, Ergonomic control panel for ease of use, Specially designed cast pulleys, Hydro-mechanical blade tensioning, Domestic production powerful motor, Domestic production specially designed reducer, Material feeding system reinforced with specially designed double bearing system and long-lasting feeding balls, Adjustable vice pressure system for suitable clamping pressure adjustment according to material type, Double bearing pressed band saw system that increases cutting precision, High quality cooling motor from Italy, Chip brush, Schneider electrical system, Compliant with CE standards, Made in TURKEY

OZCO TS300M SEMI-AUTOMATIC ANGLE BAND SAW Shipment Scope:

5 Roller material support, Bi-metal saw blade mounted on the machine

Technical Specifications  OZCO TS300M SEMI-AUTOMATIC ANGLE BAND SAW

Motor Power     1.5 kW, 380 V

Cutting Capacity 0° Round: 300mm; Square: 300x300mm; Rectangular: 240x330mm

Cutting Capacity 45°             Round: 220mm; Square: 220x220mm; Rectangular: 200x300mm

Cutting Angle     0-45°

Speed        20-100 rev/min

Step            Inverter/Unlimited

Material Feeding Height             760 mm

Vice Opening Range         0-415 mm

Vice Height  190 mm

Drive Motor Power    –

Hydraulic Motor Power 0.18 kW Kw

Cooling Motor Power              0.12 kW W

Machine Dimensions             2340x1260x1430 mm

Weight 765 Kg
