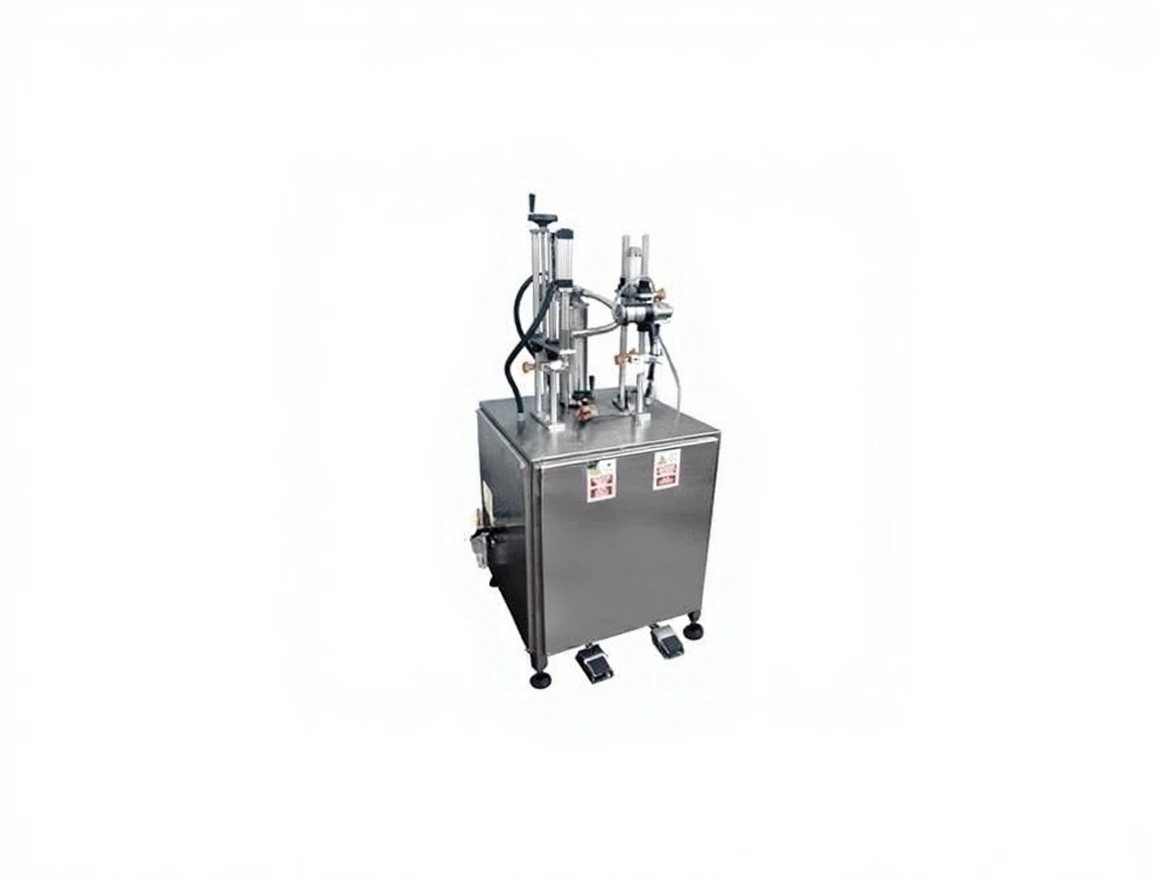

Semi-Automatic Liquid Filling Machine (With Cap)
| Brand | Dede Makine |
|---|
General Information for Semi-Automatic Capping Filling Machines
Our semi-automatic capping filling machines are used to fill all types of fluids, semi-viscous and viscous products into glass, tin, and plastic-based packaging and to cap them.
Produced in accordance with CE standards and food regulations, these machines save time, space, and personnel.
The simple and functional design facilitates the use, cleaning, and adjustments of the machines.
These machines draw the product from the manufacturing or waiting tank with their own vacuum, thus there is no need for any intermediate tank.
| Machine Dimensions | : | Length: 750 mm Width: 700 mm Height: 1600 mm |
| Machine Weight | : | :~ 150Kg |
| Energy | : | Compressed Air |
| Working Pressure | : | 6 Bar (gauge) |
| Total Energy Consumption | : | Compressed Air: 350 lt / min |
| Working Temperature | : | 4 C° – 80 C° |
| Noise Level During Operation | : | ~ 90 dB (A) |
| Product Suction Size | : | 1’‘ |
| Fillable Weight | : | Minimum: 50ml Maximum: 1000 ml Minimum: 250ml Maximum: 5000 ml |
| Number of Filling Nozzles | : | 1 Piece |
| Number of Capping Heads | : | 1 Piece |
| Filling Type | : | Volumetric |
| Capping Type | : | Screwing, Hammering or Pressing |
| System | : | Pneumatic |
| Filling Accuracy | : | ± % 0.5 ml |
| Capacity / Efficiency | : |
Varies According to Product Characteristics |
Machine Composition and Materials Used
Features
It is simple to operate and use, requiring no qualified personnel
-
Has an ergonomic and functional design
-
Since it operates with air, there is no fire hazard
-
Fills quickly and accurately
-
Does not scratch or deform while capping
-
Filling and waiting times can be adjusted precisely
-
Capping torque is adjustable
-
Easy to clean and maintain
-
Produced from materials fully compliant with food regulations
-
All adjustments are made without using hand tools
-
Even if filling is done accidentally, the product does not spill or waste
-
Nozzles are closed at the very end, ensuring no dripping
-
Closed-loop system, provides hygienic filling
-
Transition from one weight to another takes a maximum of 3 minutes
-
Weight indicator, no waste when adjusting to different weights
-
Has wheels, can be easily moved to the desired location
