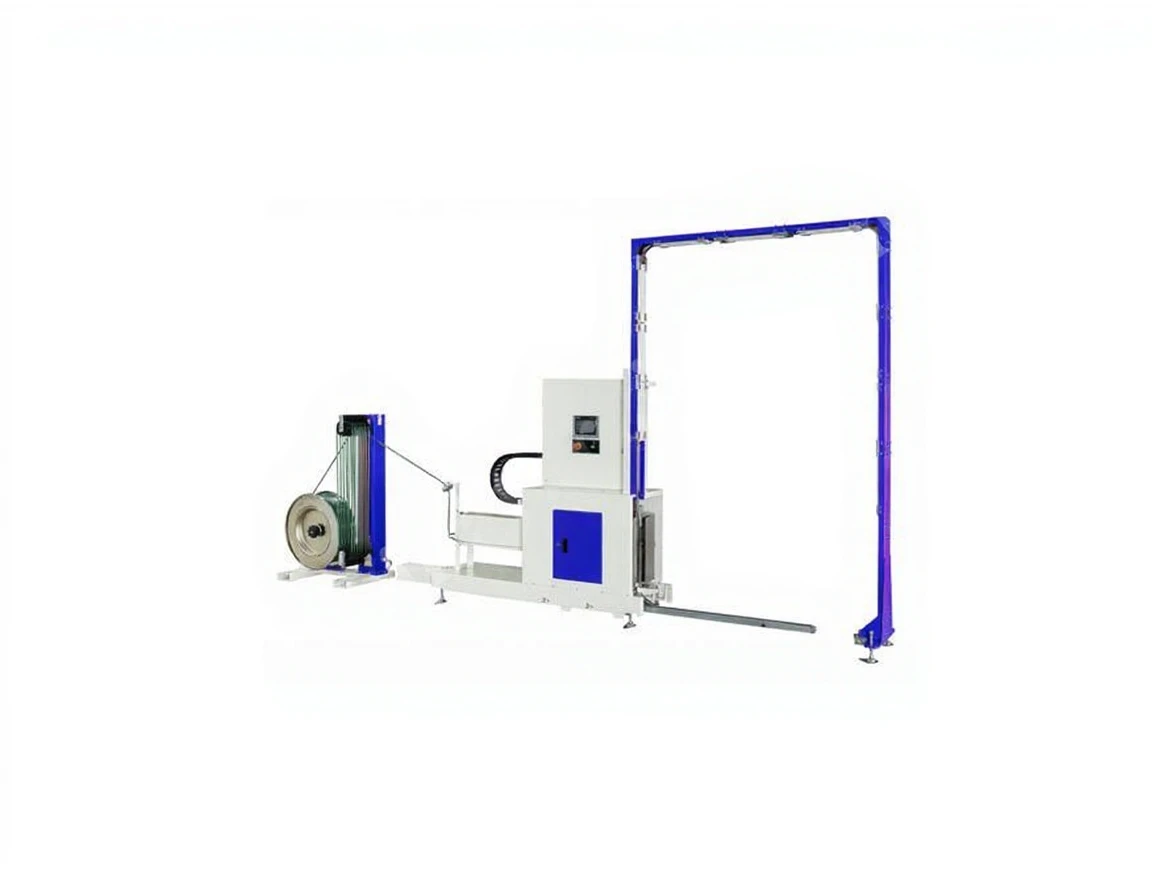

Semi-Automatic Pallet Strapping Machine with 72 pallets/hour Capacity
| Brand | Bosforo |
|---|---|
| Model Type |
B-PCM-002 |
Semi-Automatic Pallet Strapping Machine Features
ARES TP-733-SH strapping head

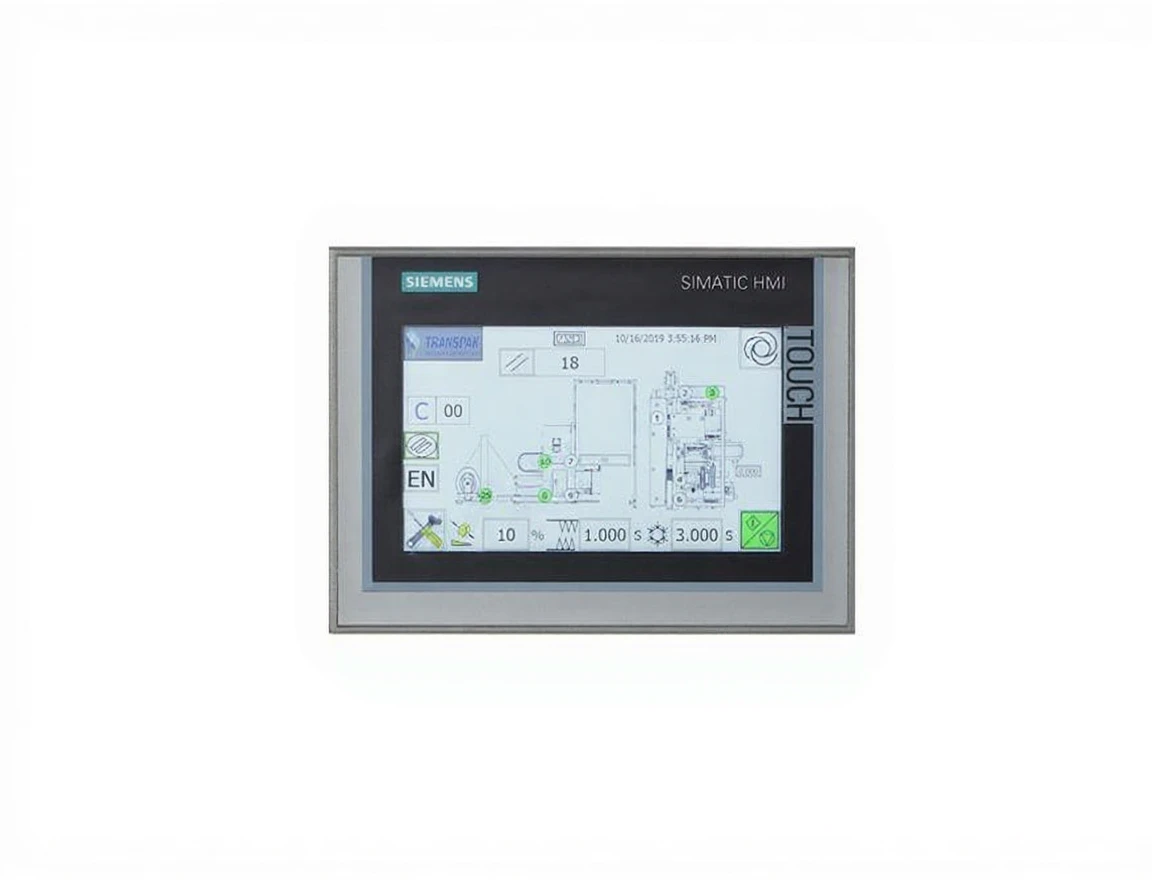

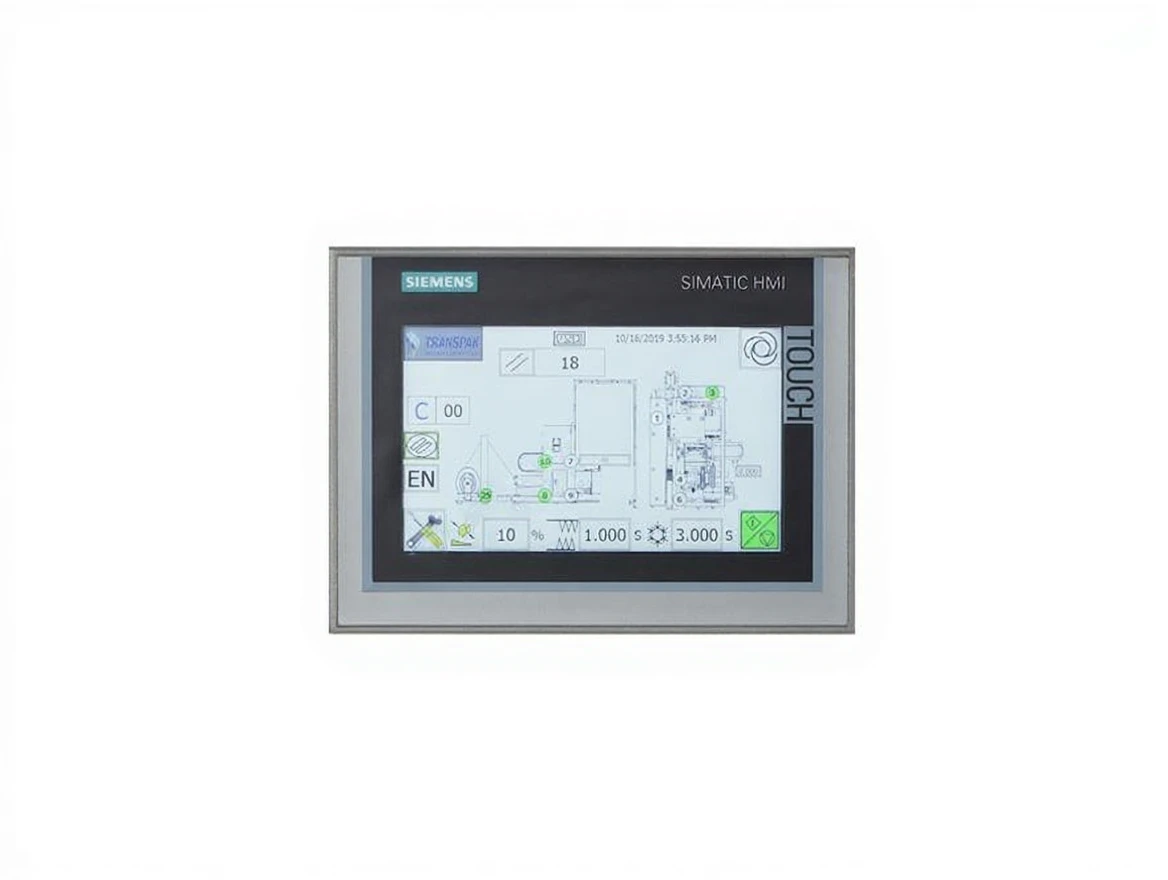

SIEMENS PLC and HMI
Rotary distributor set
Index strapping head
Movable belt lance
Friction source bonding technology
Free access to belt guides
Modular belt
Adjustable sealing and cooling time
Belt end ejector
Easy to change the strapping head
Options
Foot-operated work table
Low belt sensor light tower
Dual channel Emergency Stop
HMI mounted on the opposite side
Elevated support
Belt signal end
Different Models Available
Can be integrated with pallet wrapping
Can be automated with conveyor and electrical panel
|
SEMI-AUTOMATIC PALLET STRAPPING MACHINE |
|
|
CAPACITY |
72 pallets/hour |
|
BELT TYPE |
2 parallel belts |
|
BELT WIDTH |
9 mm, 12 mm, 15.5 mm or 19 mm |
|
BELT CORE SIZE |
406 mm |
|
TENSION RANGE |
1,100 – 3,200 N (standard) |
|
WEIGHT |
445 kg |
|
ELECTRICAL REQUIREMENTS |
220V, 380V, 400V, 415V 50/60Hz 3PH |
|
LOW TENSION RANGE |
2N |
|
UPPER PRESSURE |
200 kg or 500 kg |
|
|
