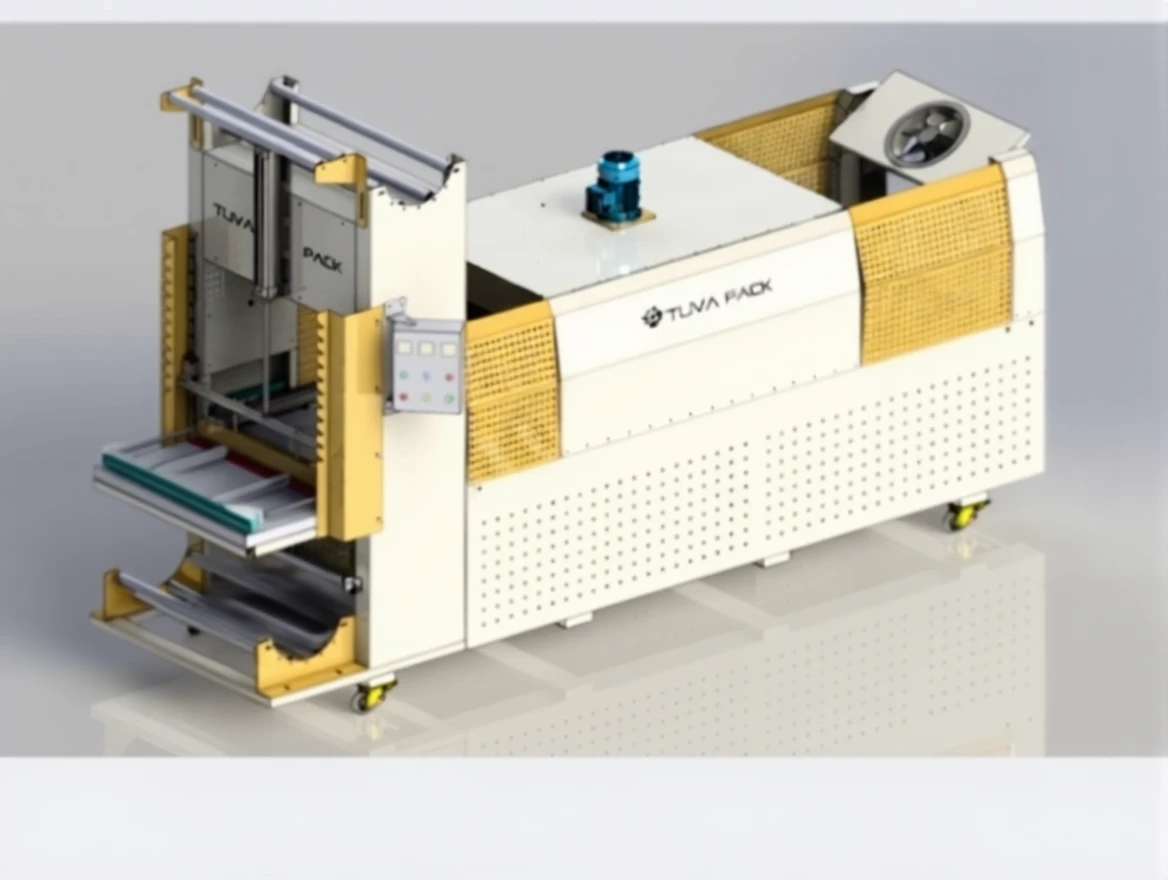

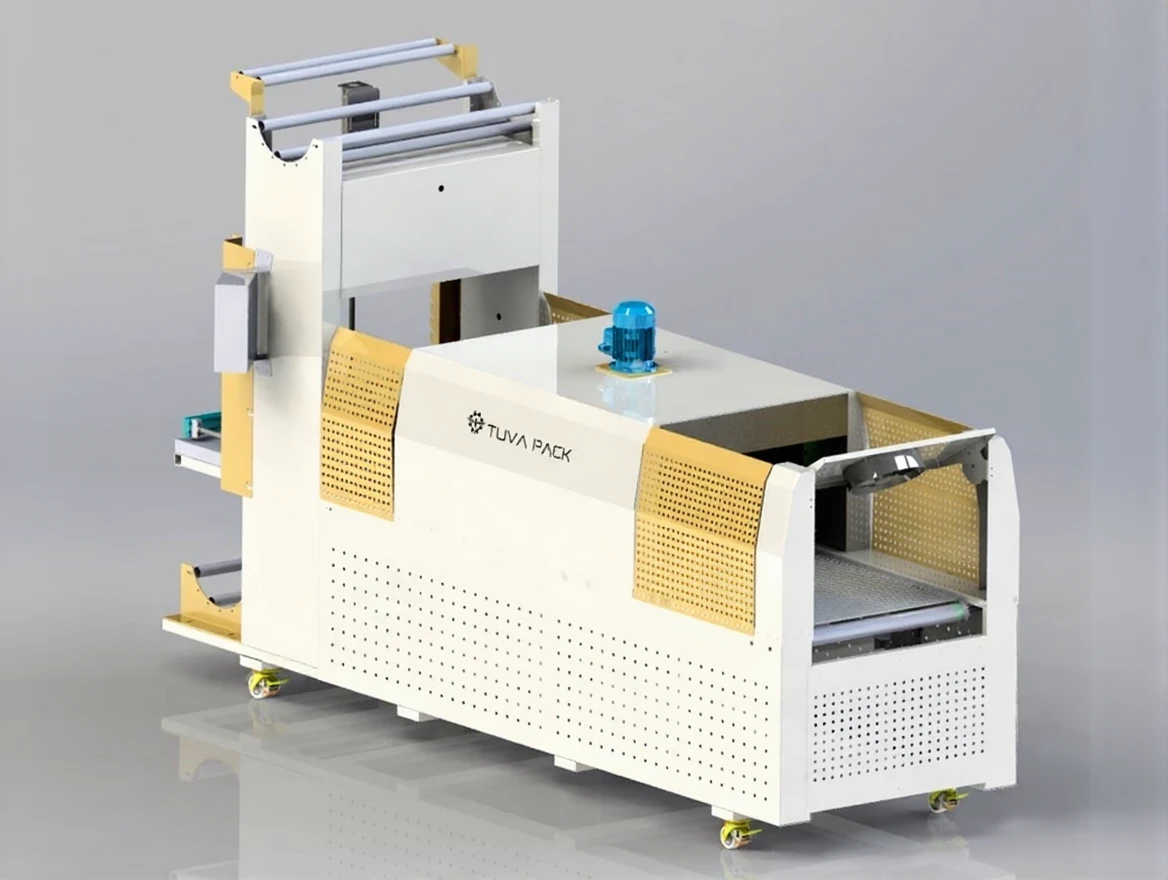

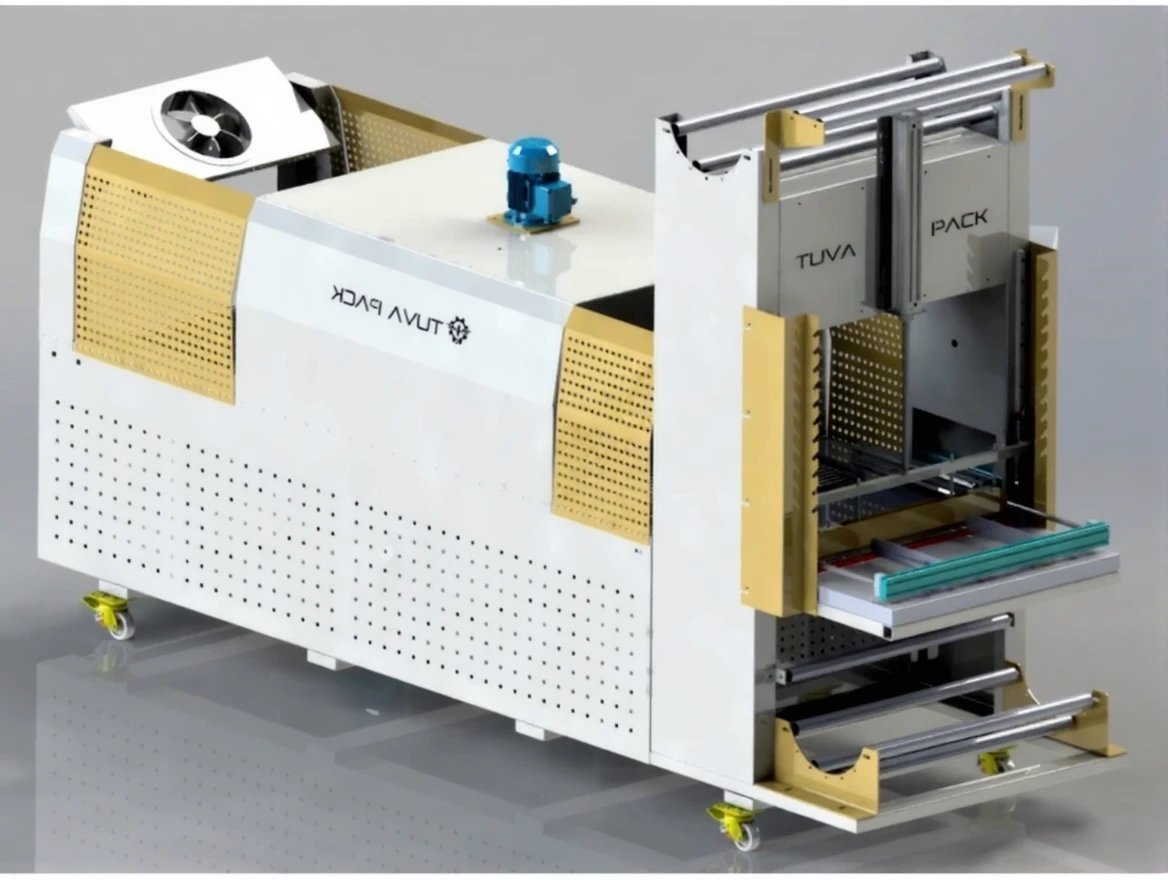

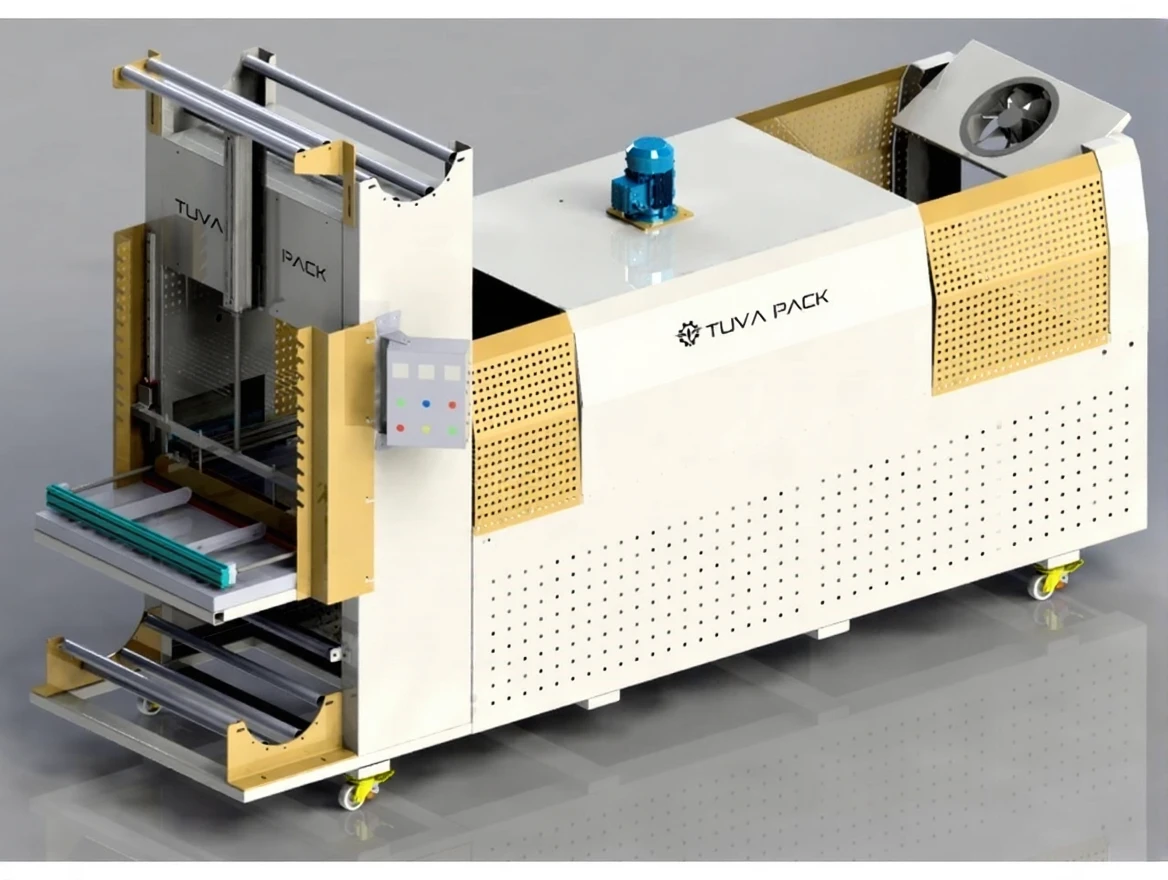

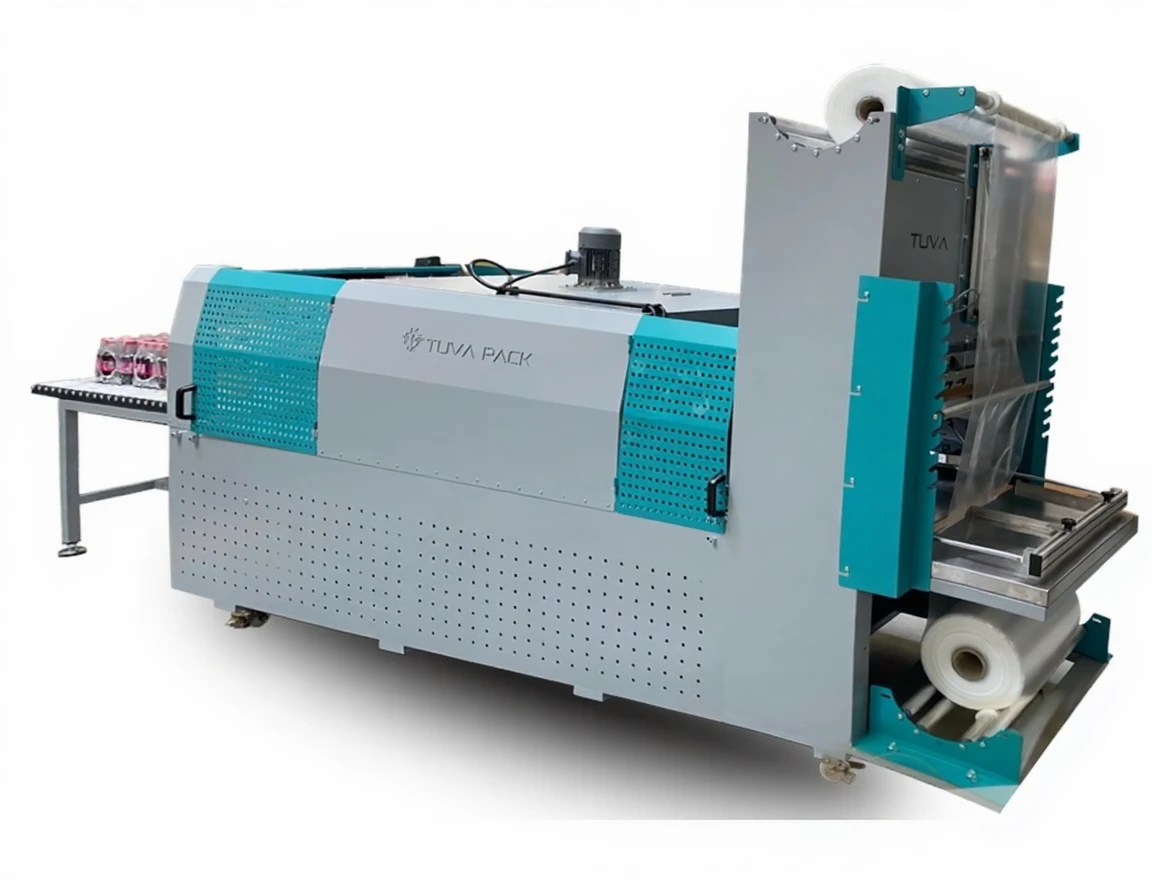

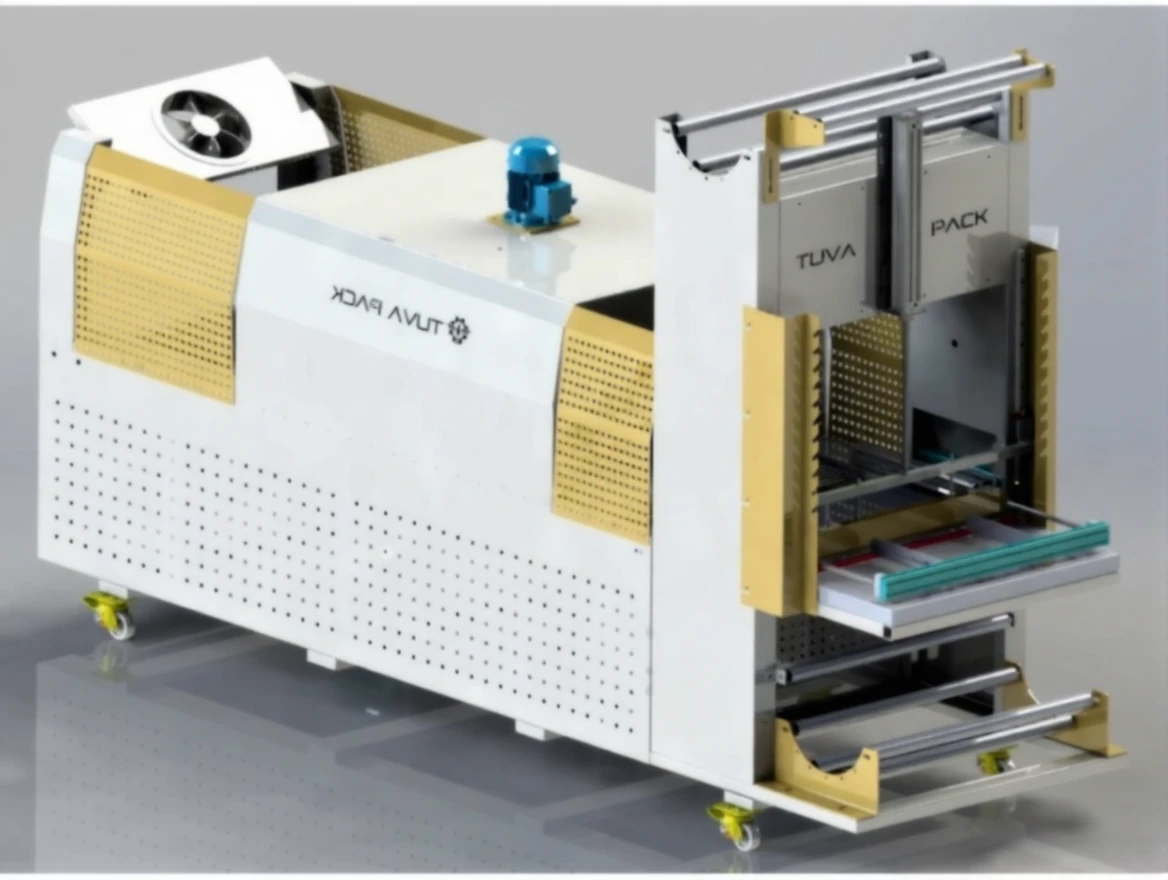

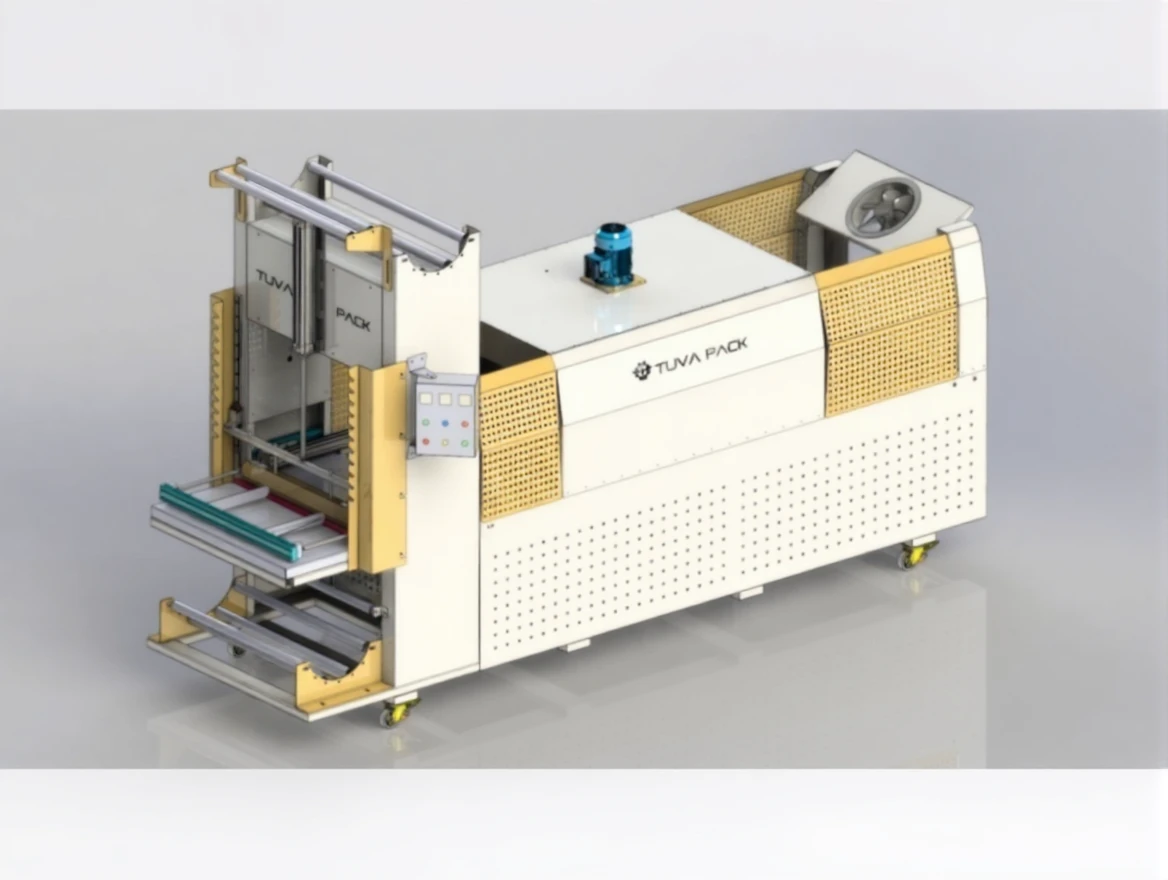

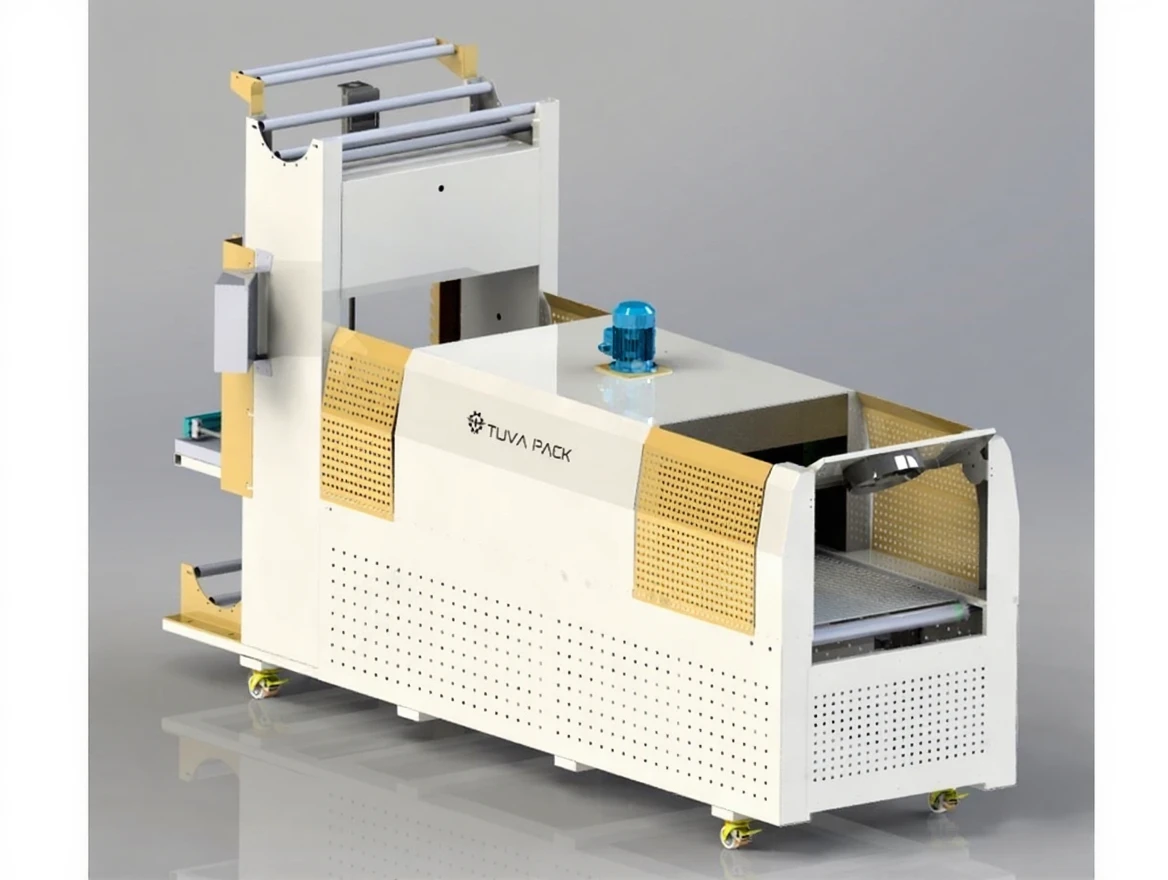

Semi-Automatic Shrink Packaging Machine

Brand Tuva Pack
Model Type

TM-MSH60

Category:
Description

Semi-Automatic Shrink Packaging Machine



The machine does not require adjustment.

Adhesion is provided with the P.I.D. Electronic Temperature Control System.

It combines your products into a single whole in multiple groups, reducing your production costs.

It offers the possibility to package your products in a mixed manner.

The machine has door safety switches and sensors for work safety.



Semi-Automatic Shrink Packaging Options



  • The machine can be produced entirely from stainless chrome nickel.

  • Machines can be manufactured for large products with widths of 80 cm and 100 cm.

  • Additional conveyor belt at the output.

  • Side ironing rollers at the tunnel exit.

  • Soft pressure piston to stabilize the product during cutting-adhesion process.

  • Adjustable tunnel conveyor speed.

  • Tunnel internal transport system (silicone-coated shafts, wire mesh belt, Teflon mesh belt, or heat-resistant plastic modular belt)



Tuva TM-MSH60 Technical Specifications



Suitable Box Dimensions      Width: 100 mm – 550 mm | Length: 100 mm – 400 mm | Height: 100  mm – 500 mm

Capacity                          : 360 Packages / Hour

Required Air Pressure      : 6 Bar

Electricity                            : 380 V. 50-60 Hz. 3 Ph.

Machine Dimensions              : Length: 3500 mm | Width: 980 mm | Height: 2050 mm

Weight                              : 1100 kg



—  The obtained packaging not only gives a good appearance to the product but also protects it from wear during storage and transportation,

preventing damage by covering a large portion with PE packaging; it ensures protection from abrasion, scratching, and dust.   —



Delivery and Other Details



The machines are covered by a 2 YEAR warranty against manufacturing defects.

10 years of warranty for spare parts supply, maintenance, and service.

Spare parts lists for the machine and equipment, maintenance and user manual, training video are provided together.

Our prices do not include VAT.
