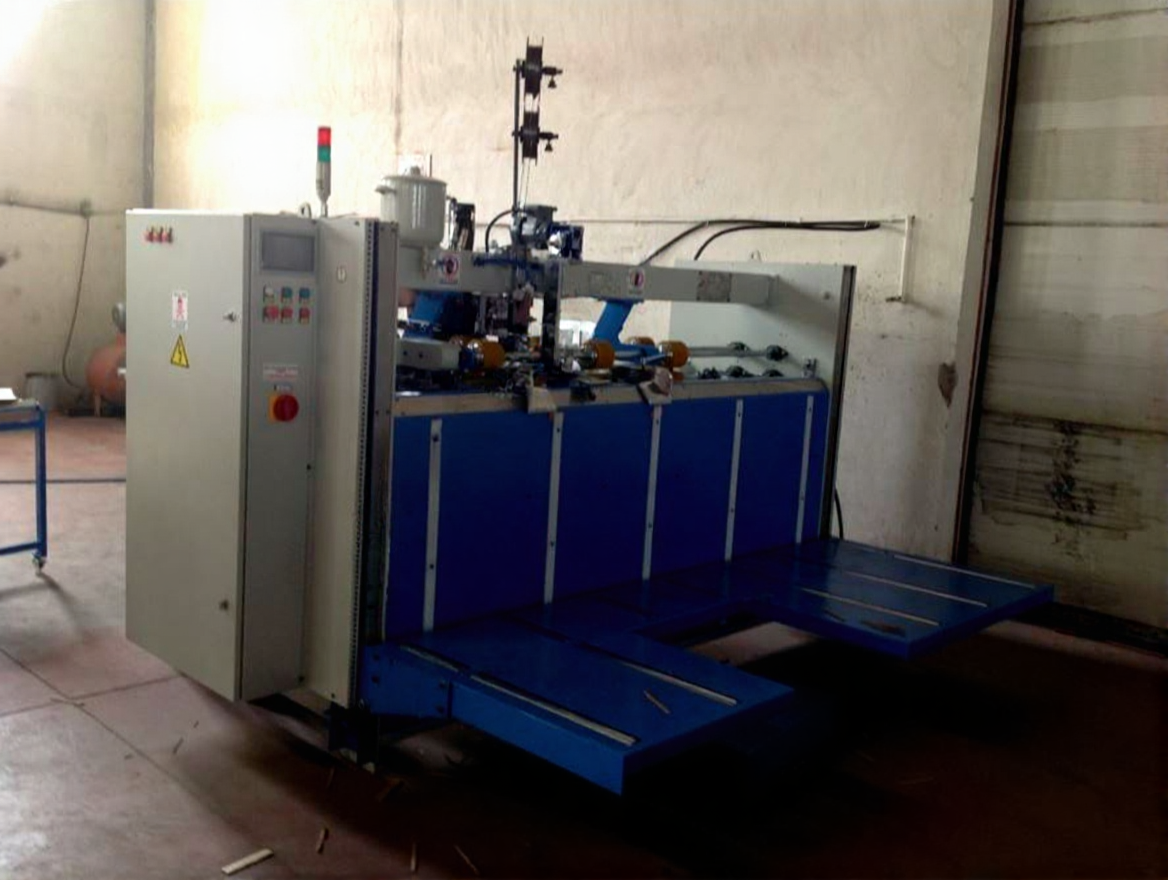

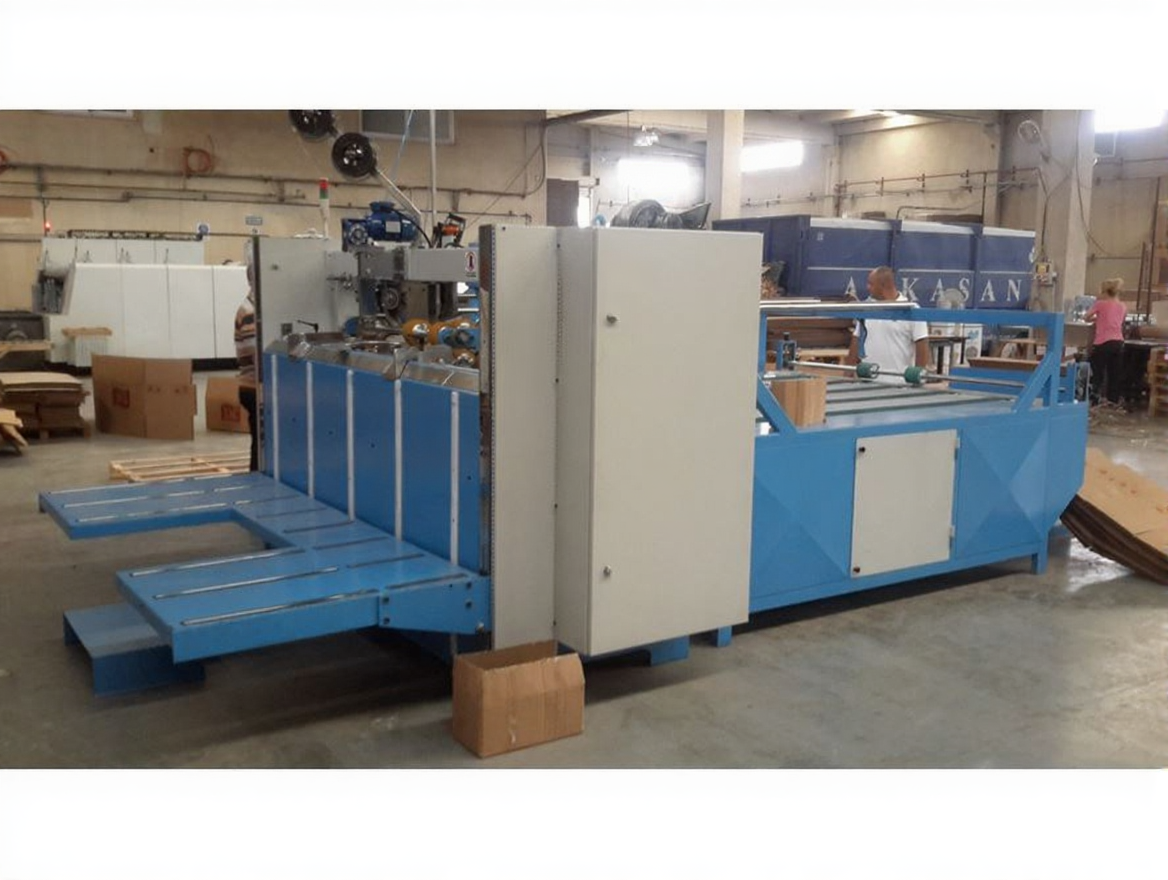

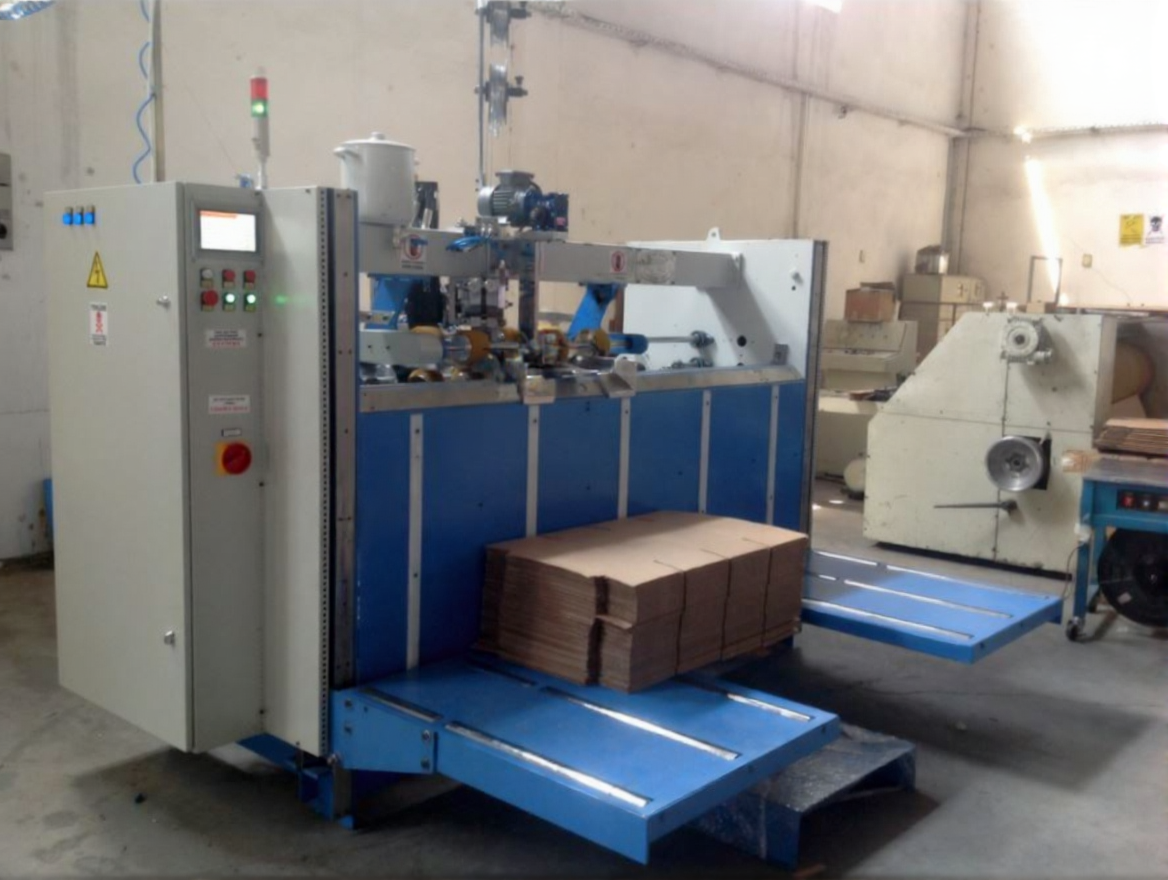

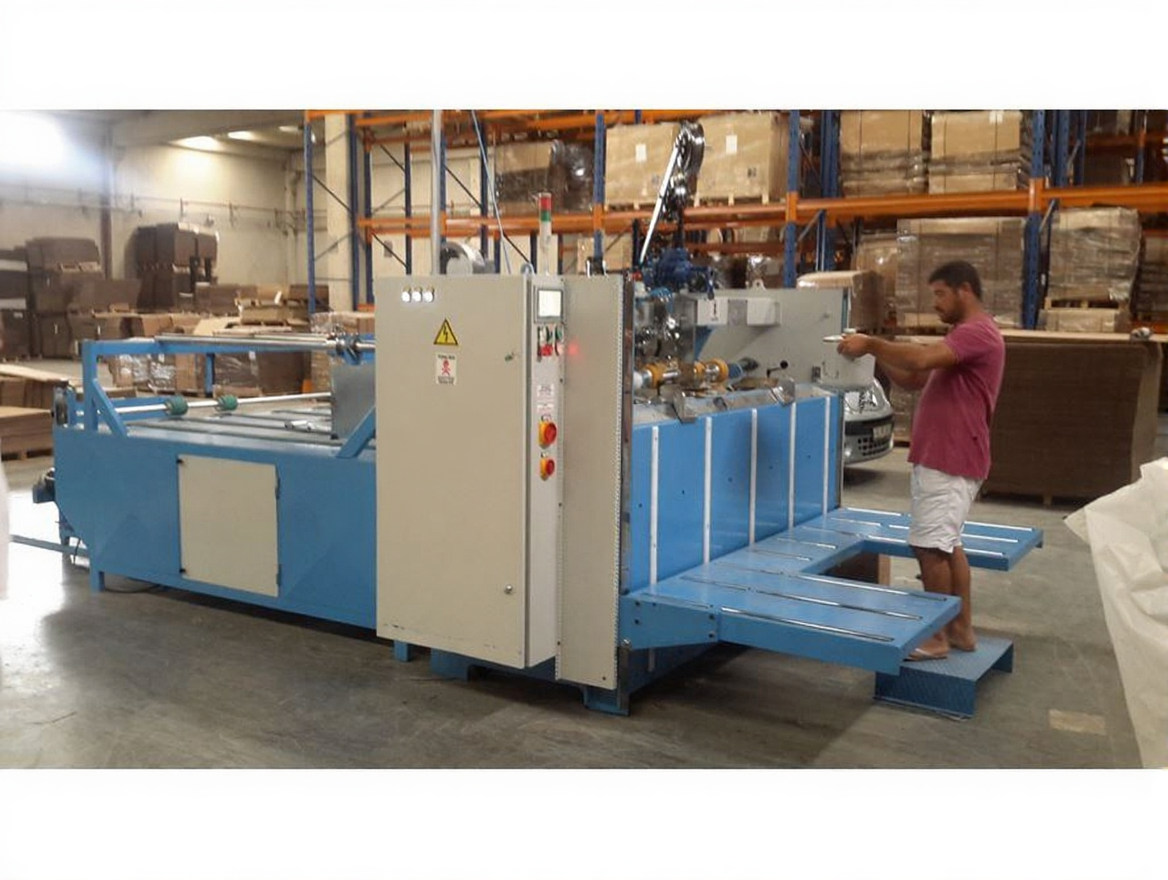

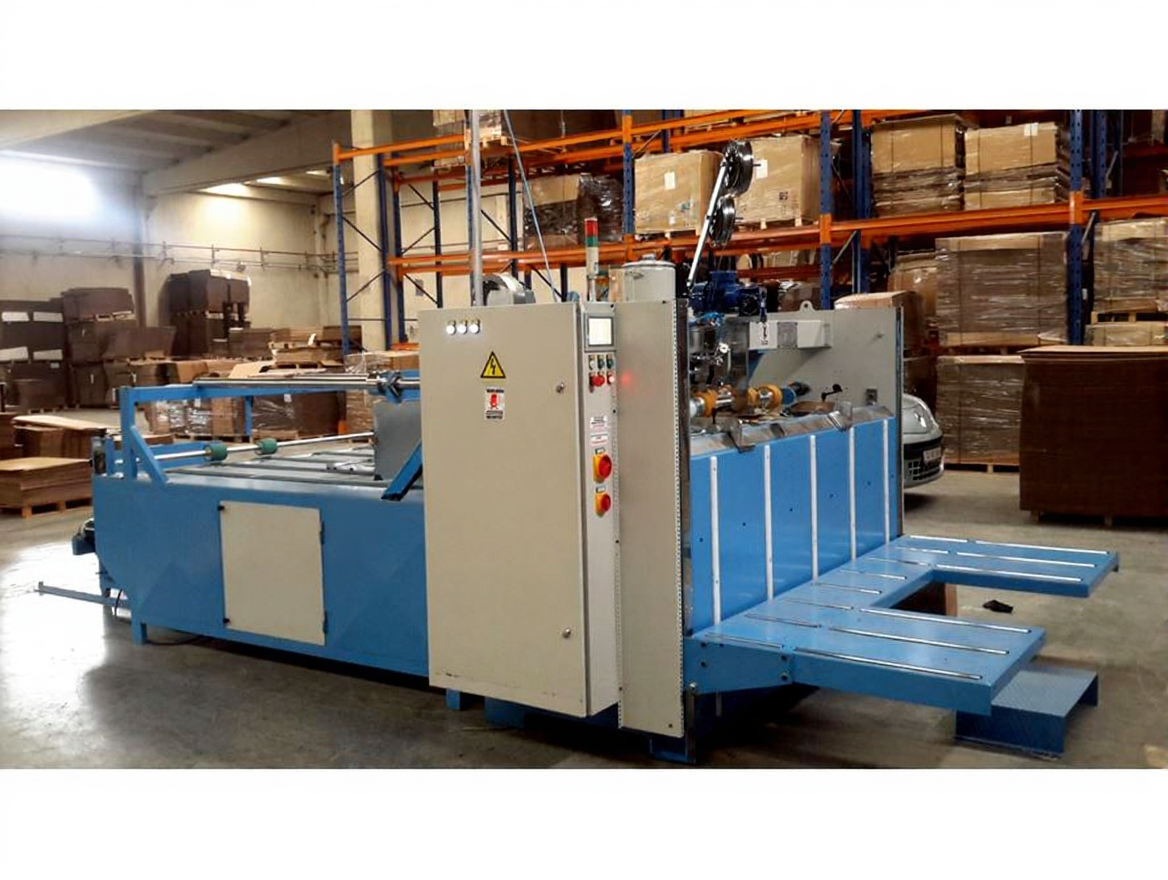

Semi-Automatic Stitching and Gluing Machine

SEMI-AUTOMATIC STITCHING AND GLUING MACHINE

TECHNICAL SPECIFICATIONS

1. The machine is equipped with dual servo motors and Lenze brand PLC control.
2. Minimum working width: 400 mm
3. Max. Stitching distance: 2999 mm
4. Min. Length: 60 cm.
5. Working speed: 6 stitches/sec./Wire
6. Capacity 1500/2000 Pcs/Hour Box
7. Stitch width: 12.5 mm / Stitch wire length: 10-15 mm. Or 10-13 mm
8. Wire thickness: 0.70 / Wire width: 2.20 / Wire Coil Weight: 3 Kg
9. Corrugated feed elevator with adjustable bearings according to box dimensions.
10. Elevator feed height: 1m / Carrying capacity: 500Kg.
11. Adjustable side registers according to cardboard length.
12. Has a selective arm for single and side stitching and a dual swing stitch head.
13. The stitching head can have dual bobbins attached and advances through a wire sensor.
14. Counter is available, adjustable settings can be made.
15. Single stitch / Double stitch / Double stitch at edges, single stitch at center possible
16. Gluing is performed by removing the existing anvil and attaching the gluing device, applying cold glue
17. Our machine can be equipped with optional roller and sprinkler system
18. Glues 1000 pieces per hour
19. Has a pens system instead of wedge system
20. 8 pcs em triger belt available
21. Air-cooled fan available to prevent ears from opening

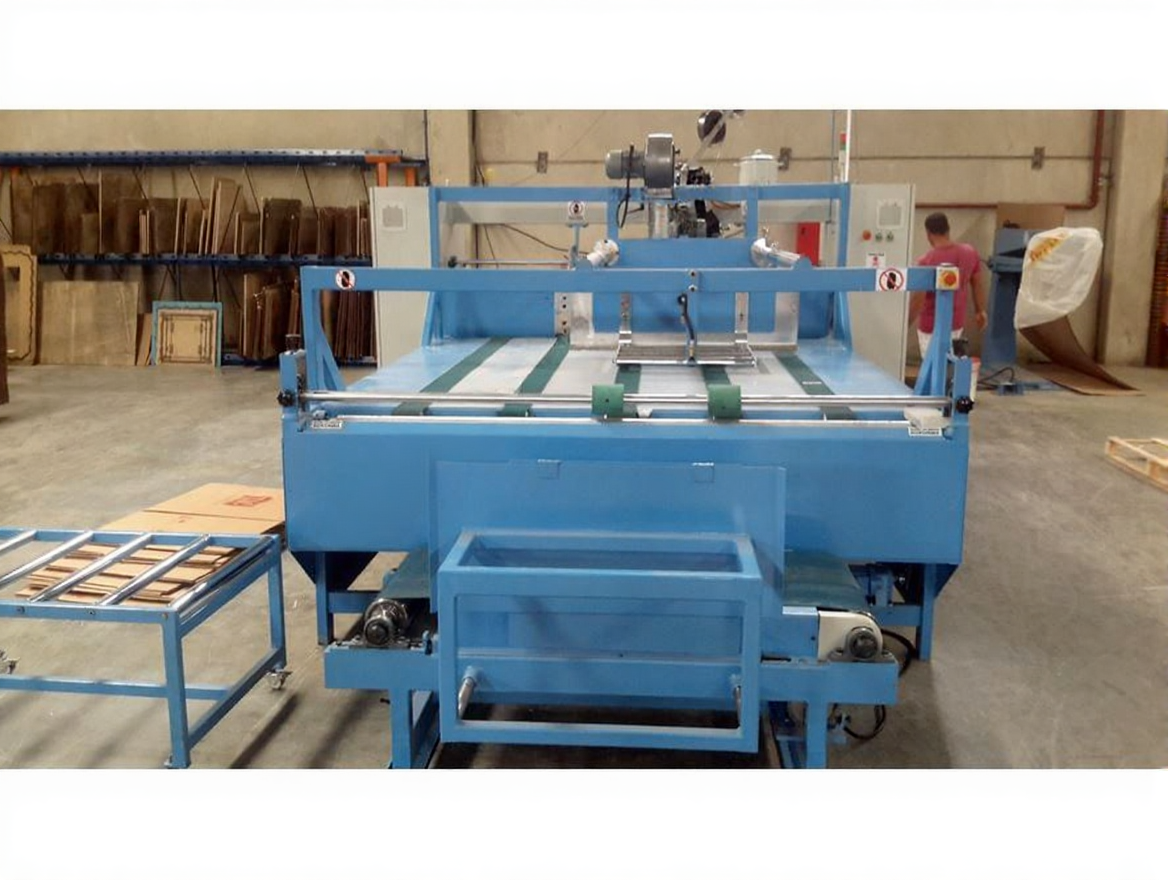

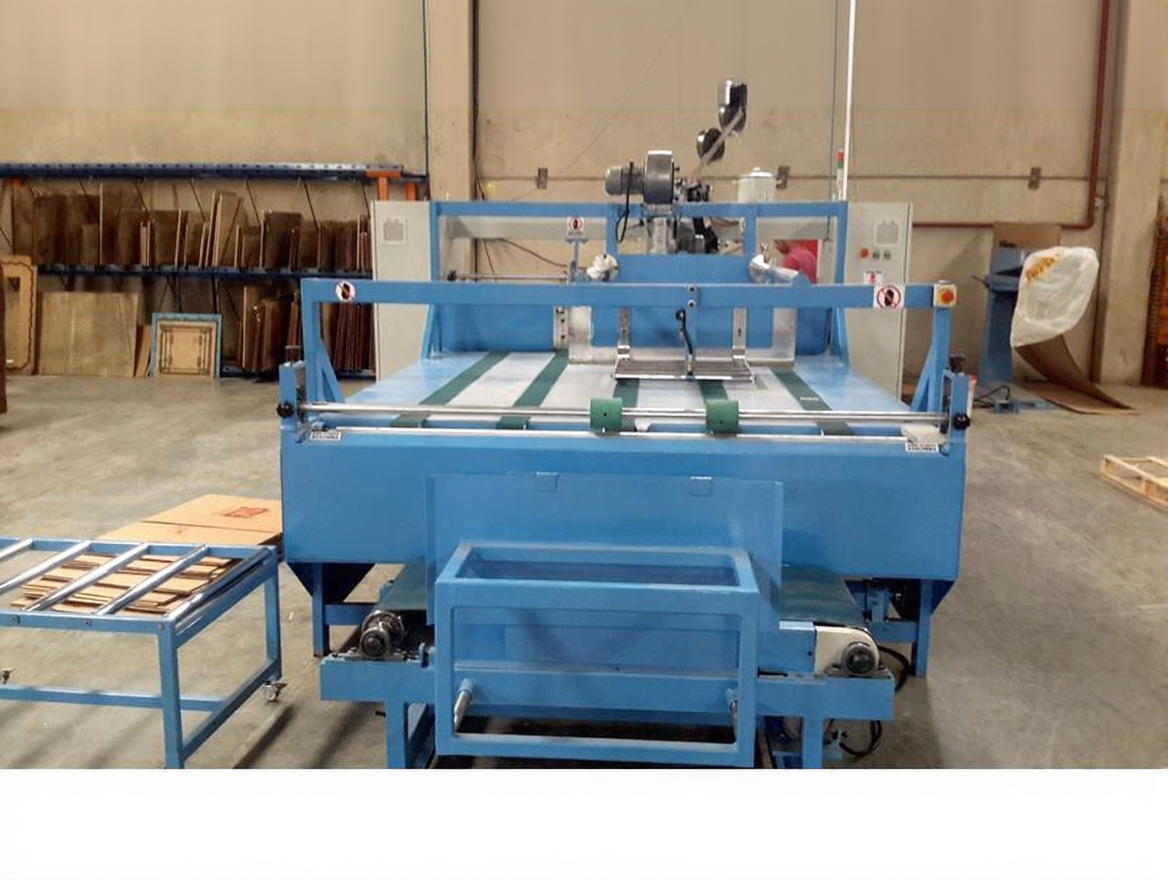

22. Convoyor for slapping (correction) available
23. Mechanical parts are manufactured by Dostlar Machine
24. Spare parts service available
25. Note: Special production can be made according to the desired dimensions
