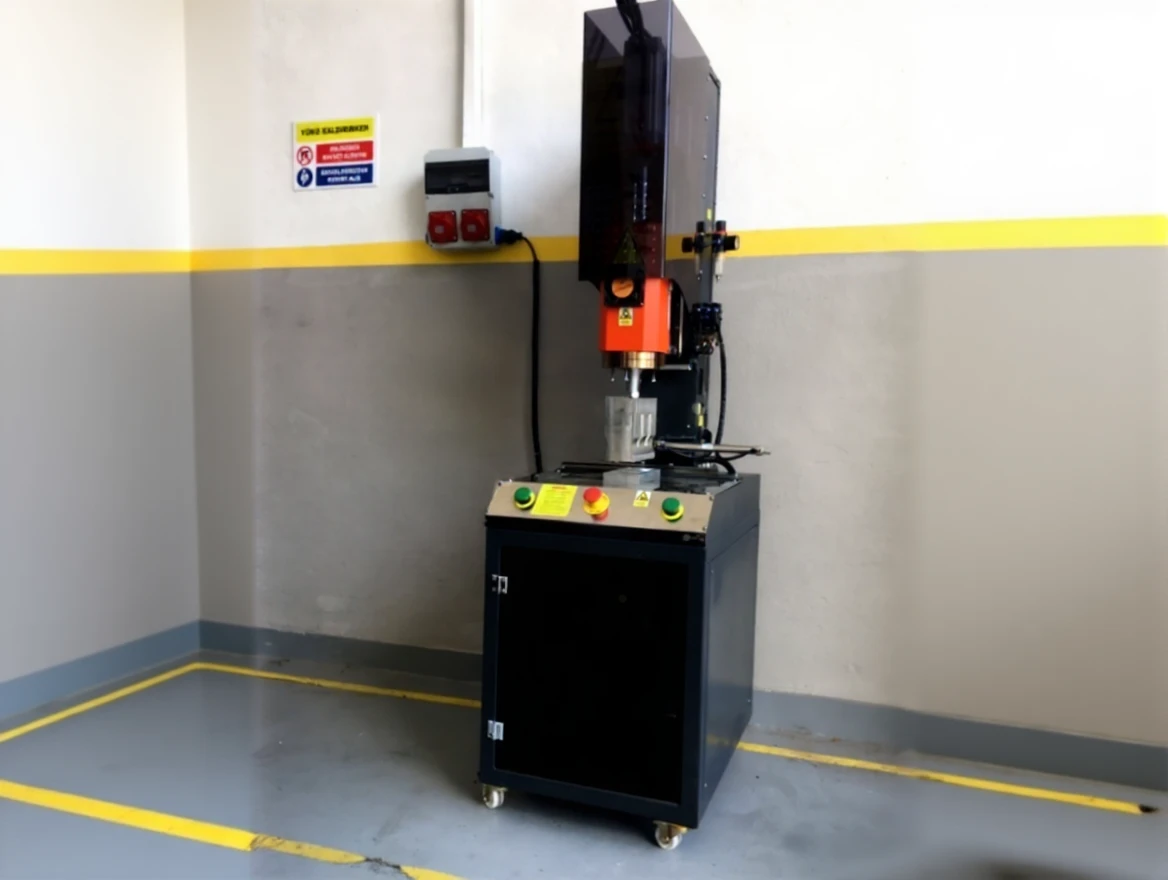

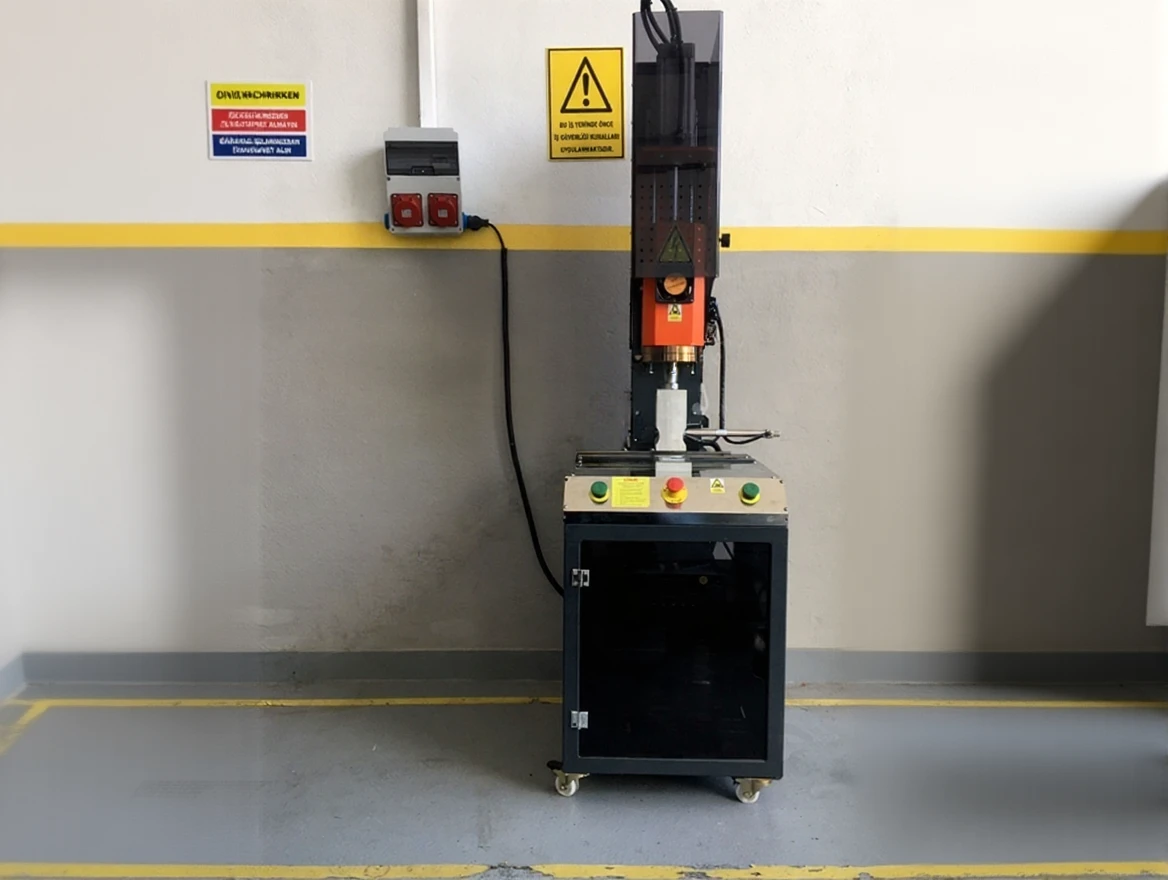

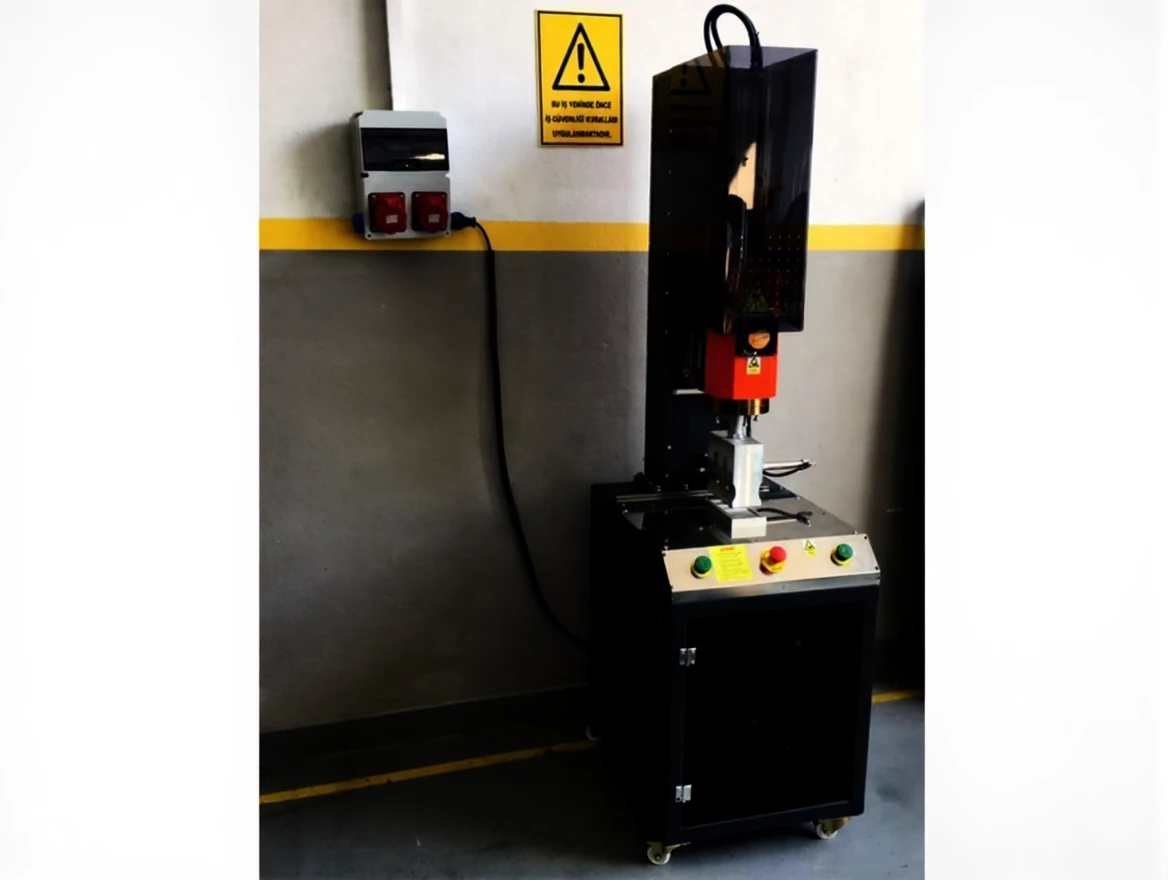

Semi-Automatic Ultrasonic Plastic Welding Machine

Brand NMT
Model Type

UPKM-AUTO

Description

NMT

Semi-Automatic Ultrasonic Plastic Welding Machine

General Information

What is an Ultrasonic Plastic Welding Machine? (Semi-Automatic)

An ultrasonic plastic welding machine is a product used in the assembly and joining of non-metal plastic parts such as iron. It is known as a fast solution method. It is frequently preferred in the industrial sector. It has established itself in the market as an economical and environmentally friendly product.
No silicone, adhesive, or stabilizing product is needed during the processes. In this way, it is beneficial for the manufacture of both economical and more durable products. Since there is no need for chemical products, it is referred to as a technological marvel.

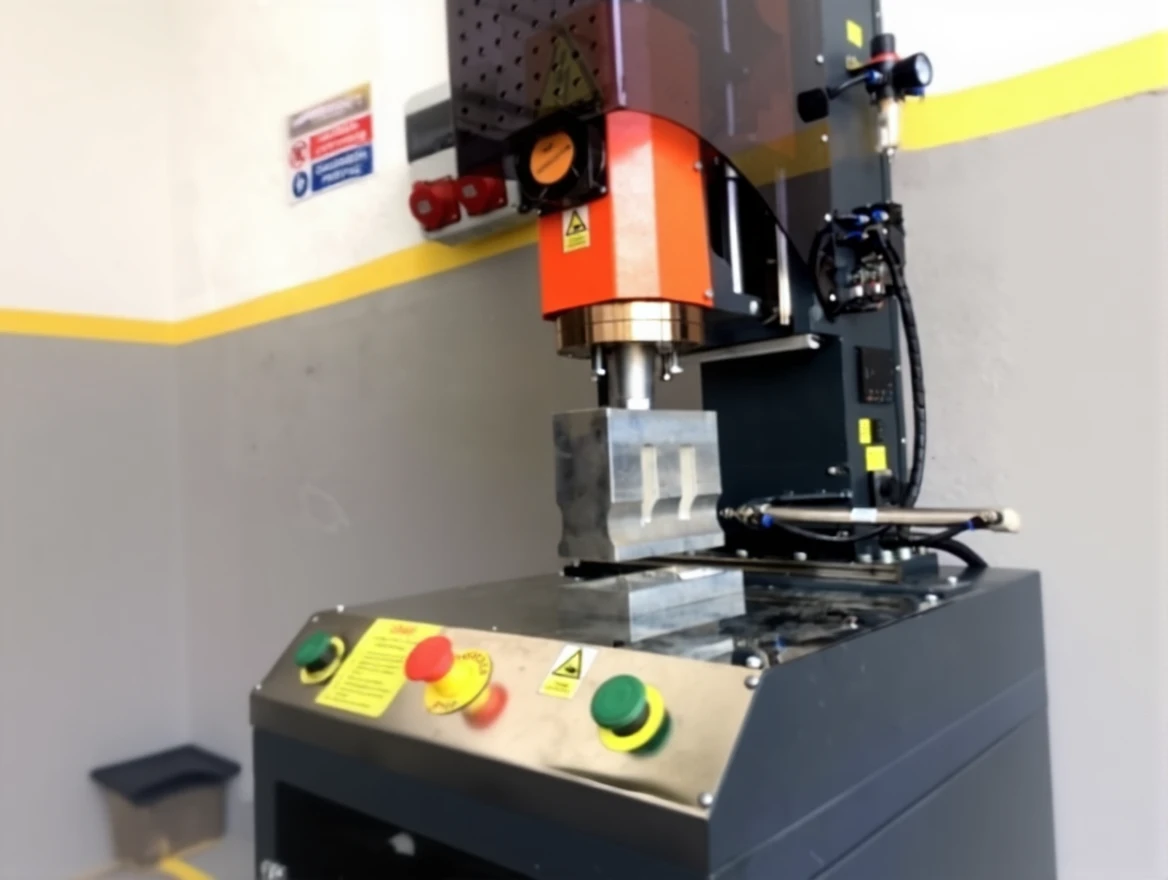

Different processes can be performed with the ultrasonic plastic welding machine. After selections are made from the models of ultrasonic plastic welding machines, solid plastics, films, and artificial products can be joined. These machines have a part called a horn. This is needed for the continuation of the operation. They have the feature of working manually and automatically. There is a time memory option. There are indicator panels showing voltage and current. This product, manufactured as a technological marvel, is among the products you can see everywhere recently.

Technical Information

Product Feeding System

  • Product Feeding System

Control System

  • Automatic Control Circuit controlled

Height Adjustment System

  • Height Adjustment System

Ultrasonic Compatibility

  • 2000 watts (20Khz) or 2600 Watts (15 KHz) option

Pressure Piston Diameter

  • 80 mm

Working Options

  • Automatic-Manual

Timing Settings

  • Delay Time – Weld Time- Hold Time total of 3 time group options (0-9999ms)

Work Safety

  • Dual hand button and emergency stop button

Calibration System

  • Digital Automatic Calibration

Operating Voltage

  • 220 VOLT 1L-N-PE 50 Hz

Air Pressure

  • 7 Bar

Weight of the Machine

  • 150kg

Dimensions of the Machine

  • 500x650x1800 mm
