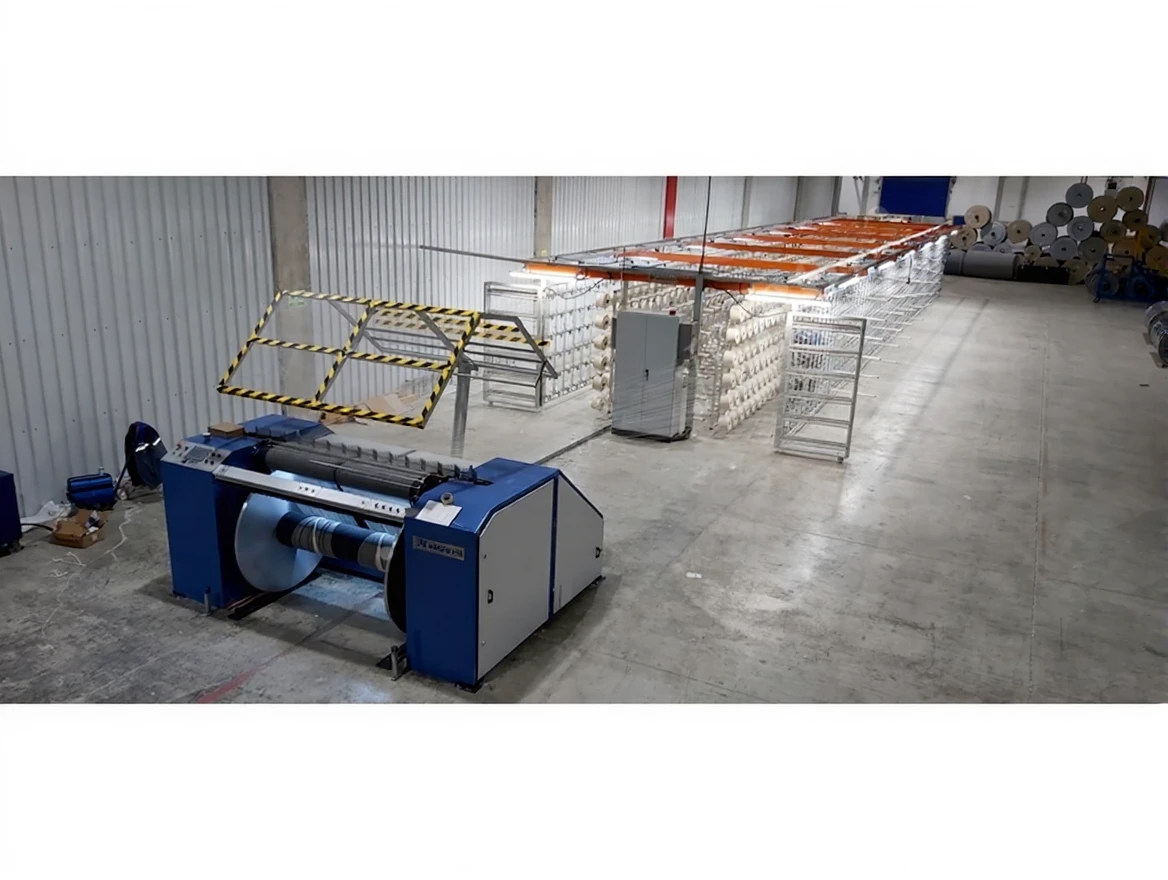

Series Warp Beam

Series Warp Beam

Kartaloğlu Machine Features

Akkordeon Comb System
• Comb opening and closing and left-right movements
• Shank (distance adjustable transverse comb guiding) system
• Prevention of fiber and dust accumulation in combs with air blowing system
• Possibility of oiling the yarn at the desired rate with the vacuum unit located after the comb

Levent Printing System and Yarn Tension System
• Possibility to use printing drum or yarn tension system according to the purpose of use
• Homogeneous yarn winding density with a smooth and precise printing drum
• Environmental speed adjustment according to increasing diameter thanks to the electronic diameter measurement system

Levent Loading — Unloading and Brake System
• Easy and comfortable loading and unloading with pneumatic pistons and connected arms
• Total of 4 separate points with caliper disc brake system, additionally pneumatic brake system on the yarn tension system in front of the health
• Emergency stop in cases such as normal stop — emergency stop — yarn breakage — completion of the desired run

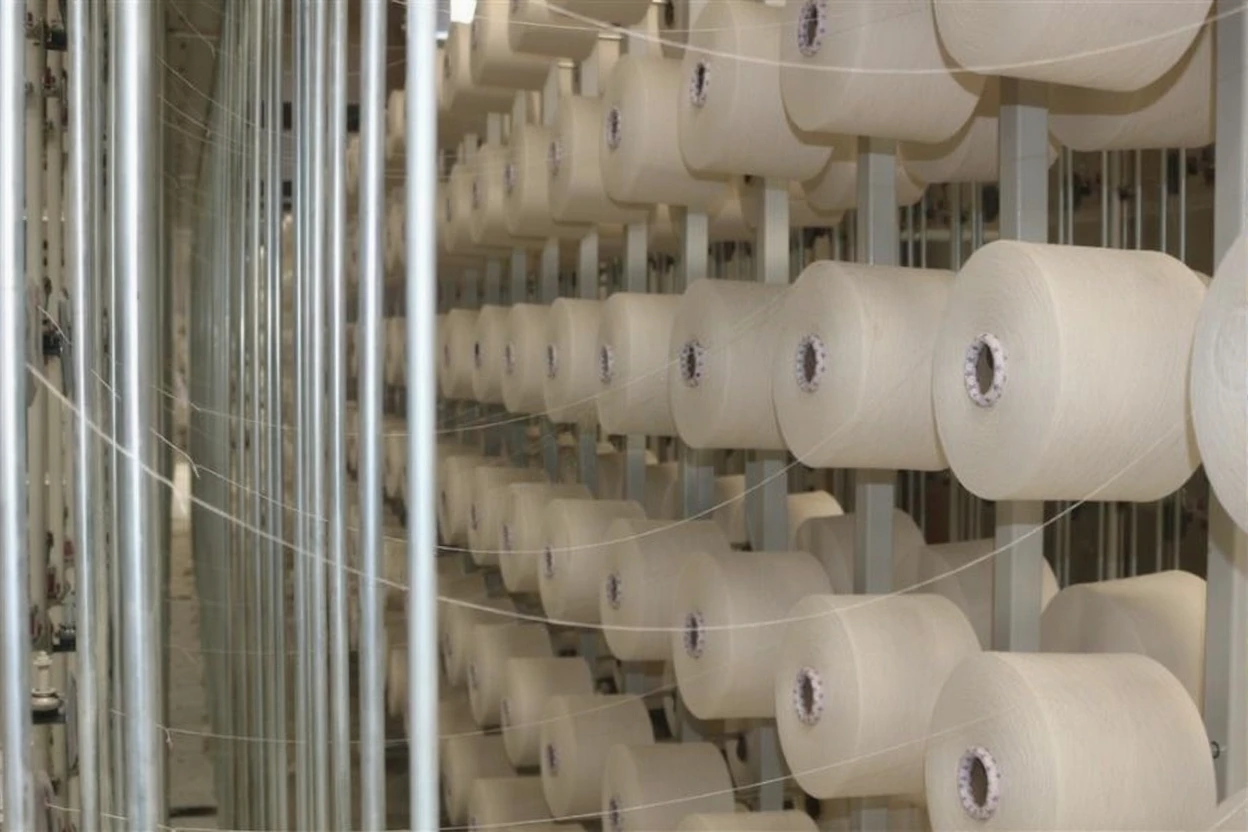

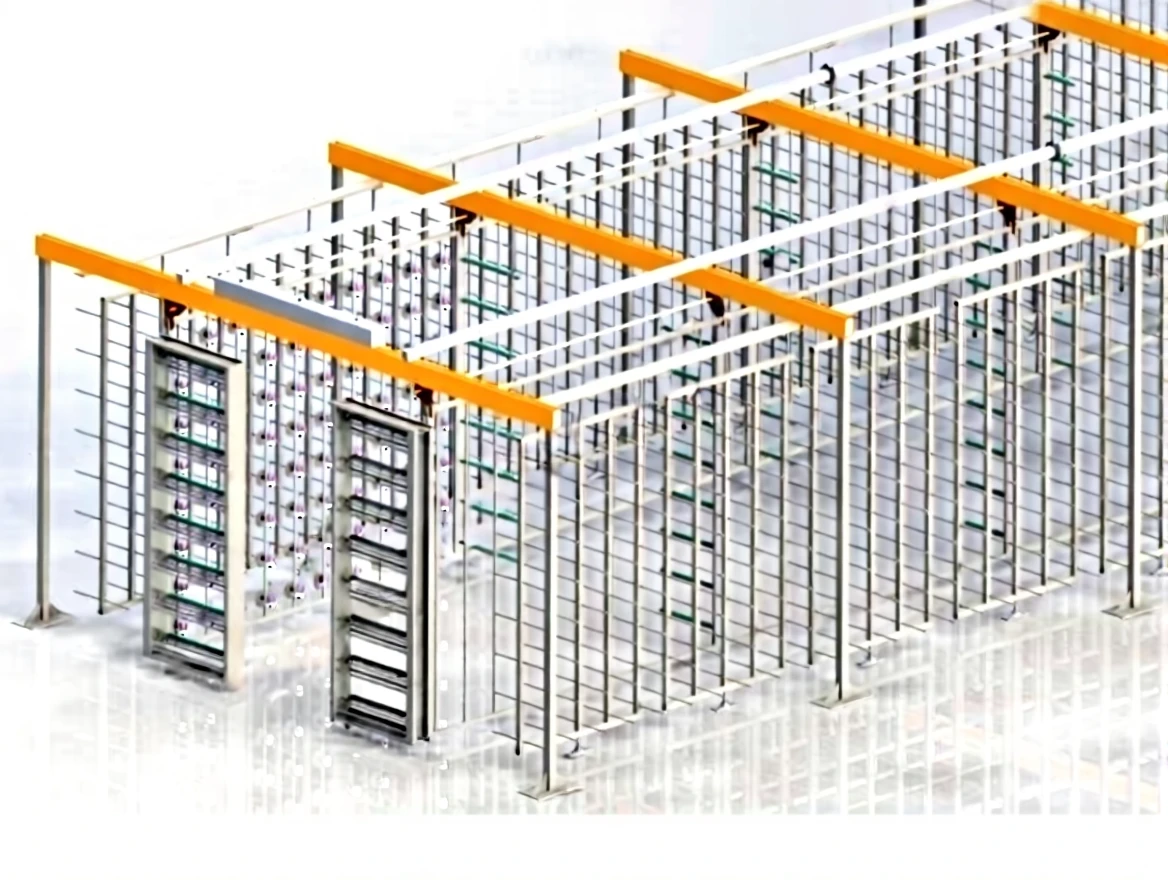

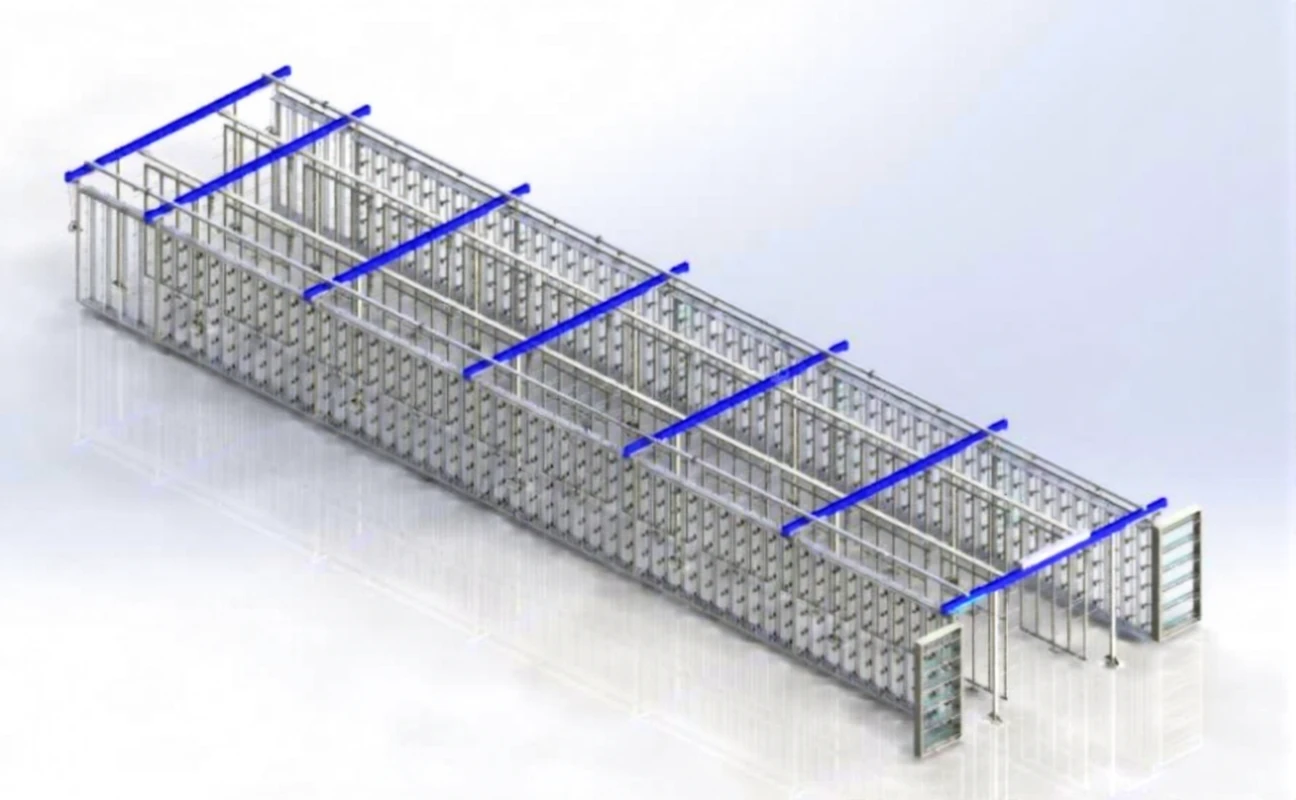

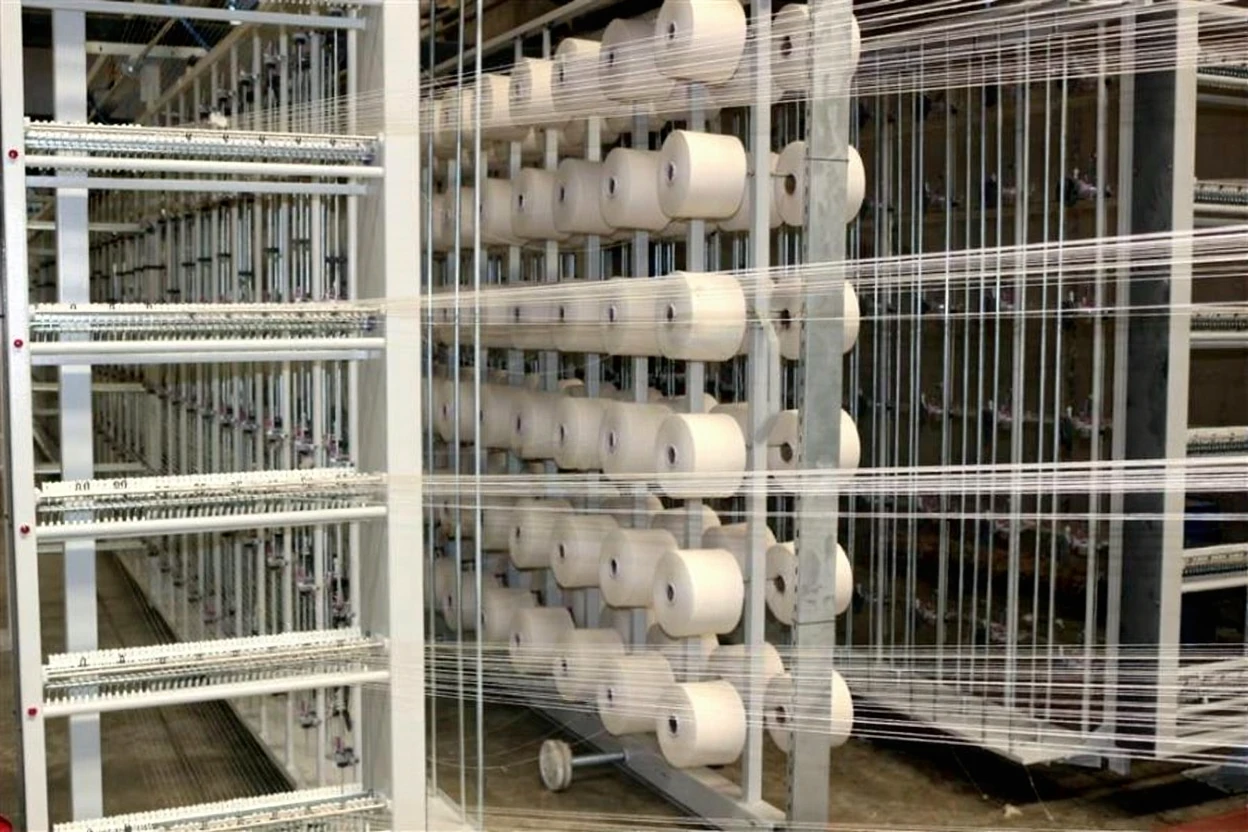

Health System
• Special production according to the desired bobbin quantity and either cart-based or rotary health manufacturing
• Optional tension apparatus availability
• Transfer to the yarn winding unit without damaging the yarn with the porcelains used for the yarn breakage system
• Red warning light for easy location of the breakage point from yarn breakages
• Prevention of dust accumulation thanks to the air blowing system above the tension

PLC Operator Panel
• PLC controlled electrical equipment systems
• Touchscreen panel where all systems can be controlled
