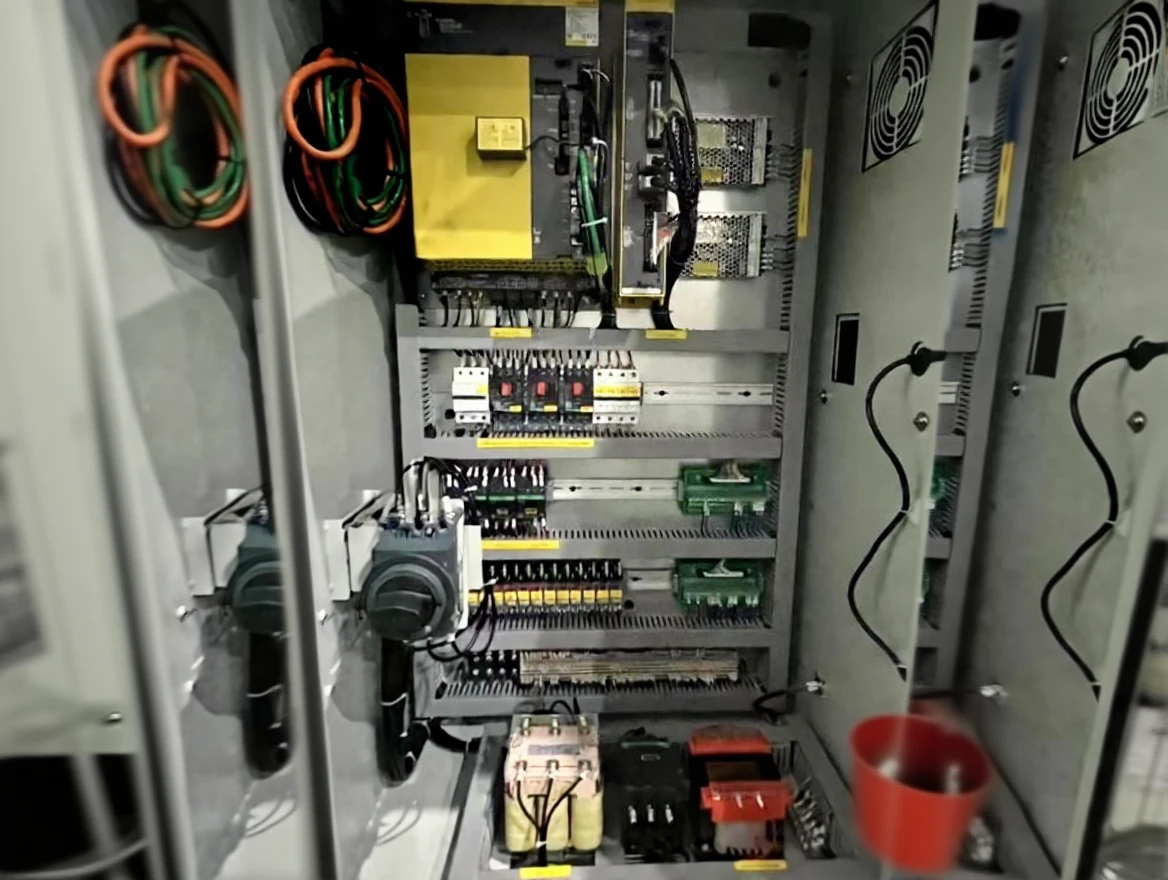

Servo Turret Lathe Power Supply Control Unit

The CNC servo turret lathe with a control unit is developed for serial and precise production needs with high precision, a powerful spindle, and a rigid body structure. With an 8-inch chuck capacity, wide turning diameter, and high motor power, it offers superior performance in machining medium and large-scale parts.

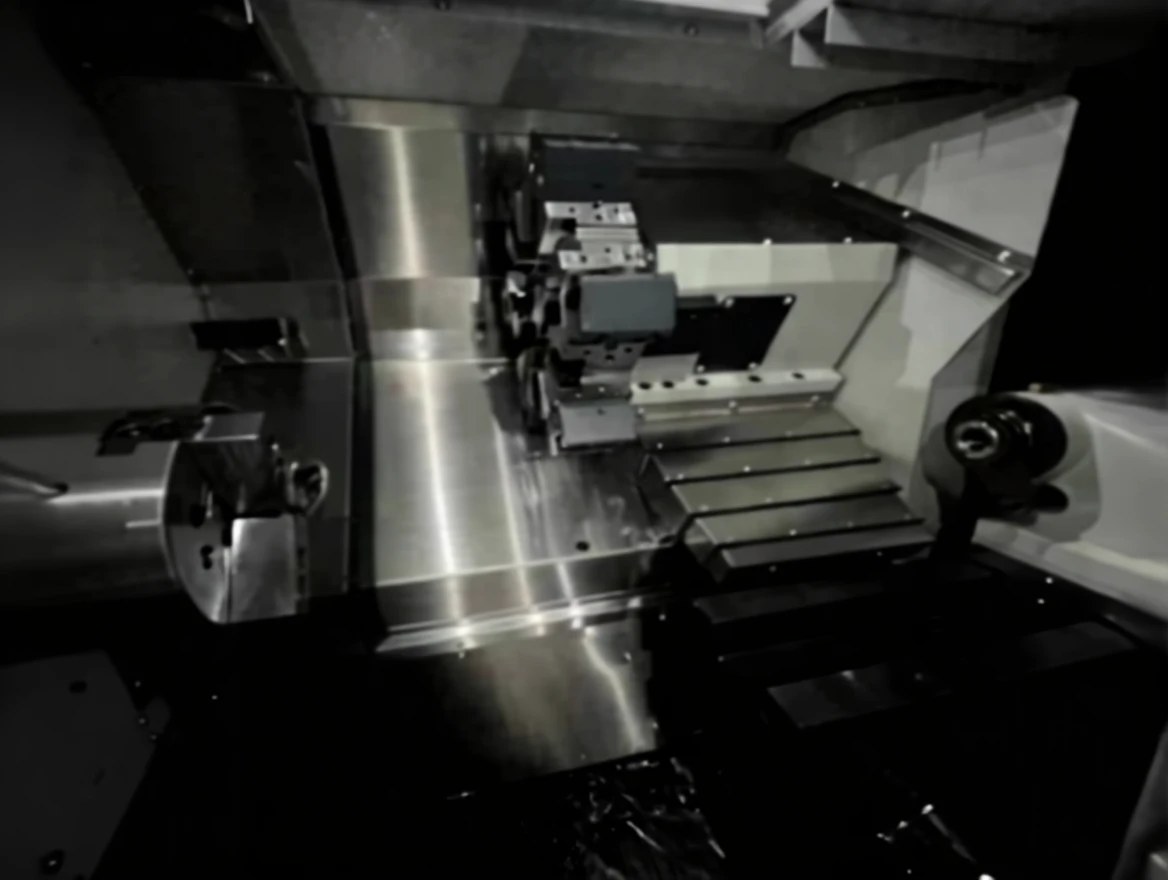

The 30-degree monoblock inclined bench cast body structure reduces vibration and increases cutting stability. The linear guide X and Z axes provide fast and precise movement capability, while the servo turret system allows for very short tool change times. The chip conveyor and magazine bar feeder preparation ensure compatibility with automation-supported production processes.

This CNC lathe, equipped with THK brand linear guides and Autogrip chuck/chuck group, offers long-lasting and reliable use. It is an ideal solution for businesses engaged in automotive, machine manufacturing, metal processing, and serial part production.

Samchully BL-S200 Technical Specifications

Capacity

• Chuck Size: 8 inches

• Max. Swing Diameter (Over Bed): Ø510 mm

• Max. Turning Length: 500 mm

• Max. Turning Diameter: Ø380 mm

Spindle

• Spindle Hole: Ø66 mm

• Spindle Speed: 4000 rpm

• Max. Bar Diameter: Ø51 mm

• Motor Power: 15 kW

X / Z Axes

• X / Z Linear Guide Width: 30 / 35

• X Axis Movement: 210 + 10 mm

• Z Axis Movement: 360 mm

• X / Z Axis Speed: 28 m/min

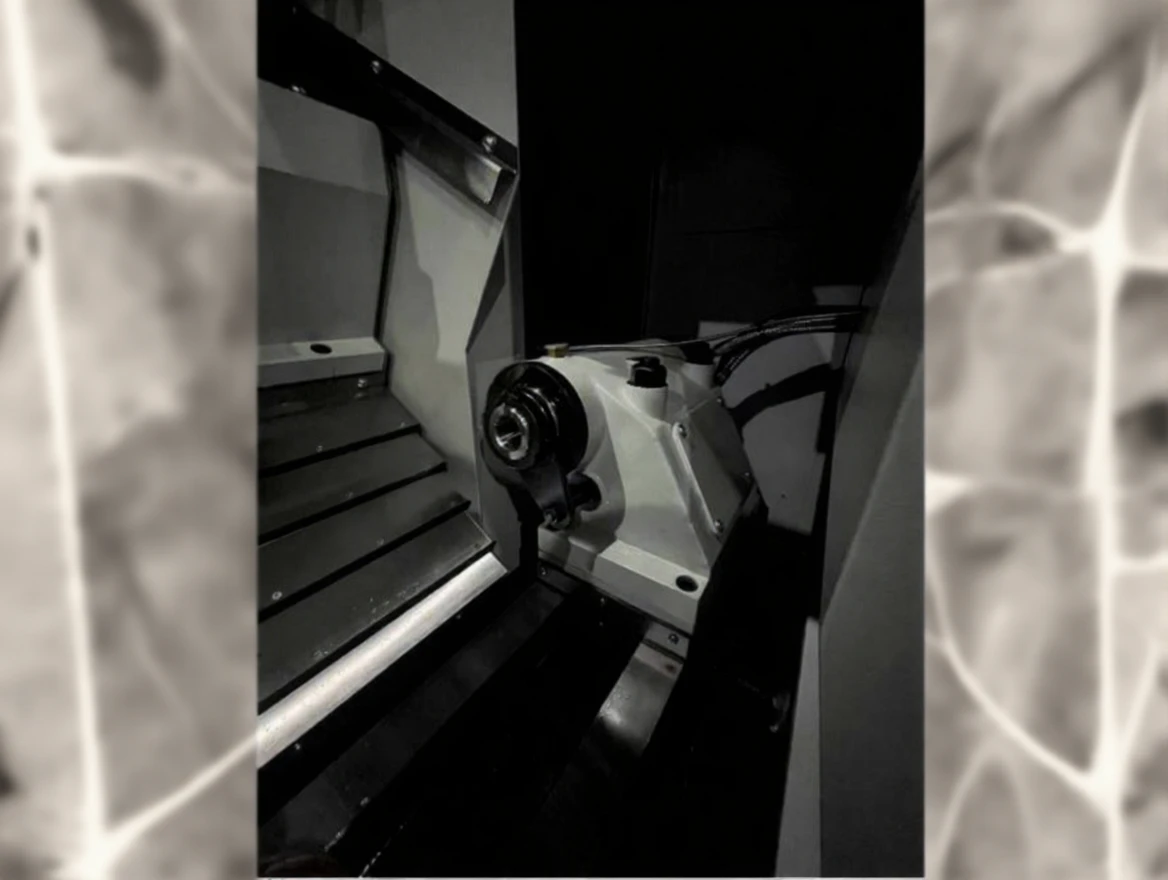

Tool Turret

• Turret Type: Servo

• Number of Tools: 12

• Tool Change Time: 0.24 sec

Precision

• Positioning (X, Z): 0.005 mm

• Repeat Positioning (X, Y, Z): ≤ 0.003 mm

Machine Dimensions

• Footprint: 1170 × 1600 mm

• Height: 1690 mm

• Weight: 3,900 kg

Standard Equipment

• Control Unit: Syntec 22 TA

• Chip Conveyor: Yes

• Body Structure: 30° monoblock inclined bench casting

• CE Equipment: Yes

• Magazine Bar Feeder: Prepared

• Linear Guides: THK brand

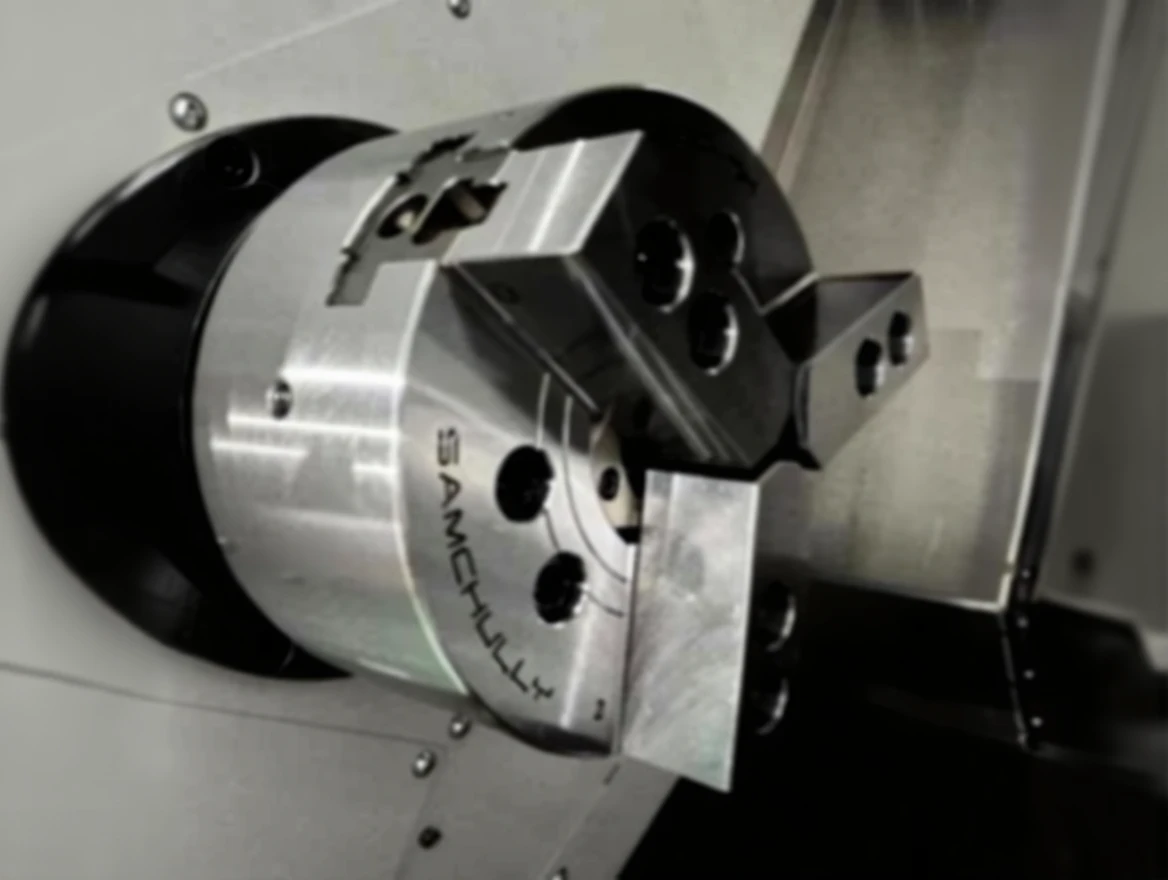

• Chuck / Chuck Group: Autogrip

Options

• Fanuc Oi-TF Plus control unit

• Part catching

• 8-tool turret

• C-axis turret

• Programmable tailstock

• Ø65 mm bar capacity
