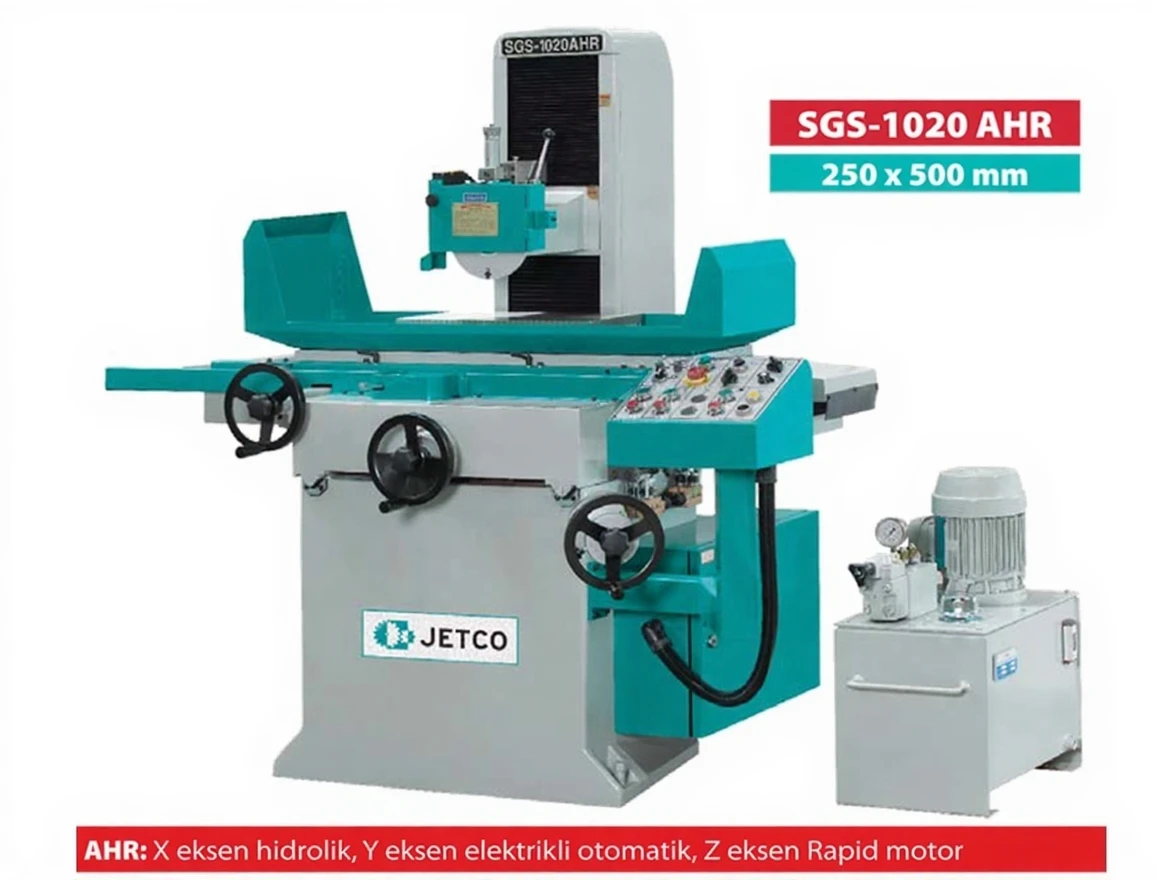

SGS 1020 AHR 250×500 mm Surface Grinding Machine
| Brand | Jetco |
|---|---|
| Model Type |
SGS-1020 AHR |
Description
Surface Grinding Machine
JETCO SGS-1020 AHR
X AXIS HYDRAULIC
Y AXIS ELECTRIC AUTOMATIC
Z AXIS RAPID MOTOR
| Technical specifications | Unit | SGS-1020AHR |
| Table working surface | mm | 250X500 |
| Maximum grinding surface | mm | 254X508 |
| Maximum table horizontal movement | mm | 565 |
| Maximum table longitudinal movement | mm | 263 |
| Distance between table surface and spindle center | mm | 500 |
| Table speed | meter/minute | 6~25 |
| Wheel automatic longitudinal feed | mm | 0~9 |
| Vertical movement (1 interval) | mm | 0.01 |
| Vertical movement (1 rotation) | mm | 2 |
| Longitudinal feed movement (1 interval) | mm | 0.01 |
| Longitudinal feed movement (1 rotation) | mm | 4 |
| Linear feed movement adjustment | mm | 50~508 |
| Longitudinal feed movement adjustment | mm | 0~254 |
| Spindle motor | HP | 2 x 2P |
| Hydraulic pump motor | HP | 1 x 6P |
| Longitudinal feed motor | HP | 1/5 x 6P |
| Down feed motor | HP | 1/5 x 6P |
| Grinding wheel | mm | 205 x 13 x 31.75 |
| Spindle speed | rev/min | 2900 |
| Coolant pump motor | HP | 1/8. |
| Main collector motor | HP | 1/2 x 2P |
| Net weight | kg | 1350 |
| Gross weight | kg | 1600 |
| Package dimensions | mm | 2060 x 1680 x 2050 |
