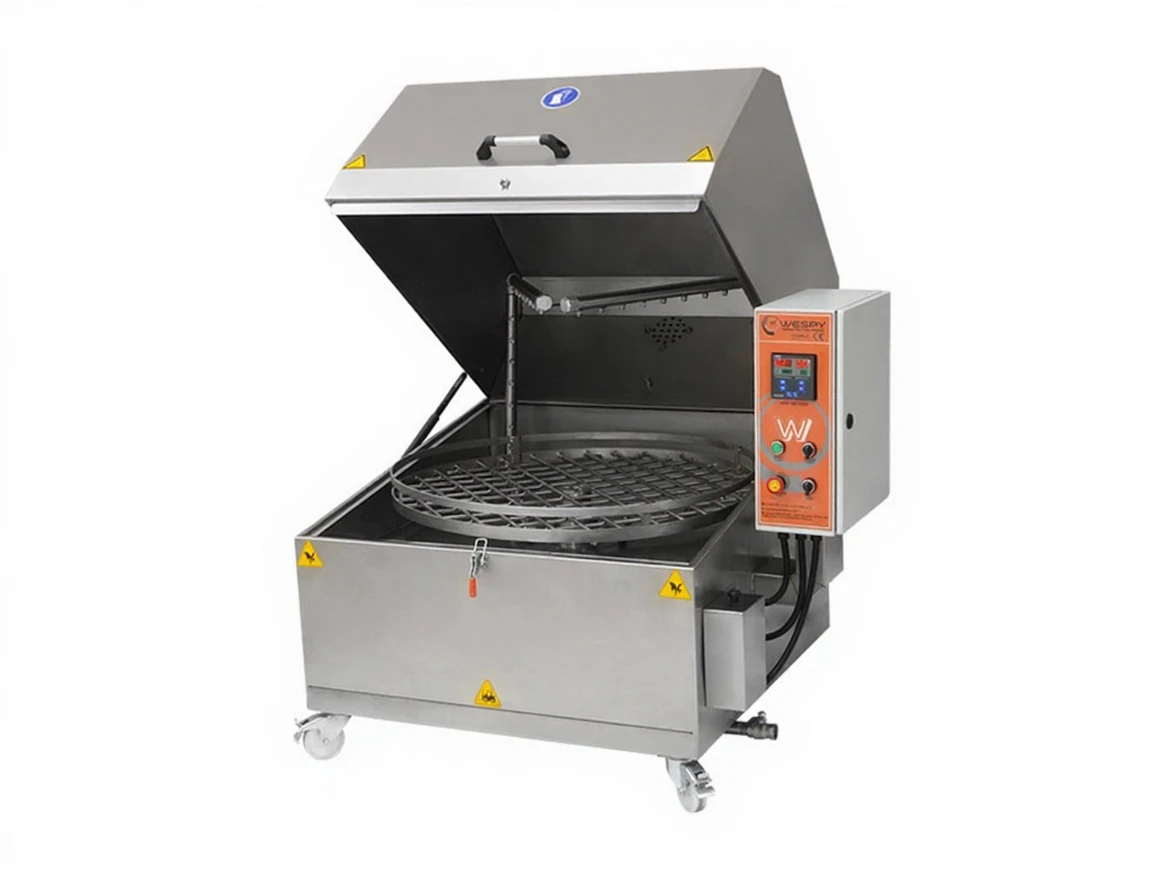

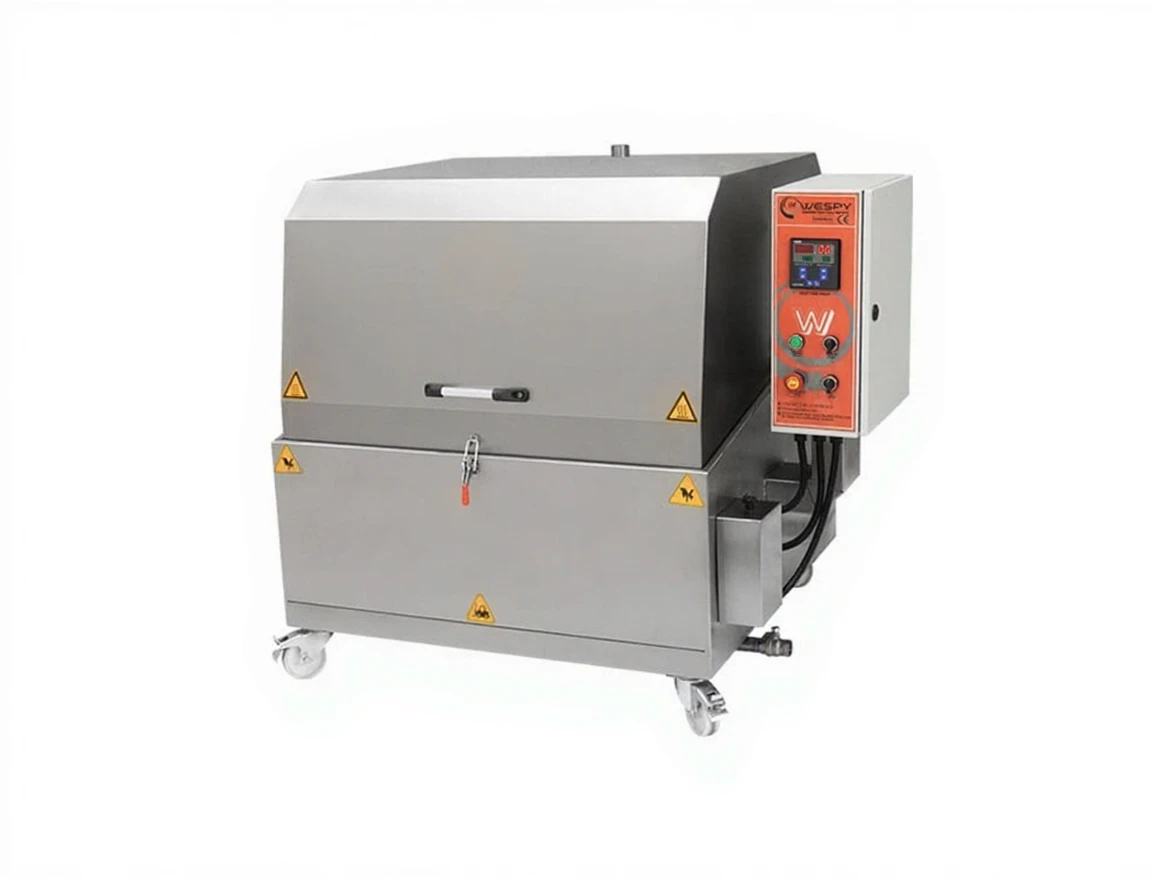

Shock Absorber Manual Open Rotary Basket Washing Machines

Brand Wespy
Model Type

DS-1000

Description

Shock Absorber Manual Open Rotary Basket Washing Machine

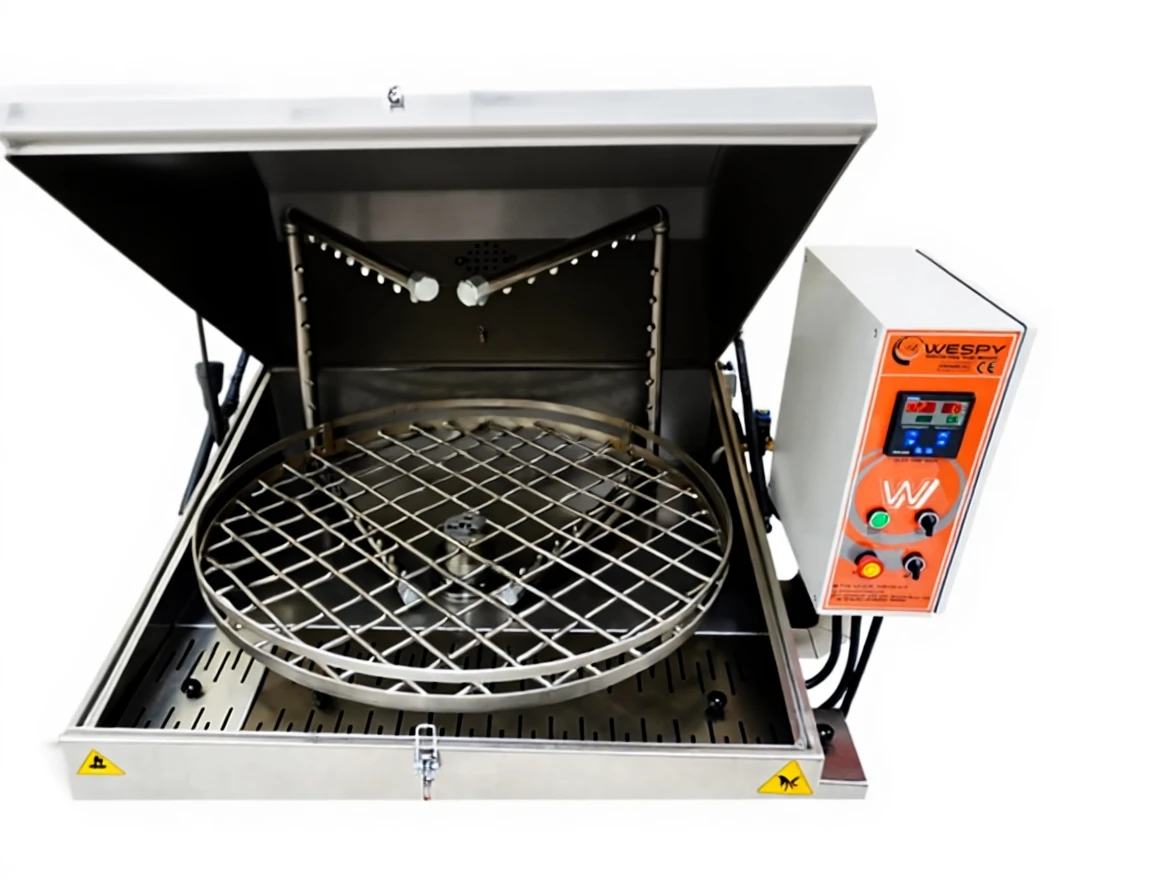

The basket, placed on a stainless steel rotary platform with a sliding system, is subjected to rotary basket washing with high-pressure detergent and water in a closed chamber where the parts to be washed are placed.

The washing process is carried out to clean the dirty surfaces of oil, chips, dirt, and waste from different angles through time-controlled pressurized water nozzles, depending on the structure and dirtiness of the part.

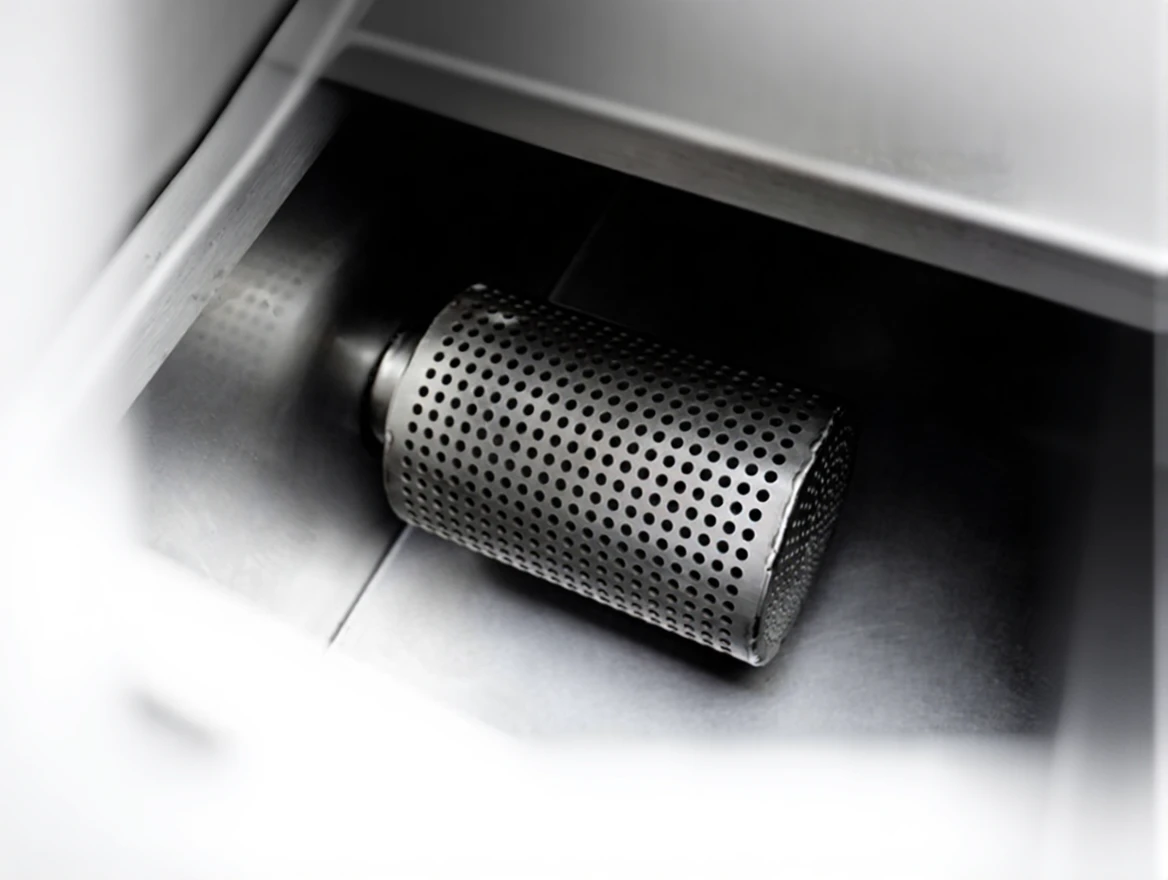

With the circulation system, water is filtered, and the washing of parts is designed to minimize the consumption of water, detergent, electricity, and time (work power).

Feature DS-850 DS-1000
Basket Diameter Ø 750 mm 900 mm
Loading Height 450 mm 450 mm
Basket Capacity 250 kg 250 kg
Tank Capacity 70 lt 80 lt
Pump Pressure 2.8 bar 2.8 bar
Electricity (V/Phase) 220 – 380 220 – 380
Heater (kW) 7.5 kW 7.5 kW
Thermostat 0.90 °C 0.90 °C
Timer 0.30 min 0.30 min
Body Structure 304-430 (AISI) 304-430 (AISI)
Machine Dimensions 95011501050 mm 105013001140 mm
