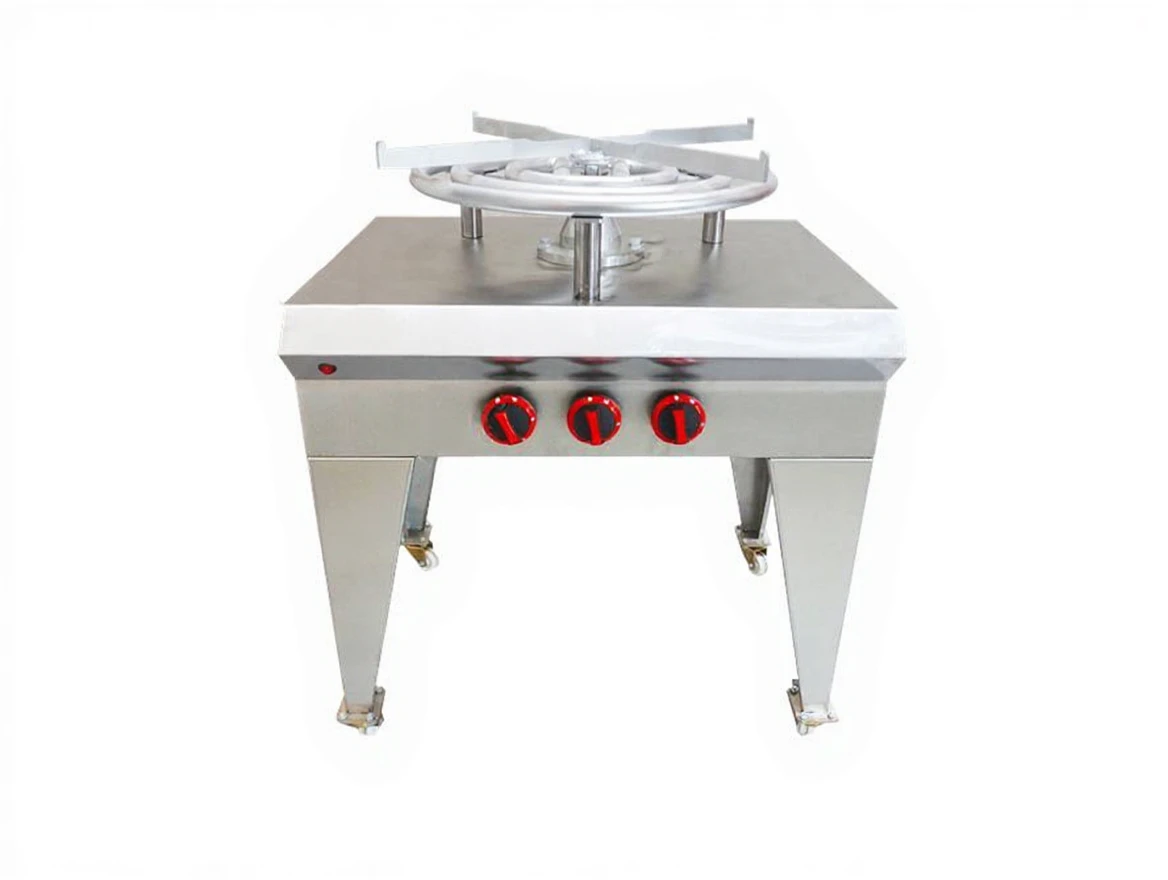

Single Burner Natural Gas and LPG Ground Stove

G1-3B Cooking Stove

Available for use with both natural gas and LPG.
Equipped with an automatic rotating system.

Technical Specifications

• Length (A): 2,400 – 1,530 mm

• Height (B): 990 mm

• Width (C): 690 mm

• Electrical Power: 220 V / 50 Hz

• Weight: 120 – 80 kg

• Fuel Consumption: G20 m³ 4.62 – 3.17 // G30 m³ 3.15 – 1.93

• Required Gas Pressure: 20 / 30 mbar

• Gas Inlet: 1/2 inch

• Heating Capacity: G30 LPG 49.75 – G20 LNG 43.75 / G30 LPG 34.10 – G20 LNG 30

Installation & Assembly
We ensure smooth domestic and international deliveries for all our products.

24/7 Technical Support
Benefit from our 24/7 technical service for all your questions and needs.

Warranty Service
We provide spare parts and warranty coverage for all our machines, and keep the software updated.

Natural Gas / LPG Inlet
Use either natural gas or LPG options according to user preference.

Tray Compatibility
Suitable for square, rectangular, and round trays.

Rotating System
Our stoves are equipped with a rotating system.

Independent Tray Usage
Compatible with different tray shapes without adjustment.

Natural Gas / LPG Options
Use either natural gas or LPG according to your choice.

Heating System
The heating system is activated by opening the gas control valve and safely igniting it with a lighter. Prepared kadaif trays are placed on metal grids.

Motorized Rotation
By switching on the main control switch (pako switch), the electric motor starts. The rotation speed can be adjusted as desired via the speed control unit.
