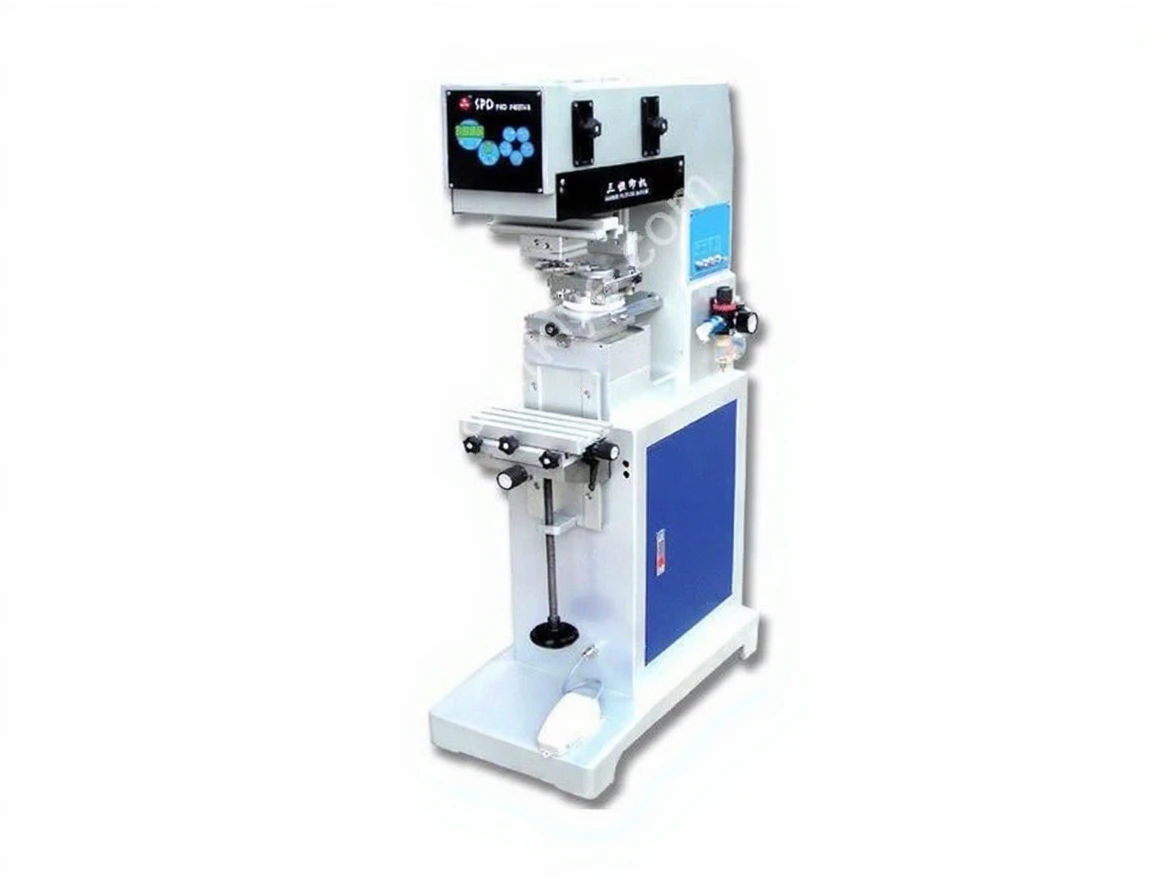

Single Color Closed Chamber Pad Printing Machine

It works with a closed chamber cliché system. Silicone printing force can be adjusted separately for both the cliché and the material.
Magnetic cliché table allows the use of thin clichés with thicknesses of 0.3, 0.5, and 1 mm. Application of 10 mm thick cliché is also possible in this system. Adjustment table that can be moved in X, Y, Z axes is suitable for your precise adjustments. With its solid cast body, it does not require a foot or table.

European quality pneumatic parts
Quality aluminum parts
Easy to use, touch panel
Adjustable silicone speed
Printing counter

Model: SPD 1090E
Cliché size: 100 x 250 mm
Blade diameter: 90 mm Ø
Printing area: 80 mm Ø
Printing speed: 2000 revolutions/hour
Printing force: 0.3-0.7 Mpa
Air Consumption: 0.04 m³ / min.
Dimensions:
  Width: 330 mm
  Length: 650 mm
  Height: 1 300 mm
  Weight: 105 kg
Standard machine accessories
Paint reservoir and blade
Silicone
Silicone adjustment part
Cliché holder magnetic bottom part
It operates with a closed chamber printing system. Silicone printing force can be adjusted separately for both the cliché and the material. Thanks to its magnetic table, it allows the use of thin clichés (0.5 and 1mm) as well as 10 mm thick clichés. The adjustment table system that can be moved in the X, Y, Z directions is suitable for your precise adjustments. With its solid cast body, it also does not require a foot or table.
