Single Corner Welding Machine Penmak Otk
| Brand | Penmak |
|---|---|
| Model Type |
KOTK |
Description

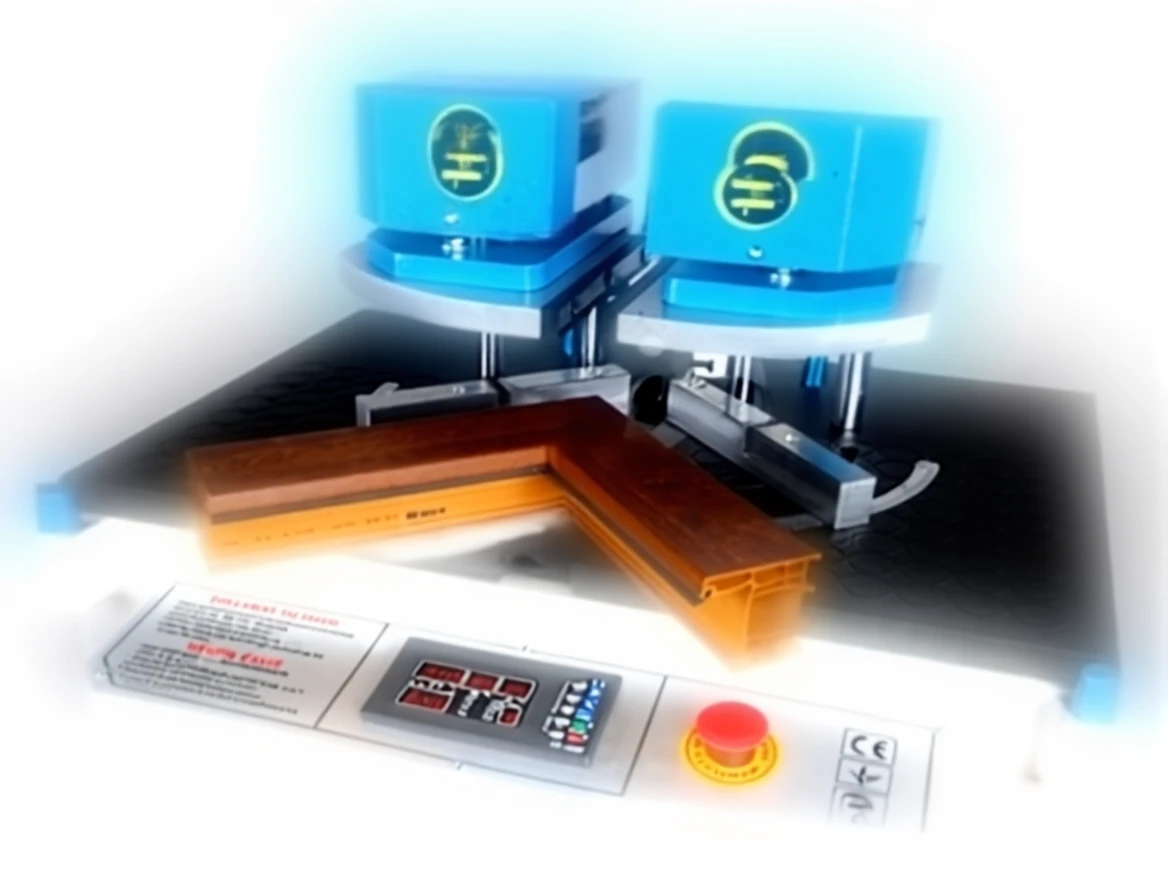

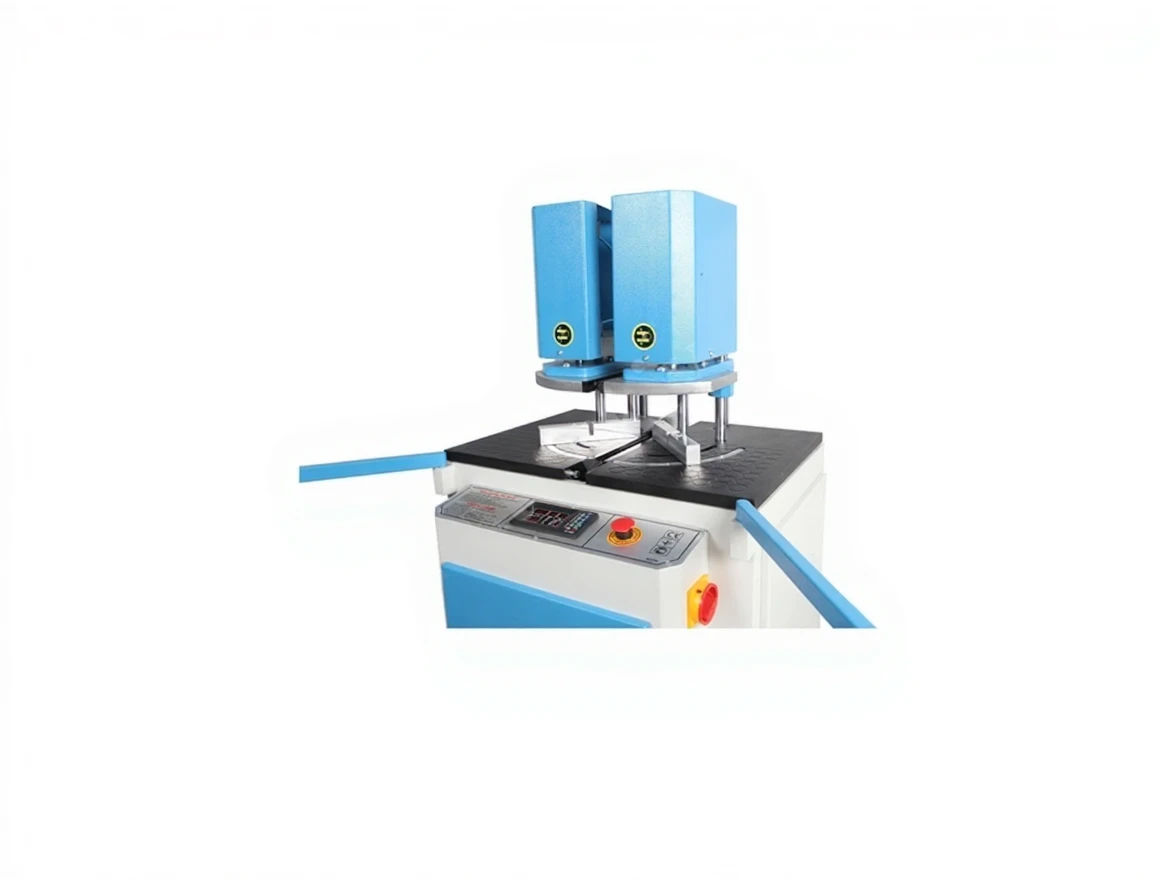

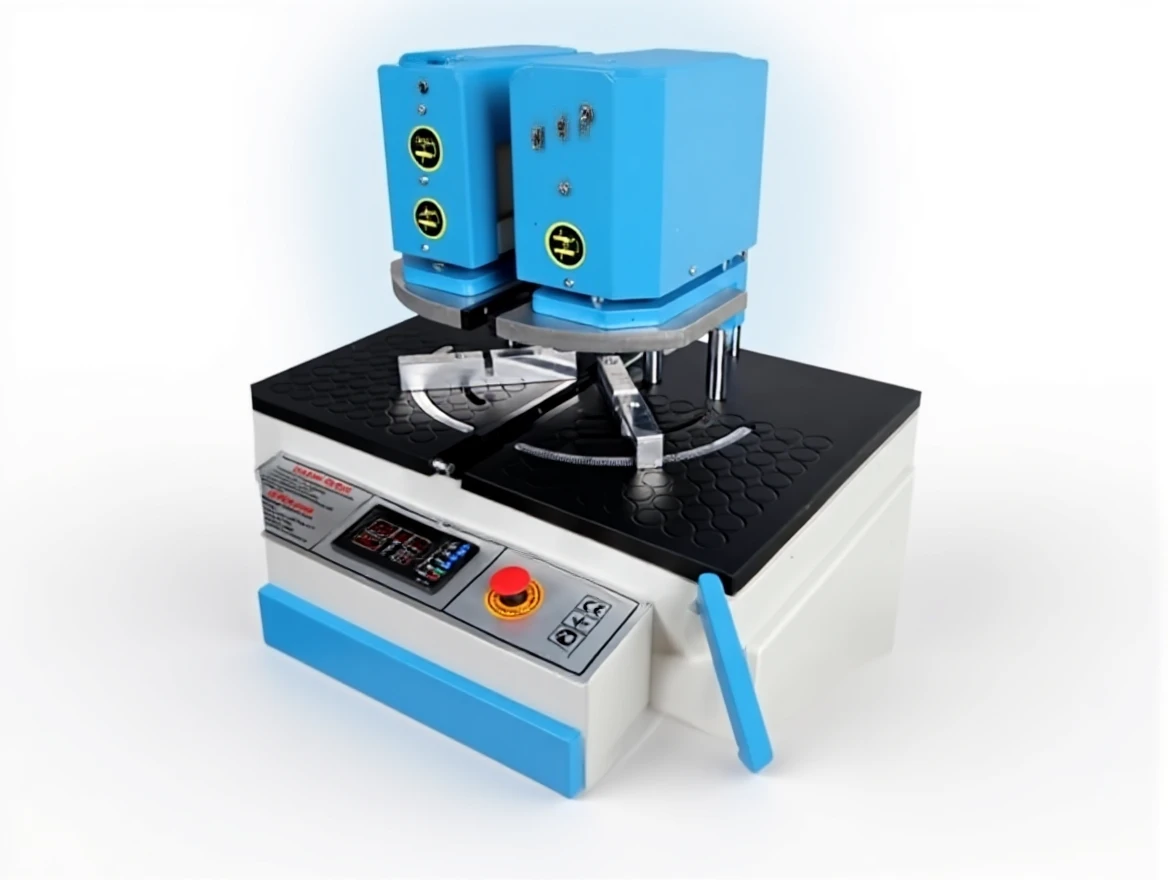

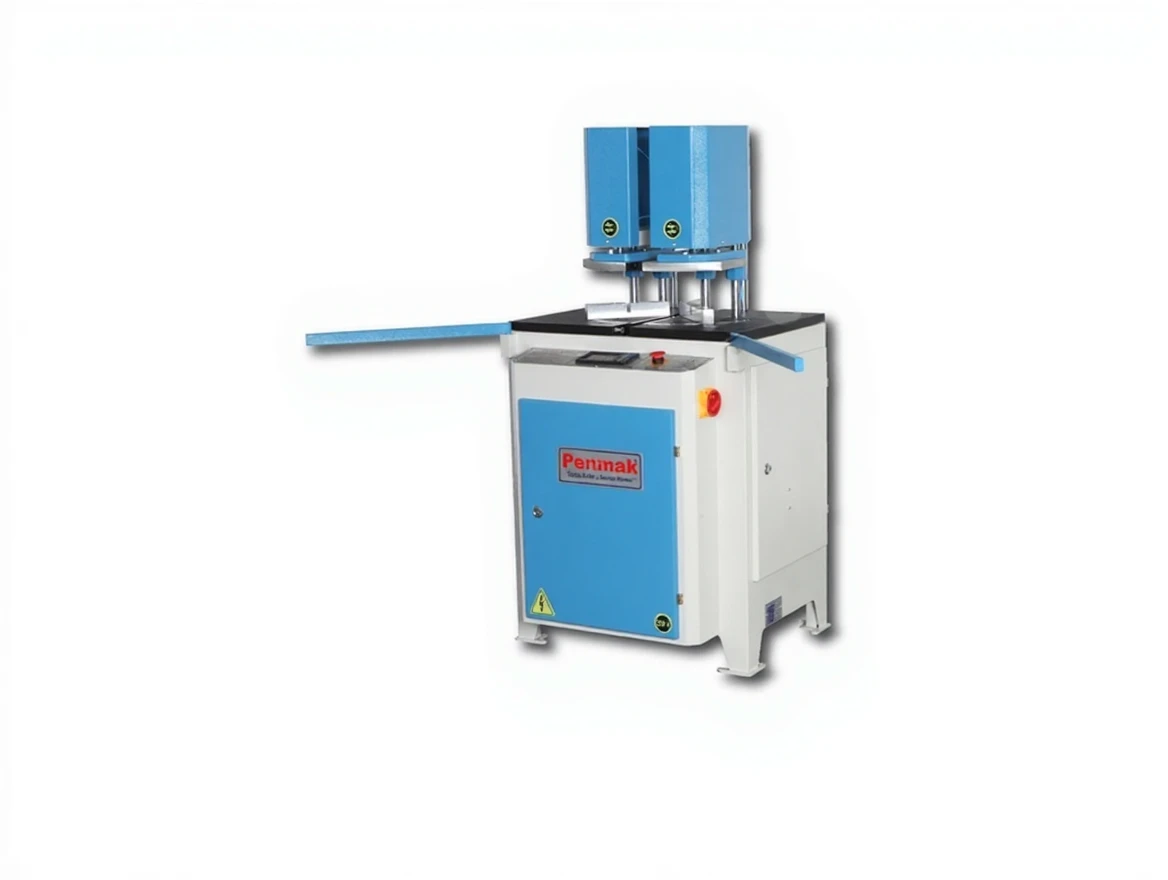

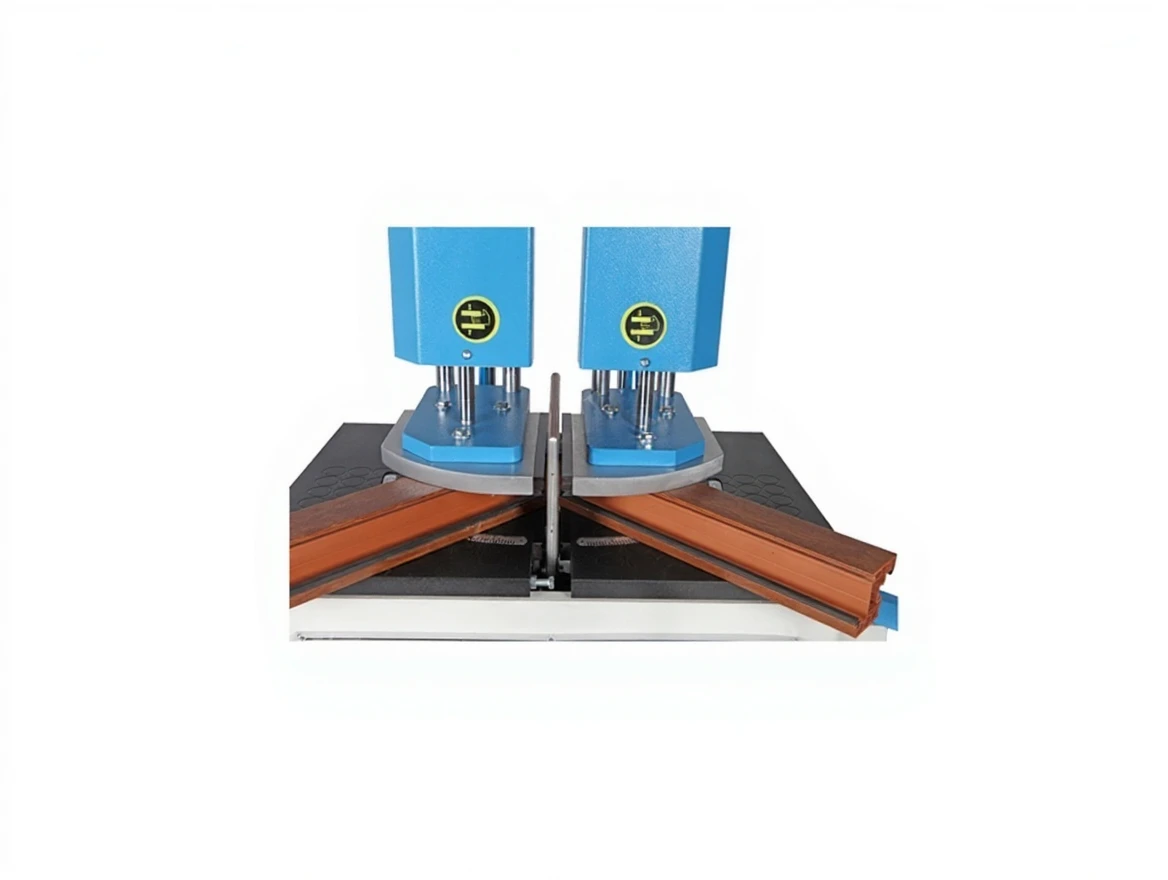

Single Corner Welding Machine / PENMAK KOTK

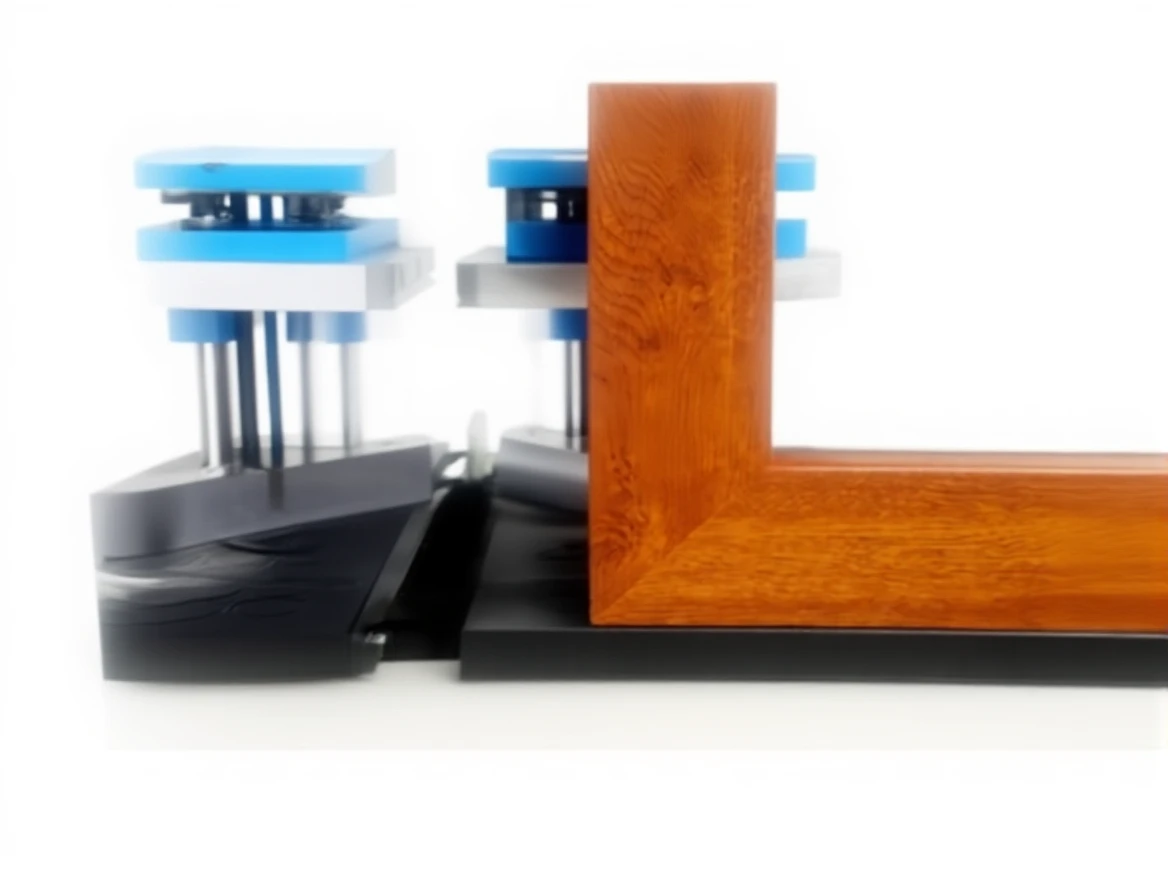

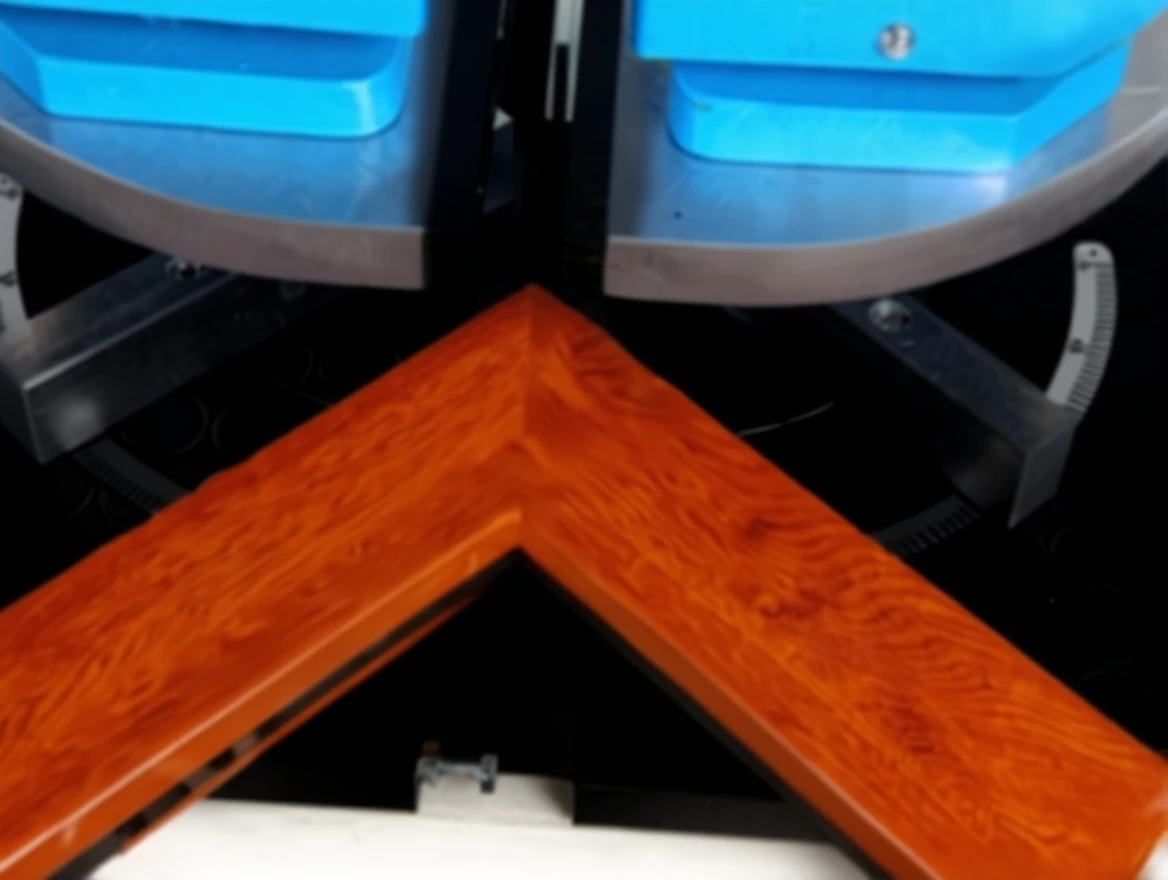

Fully automatic welding machine designed for melting and bonding every corner designed for corner joints of PVC profiles in 45 seconds.

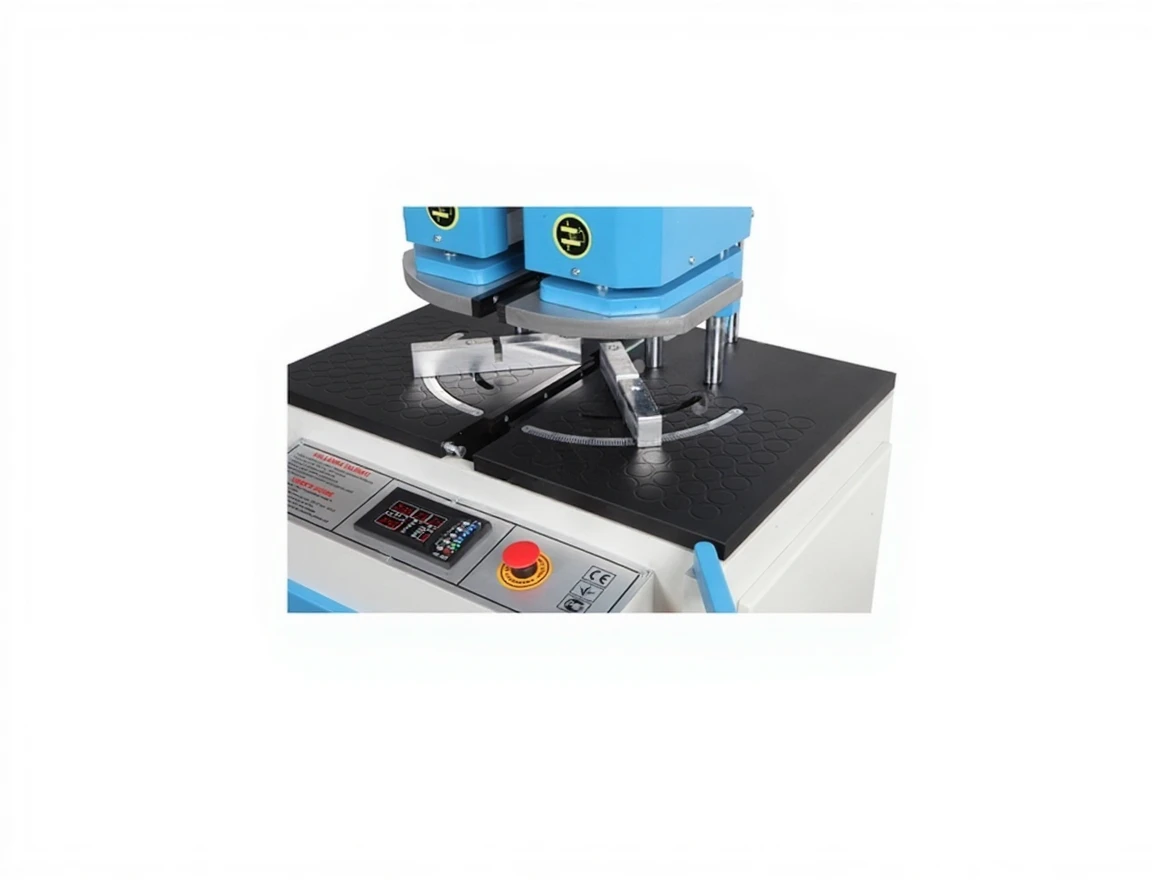

– Easily adjustable to angles between 30-180 degrees with graduated table protector
– Temperature control setting can be adjusted between 0-400 degrees. The recommended temperature setting is 240 degrees.
– The machine will not operate until the set temperature is reached. The ready light will come on when the set temperature is reached.
– There is a pedal on the machine. At the same time, this pedal function is also available on the electronic panel.
| STANDARD VOLTAGE | 220 V |
| FREQUENCY | 50 Hz |
| TOTAL POWER | 1.5 KW |
| AIR PRESSURE | 5 Bar Min. |
| AIR CONSUMPTION | 2.30 Lt. Min. Dk. |
| MACHINE WIDTH | 760 mm |
| MACHINE LENGTH | 650 mm |
| MACHINE HEIGHT | 1400 mm |
| MACHINE WEIGHT | 163 kg. |
| PROFILE HEIGHT | 125 mm |
| PROFILE WIDTH | 225 mm |
