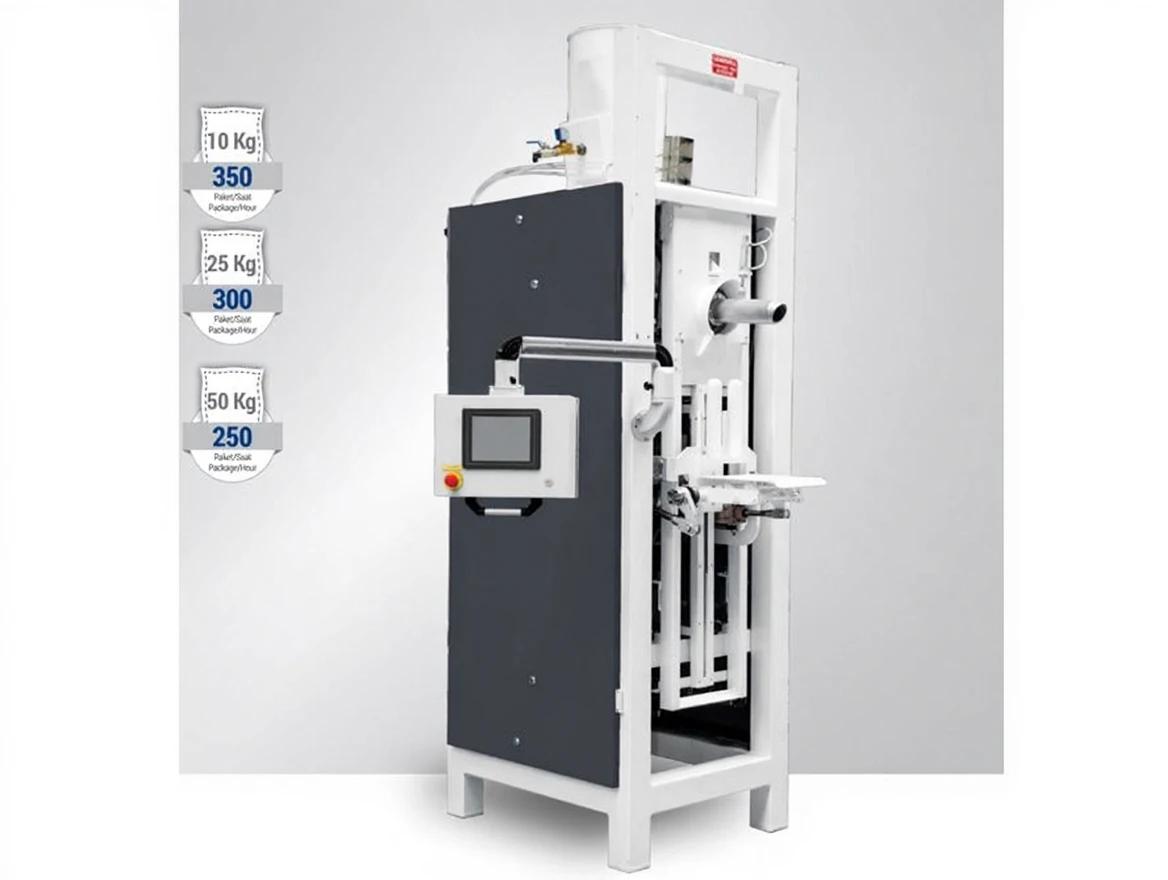

Single Valve Flour Bag Filling Packaging Machine

Turbine type valved bag filling machine is used for packaging medium and high density products into valved kraft-polyethylene bags. It offers the most suitable solution for packaging fine and ground products with medium and high density fluidity. The dosing system of valve filling machines can be of different types according to the properties of the bagged material. Once the bag is placed on the filling spout by the operator, all operations are automatic. Machine filling speed may vary depending on the density and fluidity of the product.
The pneumatic mechanism at the filling nozzle secures the bag. The system performs the bag filling process according to the set (target material) amount determined by the user. The mixture in the machine chamber is filled into the bag by the turbine drive and the air supplied into the chamber moves the mixture to be packaged in the chamber. Thanks to its electronic, loadcell-enabled weighing unit and fast/slow filling system, it continuously weighs precisely and also carries out the weighing process. It has a structure that adjusts the filling process according to the amount of weight to be packaged and thus performs precise filling, and it has a speed control system that slows down as the desired package weight is approached. For example, when we set a target filling of 25 kg, when it reaches 24,700 grams, the weighing slows down the flow rate of the tribune and achieves the filling with the highest precision.  Turbine teeth are made of Hardox material. There are also two speed regulation valves that control the air supplied into the chamber. After filling is completed, the bag automatically tips over onto the conveyor belt.

Standard Features
• Weighing system with electronic loadcell feature.
• Heavy duty profile chassis.
• Adjustable bag height.
• Pneumatic control system.
• Automatic air filling nozzle cleaning system.
• Easy to use feature thanks to PLC and LCD user screen.
• Easily replaceable Hardox type turbine blades.
• Automatic air-filled nozzle cleaning system.
• Minimum labor with automatic bag release system.
• Connection port for filter (suitable for 1,000m3/hour capacity suction).
• With electronic weighing control unit (tare, reset).
• Long-lasting bearing in the turbine.
• Additional sub-chassis can be applied for the bag filling conveyor.
• Ability to adjust the chassis scale from the feet.

Products Used
• Flour, semolina, starch types, milk powder, cocoa powder, soy flour, bread additives and gypsum,
in packaging of products such as cement, construction chemicals, bentonite, fertilizers and seeds
available.
• Machine filling speed varies depending on the density and fluidity of the product.
