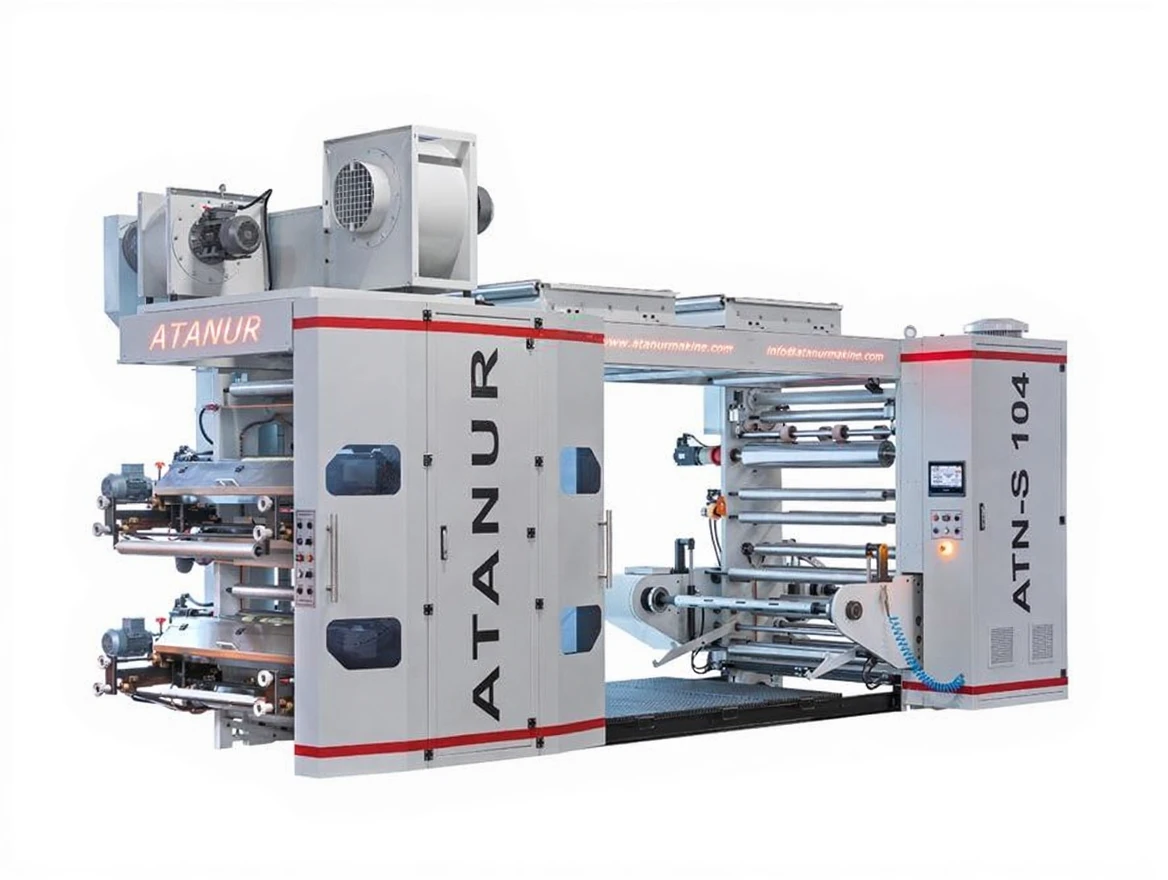

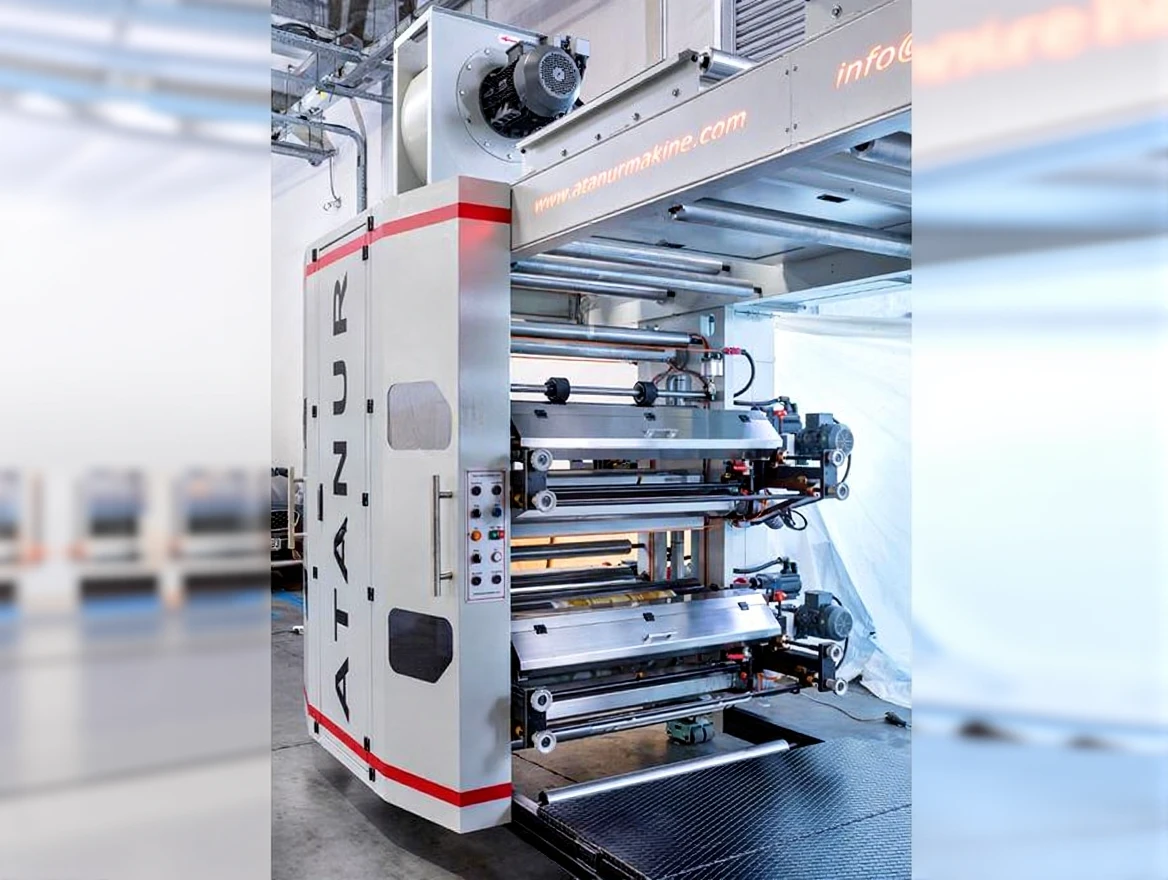

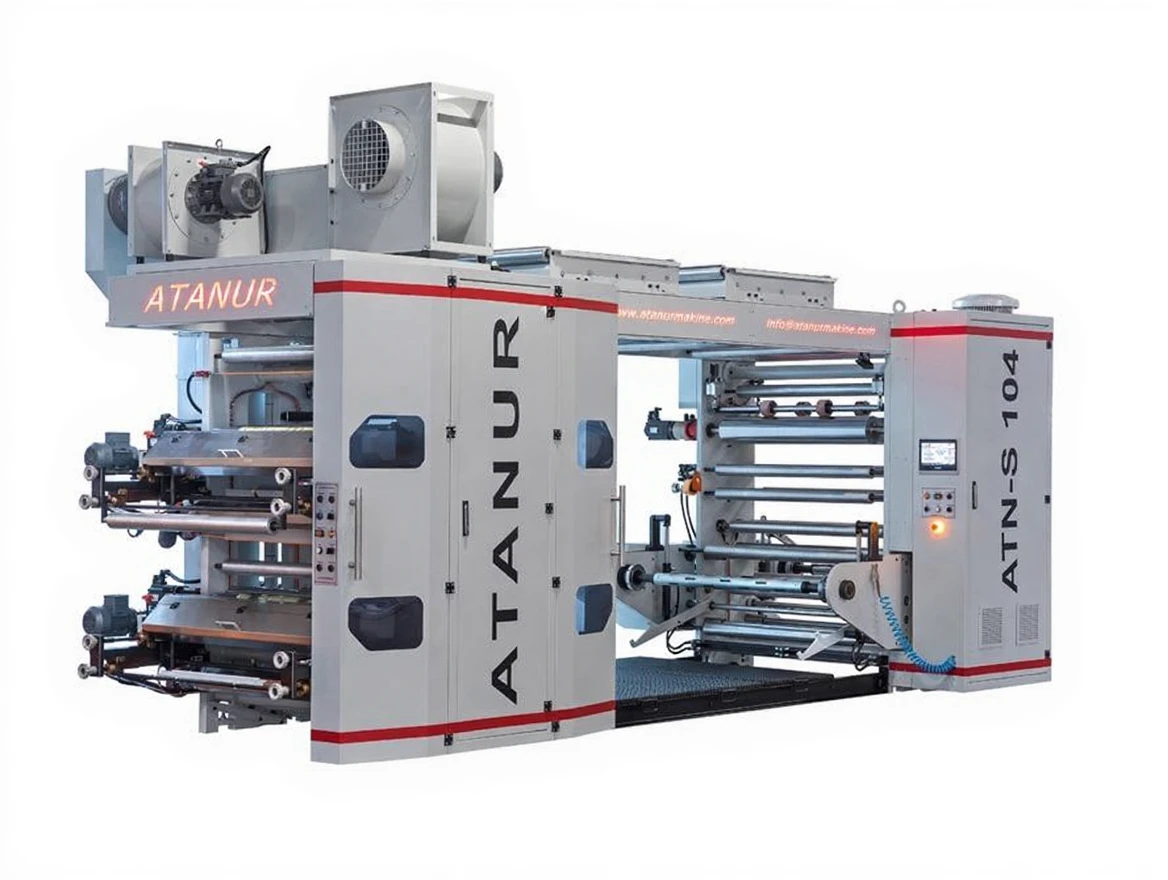

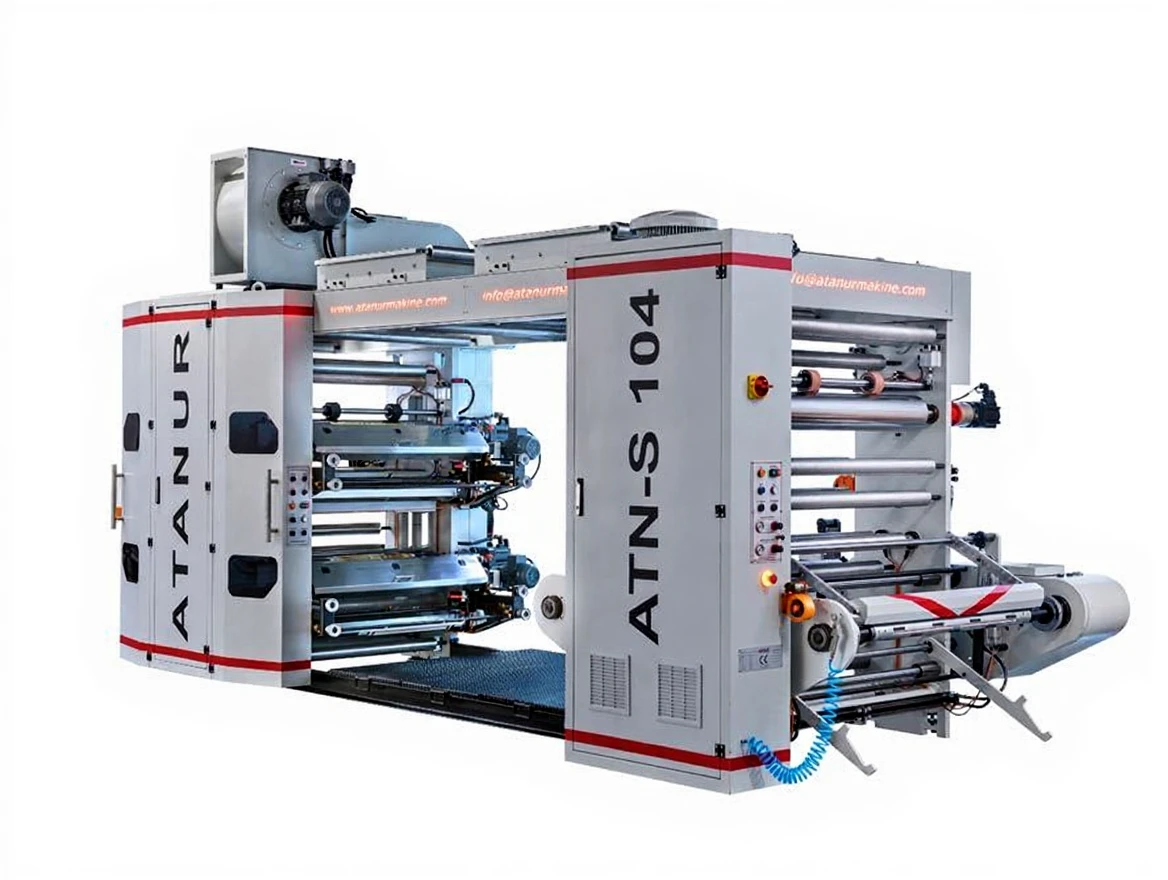

Single Winding Single Weft Stack Type Flexo Printing Machine

General Features

Number of Printing Units

4 units

Max. Printing Width

[ PHONE HIDDEN ] cm

Max. Material Width

[ PHONE HIDDEN ] cm

Printing Options

4+0 / 3+1 / 2+2

Control Panel

PLC Touch Screen

Camera Control System

Optional

Available Printing Materials

Paper, OPP, BOPP, HDPL, LDPE, Gelatin, Nonwoven

Tension System with Loadcell

Standard

Max. Printing Speed

230 meters / min

Printing Length

Min: 28 cm, Max: 120 cm

Weft Unit

Number of Weft Units

1 unit (Servo Motor)

Weft Coil Shaft

76 mm Pneumatic Shaft (with Locking Wheel)

Weft Coil Diameter

Max. 100 cm

Coil Loading System

Hydraulic System

Edge Control System

Automatic

Winding Unit

Winding Unit Count

1 unit (Servo Motor)

Winding Coil Shaft

76 mm Pneumatic Shaft (with Locking Wheel)

Winding Coil Diameter

Max. 100 cm

Coil Unloading System

Hydraulic System

Edge Control System

Available

Weight Roller

Pneumatic System

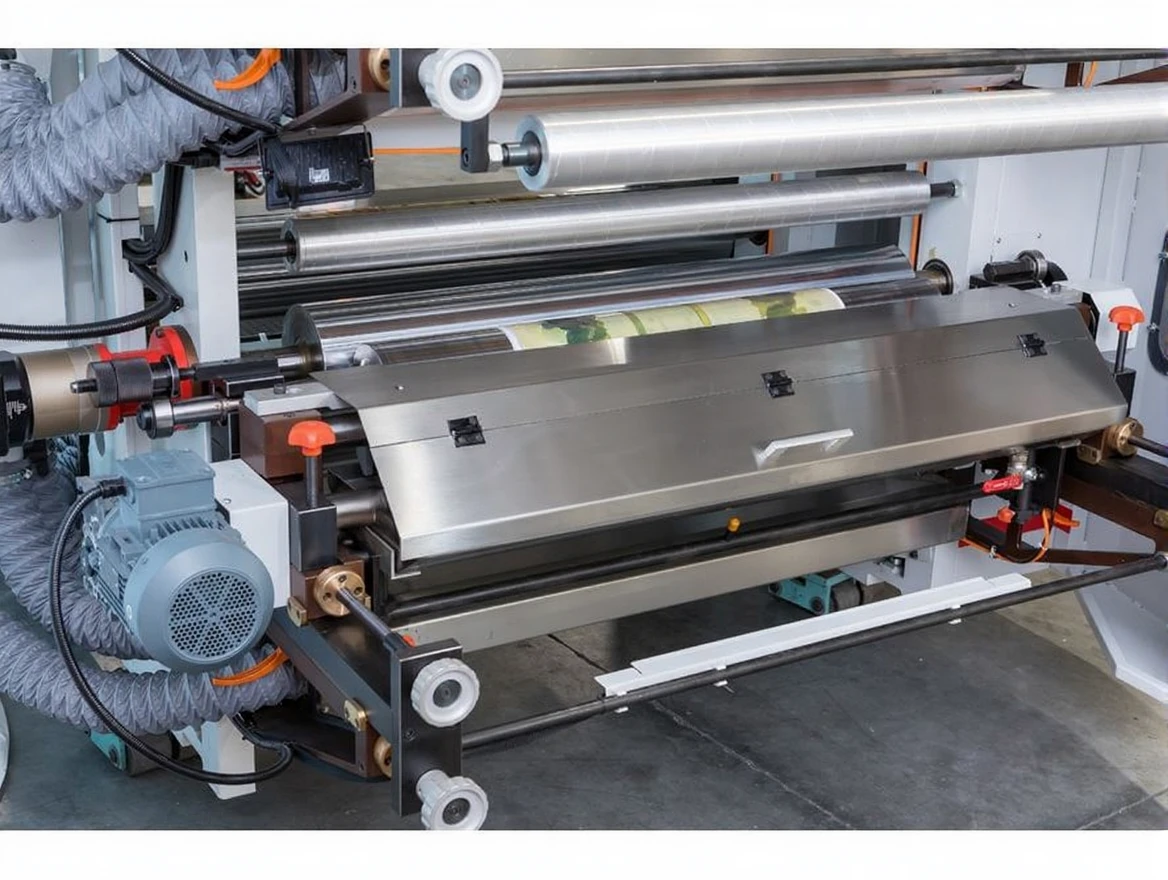

Printing Group

Doctor Blade System

Rubber Roller or Doctor Blade

Drying Unit

Hot air drying with exhaust suction system

Mixer Motor System

4 Units

Emergency Stop Switch

4 Units

Output System from Printing

Automatic, 4 units

Roller Group

Winding and Unwinding Pull Rollers

2 Units (Servo Motor)

Plate Roller

4 units

Ink Roller

Tram or Anilox

Installation Requirements

Air Pressure

8 Bar

Voltage

380 V, 50 Hz
