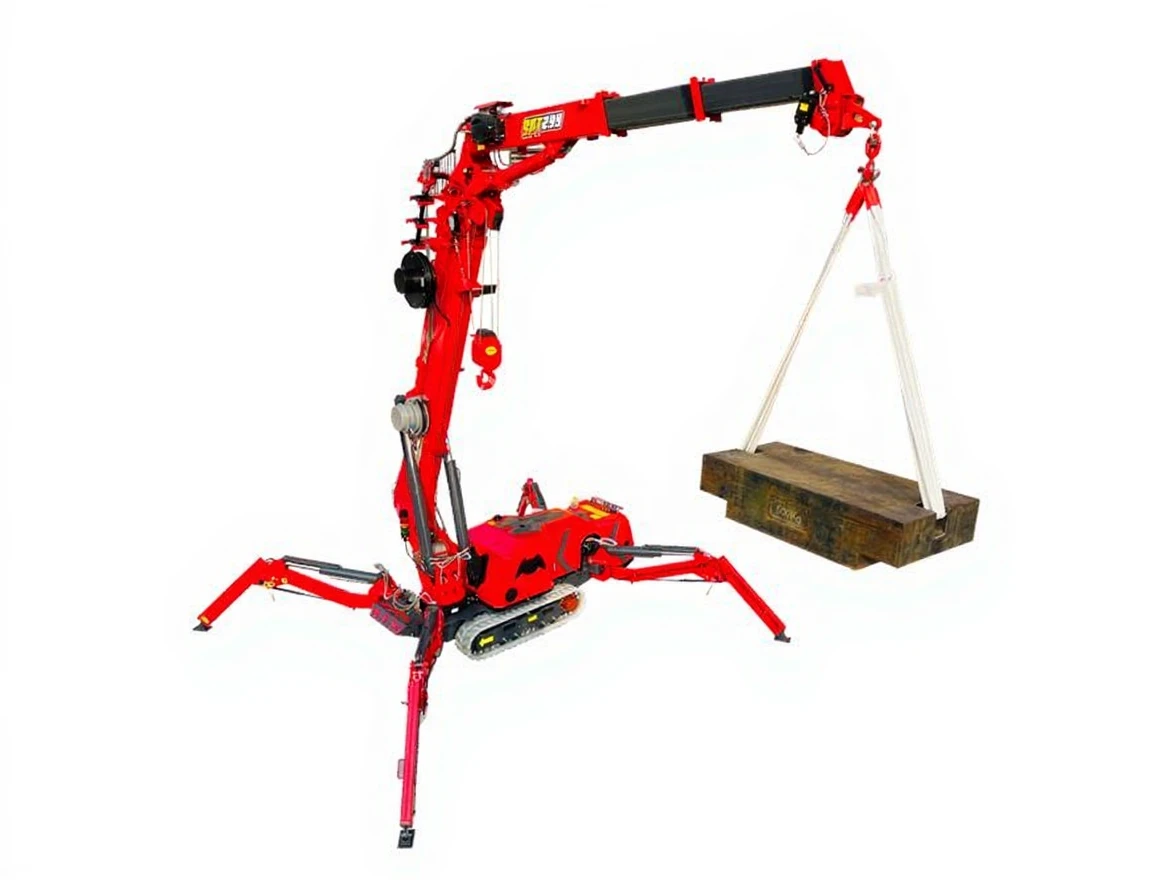

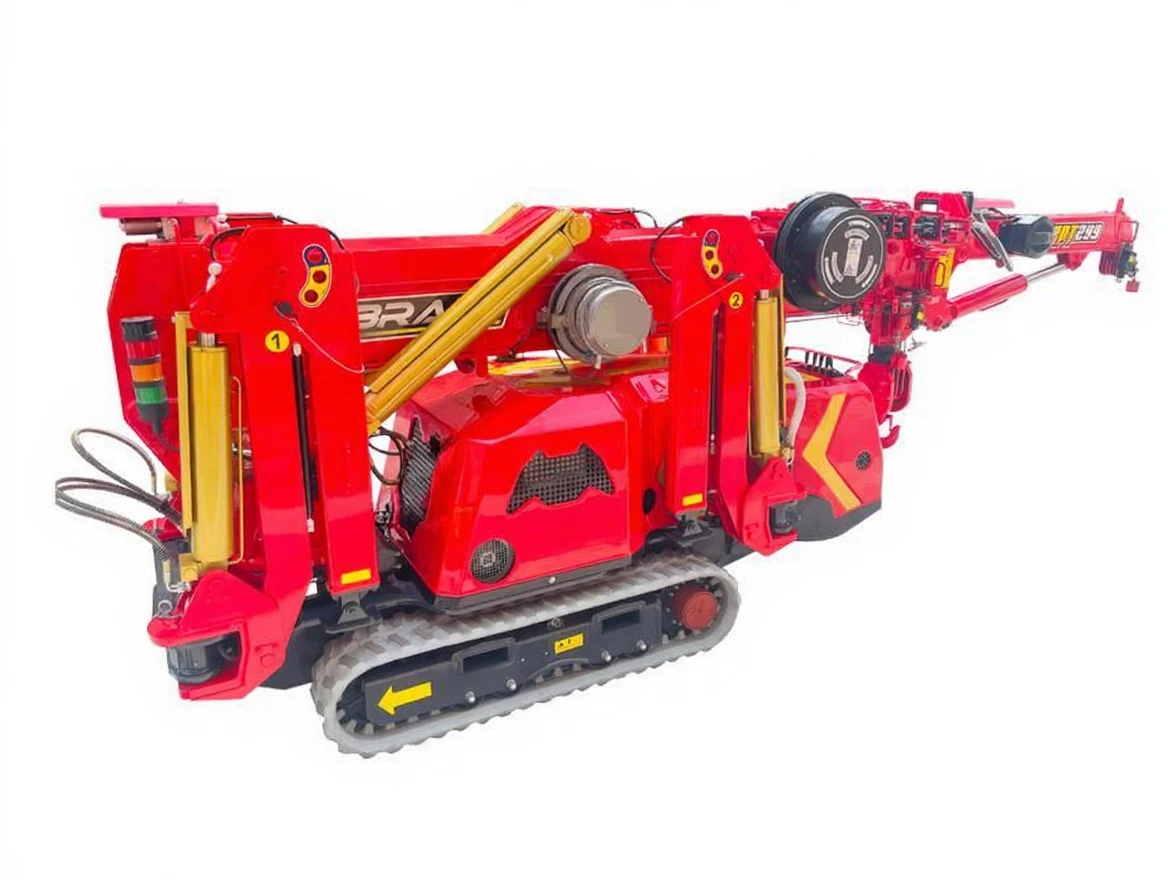

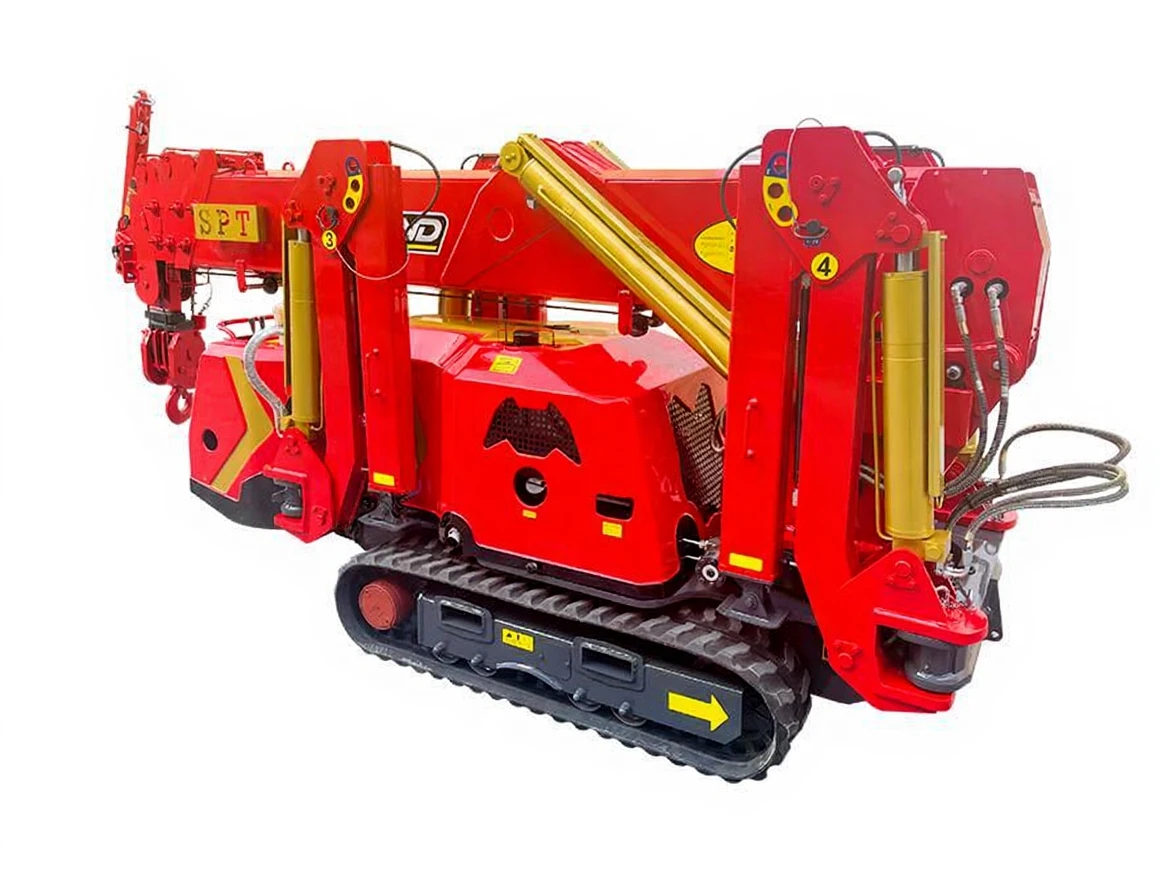

Spt 299 Hydraulic Jib Boom Crawler Crane

International Brand, EU standard
Smart, safe, and more durable

Model: SPT299 hydraulic Fly Jib

SPT299 MAIN COMPONENTS
Engine: Japan
Main Pump: Japan
Main Valve: Denmark
Other Control Valves: America
Hydraulic Crane: Japan
Wire Rope: Korea/Germany
Travel Reducer: Japan
Closed Rotary Drive: America
Hydraulic Hose Connection Parts: America
Hydraulic Seals: America/Sweden
Safety Load Protection System: Germany
Electric Control System: Germany
Wireless Remote Control: Sweden
Engine Control System: France
Display: England

Technical Specifications
Capacity: 2.95t x 1.4m
Working radius: 11.5m
Lifting height from the ground: 14.5m
​
Crane
Hook speed: 0-8m/min (4 wraps)
Rope type: Φ8mm x 50 m

Telescopic System
Boom shape: 4-section boom, hexagonal box structure
Boom length/Time: 3.3m-9.21m/18s

Up And Down
Boom angle/Time: 0-80° /13s

Rotation System
Rotation angle/Speed: 0-360° (continuous) /60s

Stabilizer
Support leg active form: Manual + Hydraulic
Maximum extended dimensions (mm): 4220 (Length) x 3700 (Front) x 4100 (Rear)

Electric Motor
Voltage: AC380V (Optional)
Power/Speed: 4kw/1440 rpm
Noise level: Nominal speed ≤75dB (A) (1m)

Diesel Engine
Model: 3TNV70(YANMAR)/3TNM68(YANMAR)
Type/Volume: 3 Cylinder water-cooled / 0.993L
Nominal output: 10.3kw/2200 rpm
Starting method: Electric
Operating temperature: -5° C~40° C
Fuel/Volume: Diesel/18L
Battery capacity: 12V 45AH
Specific fuel consumption: 274g/kw-h
Noise level: Nominal speed ≤82.5dB (A) (1m)
Emission-Applied regulation/Height: EPA-Tier4, EC stage V/1200m

Operating System
Operating type: Wireless remote control and manual operation
Operating characteristic: Fully proportional control

External Dimensions
Length x Width x Height: 3700mm x 900mm x 1650mm

Weight
Weight with hydraulic boom / Weight without hydraulic boom: 2700kg / 2900kg

Traction System
Walking type: Hydraulic motor drive, 2 speeds
Walking speed: 0-2.0km/s
Climbing ability: 20° (36%)
Ground length x width: 1150mm x 230mm
Ground pressure: 53kpa (0.54kgf/cm²)

Standard Features And Safety Functions
Manual and wireless remote control (Dual operation mode)

Two-year warranty for the entire crane

Smart display

Moment limiter

Overload alarm and automatic stop function

Three winding alarm and automatic stop function (Rope winding over tension alarm and automatic stop)

Automatic hook retrieval Function

Stabilizer position detector (Foot position detection device)

Stabilizer – Alarm and automatic stop function when the foot is lifted (or when the crane body is tilted 3 degrees)

Rope break protector

Emergency stop switch (EMO)

Three color lamp

Remote control lamp

Walking/stabilizer/boom triple mode lock system

Data records

Free search hook

Crane rain cover free

Hydraulic jib design that facilitates lifting

Optional Features ;

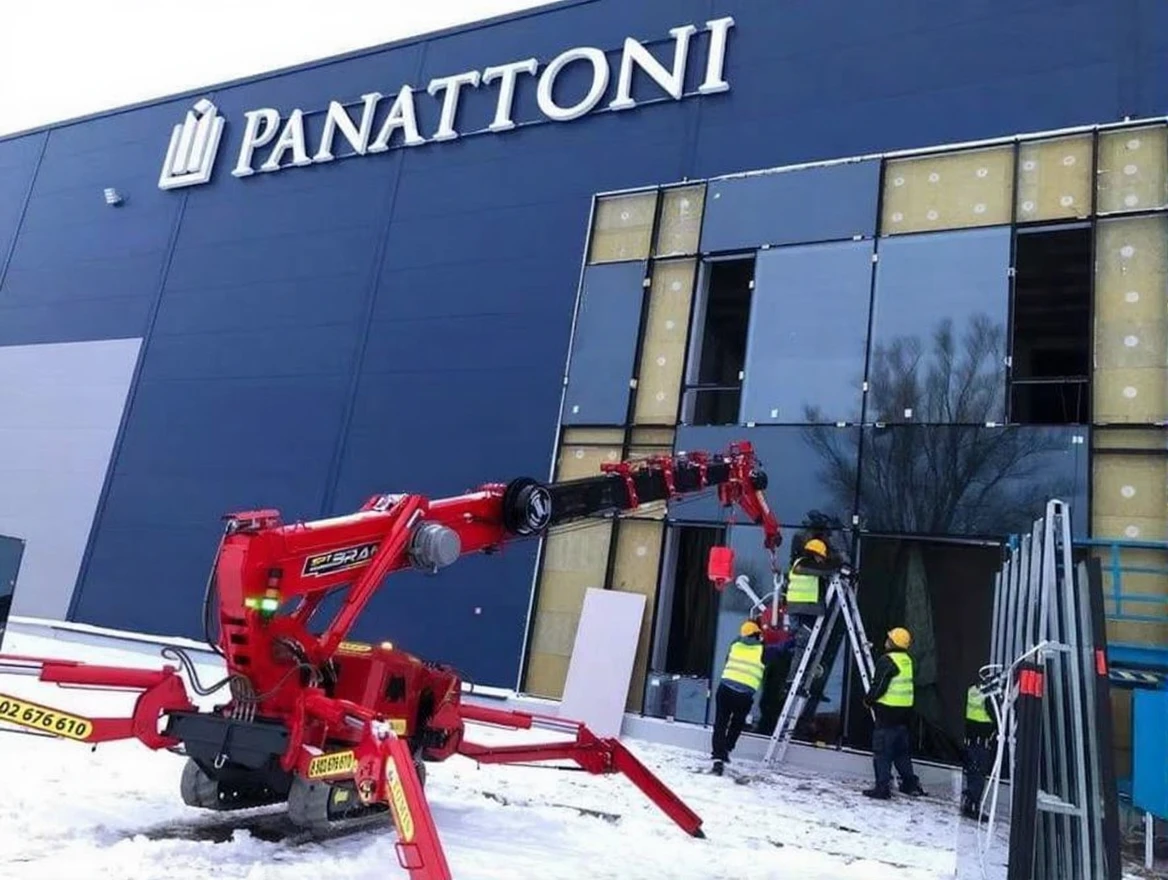

Glass Holder (Vacuum suction cup): A special equipment used for safely lifting glass panels.

White rubber tracks: Special tracks that do not damage the ground and ensure quiet operation of the crane.

Single-person basket: A safe platform for the crane operator to work.

Stabilizer pads: Support pads used to increase the stability of the crane.
