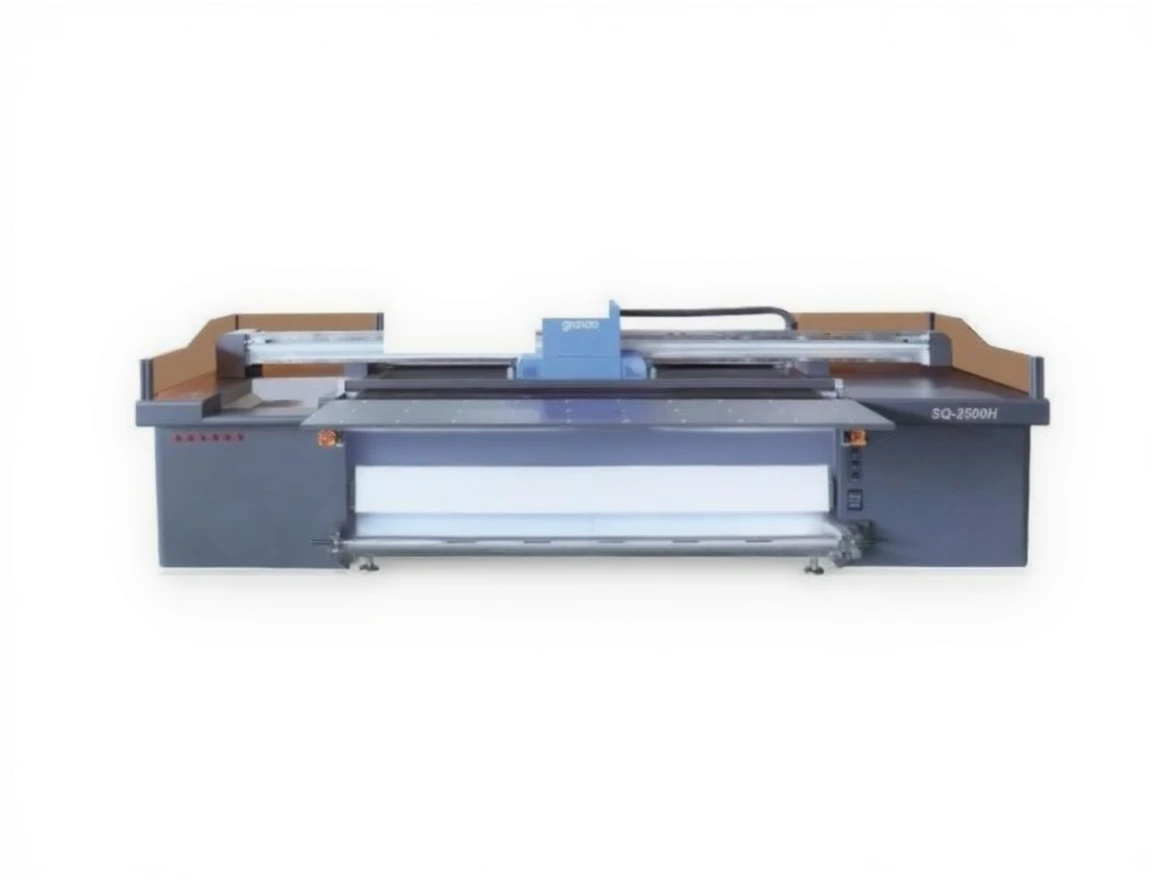

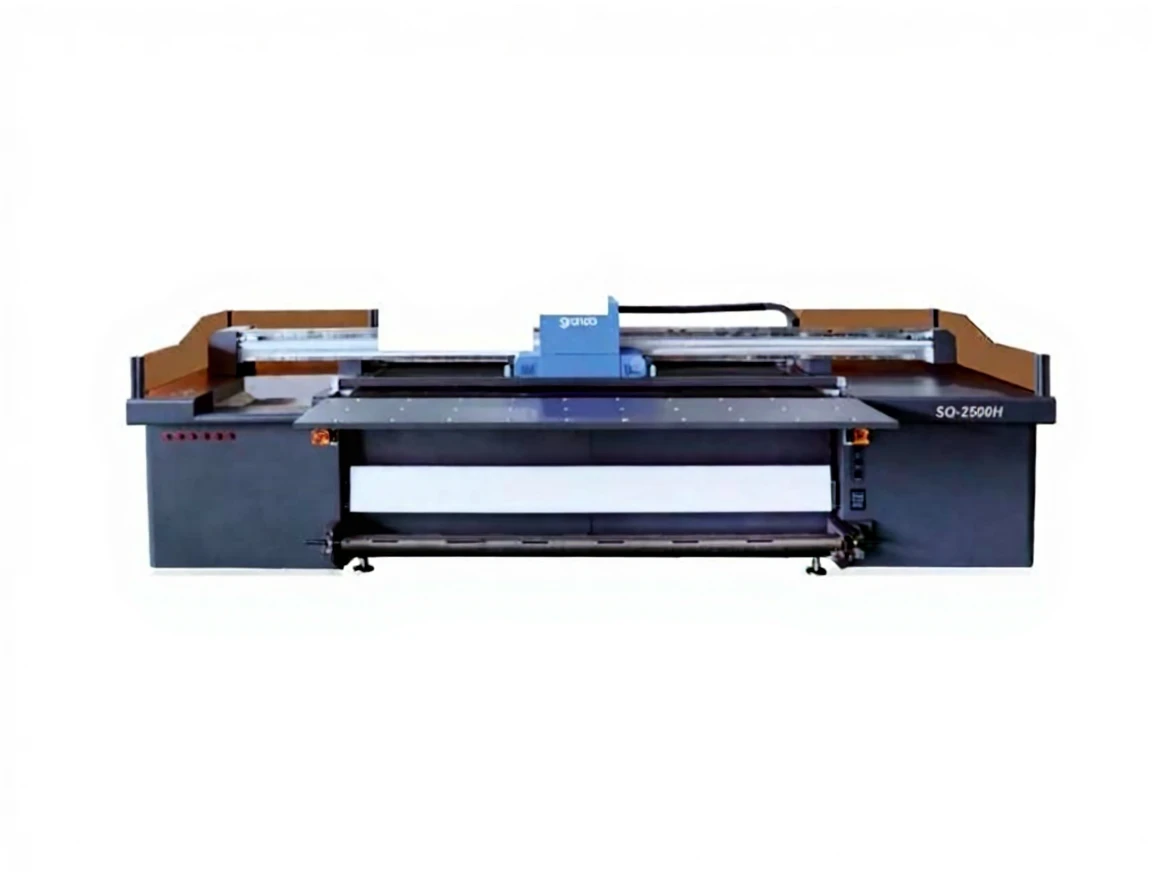

SQ-2500H Hybrid UV Printing Machine

SQ-2500H Hybrid UV Printing Machine

Grando SQ-2500H

Technical Specifications
Model: SQ-2500H
Print Head Type: Ricoh Gen5 / Gen6
Number of Heads: 3-12 units (optional)
Print Size (W*D): 2500 mm (W) * 1900 mm (D)
Printing Technology: Grayscale Piezoelectric Inkjet Technology
Maximum Resolution: 2400 dpi
Ink Type: LED UV Ink
Continuous Ink Supply System: (2.5L Ink Reservoir)
Colors: C/M/Y/K/Lc/Lm/W/Varnish
Media Thickness: <50 mm
Color Control: ICC Standard, ICC & Density Adjustments
RIP Software: PhotoPrint
Environmental Conditions:

• Temperature: 18°C – 26°C
• Humidity: 30% – 75% (RH)
  Energy Consumption:
• Printing Mode: 5000W
• Sleep Mode: 600W
  Printer Size (LWH):
  Main Equipment Packaging Size: 4500 mm (L) * 1100 mm (W) * 1540 mm (H)
  Extension Panel Packaging Size: 2690 mm (L) * 500 mm (W) * 100 mm (H)
  Packaging Weight: 2T
