Standard High Frequency Plastic Welding Machine

Standard High Frequency Plastic Welding Machine

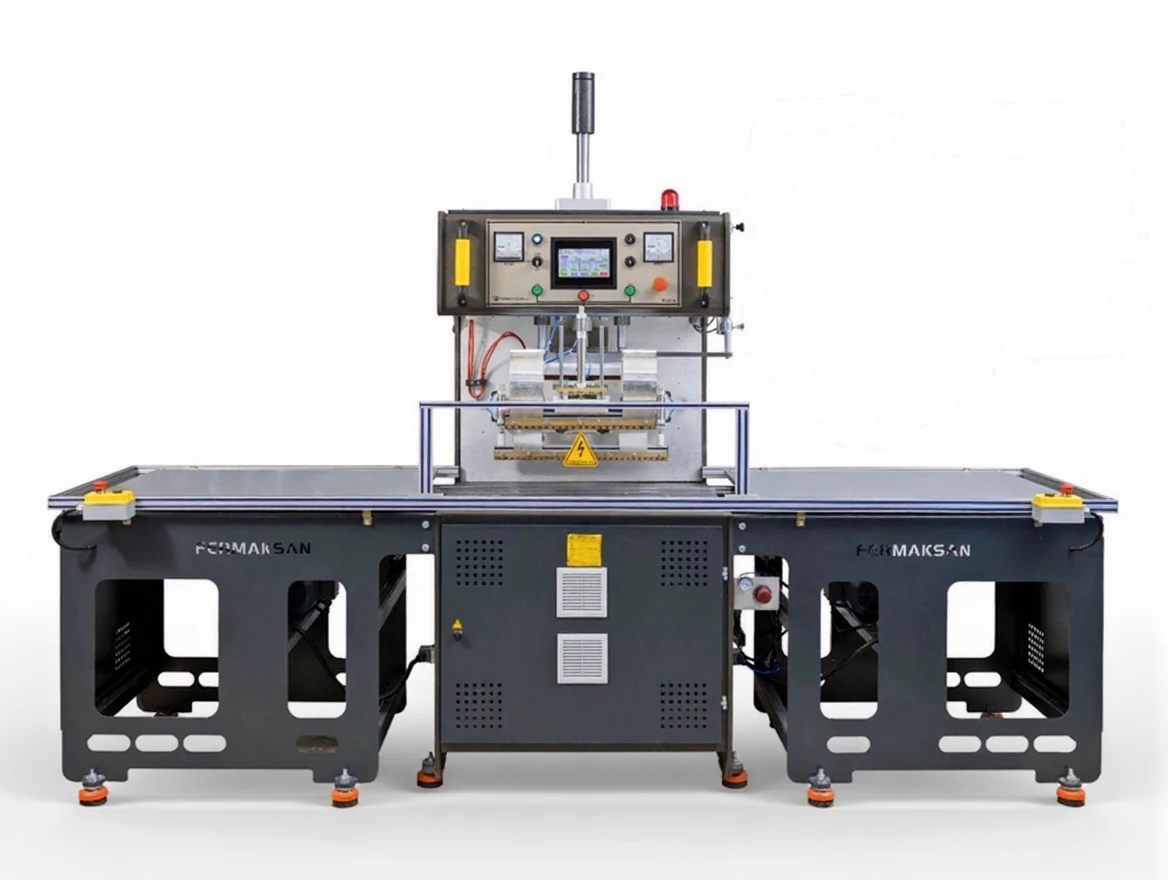

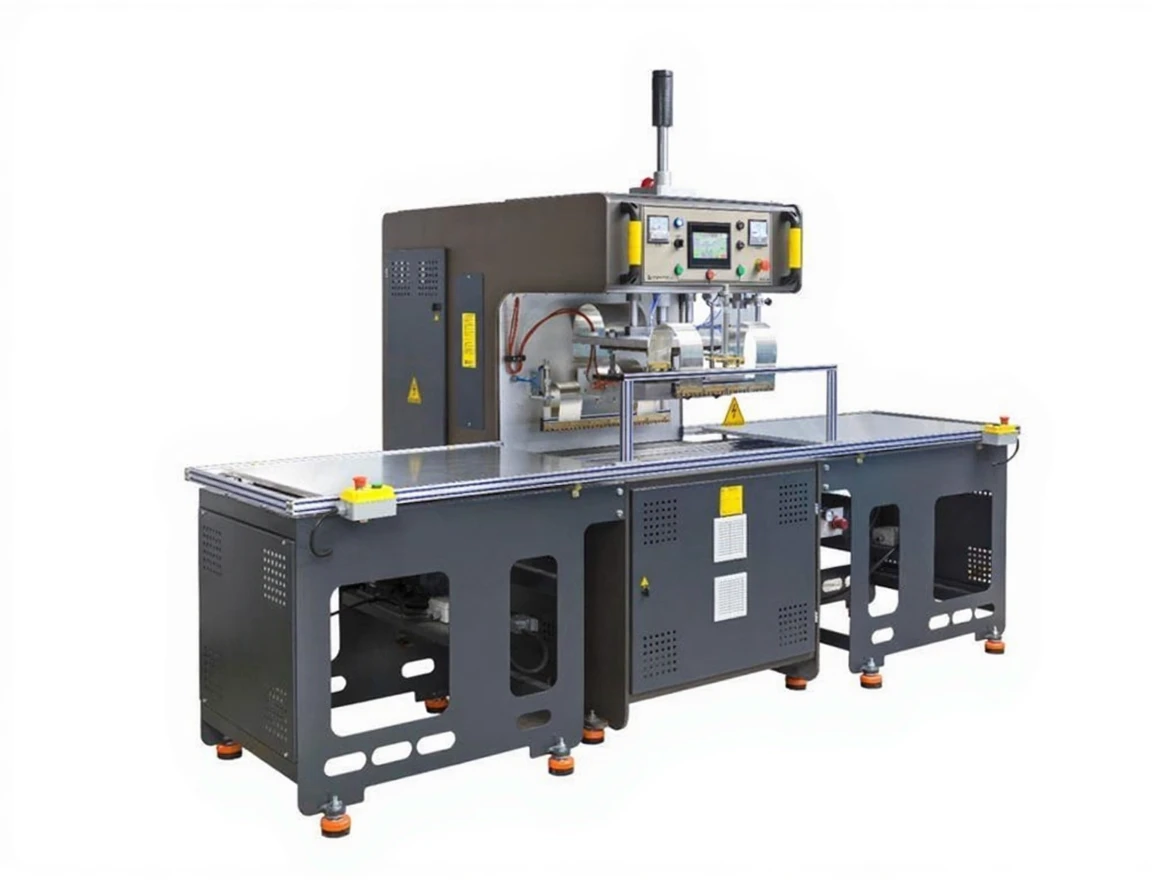

The TR 100 OH model of Fermaksan is a machine designed for standard high frequency plastic welding operations. Thanks to its automatic movement feature, it provides ease in double car positioning and makes the working processes more comfortable. The machine has a speed-adjustable structure suitable for mass production when desired. It offers hydraulic and pneumatic working options and is produced in four different models.

Technical Specifications:

• Bottom Plate: 700 x 900 mm

• Top Plate: 350 x 450 mm

• Working Principle: Hydraulic or Pneumatic

• Output Power of Generator: 10 kVA

• Operating Voltage: 3 x 220 V 50 Hz

• Voltage Fixing Range: 195 x 235 V

• Input Power:

  • Hydraulic: 15 kVA

  • Pneumatic: 13 kVA

• Oscillator Type: Lamp

• Oscillator Cooling: With air cooling

• Correction: Silicon diode

• Frequency: 27.12 MHz ± 1%

• Weight:

  • TR 100 S: 700 kg

  • TR 100 MH: 815 kg

  • TR 100 OH: 1050 kg

• Machine Height: 2100 mm

• Machine Dimensions:

  • TR 100 S: 800 x 1650 mm

  • TR 100 MH: 2750 x 1750 mm

  • TR 100 OH: 2950 x 1750 mm

Fermaksan TR 100 OH is an ideal solution to meet industrial plastic welding needs with its reliable performance, various working options, and extensive technical specifications.
