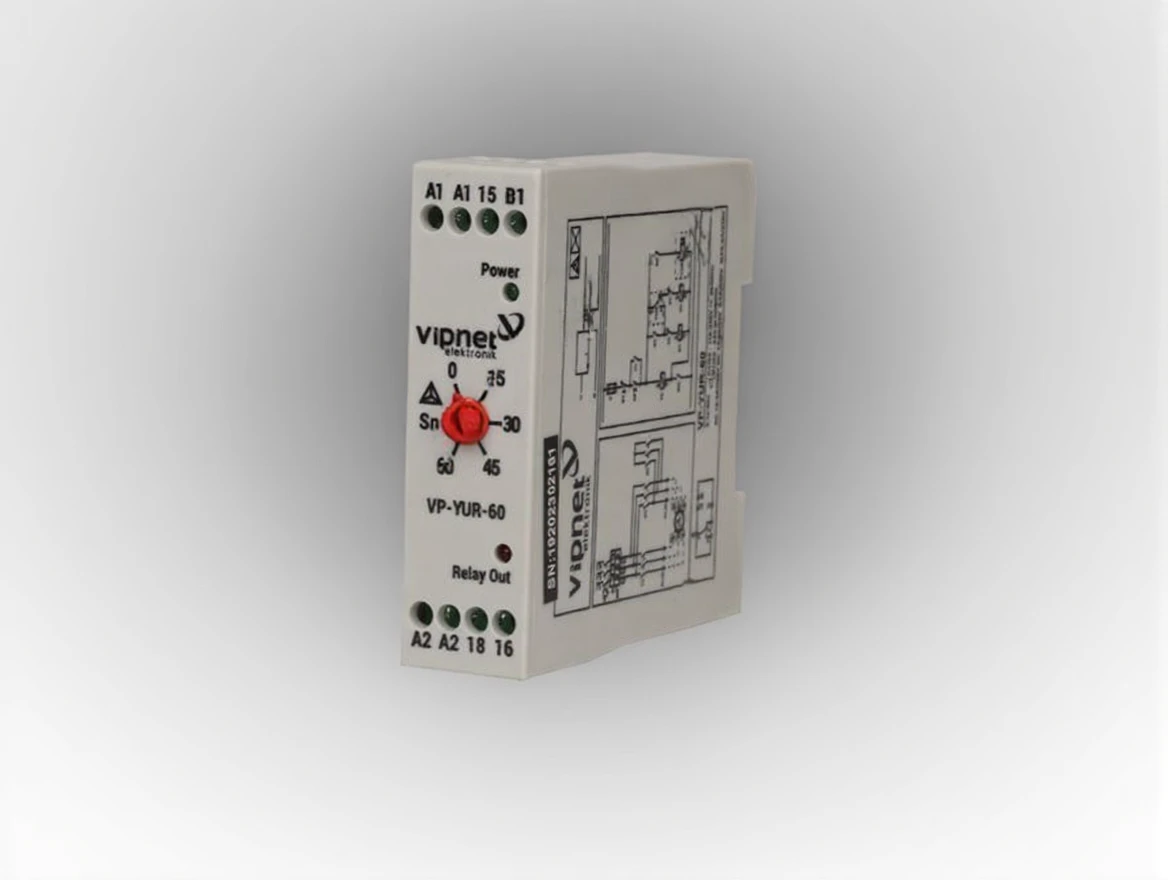

Star Delta Relay
| Brand | Vipnet Elektronik |
|---|---|
| Model Type |
VP-YUR-60 |
Description
• The star delta relay is designed for controlling the initial starts of three-phase motors.
• The operating time range can be adjusted between 0.1s and 60s. After power is supplied to the device, the relay pulls in and the star operation occurs. It remains in the star position for the set time and then transitions to the waiting (0.1ms – 500ms) time after the time expires. Then the relay releases. Thus, the delta operation occurs.
• The operating time range can be adjusted between 0.1s and 60s. After power is supplied to the device, the relay pulls in and the star operation occurs. It remains in the star position for the set time and then transitions to the waiting (0.1ms – 500ms) time after the time expires. Then the relay releases. Thus, the delta operation occurs.
The relay maintains this position until the power is cut off.
• Since the release time of the contacts may vary depending on the power, brands, and wear of the contactors, the transition time from star to delta should be set by the user to the safest duration.
• Since the release time of the contacts may vary depending on the power, brands, and wear of the contactors, the transition time from star to delta should be set by the user to the safest duration.
Technical Specifications
Product Code VP-YUR-60
Operating Voltage A1/A2: 220VAC 50/60Hz
B1/A2: 24VDC
Power Consumption 3W
Operating Temperature –10°C / 60 °C
Relay Output 1 Piece NO/NC (Max: 8A – 250VAC)
15 : COM 16 : NC 18 : NO
Signaling Power and Relay Output LED
Device Size 80mm x 80mm x 23.5mm
Mounting Type DIN-Rail (Rail Mount)
