Stationary Concrete Pump 37 Kw
| Brand | Tema |
|---|---|
| Model Type |
BP 35 E |
Description
| engine power | 37 kw Electric |
| Theoretical concrete output | 0-35 m³/h steplessly adjustable |
| Theoretical concrete pressure | 50 BAR |
| Max.Hydraulic pressure | 250 BAR |
| water pump pressure | 25 BAR |
| concrete line exit | 5″ (125mm) |
| Mixer bowl capacity | 350 liters |
| Propulsion cylinder stroke | 1000mm |
| Delivery cylinder diameter | 180mm |
| Number of strokes | 20 |
| Weight | 2750kg |
| Foldable grill range | 50mm |
| Mixer boiler drive | Hydromotor reducer |
| pumping system | Reciprocating |
| valve system | High pressure S tube |
| hydraulic pump | Axial piston type |
| hydraulic cooling | Tropical type automatic controlled 380v electric motor |
| Hydraulic temperature automatic protection | |
| 20 m wired remote control | |
| Ball throwing flange, washing hose | |
| Acrylic paint in color preference | |
| Operation and spare parts catalog | |
| CE certificate of conformity | |
| 1 Year warranty is STANDARD | |
| OPTIONAL OPTIONS | |
| Encrypted radio control | |
| oil level control | |
| 5 1/2″ Hinged outlet elbow | |
| 24V Grid vibrator | |
Related products

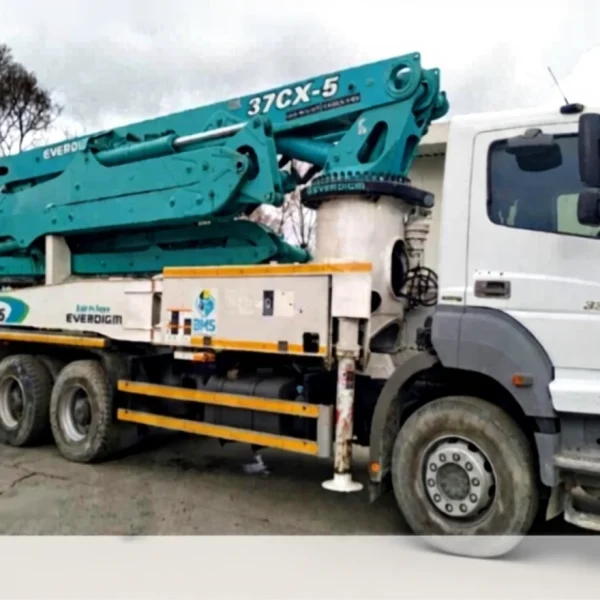

Truck Mounted Concrete Pump (2015) 37 Meter – Everdigm 37Cx5
