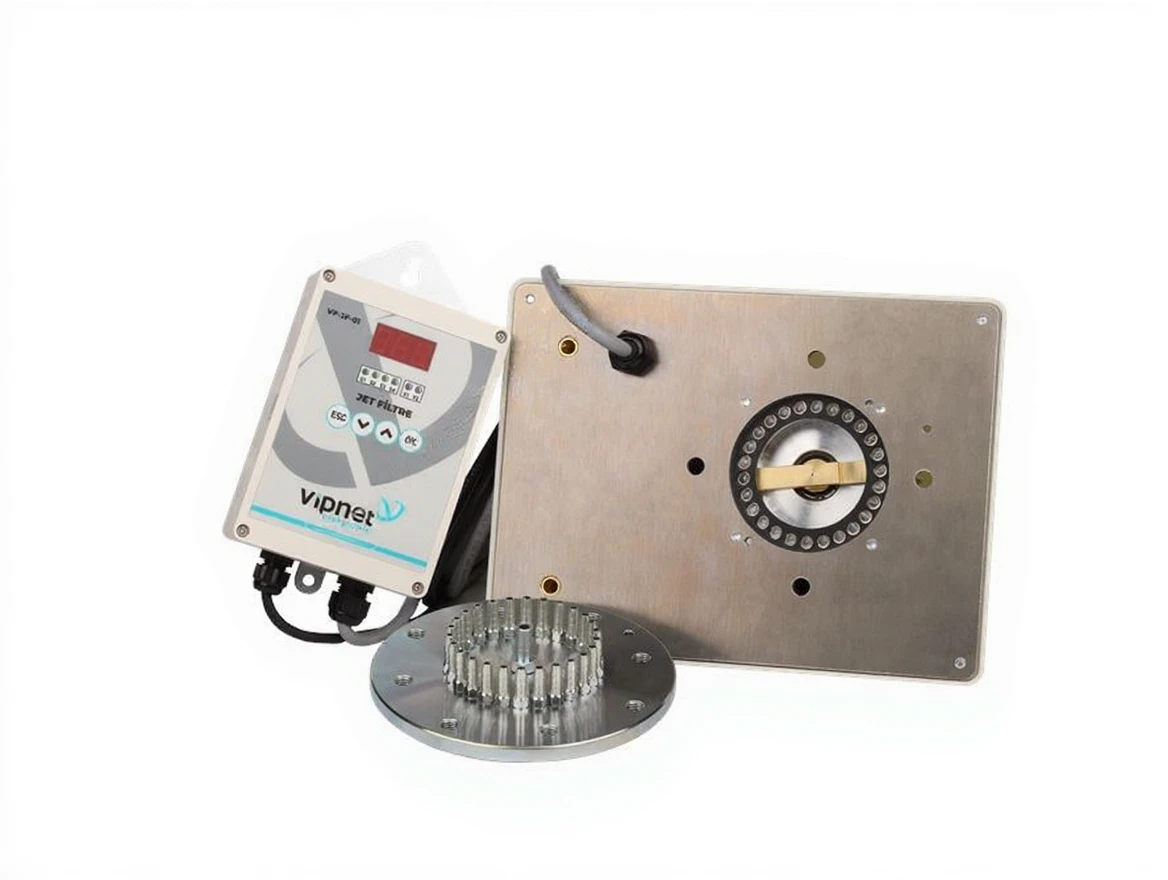

Step Motor Supersonic Jet Filter
| Brand | Vipnet Elektronik |
|---|---|
| Model Type |
VP-JF-01 |
Description
• Developed for mills and foundries, it is used for industrial dust collection systems.
• The supersonic filter provides air to the filter bags by emptying the air from one of the 26 air passage holes at every 2 or 4 pallets with a step motor pulse.
• By adjusting the air and speed settings from the program menu of the supersonic filter; the active time of the valve during air discharge and the transition time between the air holes of the step motor can be adjusted.
• Another feature is that it makes a knock output after the desired air discharge.
• The supersonic filter provides air to the filter bags by emptying the air from one of the 26 air passage holes at every 2 or 4 pallets with a step motor pulse.
• By adjusting the air and speed settings from the program menu of the supersonic filter; the active time of the valve during air discharge and the transition time between the air holes of the step motor can be adjusted.
• Another feature is that it makes a knock output after the desired air discharge.
Technical Specifications
Product Code VP-JF-01
Input Voltage AC 220V
Control Voltage 12/24 VDC
Control Power 18VA
Speed (Range/Time) : 0.1 sec – 50 sec (Step Motor Movement Speed)
Speed Precision 0.1 sec
Air 50 ms – 999 ms (Time to Blast Air to Filter Bags)
Air Sensitivity 1 ms
