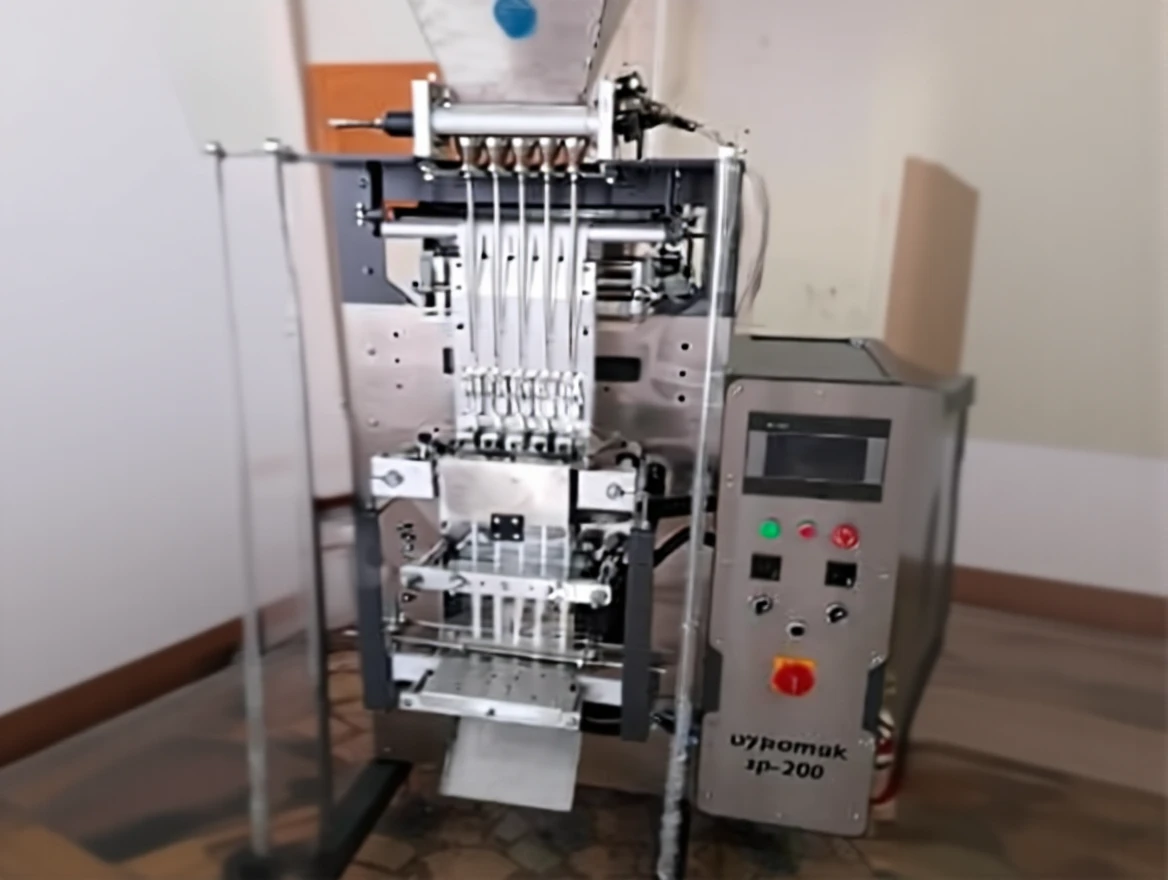

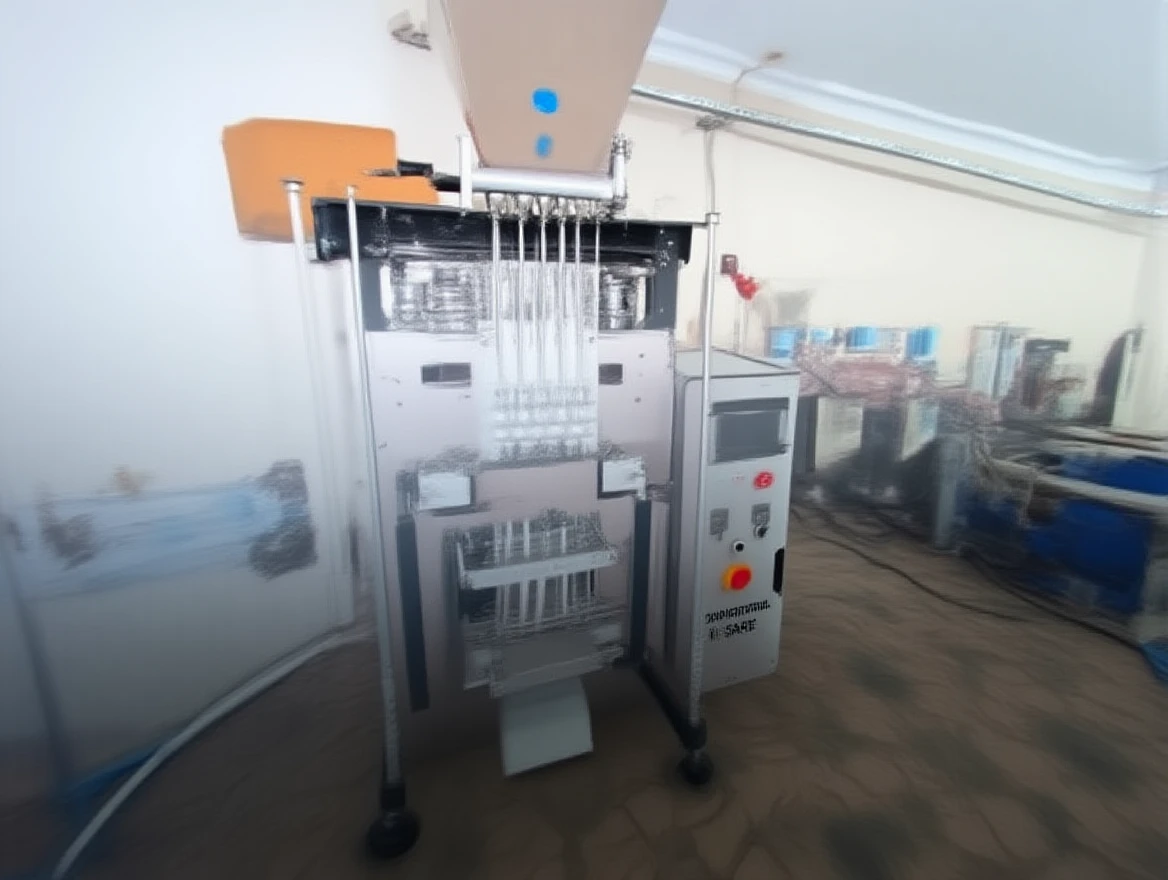

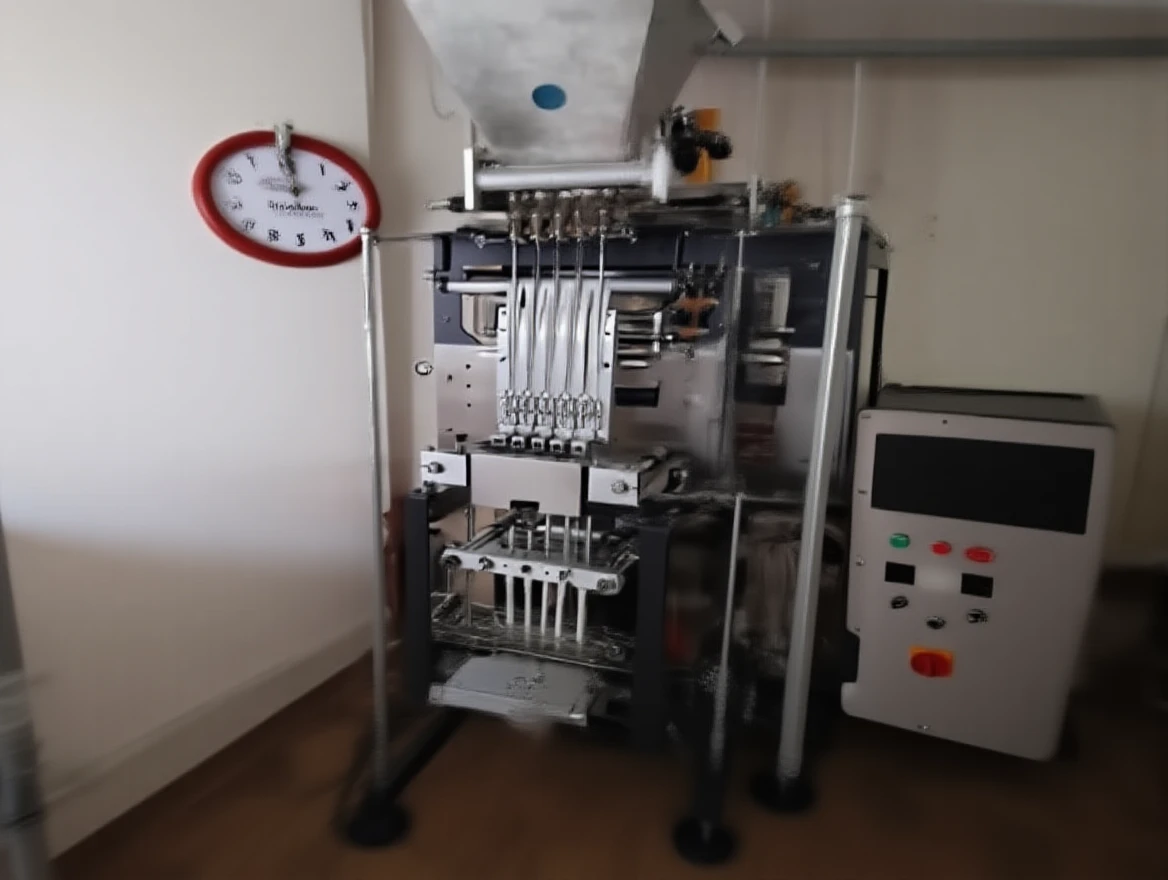

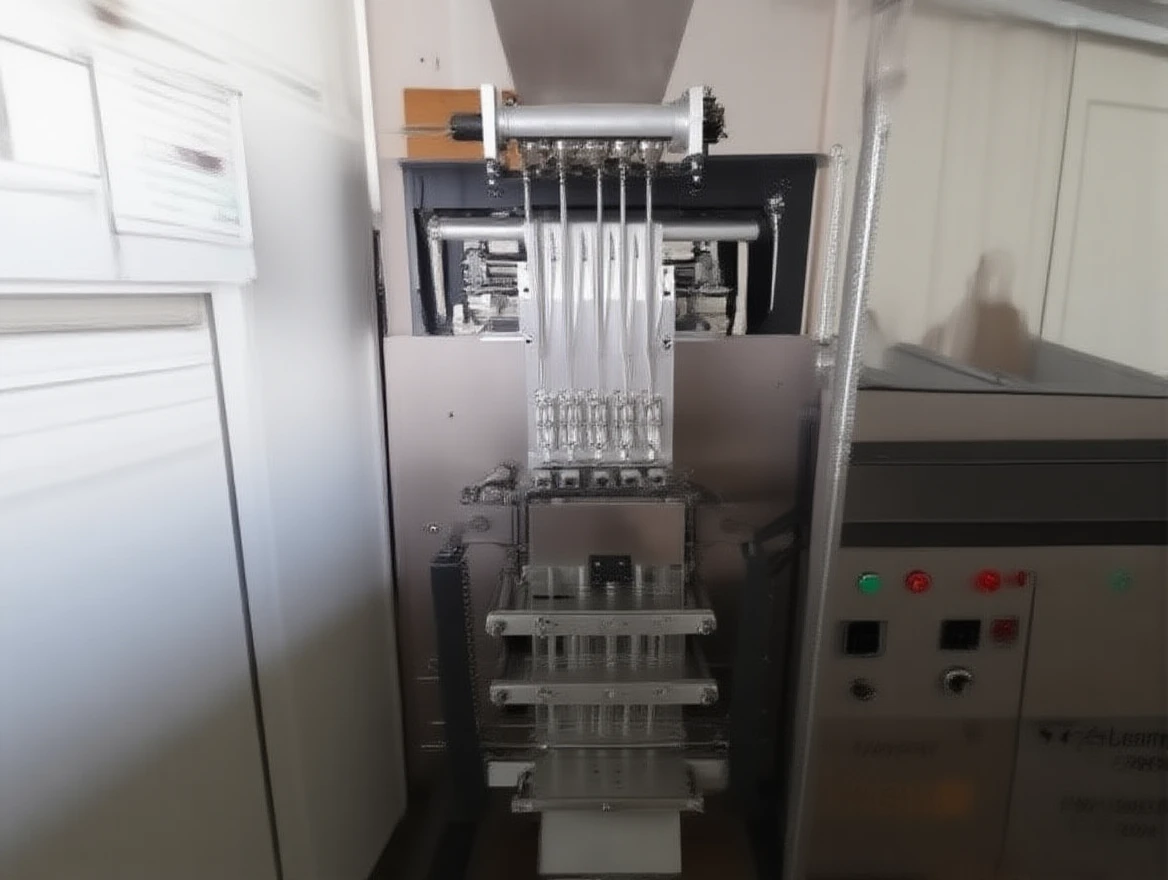

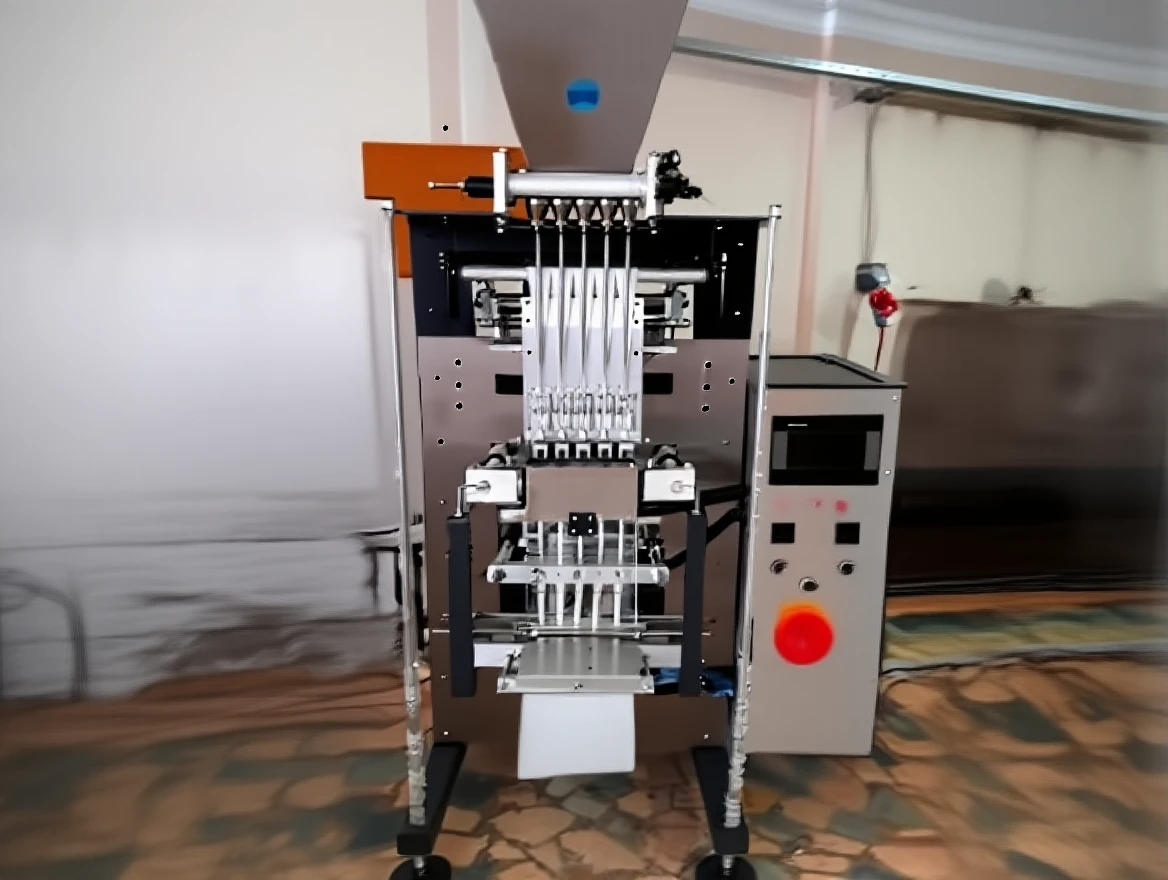

Stick Sugar Filling Machine Aypamak

• • 3 gr -5gr stick sugar packaging machine
  • 3 in 1 Nescafe, 18gr-30gram
  • Liquid Filling packaging
  • 1-2gram Salt Packaging

    Machine Technical Specifications:

• • Synchronizes with packaging speed, automatic motor for foil opening.
  • The machine’s body and other parts are protected against corrosion with stainless steel cladding.
  • Suitable for production in different package sizes. The packaging speed varies depending on the product fluidity and package size. The forming collar can be designed for different package widths. The minimum package length is 40mm. A maximum package length of 145mm can be obtained. (For 5gr sugar, the open foil length is 200mm)
  • In accordance with occupational safety and energy efficiency, a transformer providing 48v electricity is used in the adhesive sealing sections of the package.
  • German-made, fast, reliable, durable, long-lasting, easily adjustable photoelectric spot sensor is used.
  • Special mechanical motion cams made of hardened steel for long life against wear.
  • 7″ Touch Screen allowing flexible operation in a parametric program structure for different packages, products, and weights.
  • 200 hz Communication Speed in Plc.
  • 0.75 kw Schneider Main Motor Driver, Schneider switchgear, and German Phonix Relay.
  • Software that minimizes printing and material errors in the packaging.
  • Thanks to the holding and cutting system, you get wrinkle-free, sturdy, and neat packages.
  • Feeding elevator, Date Coding System, and Powder removal can be used. (optional)
  • Weight-adjustable Rotary Volumetric Dosing System is used. Minimum 1-1.5 grams of salt, 3-5 grams of sugar, or up to 18 grams of Nescafe can be filled and packaged.
  • Package size adjustment works mechanically and angularly.
  • Electric power supply 380v Three-phase. Can be made single-phase upon request.
  • High-quality long-lasting Slicing Knives.
  • Multi-line product filling is done with optional liquid filling pump. Filling of ketchup, mayonnaise, honey, jam, chocolate, or all other cosmetic products can be done.
  • Optional Multi-Line Screw Filling Head can be installed.
  • 100% domestic production. 2-year warranty. Training Service Installation is free. User-friendly parametric program with lifetime free software provision guarantee.
  • Manufacturing, assembly, electricity, programming, software, and automation of mechanical parts are entirely done within our company, allowing for quick resolution of service and malfunctions.
  • 24/7 free support in manufacturing, filling, and packaging processes.
