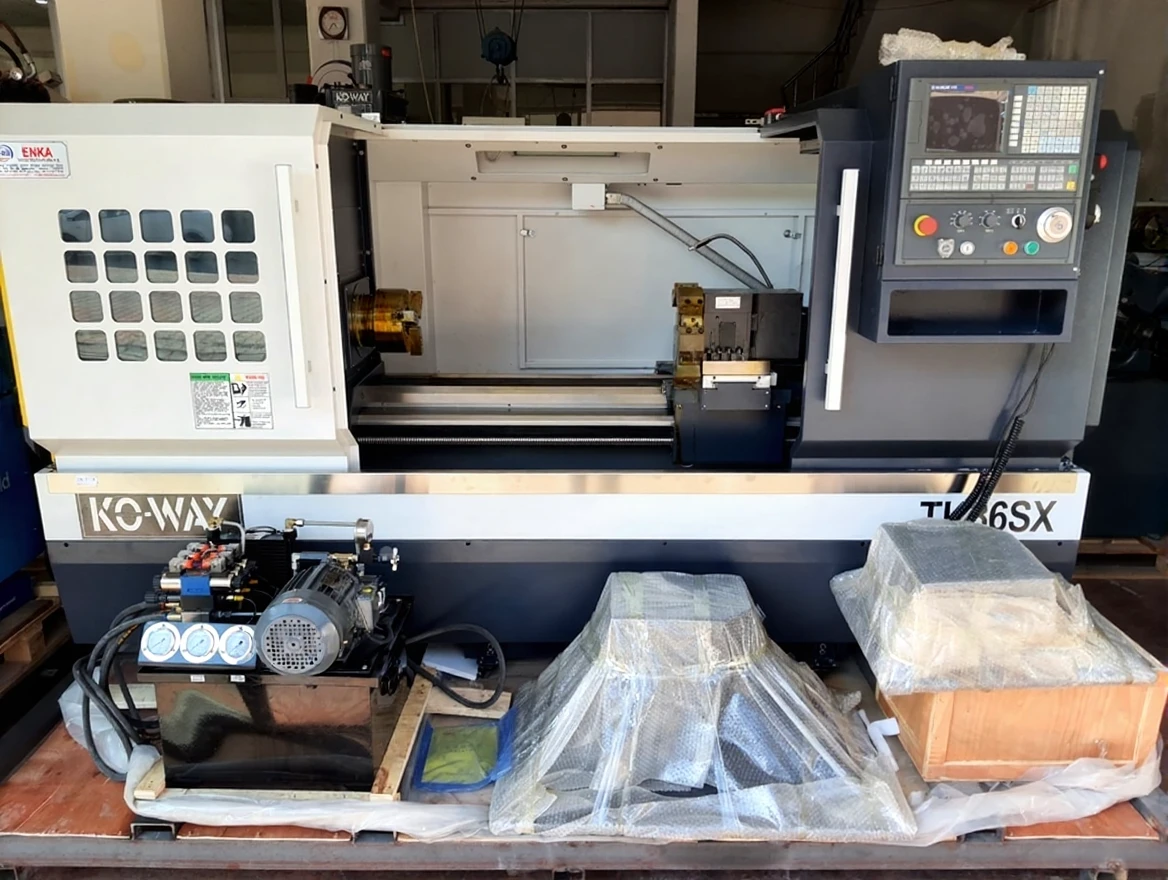

Straight Banks Tk36sx 360 X 1500 Cnc Lathe
| Brand | Ko-Way |
|---|---|
| Model Type |
TK36SX |
Description

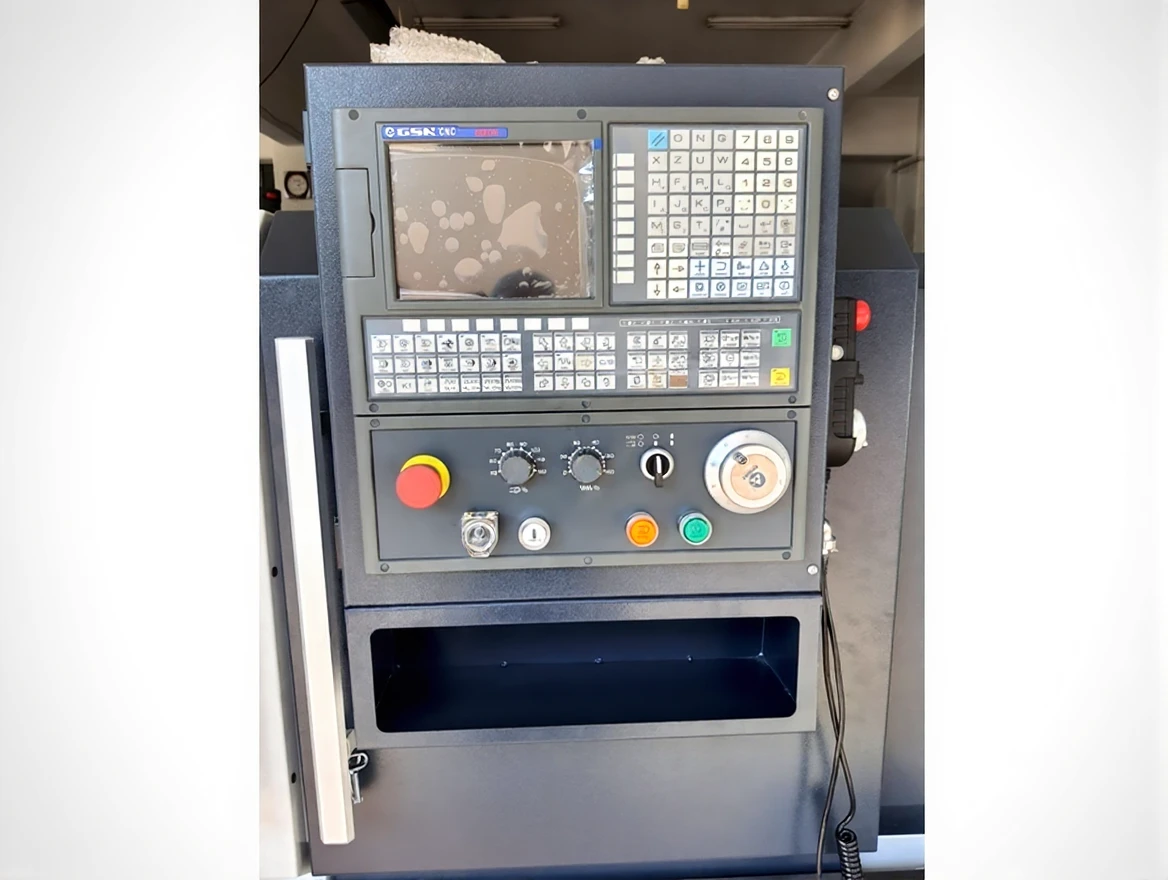

| Control Unit | : GSK 980TDC |
| Lathe Top Turning Diameter | : 360 mm |
| Max. Machining Diameter | : 280 mm |
| Max. Cross Slide Travel | : 200 mm |
| Max. Distance between Centers | : 650 mm |
| Centers Distance | : 1500 mm |
| Max. Bar Capacity | : 58 mm |
| Spindle Speed | : [ PHONE HIDDEN ] rpm |
| Spindle Nose | : D type NO: 6 |
| Mirror Diameter | : 200 mm |
| Rapid Traverse Rate | : 4/6 m/min |

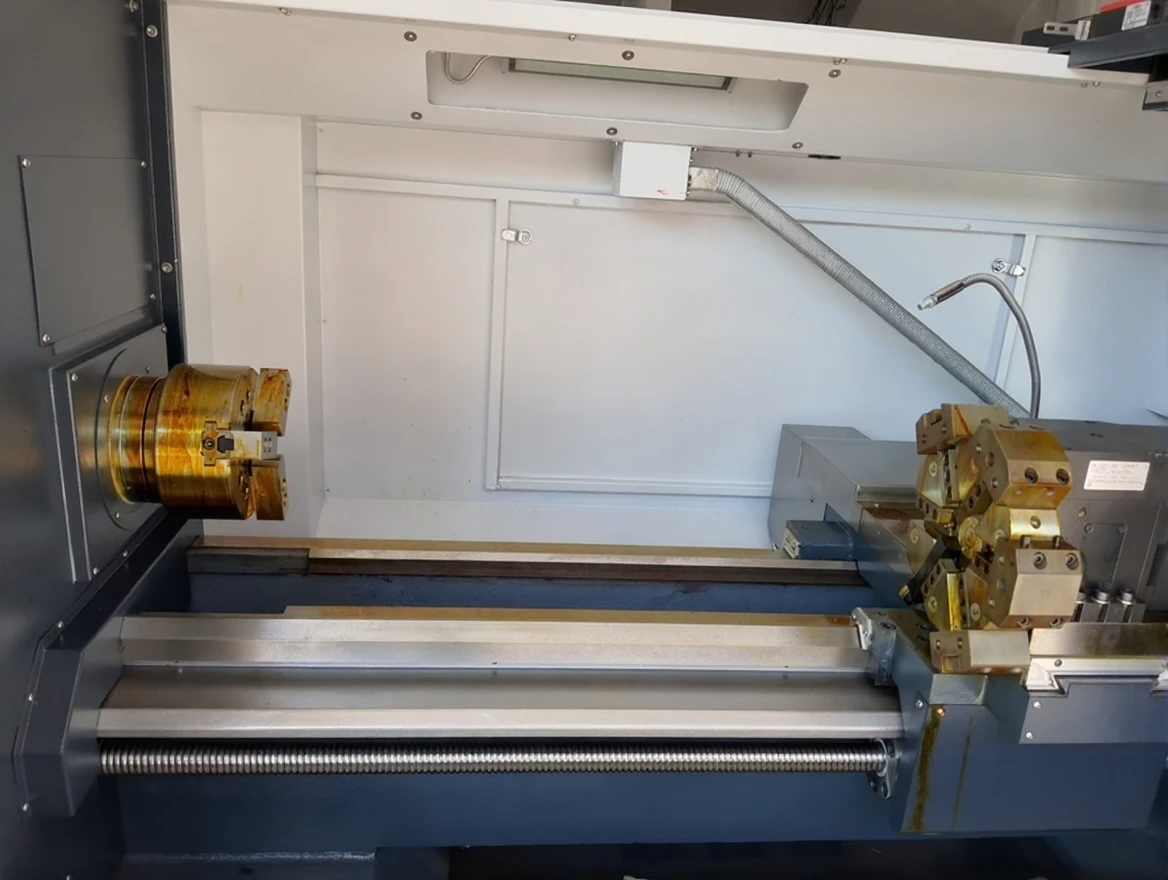

| Turret Shape | : Vertical 6-position turret |
| Tool Size | : 20 x 20 mm |
| Main Spindle Motor | : 5.5 / 7.5 kW |
| Tailstock Sleeve Diameter | : 60 mm |
| Tailstock Barrel Travel | : 100 mm |
| Tailstock Taper | : MK4 |
| Total Weight | : 2000 kg |
| STANDARD ACCESSORIES | : Enclosed Protective Cabin |
| : Cooling System | |
| : Tool Cooling Unit | |
| : MPG Handwheel |
