Stretch and Aluminum Foil Wrapping Machine
| Brand | Mertsan |
|---|---|
| Model Type |
MSN 70 XL 1500 |
Description

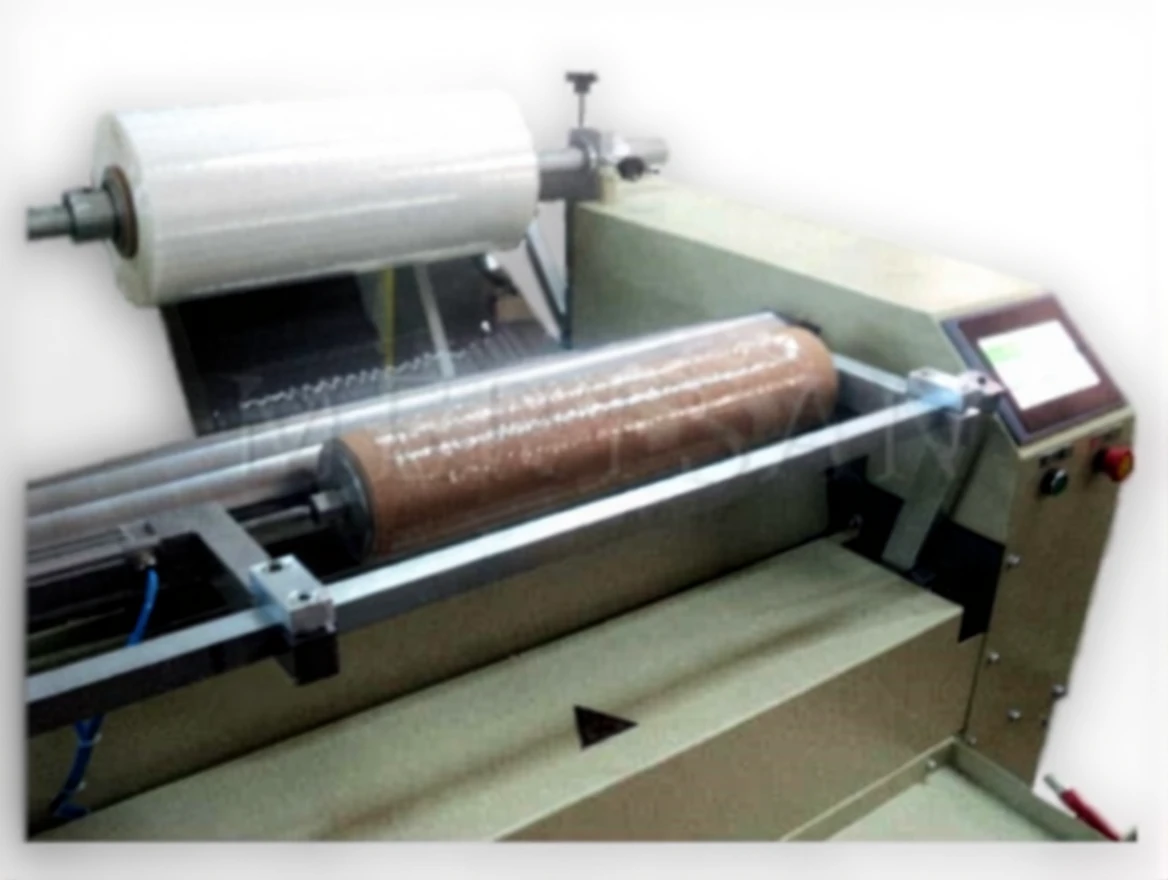

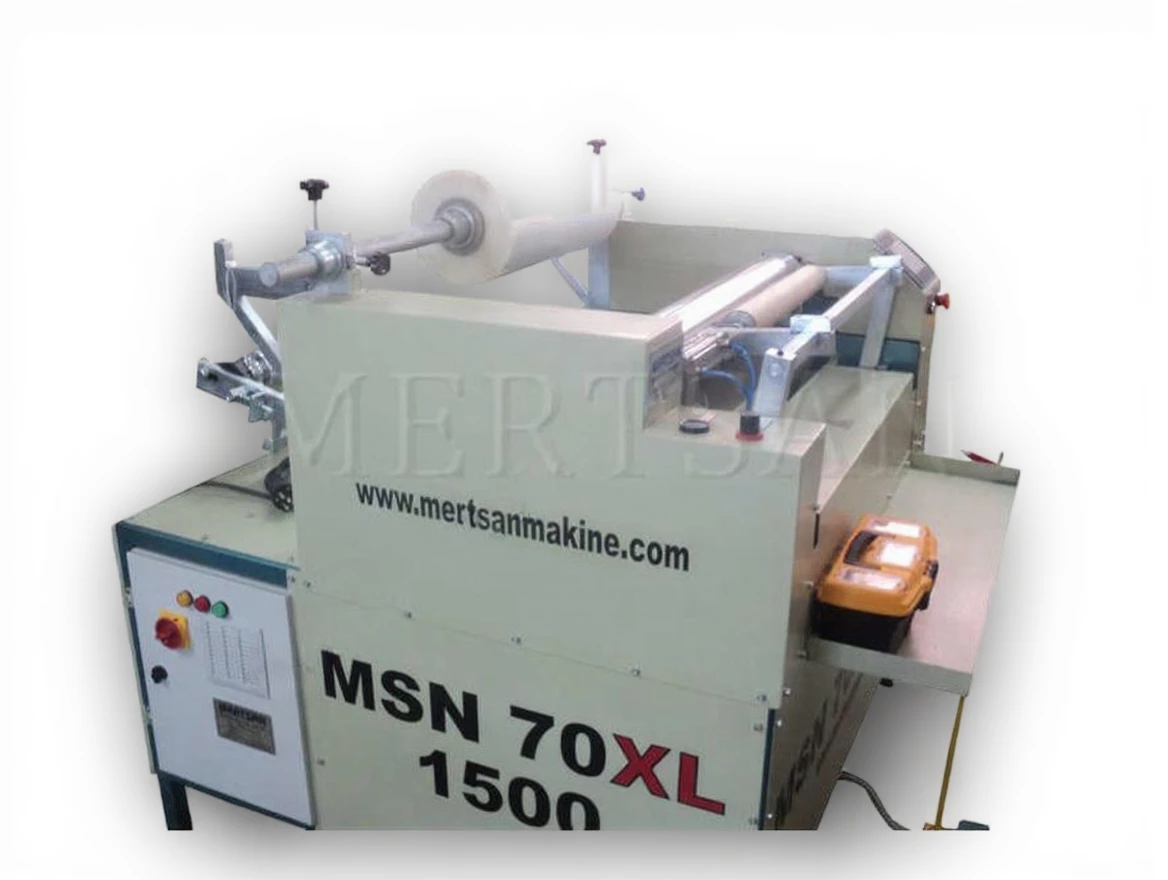

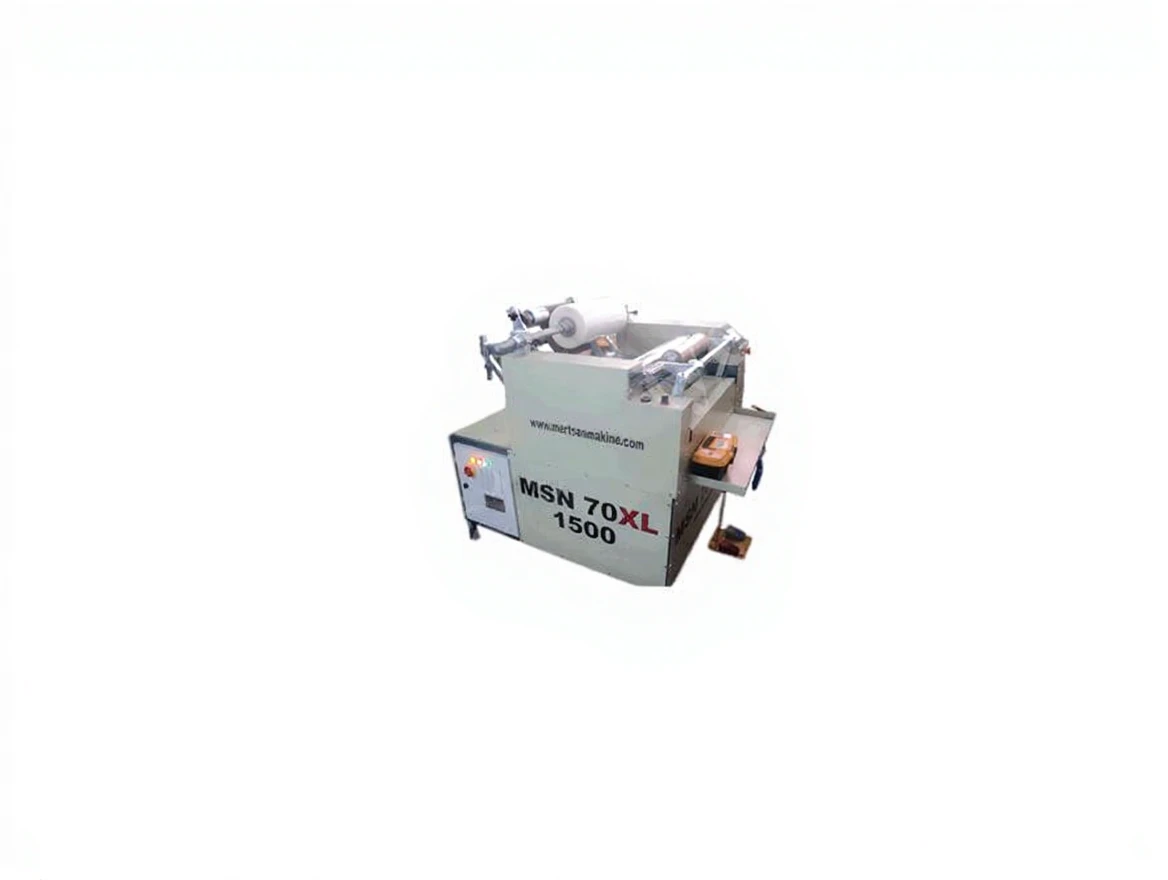

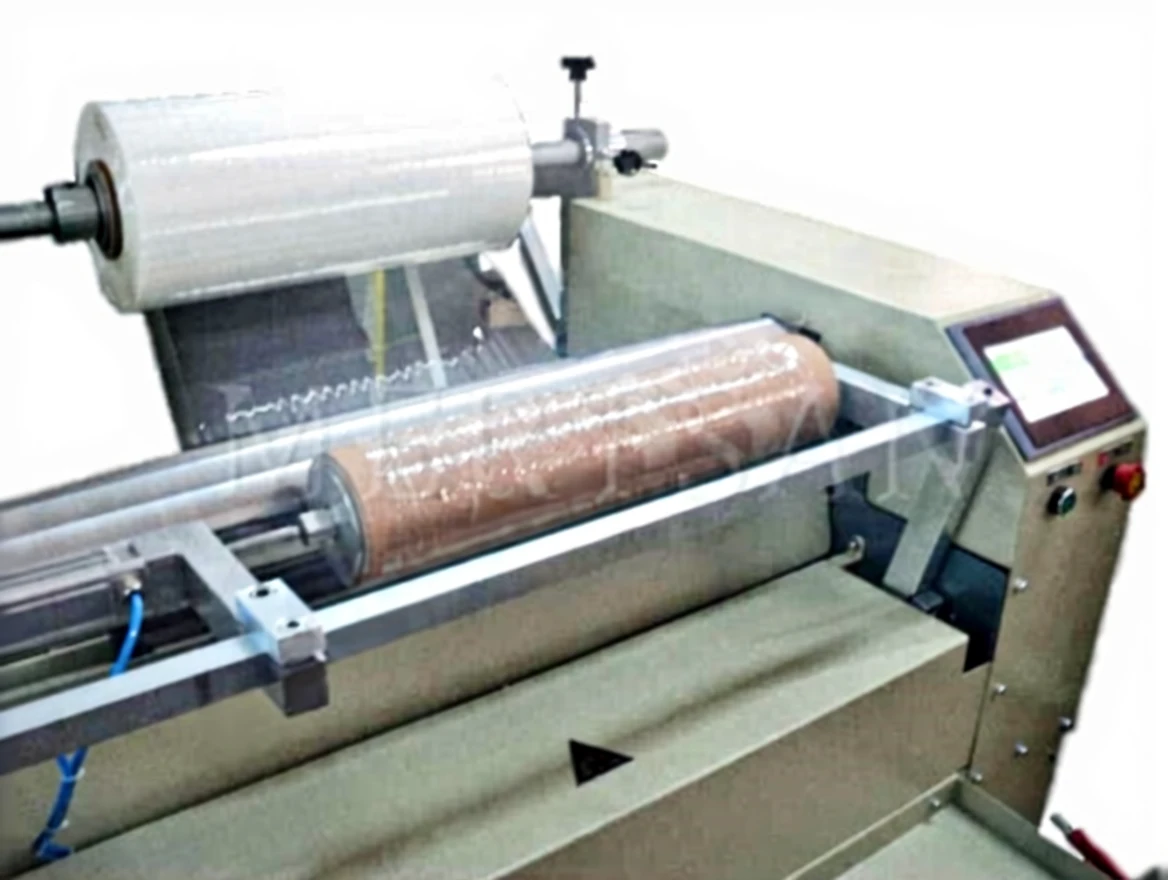

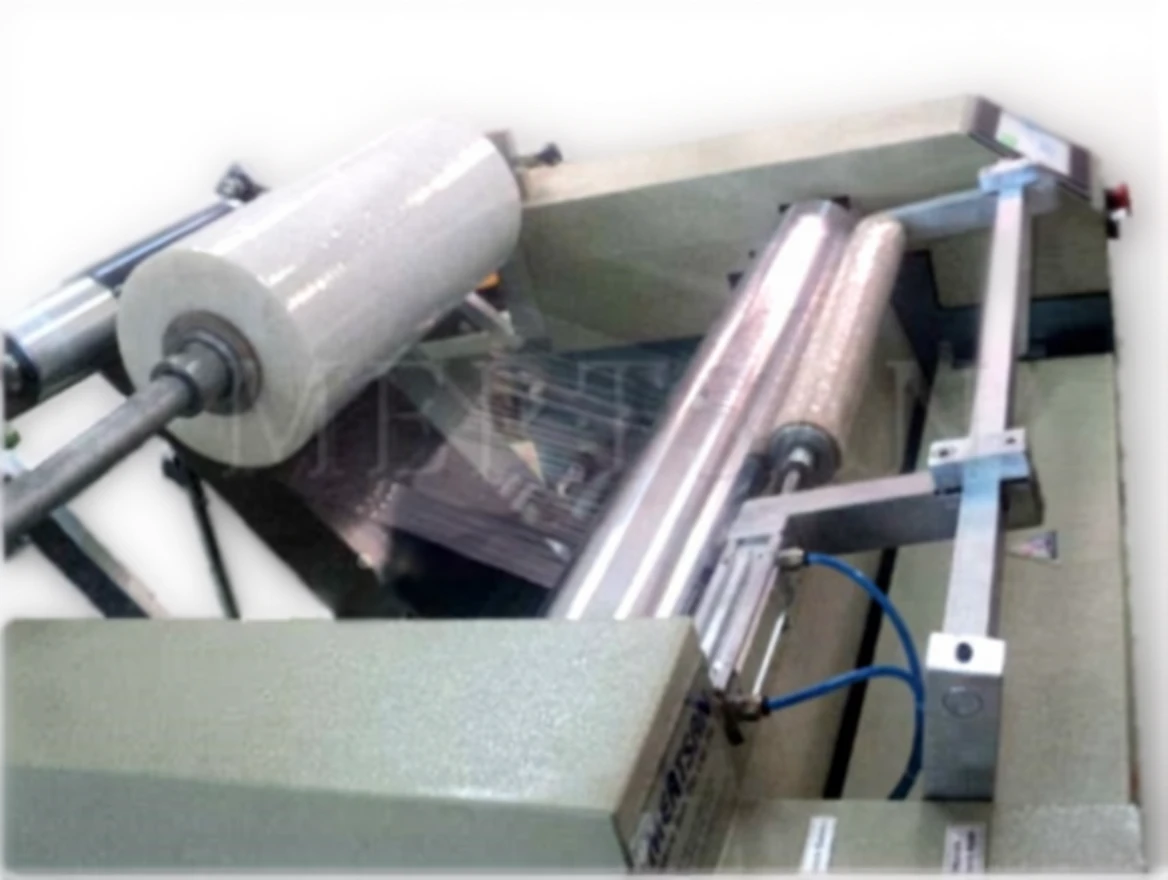

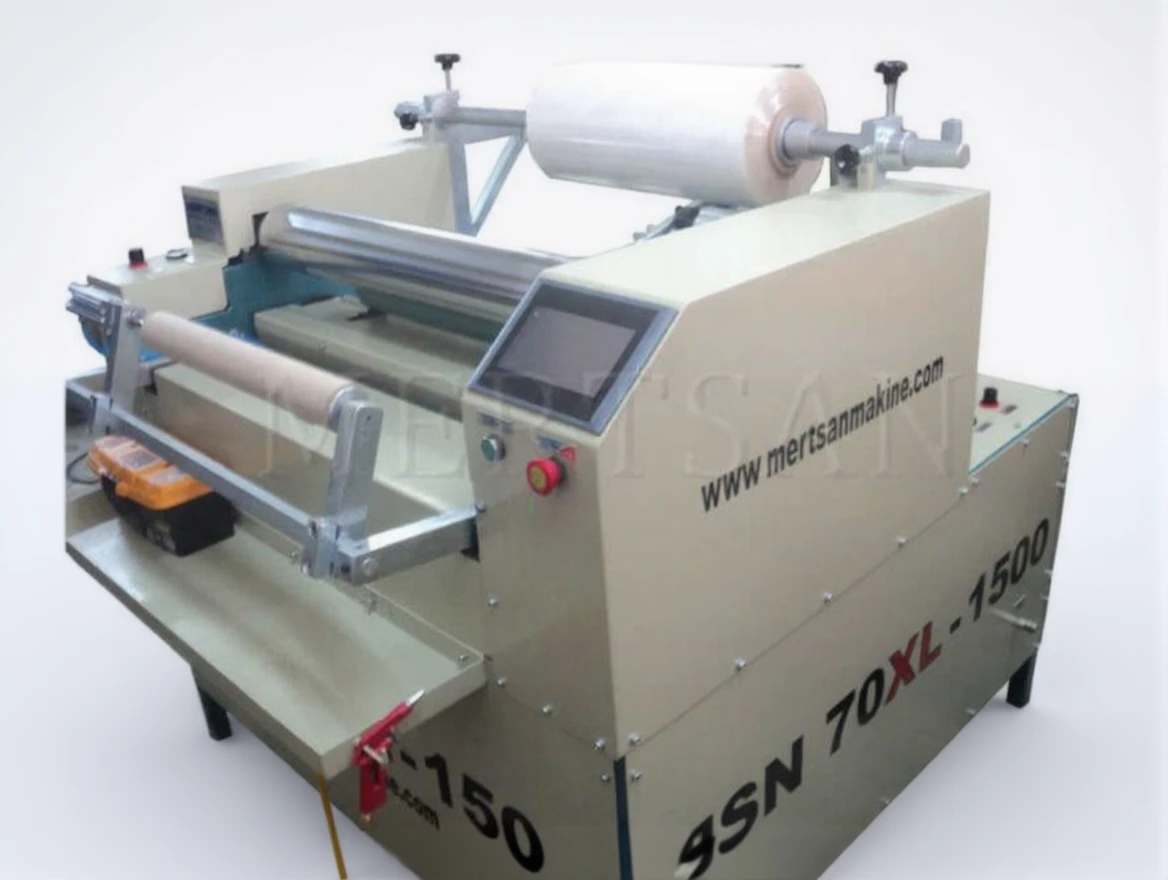

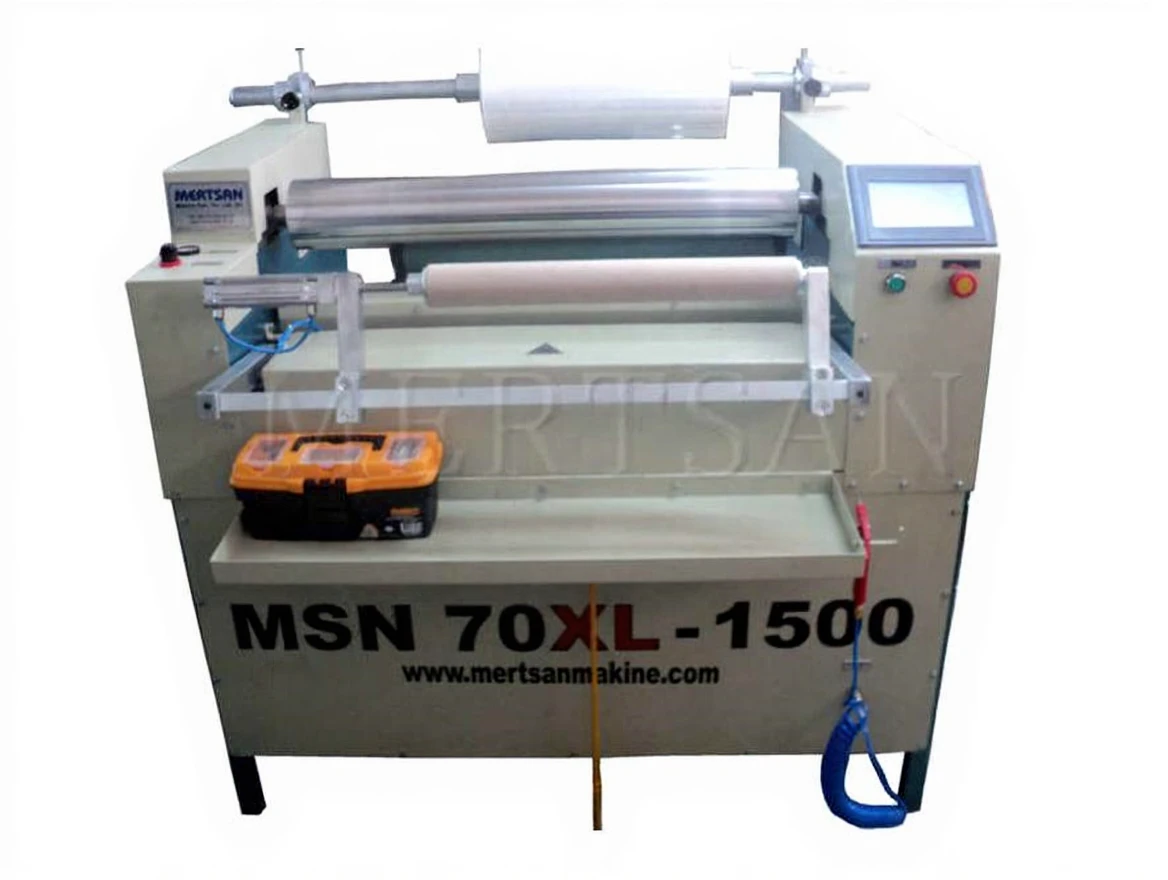

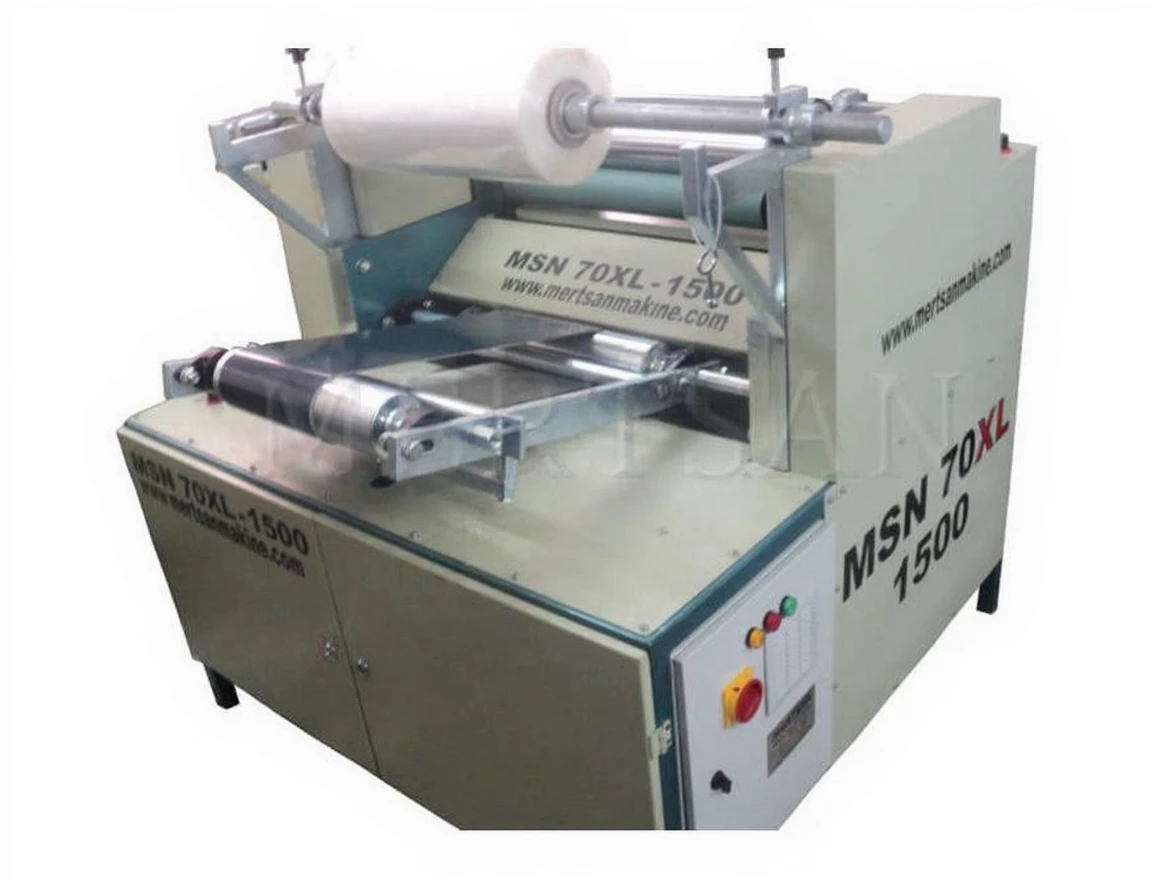

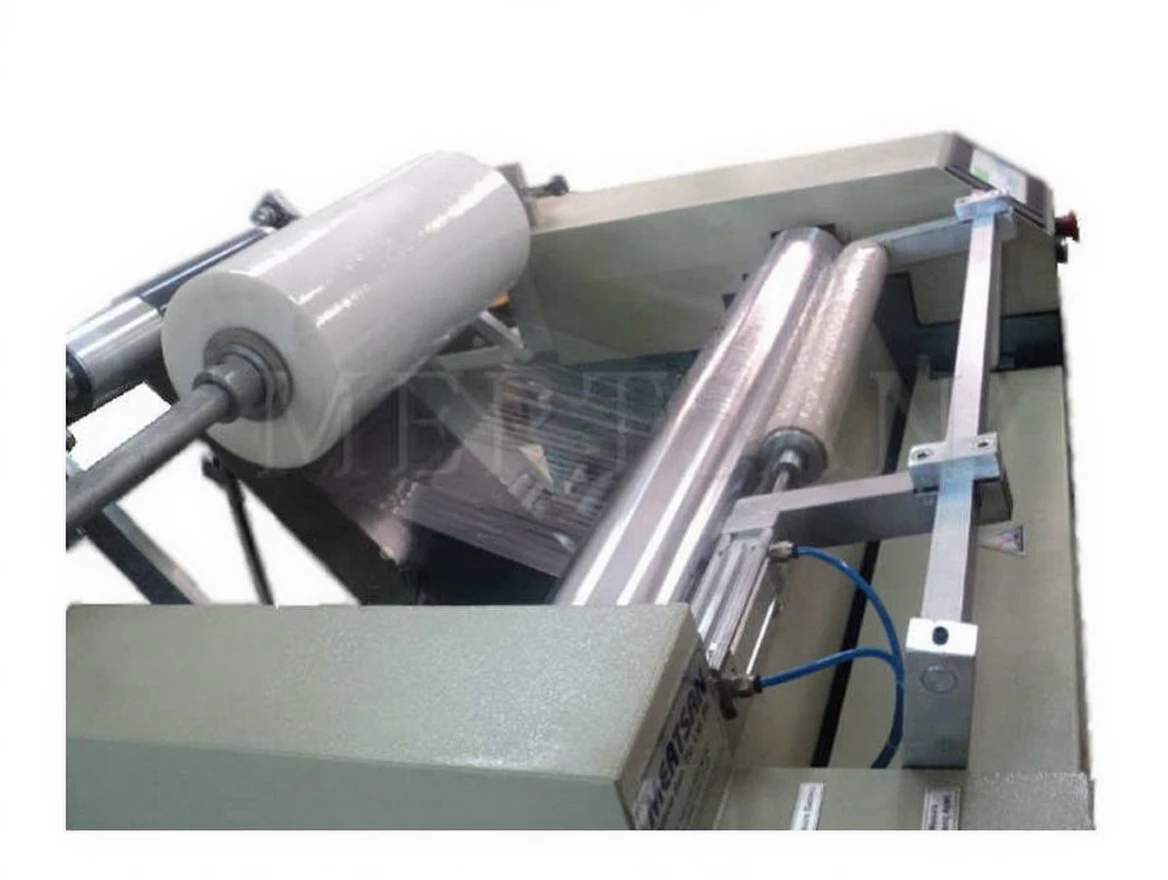

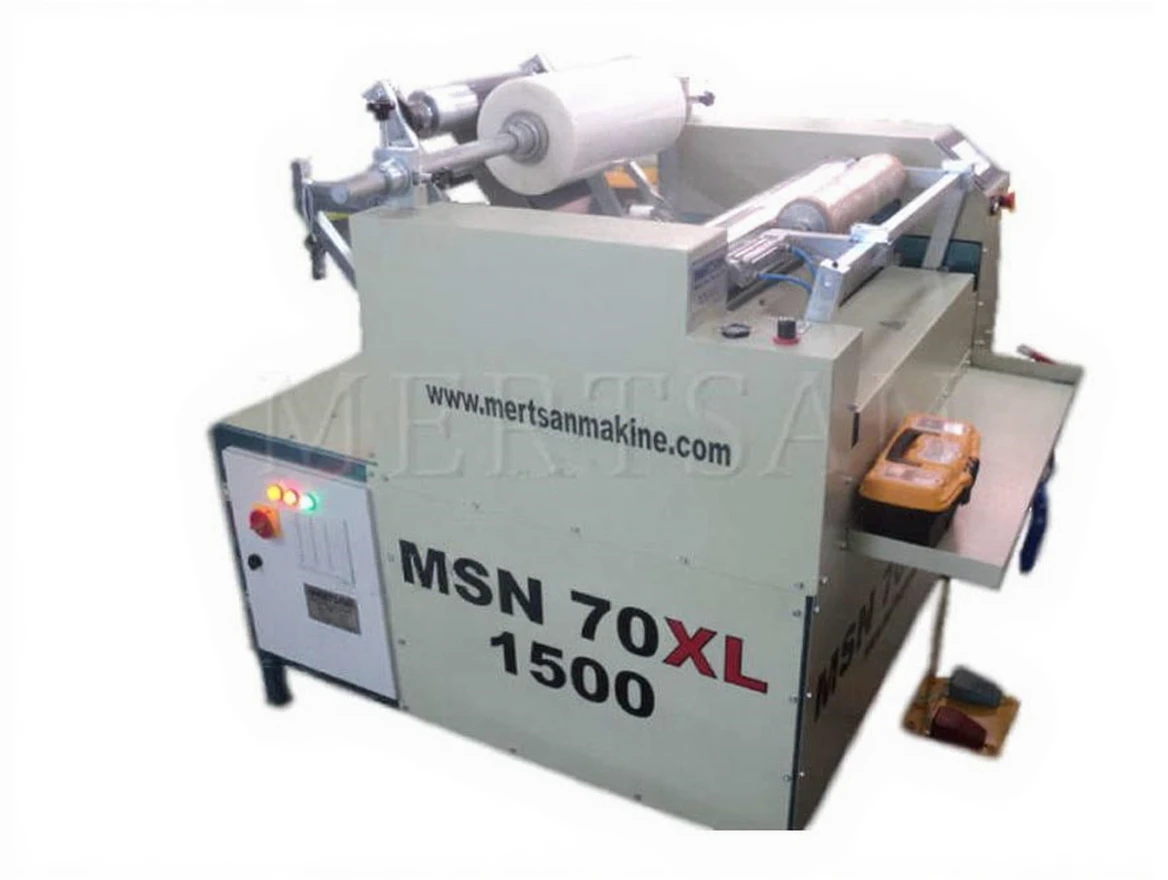

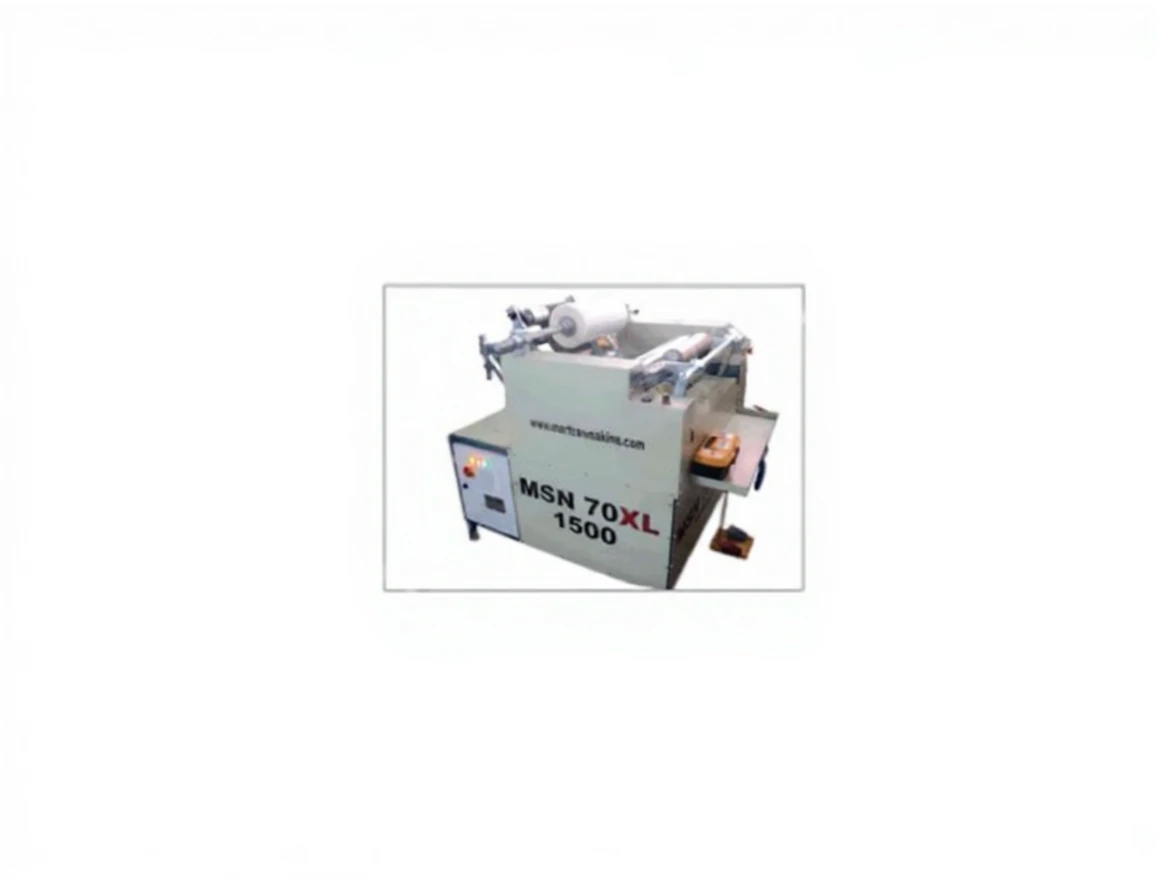

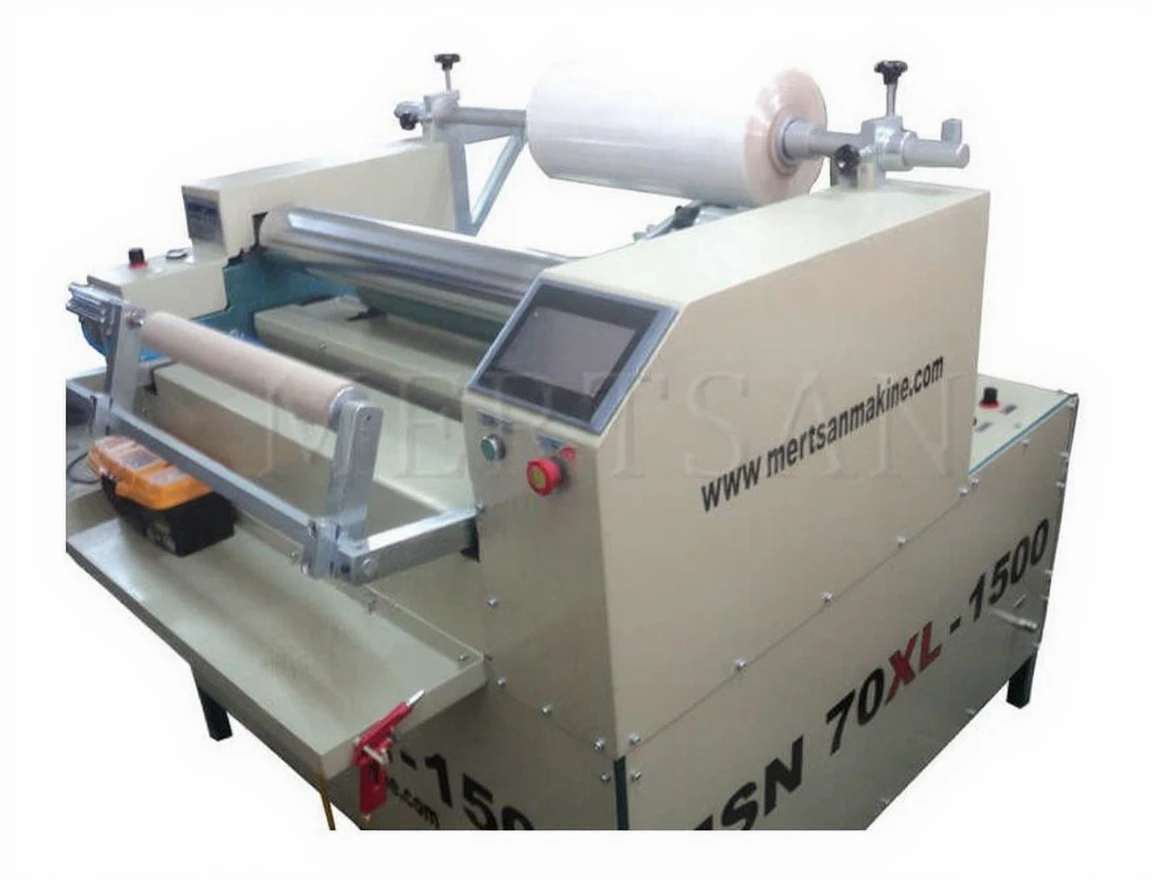

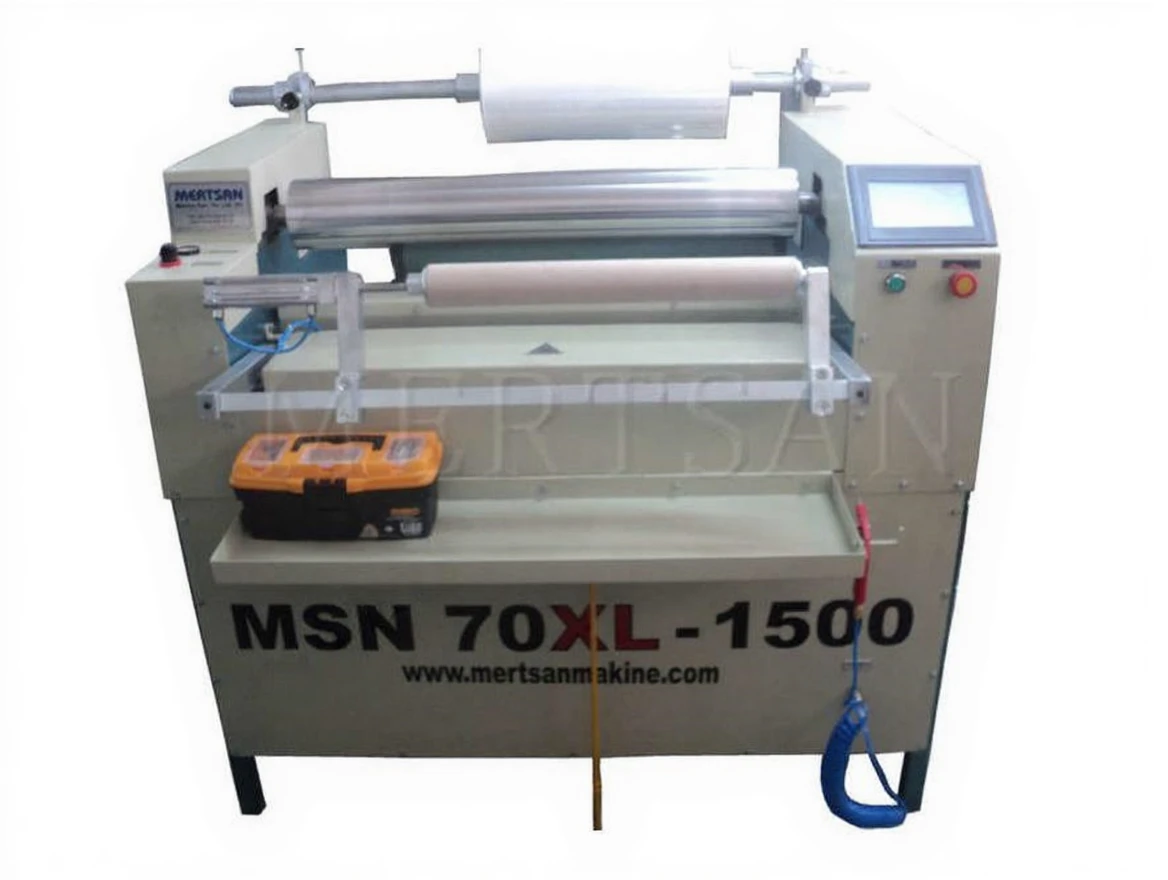

Mertsan MSN 70 XL 1500 Stretch and Aluminum Foil Wrapping Machine
Product Features
The MSN 70 XL 1500 model machine is used for precise metering of food stretch film, industrial stretch film, aluminum foil, and similar products.
This model is specifically used for wrapping 1500 meters of industrial stretch film and food stretch film.
The machine can accommodate a 80 cm diameter coil and can also be used for wrapping other shorter meters.
Mertsan MSN 70 XL 1500 Technical Specifications
Unwinding Unit Specifications | Winding Unit Specifications
- Max Coil Width: 50 cm | Max Coil Width: 55 cm
- Max Coil Diameter: 80 cm | Min Core Diameter: 28 mm
- Max Coil Weight: 280 kg | Max Core Diameter: 76 mm
- Standard Core Diameter: 76 – 150 mm | Max Coil Diameter: 20 cm
Mertsan MSN 70 XL 1500 Technical Details
- Physical Dimensions: 100 x 100 x 70 cm
- Operating Voltage: 380 V, 50/60 Hz (+/- 10%)
- Motor Power: 4 kW 3P Asynchronous Motor
- Pneumatic Air Pressure: 6 Atm
- Wrapping Speed: 500 m/min
- Control Type: Semi-Automatic – Computerized Control System
