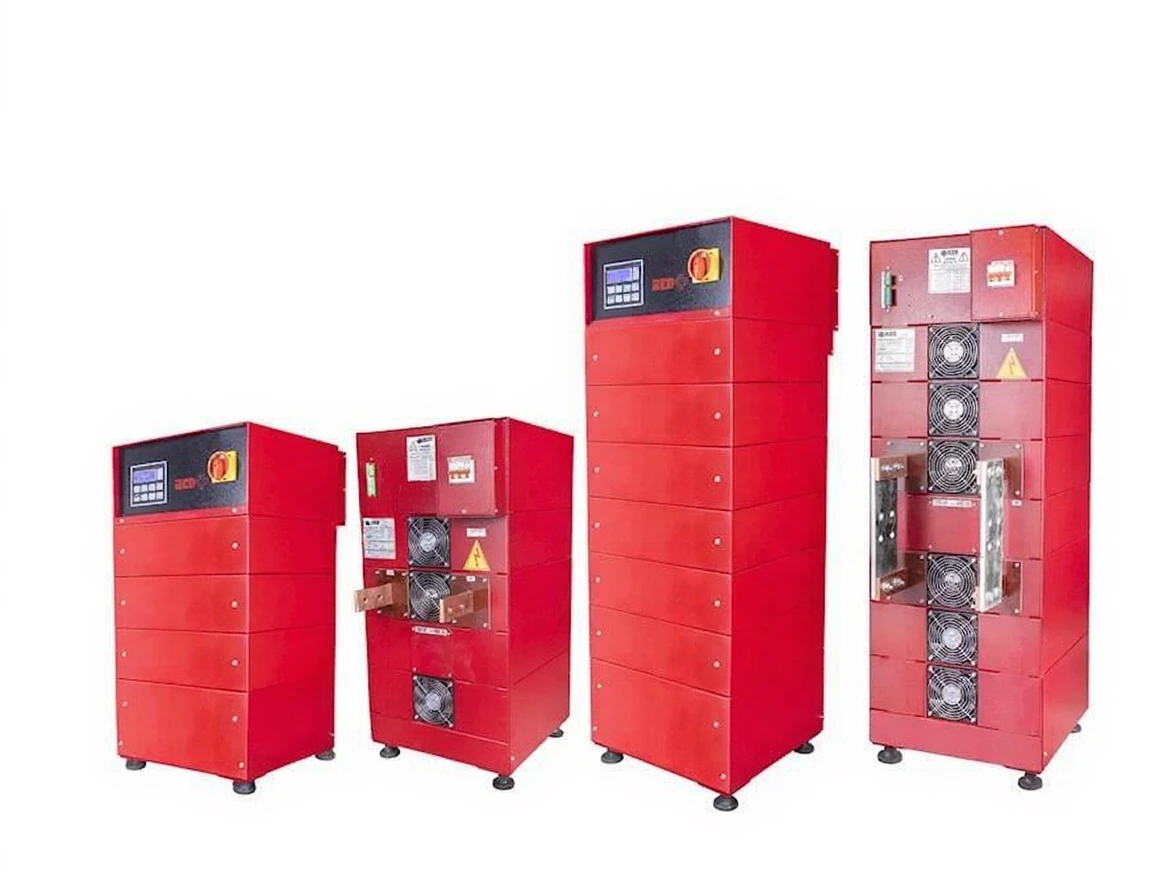

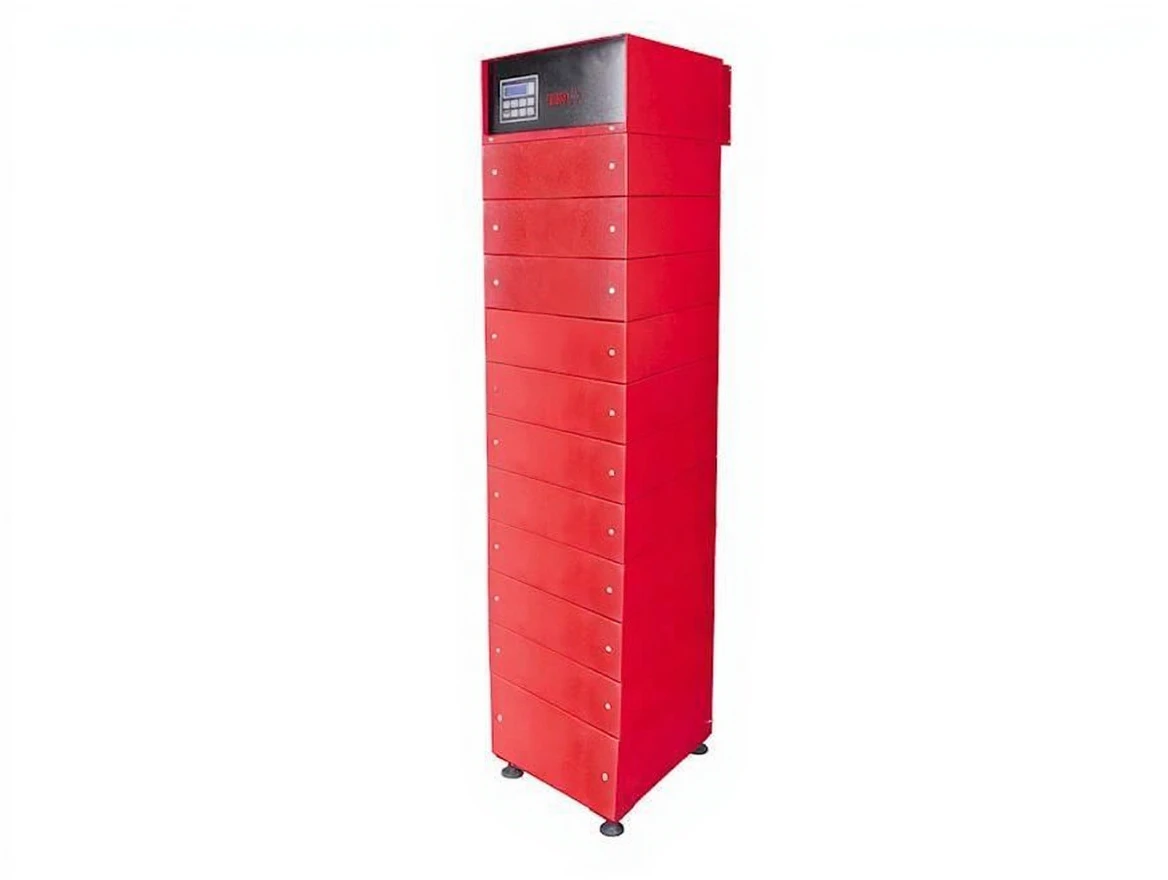

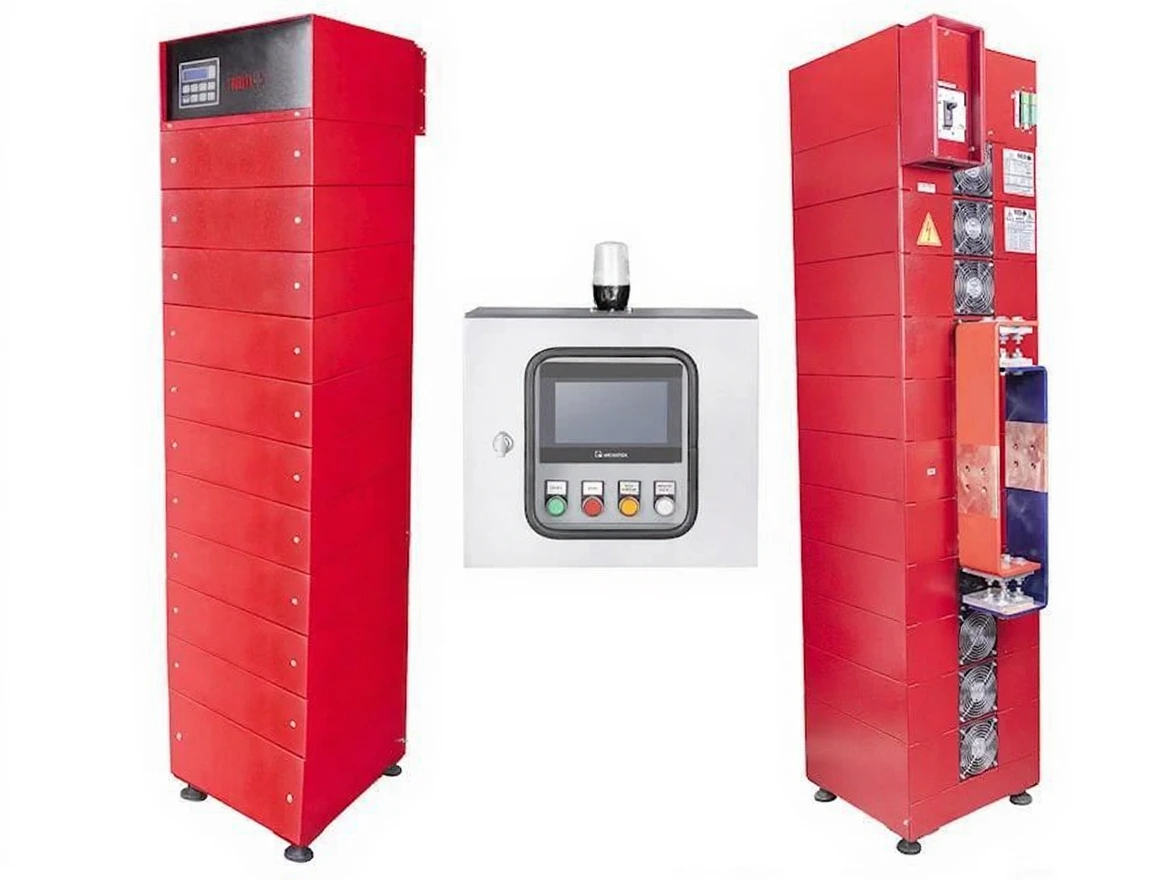

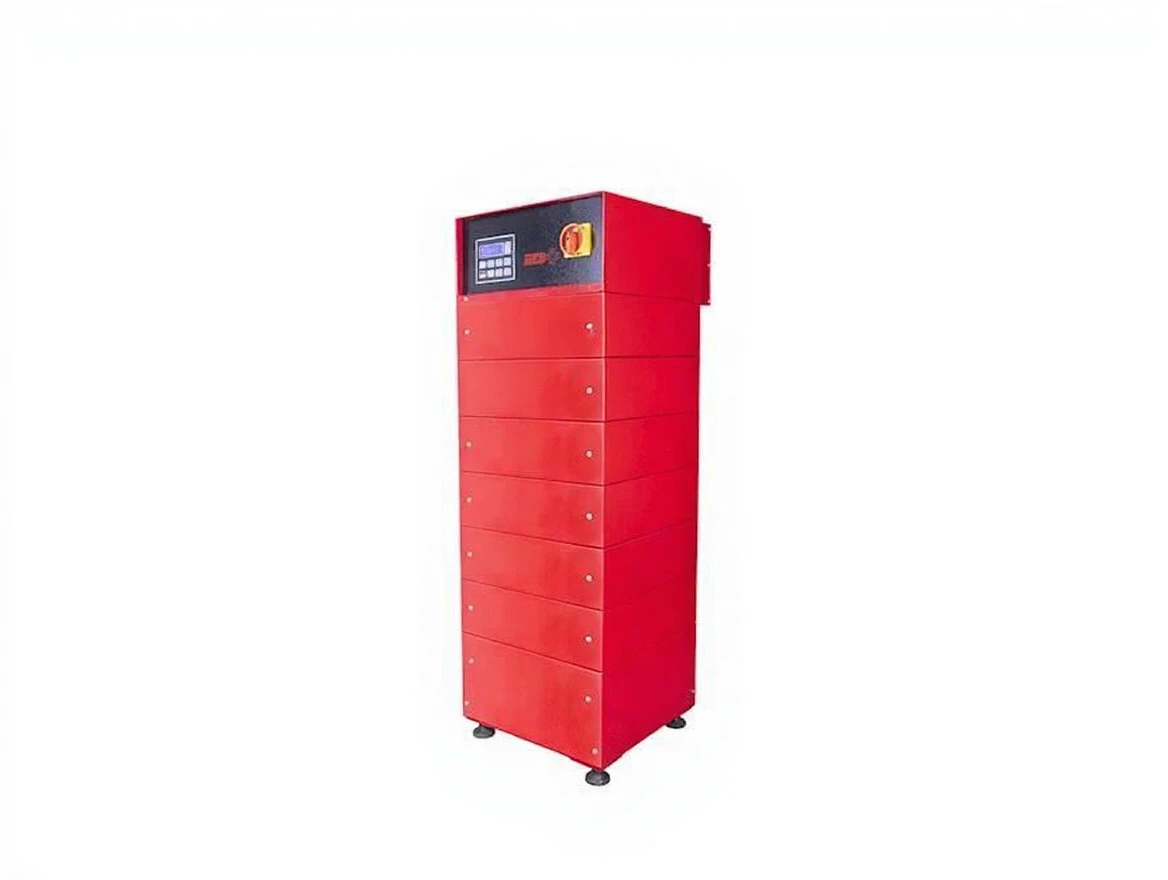

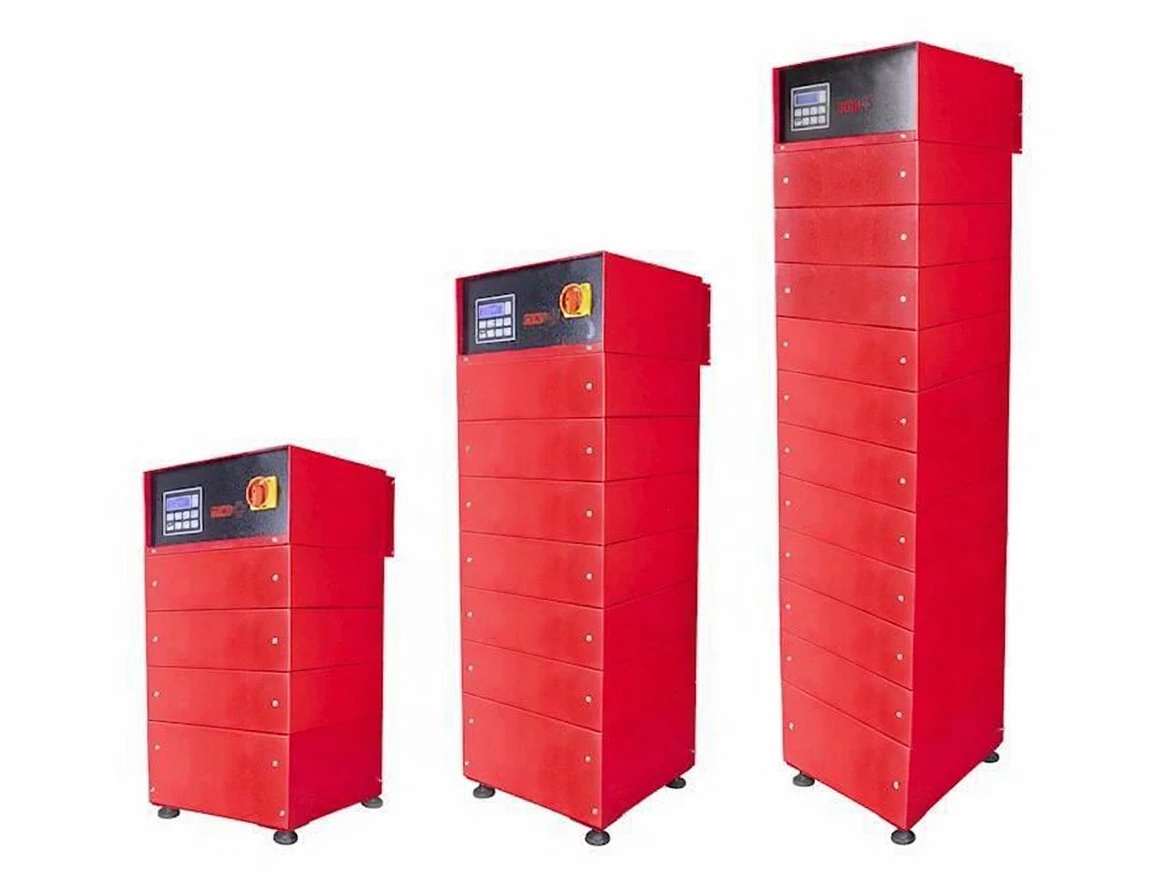

Switch Mode Water-Cooled Coating Rectifier

Redartı Water-Cooled Rectifier

Microprocessor-controlled thyristor rectifiers are fully automatic power sources used in the industry to provide direct current needed for processes such as coating, painting, and anodization applied to metals and plastics through electrolysis. The thyristor control monitored by the microprocessor ensures high accuracy and precise regulation, resulting in quality outcomes in the processes where it is used. One of the most important features of thyristor-controlled systems is Pulse – Base current control. In coatings performed using the Pulse – Base method, regardless of the shape of the parts having indentations and protrusions, the coating reaches even the most remote corners. The problem of coating deficiency in hard-to-reach areas is eliminated. The overall coating distribution on the part is more proportional, saving time as well. Coating processes carried out at 600Hz and using the Pulse – Base method offer a quality far beyond traditional methods in every aspect.

Redartı Water-Cooled Rectifier Technical Information

The new AC Drive Unit RERARTI Coating rectifiers are equipped with a new AC power control unit. Thanks to this unit, rectifier failures are minimized while the operating efficiency and rectifier functions are enhanced. With the new AC drive unit, failures are prevented before damage occurs. Thus, it can be safely used even under the most difficult conditions. The new drive system has the capability to operate simultaneously from both the remote control unit and the automation system. In addition to many ready-made features, it is open to additional features to be added over time. With the timer included in the Timer Operating program, operation can be provided for the desired working time or indefinitely. In timed operation, the rectifier operates at the desired values and automatically stops at the end of the duration, warning the user at the end of the process. In indefinite operation, the process continues until the user stops the device after it has started. Ampere-hour and Automatic Dosing REDARI Coating rectifiers have the feature of calculating Ampere-Hours. This way, the most reliable data about the total working process of the bath is obtained. The coating process can also be operated based on ampere-hour values instead of time. On the operator panel, there are different counters for both the ongoing coating process and the total of all processes. These counters can be used to automatically add chemicals to the bath. Especially in critical baths, controlling chemical concentration is extremely important. REDARTI rectifiers assist you in your chemical control with this feature. It also provides important data about the total operation and efficiency of the system. Selective Operating Program In many coating baths, a selective operating program is applied to remove unwanted metals from the bath. However, this process was either done manually or with an external system. In REDARTI coating rectifiers, the selective operating program offered automatically performs this process. After the process is started, the output voltage is increased from zero at the set interval and returns to zero again. This process is repeated either for a limited time or indefinitely. Thus, the laborious maintenance process of selective operation is easily accomplished. Easy to use REDARTI Standard Coating rectifiers have an extremely simple operating program. Thanks to the remote control unit, the operator can easily operate the device without going to the rectifier. The system is fully compatible with all automation systems. It has the capability to operate with both manual and automation systems.
