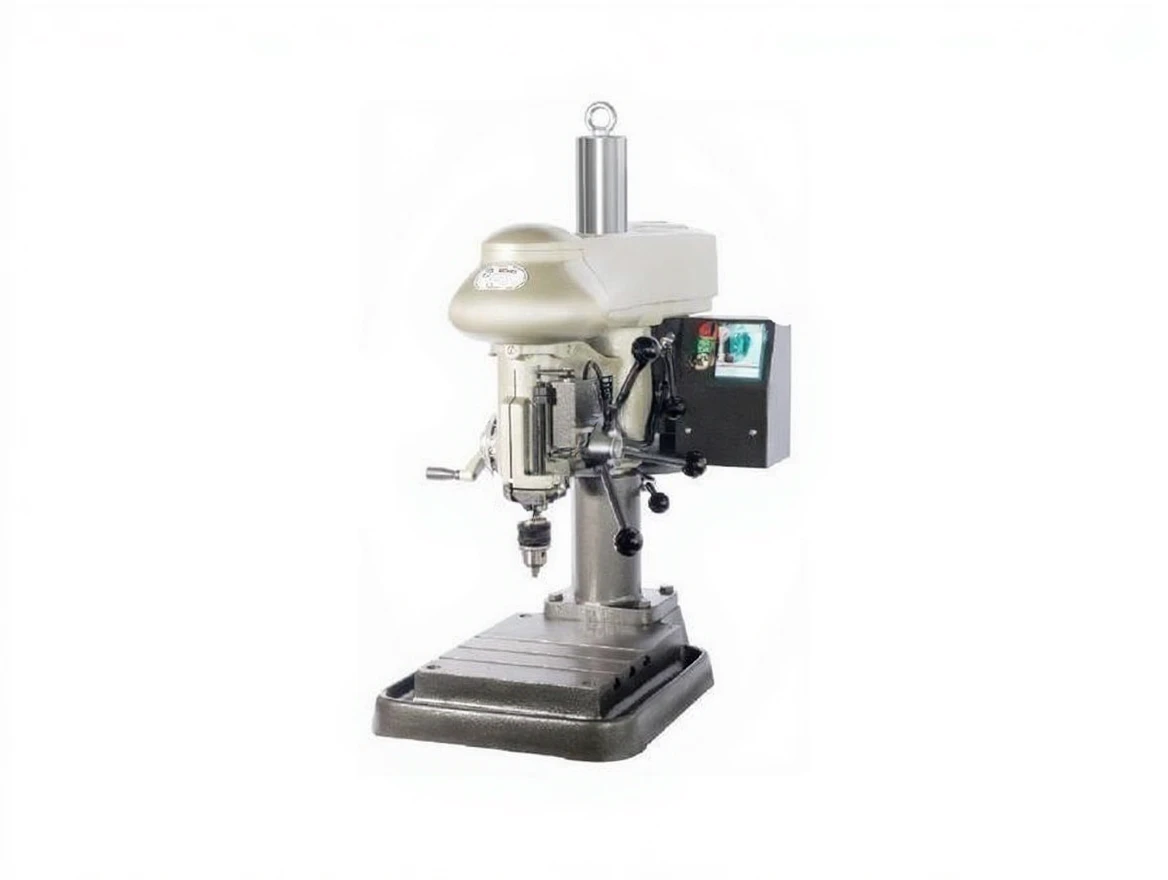

Switch Tapping Drill M16-K2
| Brand | Şenel Makina |
|---|---|
| Model Type |
M16-K2 |
Description
Şenel Makina M16-K2
Switch Tapping Drill M16-K2
Table Drills General Features
* Robust cast iron construction, ergonomic design, suitable for heavy industry.
* Main shaft is precision ground.
* The spindle is induction, precision ground and rigidly bearing.
* The spindle is mounted on the pulley with a broach system. Backlash, noise and runout are at minimum levels.
* The spring system is mounted outside the body and its durability is increased.
* After the entire bench body is cleaned with solvent and putty and sanded, apply 1 coat.
Primer paint, 1 layer of industrial paint was applied.
* All components used are first quality.
* There is no spare parts problem.
* All drill models are CE certified. All threats against occupational safety have been prevented. 12V LED lighting is used for lighting. There are start-stop buttons and an emergency stop button next to the main switch.
* Motor, switch, contactors and all electrical materials are CE certified.
* We have a 2-year spare parts commitment for problems caused by us.
Table Drills General Features
* Robust cast iron construction, ergonomic design, suitable for heavy industry.
* Main shaft is precision ground.
* The spindle is induction, precision ground and rigidly bearing.
* The spindle is mounted on the pulley with a broach system. Backlash, noise and runout are at minimum levels.
* The spring system is mounted outside the body and its durability is increased.
* After the entire bench body is cleaned with solvent and putty and sanded, apply 1 coat.
Primer paint, 1 layer of industrial paint was applied.
* All components used are first quality.
* There is no spare parts problem.
* All drill models are CE certified. All threats against occupational safety have been prevented. 12V LED lighting is used for lighting. There are start-stop buttons and an emergency stop button next to the main switch.
* Motor, switch, contactors and all electrical materials are CE certified.
* We have a 2-year spare parts commitment for problems caused by us.
Technical Specifications
M16-K2
|
|||||||||||||||||||||||
| spindle taper | 2MK-B16 |
OPTIONS AND ACCESSORIES (applicable to all models):
1) Radial foot:It allows the body to move eccentrically and allows operations to be performed at every point of the table. The distance (depth) between the morse tip and the main shaft increases to 30 cm.
2) Long main shaft:The main column is extended by another 22 cm. Work pieces or molds etc. that are higher on the table. can be connected.
3) Intermediate table (foot drill):The drill height is 180 cm by adding a height-adjustable intermediate table. is made.
4) Coffee table:Coffee table with solid construction, shelves and lid.
.PNG)
5) Drill vises: Very high quality vises with dimensions of 100×100 mm or 125×125 mm, jaws hardened by induction, slides ground, thick screws and solid bodies.
5) Drill vises:High quality vises with dimensions of 100×100 mm or 125×125 mm, jaws hardened by induction, slides ground, thick screws and solid body.
.PNG)
6) Chucks:MK2 conical, B16 or B18 standard, keyed or hand tightening (supra) chucks.
.PNG)
7) Collet adapter and collet set (ER25):Collets hold the tool more tightly than chucks. When collets are used, the risk of tool rotation is reduced to zero. The collet adapter is taken once and driven into the spindle, then it is necessary to purchase collets separately according to the tool diameter. Our collet set is between 2-16 mm and consists of 12 pieces.
.PNG)
8) Guide holders:Safe and non-safe tap holders are the ideal solution for tapping. There is a square-shaped hub in the holders, and the square handle of the guide is placed on this hub. There is no risk of the guide turning. Additionally, safety holders have a mini clutch and the tool will spin free when over-stressed. Thus, the risk of breaking the guide is reduced to zero.
.PNG)
9) Drill bit sets:19 pieces between 1-10 mm, HSS or Tin coated.
.PNG)
.PNG)
Combined taps, drilling both holes in one operation
both tapping possibility (available between M3-M12)
