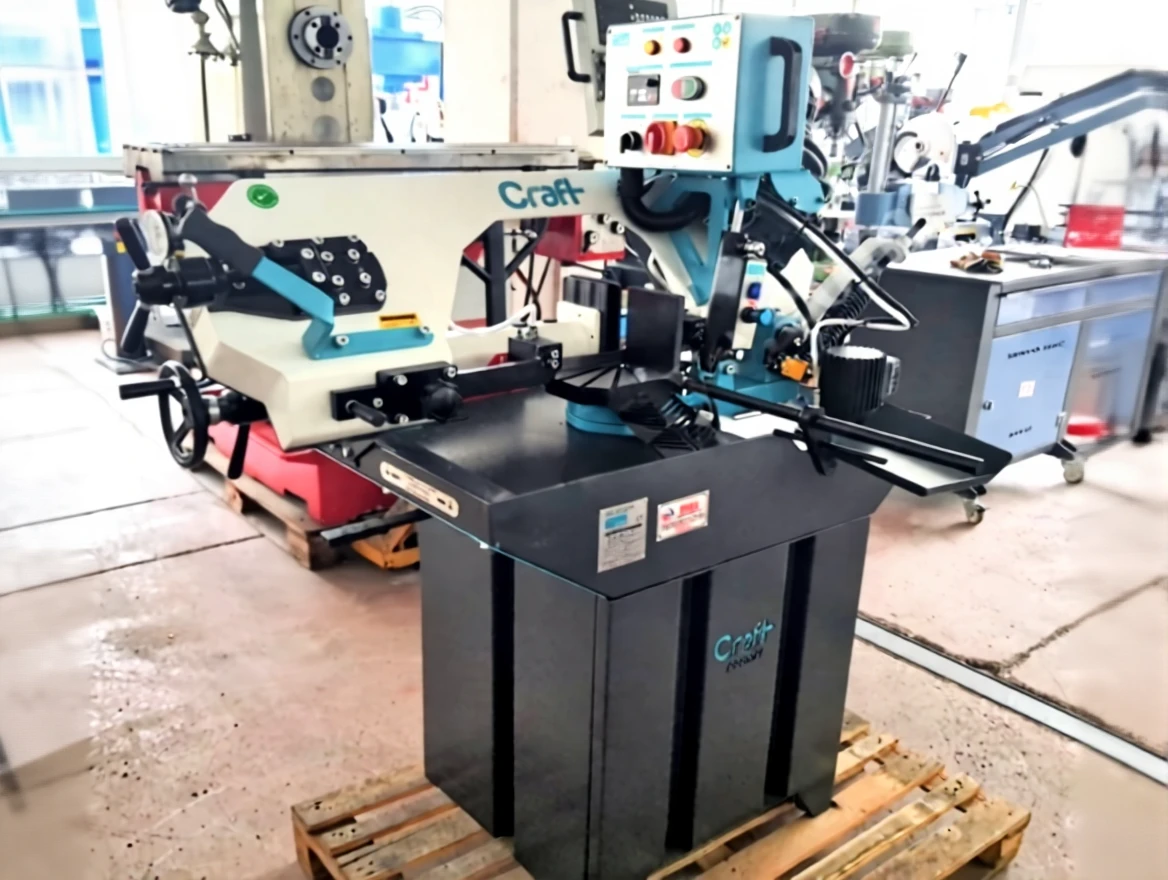

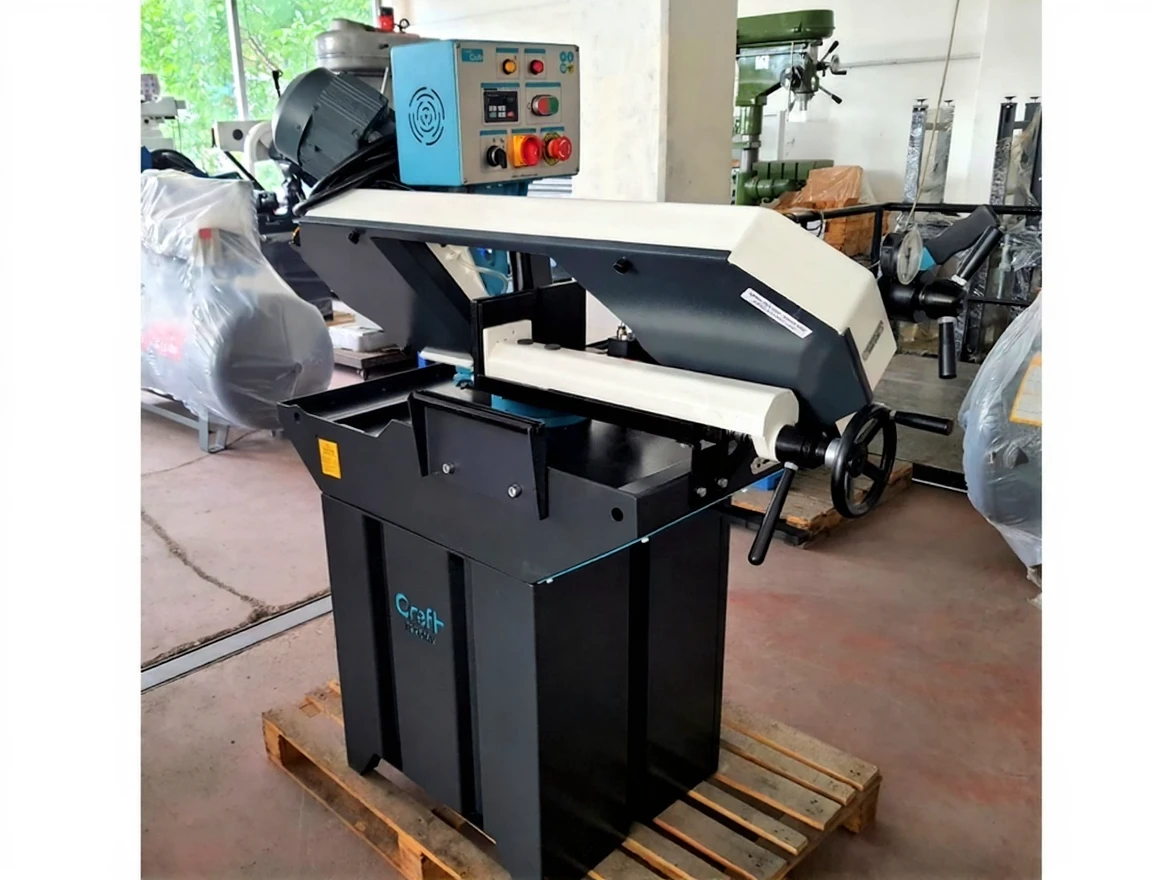

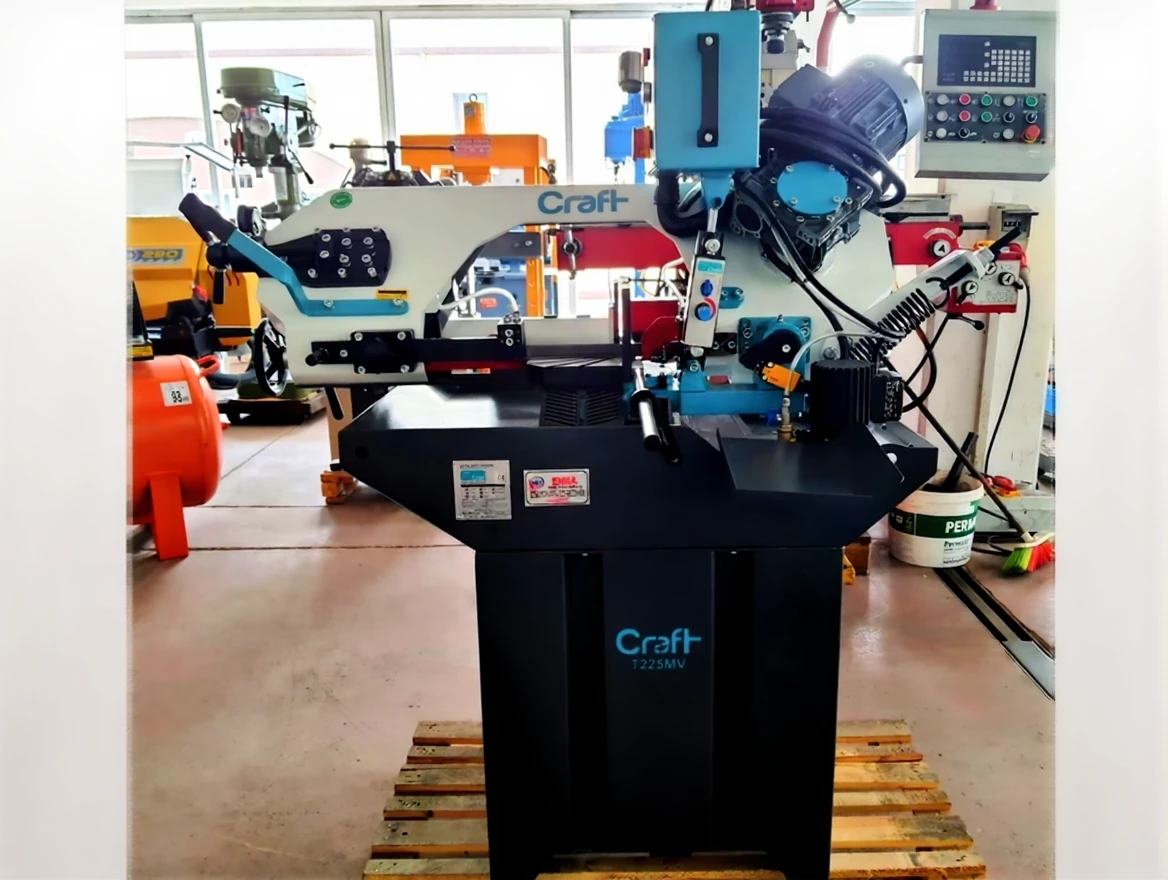

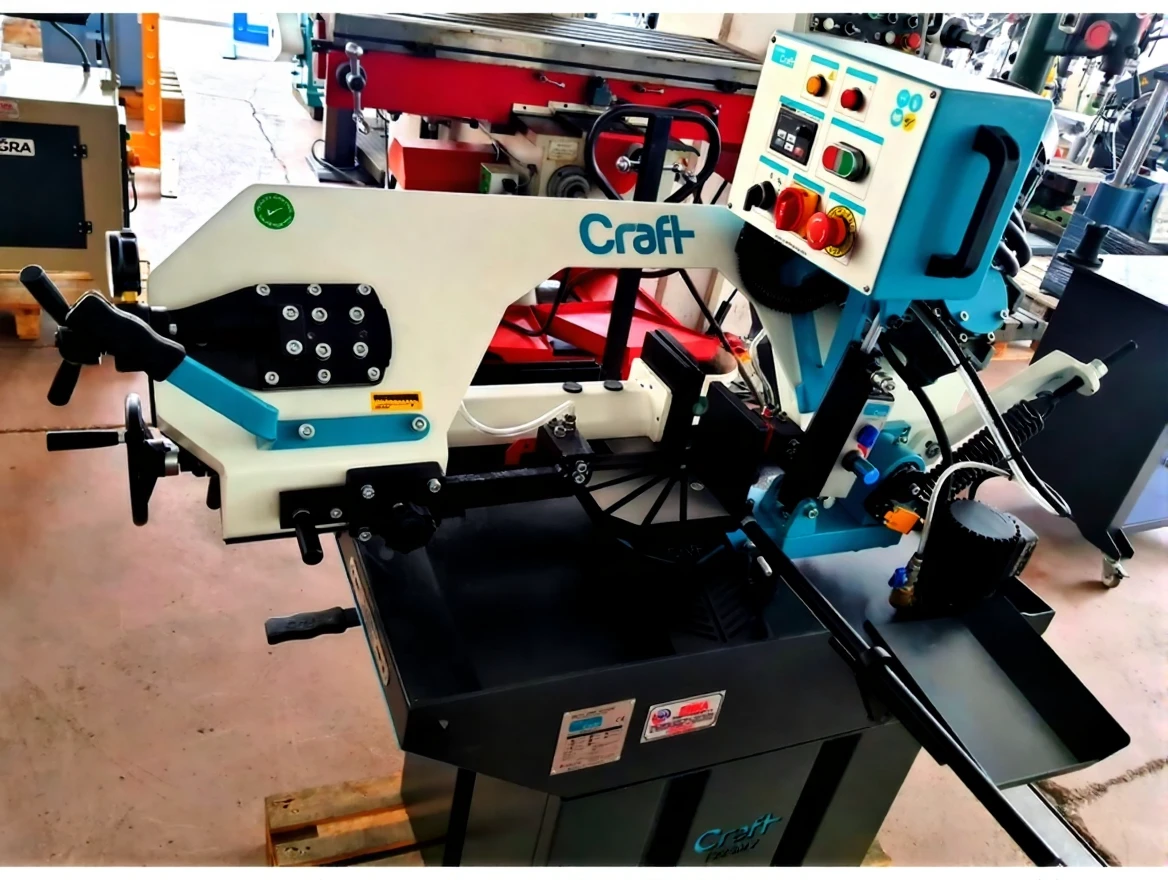

T225MV Band Saw Machine
| Brand | Craft |
|---|---|
| Model Type |
T225MV |
Description
| Motor Power | : 1.1 kW, 380 V |
| Cutting Angle | : 0°-60° |
| Cutting Angle Adjustment | : From the center |
| Head Descent Speed Adjustment/Feeding | : Hydraulic |
| Saw Blade Dimensions | : 27×0.9×2460 mm |
| Cutting Capacity at 0° | : ❍ 225mm; ❏ 195×195 mm; ❏ ❏ 265x150mm |
| Cutting Capacity at 45° | : ❍ 150mm; ❏ 150x150mm; ❏ ❏ 200x135mm |
| Cutting Capacity at 60° | : ❍ 90mm; ❏ 85x85mm |
| Speed | : 21 – 84 m/min |
| Gear | : Inverter / Unlimited |
| Machine Dimensions | : 1650x610x1092 mm |
| Weight | : 215 Kg |
| • Inverter speed adjustment/Vario system with unlimited gear in the range of 21-84 m/min | |
| • Digital speed indicator | |
| • LED Light illuminating the cutting area | |
| • Hydro-mechanical belt tensioning and saw pressure indicator | |
| • Angle adjustment up to 60° from the center | |
| • Ergonomic control panel for ease of use | |
| • Special design cast iron pulleys | |
| • High quality hydraulic system for feed speed adjustment | |
| • Domestic main motor, powerful reducer | |
| • High quality cooling pump | |
| • High quality electrical system | |
| • Chip brush | |
| • Compliant with CE standards |
Related products

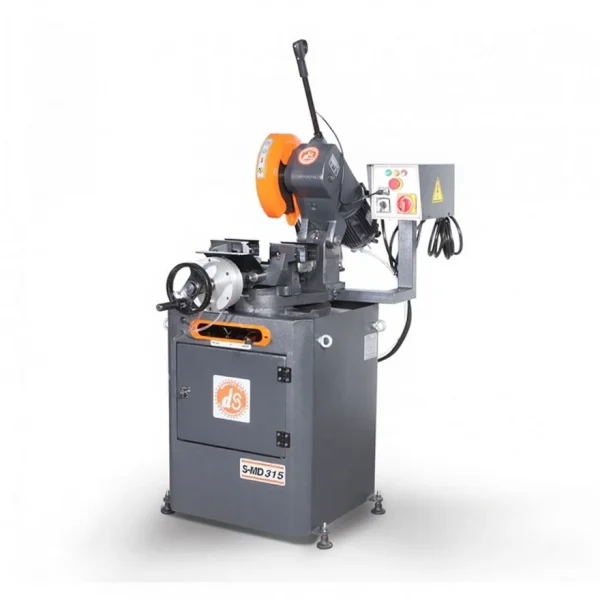

S MD 315 Pneumatic Double Vice Manual Profile Cutting Machine
