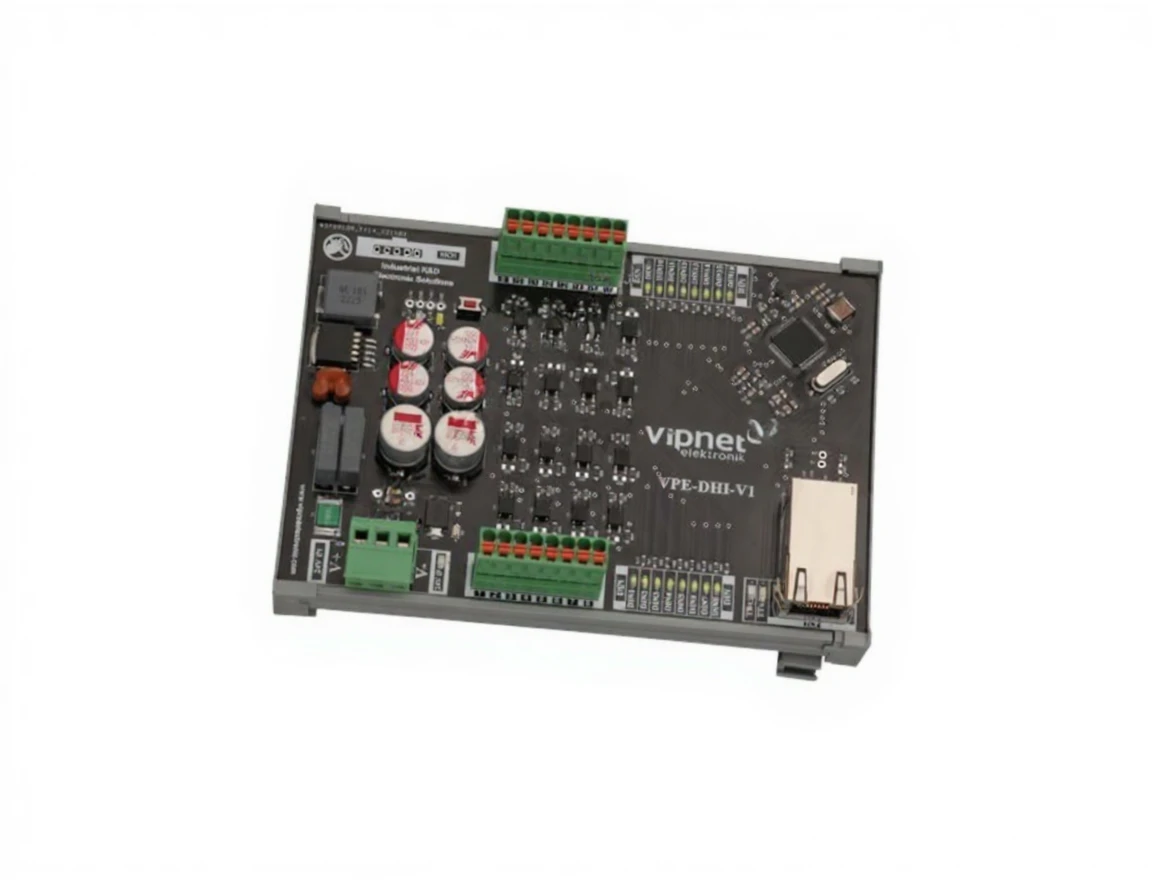

Tcp Communicating 16-Channel Digital Input Card

• Can be integrated into all devices used in industrial environments.
• It is a special board designed to ensure the electrical integration of its systems in the factory and for product cost reduction, size
reduction, as well as easy assembly with an original design and elimination of cable clutter.
• Digital Input modules provide an economical and easy way to connect inputs to a Modbus TCP communication network.
• Each module operates as an independent Modbus TCP server. They have completely isolated channels for noise-sensitive applications.
• The Digital Input Module has 16 isolated discrete inputs, (1) Ethernet (RJ45) connection port, requires Modbus TCP server, and external 24 VDC power supply.



Operating Voltage: 24V DC
Input Voltage: 24V DC
Input Pin Socket: 16
Output Pin Socket: 3.81mm Screw Terminal
Number of Input Pins: 16
Communication Type: Modbus TCP
Nominal Wiring Cross-Sectional Area: 2.5 mm²
Operating Temperature: -40 °C / 80 °C
Protective Element: SMD Fuse (1A)
Input Signal Monitoring: Led
Mounting Type: DIN-Rails Mounting
