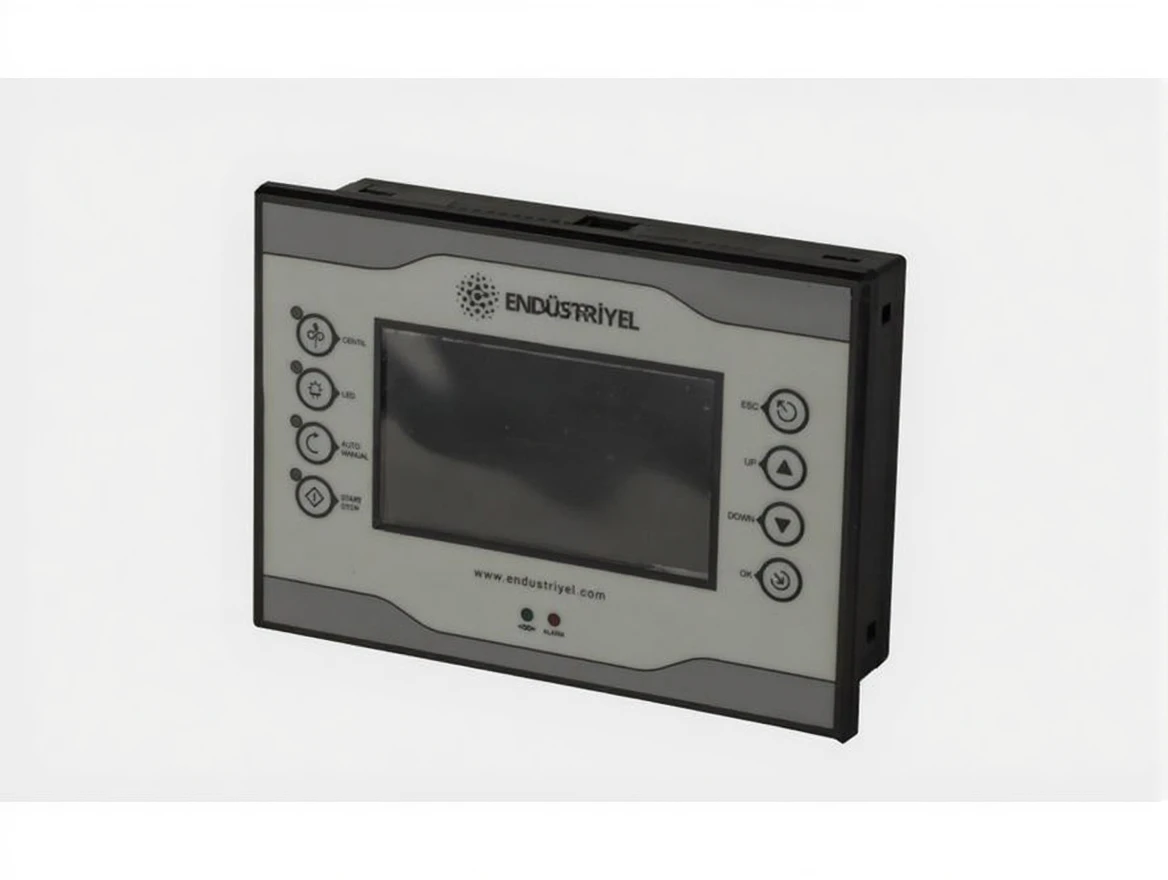

TFT Screen Vals Panel (V6 Vals Panel)

Brand

Model Type

EE-TFT-02

• Roller Mill is a machine that grinds main cereal products such as wheat into flour, bran, and other by-products.
• Wheat entering the roller mill passes through a process in roller machines adjusted and operated in different ways until it becomes the desired final product.
• These machines operate both internally and connected to the entire system.
• They have an important place in the entire flow.

• Directly affects product quality and production speed.
• Flow, rotation, and level indicators are monitored simultaneously.
• It facilitates fault tracking through rotation alarm, high current alarm, level alarm.
• The opening and closing levels of the roller mill can be programmed.
• The buttons on the screen provide programming and easy intervention possibilities. (Centil, LED, Auto/Manual, Start/Stop, ESC, UP/DOWN, OK).

Technical Specifications

Product Code EE-TFT-02

Operating Voltage 24V DC / Max 500 mA

Communication Type
TCP/IP

Communication Protocol Modbus-TCP/IP

Digital Input 8 Pieces (max: +24V DC)

Digital Output / Relay Output 8 Pieces (NO,COM)

Digital Output / Relay Contact Info 270VAC/30VDC – 5 Amp

Analog Input 1 Piece (4-20mA)

Analog Output 1 Piece (0-20mA or 4-20mA)

Current Transformer Connection 2 Pieces (max: 5A)

Frequency Meter Connection 3 Pieces
