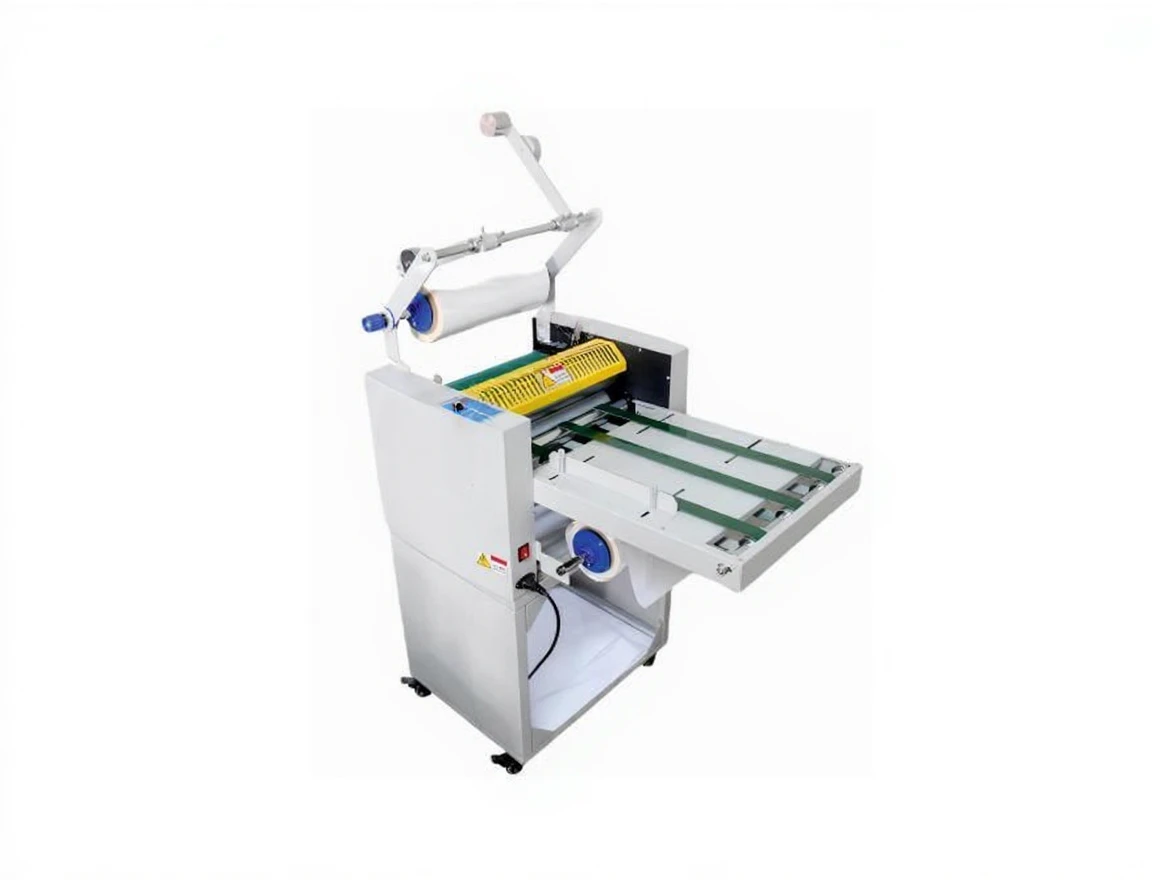

Titan TC360B Hot Thermal Lamination Machine

TITAN TC360B Thermal Lamination Machine

The new Titan TC360B Manual Thermal Lamination Machine is here with different innovations…

The hot oil heating system provides a more stable and homogeneous heat distribution, preventing rapid cooling of the roller.

The belt feed system provides great convenience for manual operation.

With the dual-shaft coil holder, you can have matte and glossy films in the machine at the same time without the need for removal for replacement.

The wheeled trolley provided with the machine allows you to use the machine wherever you want in your workplace.

Titan AC360B comes in 2 models. There is also a model with a digital gilding unit for gilding.

• Max paper size: 360 x 1000 mm
• Min paper size: 150 x 150 mm
• Feed system: Manual, belt table
• Operating speed: 0~13 m/min
• Heating System: Heating with oil
• Lamination temperature: 80~160 degrees
• Lamination pressure: Mechanical
• Separation system: Manual, perforation separation
• Paper thickness: 100 – 350 g/m2
• Cutting blade: included
• Anti-curling system (ironing): included
• Lower Table: included
• Power: 2 kW, 220V, 50Hz
• Dimensions: 0.77×0.53×1.14m
